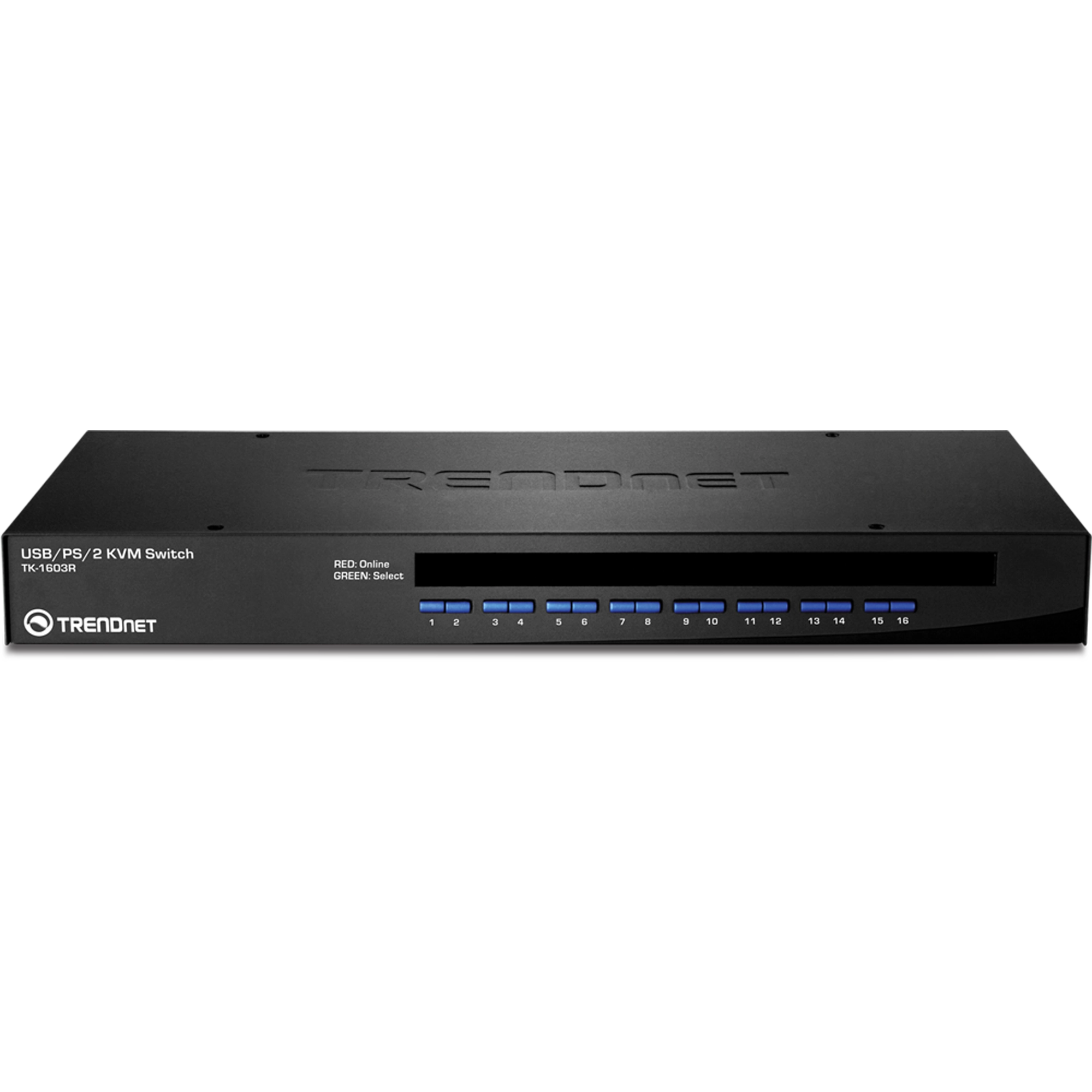

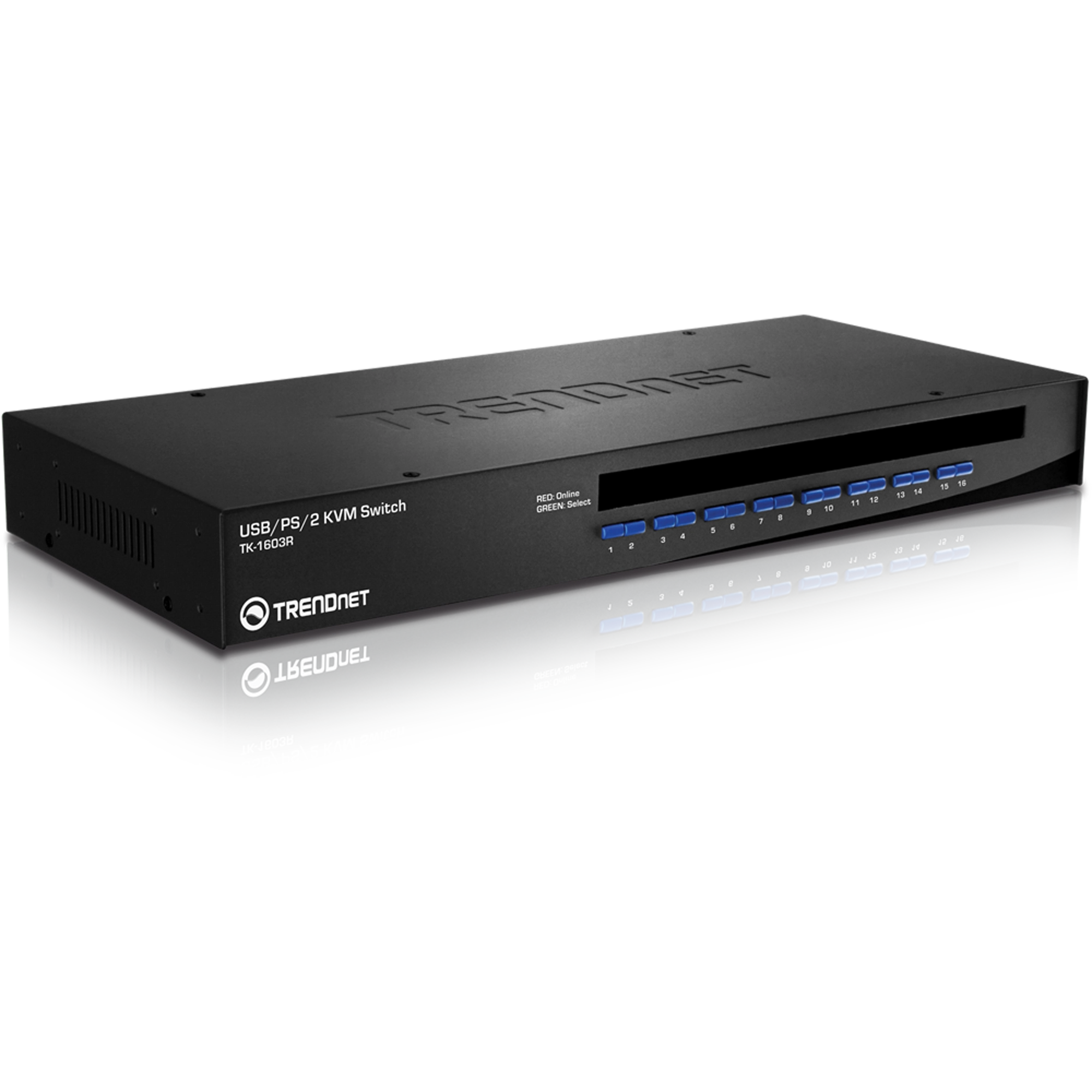

16-Port Rack Mount USB KVM Switch

TK-1603R (Version v1.1R)

  • 16-port (1U height) KVM switch with VGA and USB connection to servers
  • Supports both USB and PS/2 connections to console port
  • Device monitoring with adjustable Auto-Scan and audible feedback
  • Supports most operating systems and advance mouse designs

The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.

  • Controls up to 16 computers or servers
  • Supports both USB and PS/2 Interface for console port
  • Supports Windows, Linux, Mac and more
  • High video quality- up to 2048 x 1536 VGA resolution
  • Firmware upgradeable via PC port
  • Auto-Scan and LED display for monitored PCs
  • Keyboard status restored when switching between PCs
  • LEDs display for easy status monitoring
  • Beeping sound for port switching confirmation
  • Hotkey or push button switching
  • Plug & Play and hot-pluggable
  • Standard 19” (1U) rack mount design
  • 2-year limited warranty
Hardware
Connections
  • 16 computers or servers
Standard
  • USB 1.1 Compliant

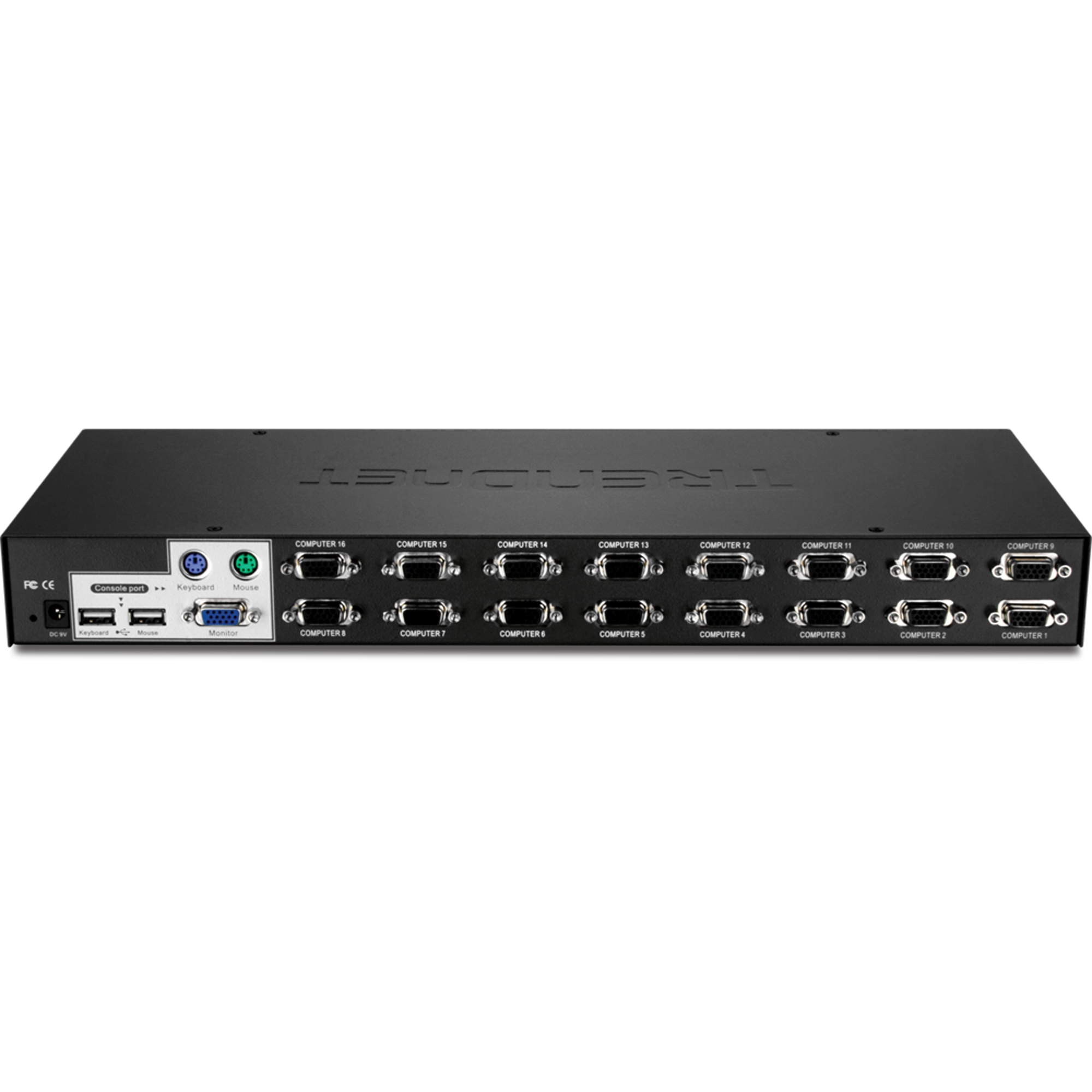

PC Port
  • 16 x VGA HDB 15-pin (female)
Console Port
  • 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Mouse
  • 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Keyboard
  • 1 x VGA HDB 15-pin (female)
Cable Interface (Optional, not included)
  • To KVM
  • 1 x VGA HDB 15-pin (male)
  • To PC
  • 1 x VGA HDB 15-pin (male)
  • 1 x USB (Type A)
Supported OS
  • Windows , Linux and Mac.
PC Selection
  • Hot-Key or Push Buttons
Auto-Scan Interval
  • 10-100 seconds (Programmable through Hot-Key)
LEDs
  • On-line (Red), Select (Green)
Keyboard Status
  • Saved & Restored
Power Adapter
  • Input: 100 ~ 240 V AC 50~60 Hz
  • Output: 9 V DC 1 A external power adapter
Dimensions
  • 407 x 165 x 45mm (16.0 x 6.5 x 1.8in.)
Weight
  • 2.04kg (4.5lb)
Temperature
  • Operating: 0°C~40°C (32°F~104°F)
  • Storage: -20°C~60°C (-4°F~140°F)
Humidity
  • Max. 80% (non-condensing)
Certification
  • CE, FCC

PACKAGE CONTENTS
  • TK-1603R
  • Quick Installation Guide
  • Power Adapter (9 V DC, 1 A)
  • Rack Mount Kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
