18-Port Gigabit NVR PoE+ Switch with LED Display

TPE-3018L (Version v1.0R)

  • 16 x Gigabit PoE+ ports
  • 2 x Shared Gigabit Uplink Ports (RJ-45 / SFP)
  • 220 watts PoE power budget
  • 36 Gbps switching capacity
  • 1U rack mountable (brackets included)
  • Convenient front-panel 4-digit seven segment LED display
  • Lifetime Warranty*

TRENDnet's 18-Port NVR PoE+ Switch, model TPE-3018L, is designed for use with a 16-channel NVR surveillance system. Users are able to connect all 16 IP cameras to the switch, while still providing 2 shared uplink ports for dedicated connections to your network, NVR, and / or NAS devices. This switch features a 220 watts total power budget, providing you with enough power for even the most demanding surveillance applications. Use the convenient front-panel LED display to view total power, available power, and power-per-port. Rack mountable hardware design and front-panel LEDs easily integrate into your existing NVR and IP surveillance solutions.

A network device with multiple Ethernet ports is connected to two security cameras via Ethernet cables, indicating power over Ethernet (PoE) functionality. The device and cameras feature icons with lightning bolt symbols, reinforcing the PoE capability.

NVR Switch

16 Gigabit PoE+ ports allow users to connect 16 IP cameras while still providing 2 shared Gigabit uplink ports (RJ-45 / SFP) for dedicated connections to your network, NVR and / or NAS devices.

A network device is depicted with multiple ports, Below the device, two security cameras & a Wireless Access point are shown connected to the network device, with a label indicating 220 Watt. The cameras are connected to the Ethernet ports, suggesting a Power over Ethernet (PoE) setup.

PoE Power

A 220 watt PoE+ power budget supplies up to 16 Power over Ethernet devices with PoE power.

A network setup diagram with cylindrical tubes representing high-speed data transfer. Icons inside the tubes show different types of data like music notes, documents, and video files. Text in the center indicates gigabit speeds and jumbo frames up to 10 KB, with arrows showing the direction of data flow.

Gigabit Networking

Gigabit ports produce a 36 Gbps switching capacity and support Jumbo Frames up to 10 KB.

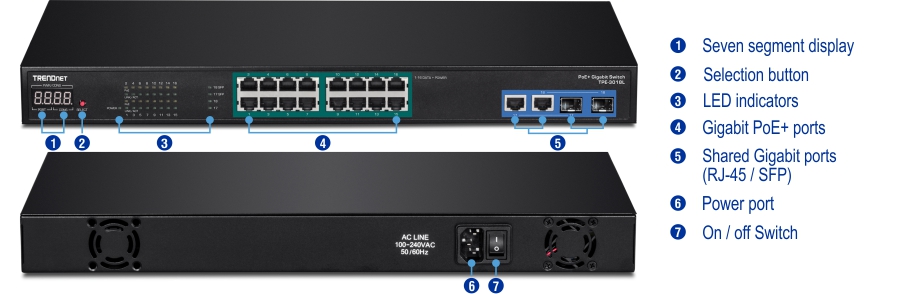

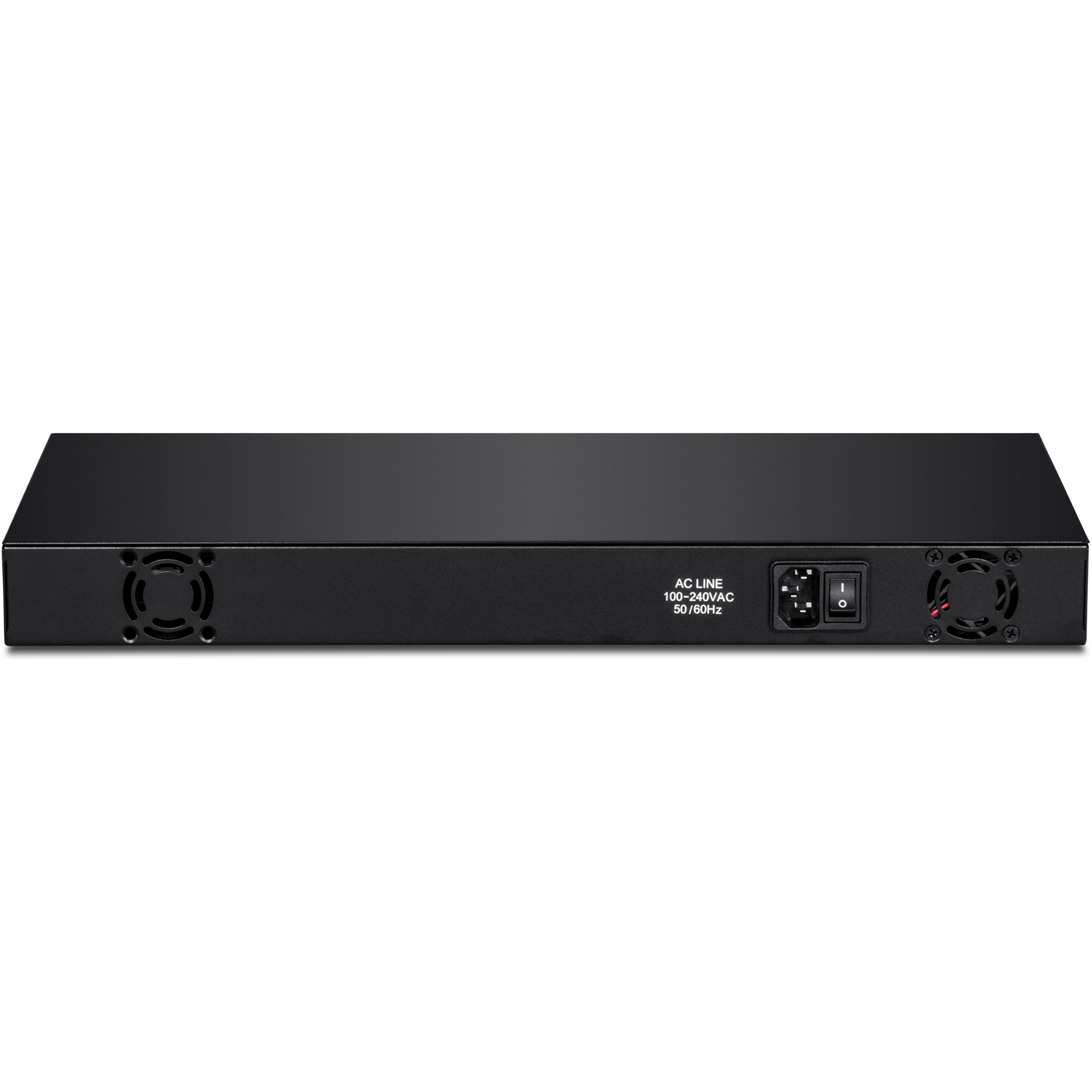

A TRENDnet PoE+ Gigabit Switch features a front view with a seven-segment display, a selection button, LED indicators, Gigabit PoE+ ports, and shared Gigabit ports (RJ-45/SFP). The back view includes a power port and an on/off switch.

NVR PoE+ Switch

16 Gigabit PoE+ Ports allow users to connect 16 IP cameras while still providing 2 shared gigabit uplink ports for dedicated connections to your network, NVR, and / or NAS devices.

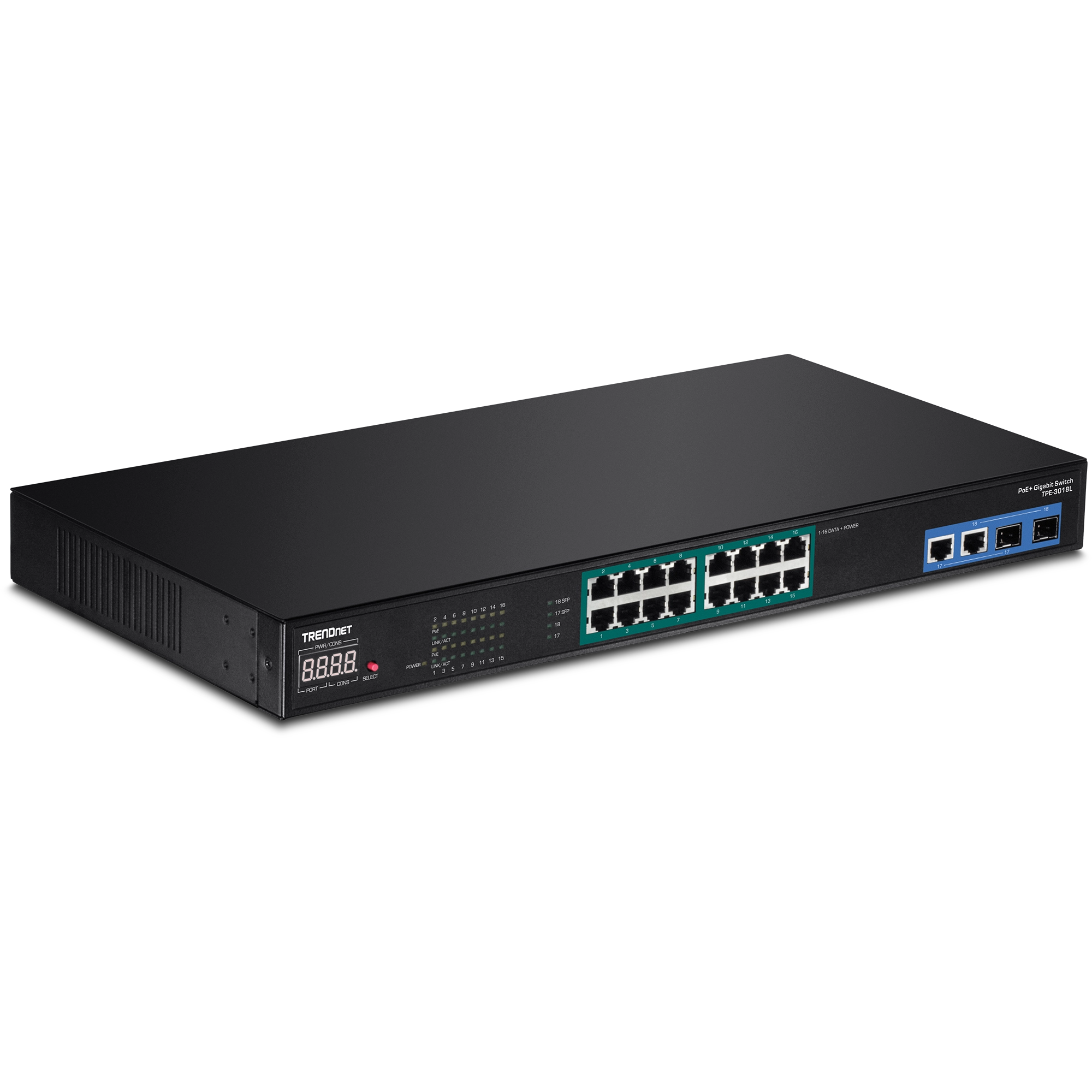

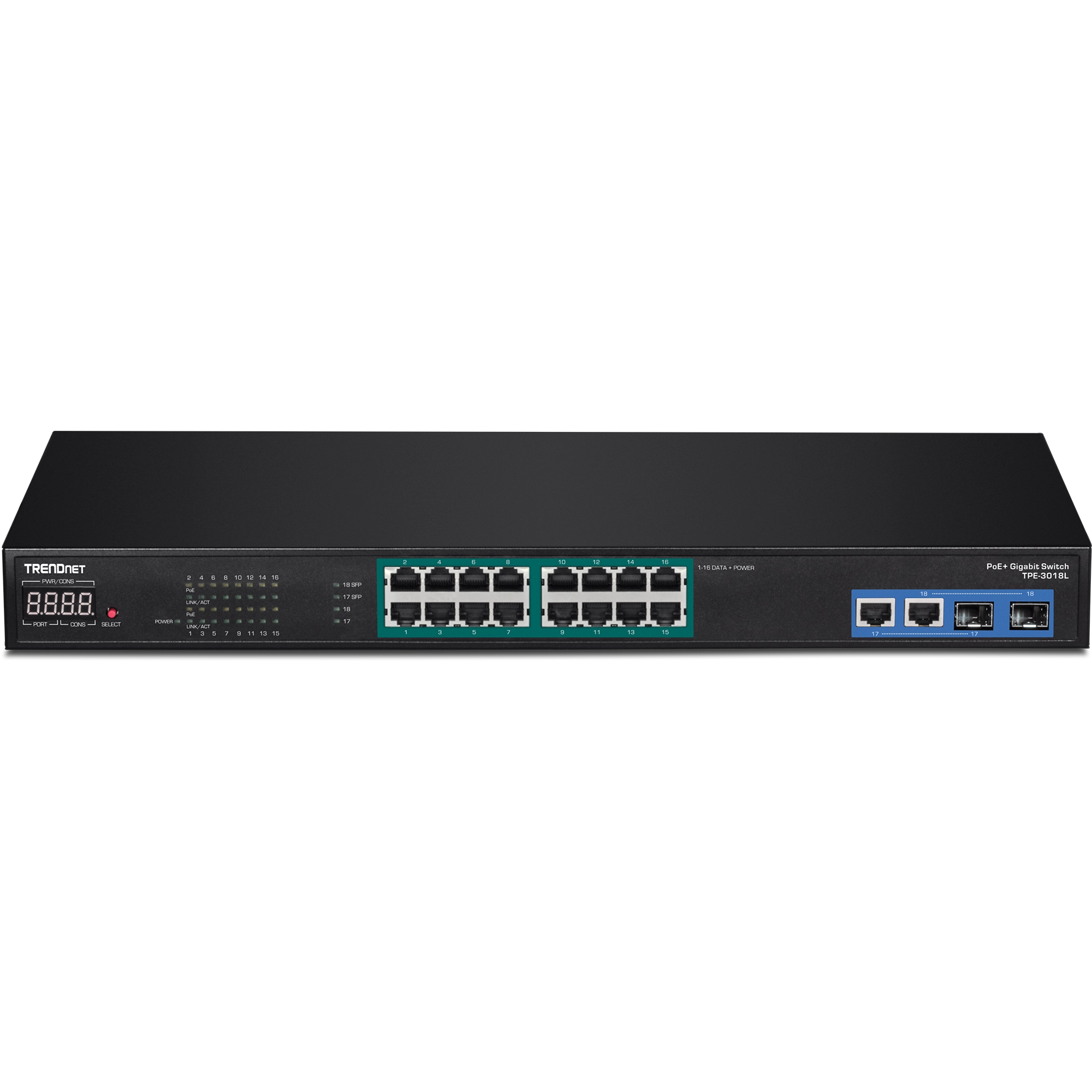

Hardware Design

Rack mountable metal housing features 16 Gigabit PoE+ ports plus two shared ports (RJ-45 / SFP) for uplink connections

7-Segment LED Display

View total power, available power, and power-per-port

Power Budget

Up to 220 watts PoE+

Rack Mountable

Standard 19” 1U design (brackets included)

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 16 x Gigabit PoE ports
  • 2 x Gigabit Ethernet ports and 2 x shared SFP slots
  • LED indicators
  • 4-digit Seven-Segment LED Display
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Broadcast storm control
  • Auto-learning network configurations
  • Data RAM Buffer: 512 KB
  • Switch Fabric: 36 Gbps
  • MAC Address Table: 8 K entries
  • Forwarding rate: 26.7 Mpps (64-byte packet size)
  • Jumbo Frame: 10 KB
Power
  • Input: 110 – 240 V AC, 50 / 60 Hz
  • Consumption: 10 watts (Max. no PD)
PoE
  • PoE budget: 220 watts
  • PoE budget per port: 30 watts
  • Over current protection
  • Short current protection
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 280 x 44 mm (17.3 x 11 x 1.7 in.)
Weight
  • 3.5 g (7.7 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty

PACKAGE CONTENTS
  • TPE-3018L
  • Quick Installation Guide
  • Rack mount kit
  • Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
