USB 3.0 to HDMI adapter

TU3-HDMI (Version v2.0R)

Add a 1080p full HD monitor to a workstation in Extend Mode
See a 1080p computer display on an HD TV in Mirror Mode
Flawless video with the SuperSpeed USB 3.0 to HDMI connection
Use up to 6 TU3-HDMIs together to add 6 displays
Powered by the connected computer
Enjoy 5.1 digital surround sound audio
Supports Windows^® and Mac^® operating systems

DISCONTINUED PRODUCT

The TU3-HDMI (Version v2.0R) has been discontinued. It has been replaced by the TUC-HDMI (Version v1.0R). For a list of discontinued products, click here.

TRENDnet's USB 3.0 to HD TV Adapter, model TU3-HDMI, adds a full 1080p HD monitor to a workstation in Extend Mode or displays a computer screen on an HD TV in Mirror Mode. Experience flawless video with the SuperSpeed USB 3.0 to HDMI connection. The adapter is powered by the connected computer, 5.1 digital surround sound audio, and is compatible with Windows^® and Mac^® operating systems.

Multi-Display Workstation

Unlock workstation efficiency by adding multiple large screen HD displays to your workstation (one TU3-HDMI per display)

Display Your Way

Combine multiple displays into one viewing field with Extend Mode or repeat a viewing field to another display with Mirror Mode.

HD Video to a TV

Connect the high speed USB 3.0 port to your computer, then connect the HDMI cable to your TV to stream HD video.

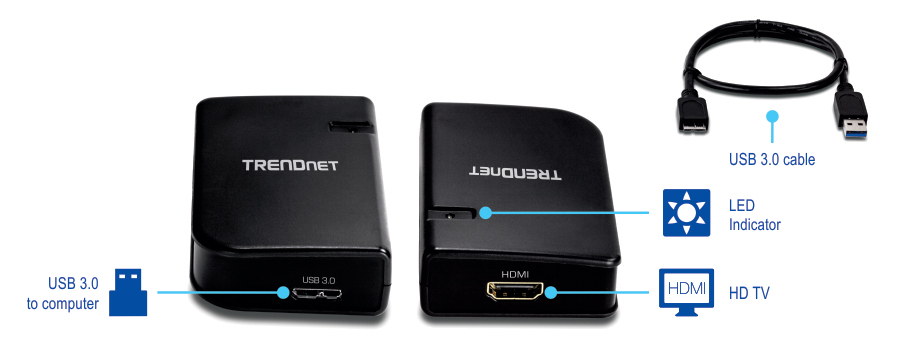

The front and back view of two black devices labeled TRENDnet. The front view features a USB 3.0 port labeled USB 3.0 to computer. The back view highlights an HDMI port labeled HDMI to HD TV, along with a USB 3.0 cable on the right side and an LED indicator on the device on the right.

Full 1080p HD

HDMI 1.3 supports full 1080p HD resolution (1920 x 1080) and resolutions up to 2048 x 1536

Extend Mode

Add a 1080p full HD monitor, with an available HDMI port, to a workstation in Extend Mode

Mirror Mode

See a 1080p computer display on an HD TV in Mirror Mode

Multiple Displays

Use up to 6 TU3-HDMI adapters to add 6 displays (requires 6 free USB ports on a computer)

Surround Sound

Experience 5.1 digital surround sound audio

Video Refresh

Supports a 60 Hz video refresh rate

Flexible Connector

A 50 cm (20 in.) USB 3.0 cable provides installation flexibility

USB Port

Compatible with USB 3.0 and 2.0 ports

Power

LED Indicator

LED indicator conveys device status

Operating Systems

Compatible with Windows^®and Mac^®operating systems

Standards	HDMI 1.3 USB 3.0 USB 2.0
Interface	1 x HDMI 1.3 port 1 x USB 3.0 micro Type B port LED indicator
Monitor	Full 1080p HD resolution support with a 60 Hz refresh rate Max. QXGA 2048 x 1536 resolution support 48-bit true color support
Audio	2.0 Channel 5.1 Channel (HDMI)
Modes	Extend (left, right, above, below) Mirror
Display Controls	Define screen resolution Rotate display left, right, upside down Set as Main Monitor function transfers operating system controls to the display viewing field Notebook Monitor Off function turns off the computer's primary display
Supported OS	Windows^® 8.1, 8, 7, Vista, XP (32-bit only) Mac^® 10.6 - 10.9
Special feature	Compatible with monitors, televisions, and projectors with an HDMI port Connect up to 6 TU3-HDMI adapters (requires 6 free USB ports) Supports High-Bandwidth Digital Content Protection (HDCP) 2.0
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 85% non-condensing
Power	USB bus powered Current: 400 mA Consumption: 2 Watts (max.)
Dimensions	87 x 54 x 22 mm (3.4 x 2.2 x 0.9 in.)
Weight	58 g (2.0 oz.)
Warranty	2 year limited
Certifications	CE FCC

PACKAGE CONTENTS

TU3-HDMI
Quick Installation Guide
CD-ROM (Drivers & User's Guide)
USB 3.0 micro Type-B to Type-A cable (50 cm/20 in.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
