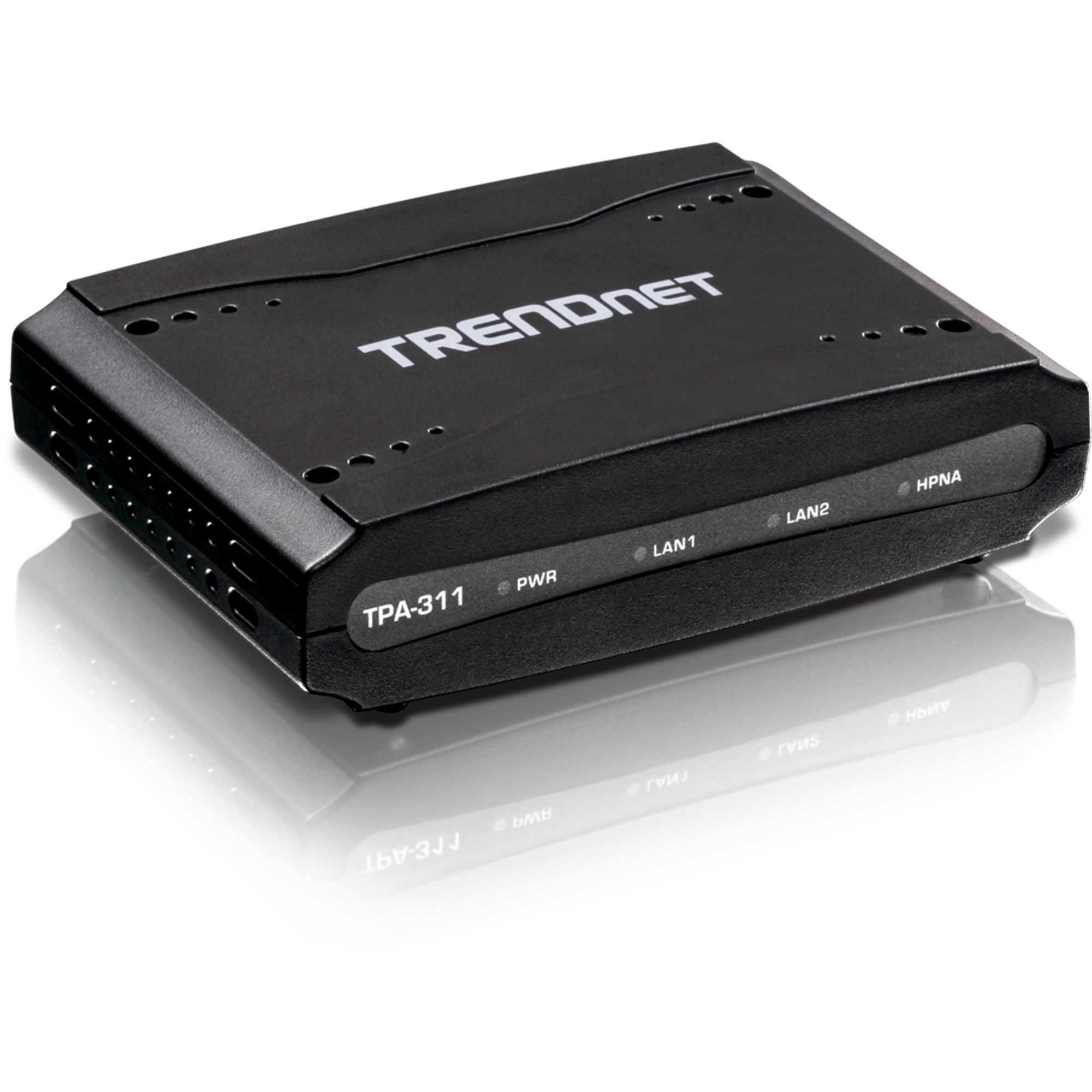

Mid-Band Coaxial Network Adapter

TPA-311 (Version v1.0R)

  • Compatible with most Triple Play deployment solutions
  • High Speed building-wide networking from any coaxial cable outlet
  • Compliant with ITU-TG.9954 and HPNA 3.1

The Mid-Band Coaxial Network Adapter (TPA-311) uses existing coaxial cables to extend a high speed building-wide Triple Play network throughout the home or office. The mid-frequency adapter is designed to support deployment for digital TV, high speed Internet and VoIP single-access subscription service offerings.

Compliant with ITU-T G.9954 and Home Phoneline Networking Alliance (HPNA) 3.1 standards. Robust Quality of Service technology delivers consistent voice and video bandwidth. Functions with complex phone line network topologies and compatible with Microsoft IPTV software.

  • Supports HomePNA 3.1 over coaxial cables
  • Supports data transmission rates of up to 256Mbps over distances of up to 1600 meters (5200 feet)
  • 1 x HomePNA Coax: F-Type Female coax connector
  • 1 x TV Coax: F-Type Female coax connecter
  • 2 x RJ-45 Fast Ethernet LAN
  • 1 x Power port Designed for multimedia on demand (MOD) over existing coaxial cable
  • Supports HomePNA 3.1 parameterized QoS
  • Designed with universal power rating
  • 2-year limited warranty
Hardware
Standards
  • HomePNA 3.1 over coaxial cable
  • IEEE 802.3, IEEE 802.3u
  • ITU-T G.9954

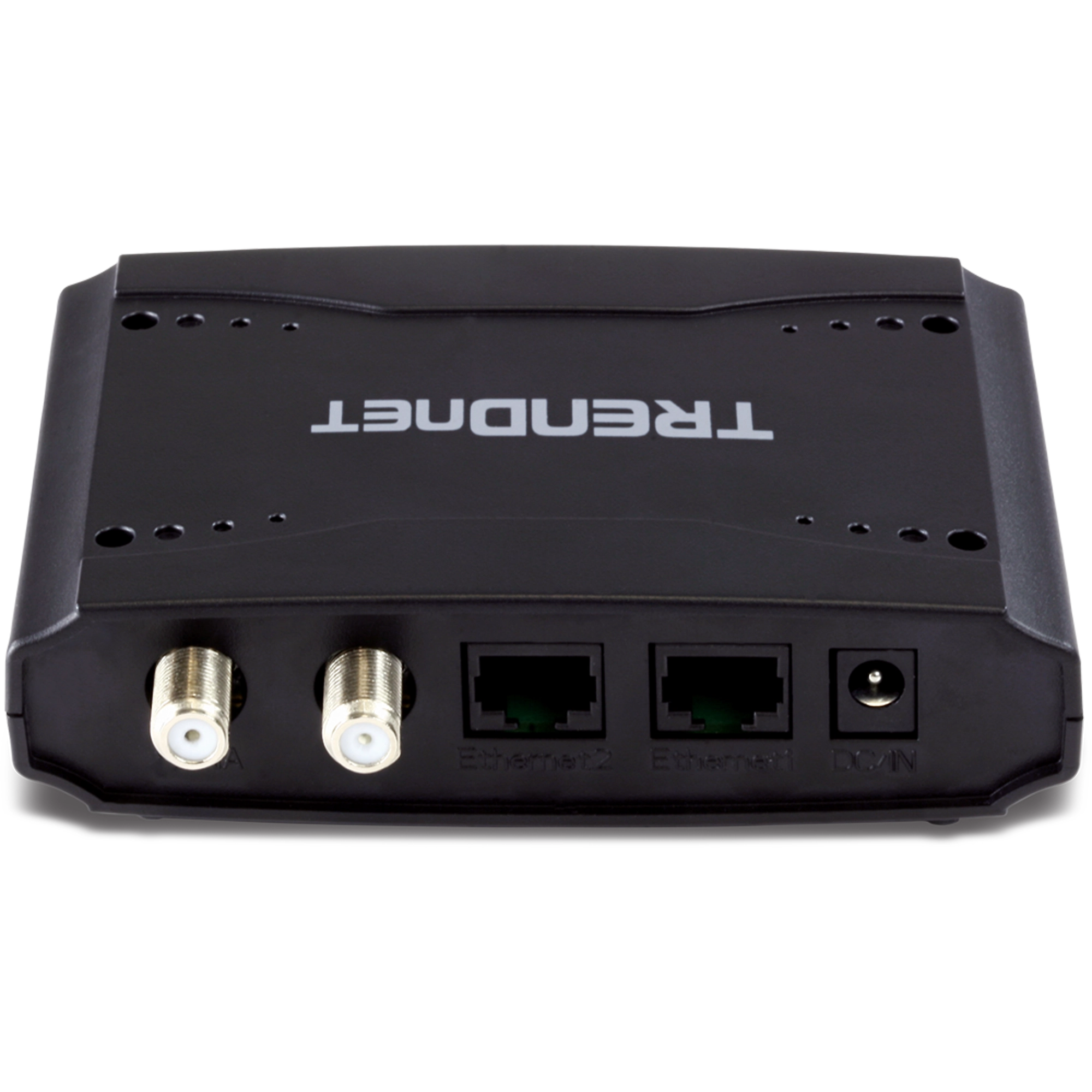

Interface
  • 1x HomePNA Coax: F-Type Female coaxial connector
  • 1x TV coaxial: F-Type Female coaxial connecter
  • 2x RJ-45 Fast Ethernet LAN
  • 1x Power port
Data Rate
  • Up to 256Mbps (PHY Rate)
  • Up to 193Mbps (Throughput)
Flash Memory
  • 1024Kb
Max Attenuator
  • 60dB @ 64Mbps
Baseband
  • 12-44MHz
Point to Multipoint
  • 10 clients per band (CG3210 Environment)
  • 8 client per band (Mix: CG3210, CG3110, CG3010)
Quality of Service
  • 802.1p priority queue, TOS, Tag VLAN pass through, Guaranteed QoS on HomePNA 3.1 parameterized QoS
Power Consumption
  • 4.5w (max)

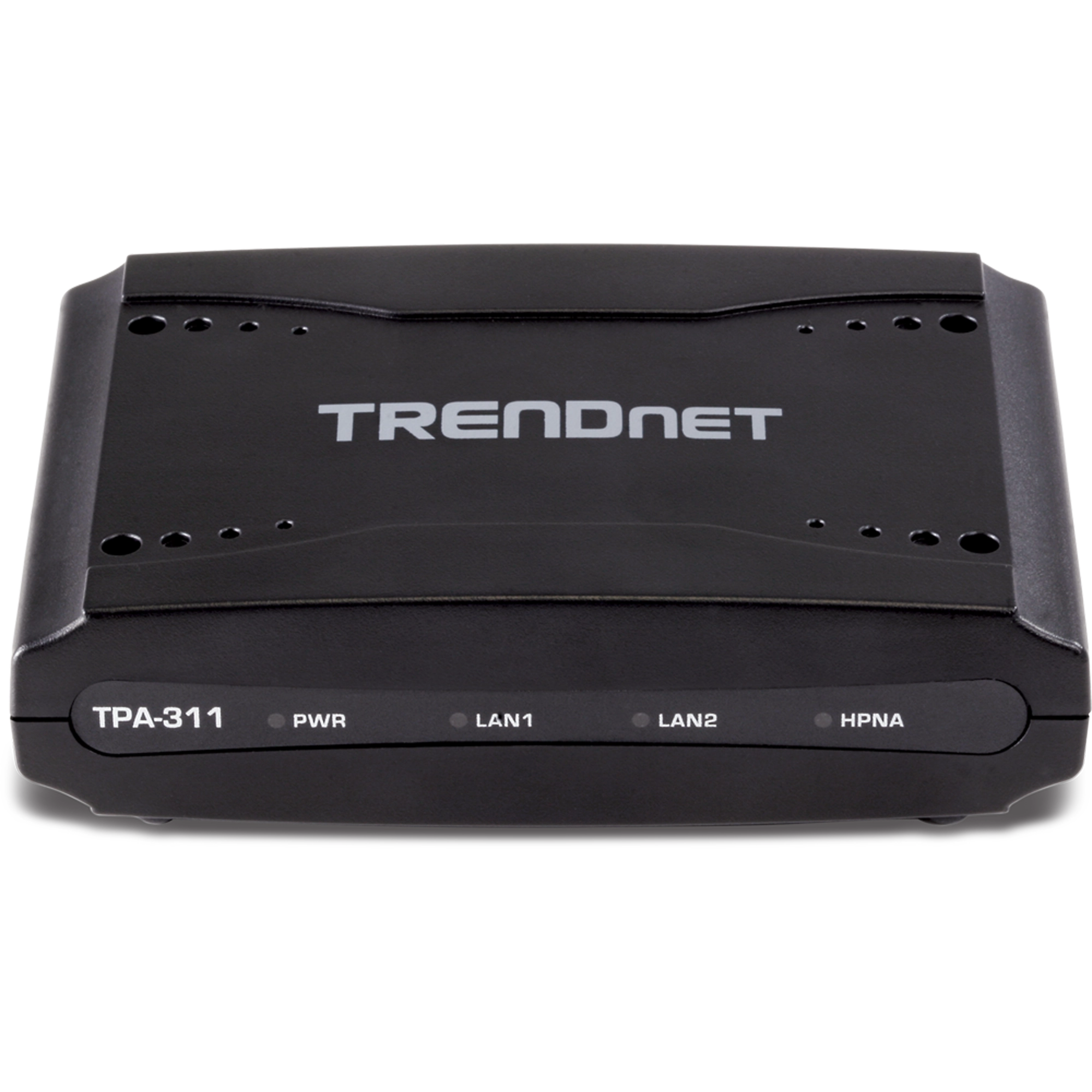

Diagnostic LED
  • Power, HomePNA, Ethernet
Power Adapter
  • Output: 7.5V, 1A
Dimension
  • 118.47 x 82.13 x 30 mm (4.664 x 3.233 x 1.18 in)
Weight
  • 0.14kg (5 oz)
Temperature
  • Operation: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 65° (14° ~ 149° F)
Humidity
  • 10%~95%, non-condensing
Certifications
  • FCC, CE, VCCI

PACKAGE CONTENTS
  • TPA-311
  • Power Adapter (7.5v, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
