RS232 to RS422/RS485 Converter Adapter

TI-S100 (Version v1.0R)

  • Convert an RS232 port to an RS422/RS485 terminal block
  • Designed for use with the TI-M12 and TI-M42 industrial modbus gateways
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

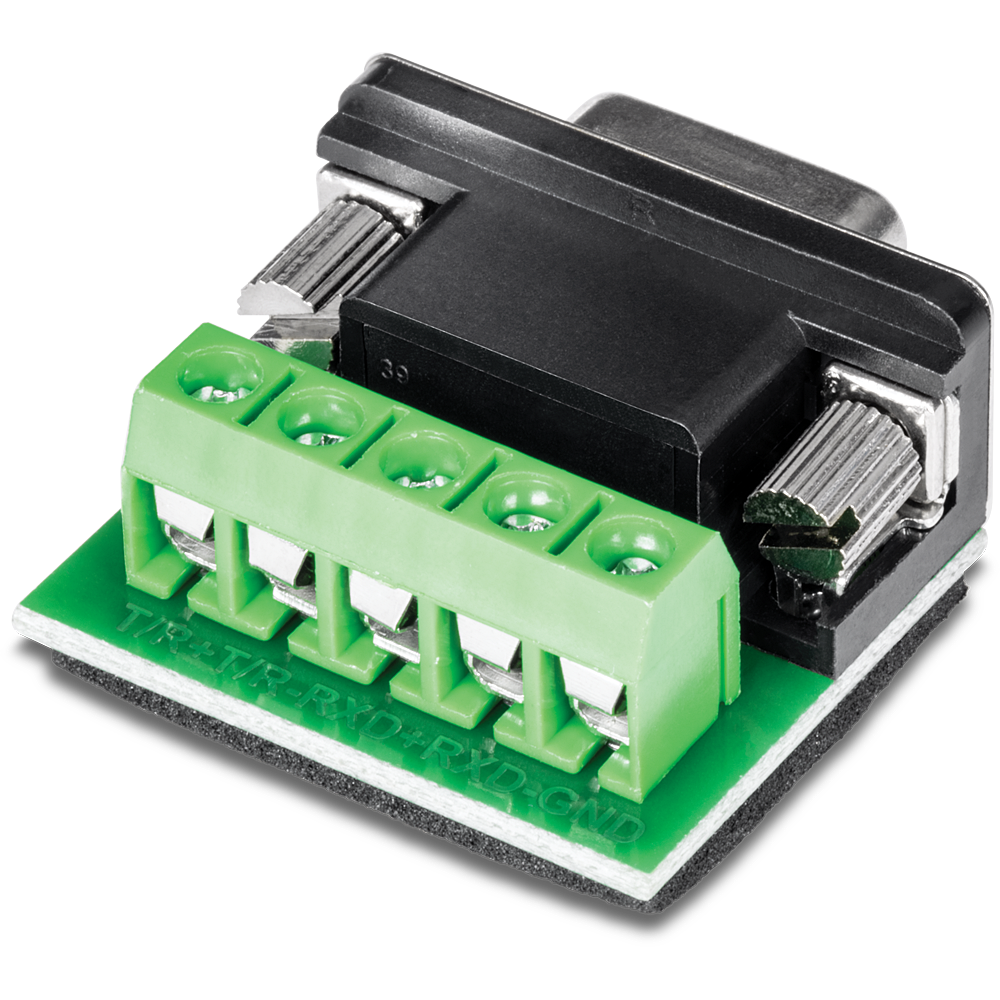

TRENDnet’s RS232 to RS422/RS485 Converter Adapter, model TI-S100, is a DB9 terminal block adapter designed for use with our TI-M12 and TI-M42 industrial modbus gateways. The TI-S100 RS232 terminal block adapter conveniently converts an RS232 port to an RS422 or RS485 terminal block.

Line art of a VGA connector. VGA (Video Graphics Array).

RS232 to RS422/RS485 Converter Adapter

Quickly and easily convert an RS232 port into an RS422/RS485 terminal block.

Line art shows two modbus gateways.

Compatibility

Designed for use with the TI-M12 and TI-M42 industrial modbus gateways.

RS232 to RS422/RS485 Converter Adapter

Convert an RS232 port to an RS422/RS485 terminal block with this serial to terminal block adapter

Compatibility

This DB9 terminal block adapter is designed for use with TRENDnet’s TI-M12 and TI-M42 industrial modbus gateways

Interface

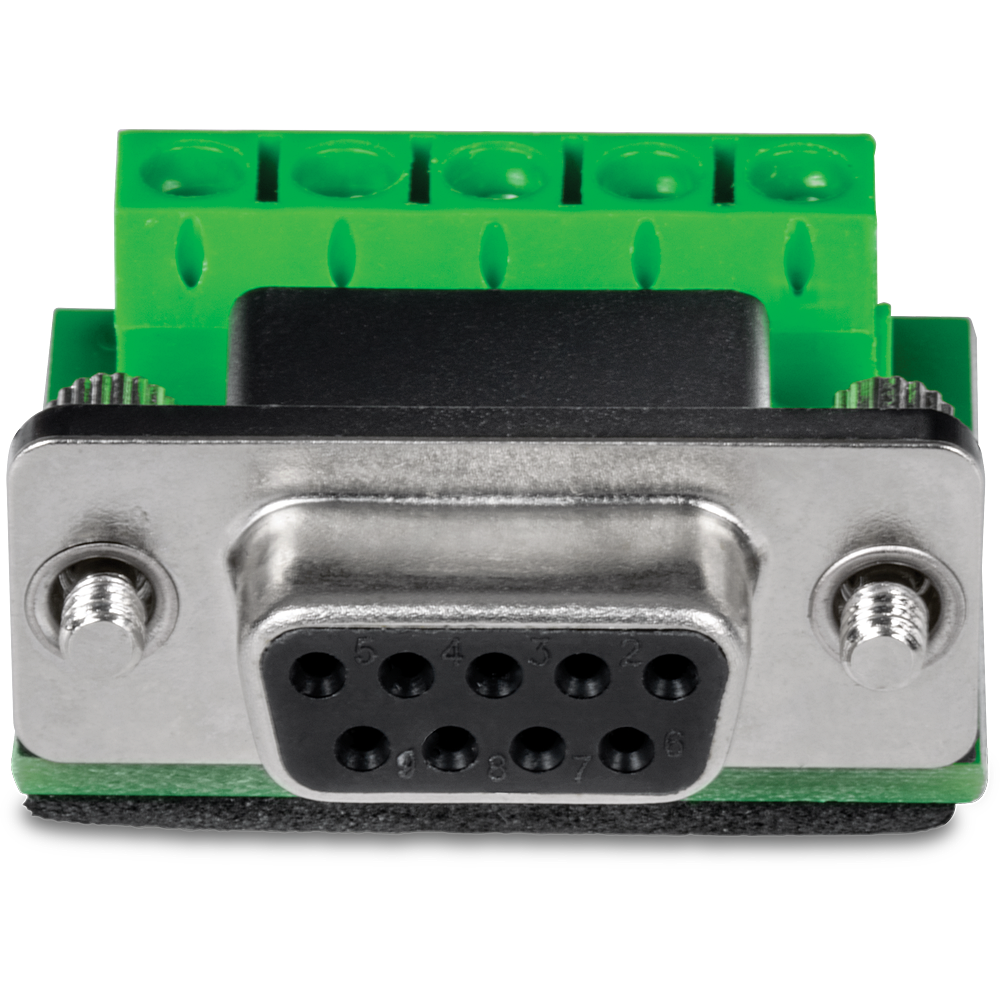

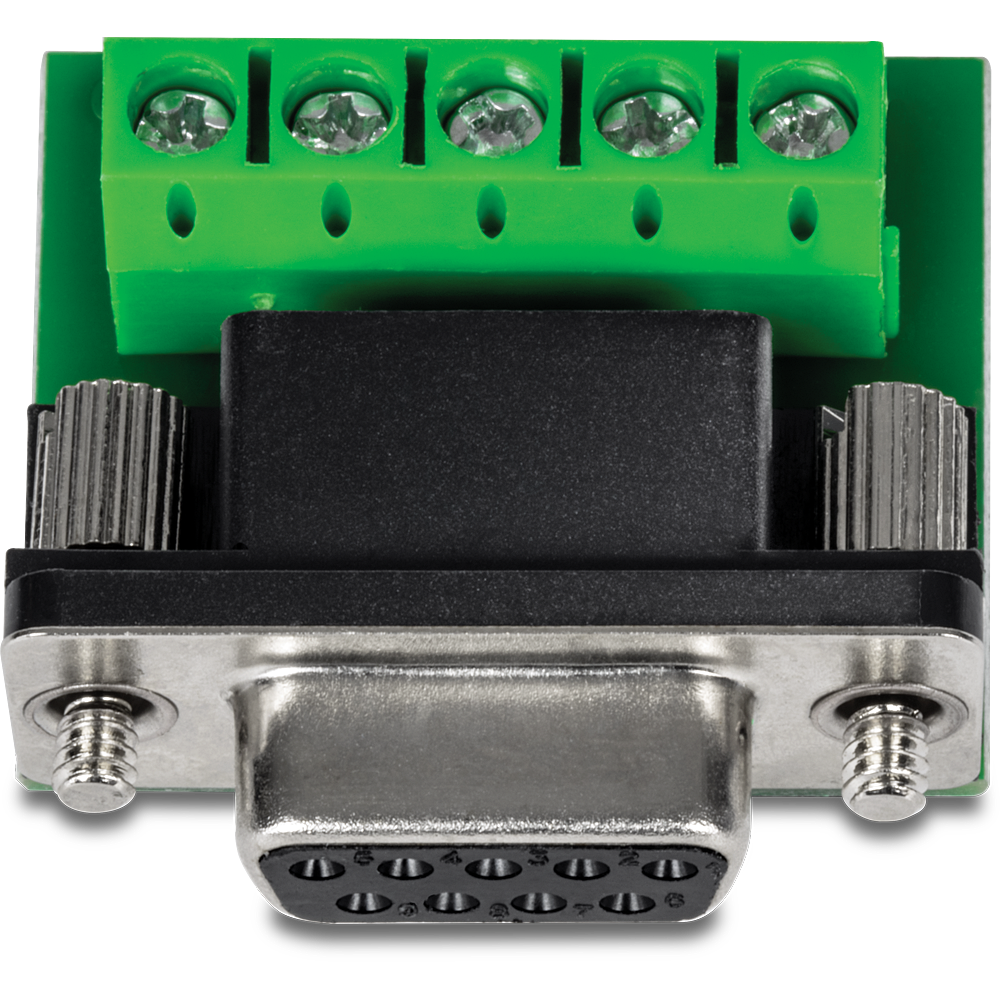

  • 1 x DB9 Female RS-232 to RS-422/RS485
  • 1 x Terminal block

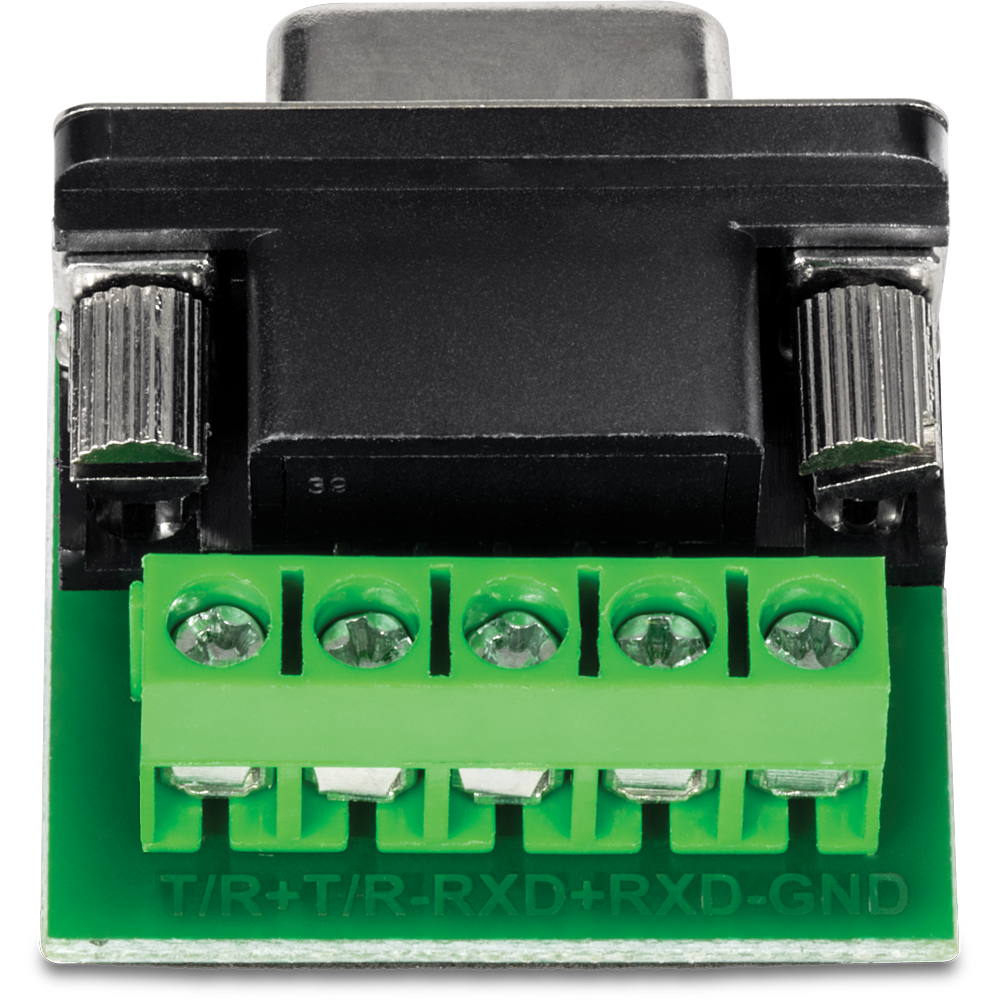

Terminal Block
  • Redundant power inputs, 5-pin
  • Wire range: 26-14AWG
  • Solid wire (AWG): 26-14AWG
  • Stranded wire (AWG): 26-14AWG
  • Torque: 0.4Nm (3.6 Lb.-In)
  • Wire strip length: 6-7mm
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Dimensions
  • 30 x 33 x 15mm (1.2 x 1.3 x 0.6 in.)
Weight
  • 16g (0.5 oz.)
Warranty
  • 1 year

PACKAGE CONTENTS
  • TI-S100

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
