2-Port DisplayPort KVM Switch

TK-241DP (Version 1.0R)

  • DisplayPort™ 1.2 KVM
  • 3.5mm speaker and microphone connections
  • Designed for use with DisplayPort systems
  • Resolutions & refresh rates
    • Up to 1920 x 1080 @ 144Hz
    • Up to 1920 x 1200 @ 144Hz
    • Up to 1920 x 1440 @ 144Hz
    • Up to 2560 x 1440 @ 144Hz
    • Up to 3440 x 1440 @ 60Hz
    • Up to 3840 x 2160 @ 60Hz
    • NDAA / TAA compliant (U.S. and Canada only)
  • 2-Port USB 2.0 hub for storage devices and other USB peripherals
  • Required cabling sold separately (2x TK-CP06)
  • No CD installation required
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s 2-Port DisplayPort KVM Switch, model TK-241DP, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolution with this DisplayPort KVM switch, no driver installation required. The TK-241DP DisplayPort KVM switch is designed for systems with DisplayPort, USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or other USB peripherals between computers.

Line art diagram showing a single monitor connected to a KVM (Keyboard, Video, Mouse) switch.

DisplayPort 1.2

Designed to connect to two DisplayPort computers.

4K UHD logo on monitor.

4K UHD Resolution

Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz).

An illustration of the back of a KVM Switch with a USB port, showing in a speech bubble.

USB 2.0 Hub

Two additional USB ports to connect storage drives and other USB peripherals.

The illustration shows a setup involving two desktop computers, a KVM (Keyboard, Video, Mouse) switch, and peripherals such as a monitor, keyboard, and mouse. The two desktop computers are labeled PC 1 and PC 2. They are connected to the KVM switch, which is a TRENDnet device. The KVM switch has ports labeled PC 1 and PC 2, with connections for DisplayPort, USB, and audio. The KVM switch is also connected to a monitor, keyboard, and mouse, allowing the user to control both computers using a single set of peripherals. The connections are visually represented with blue lines indicating the flow from the computers to the KVM switch and then to the peripherals. This setup is relevant for users who need to manage multiple computers efficiently using one monitor, keyboard, and mouse.

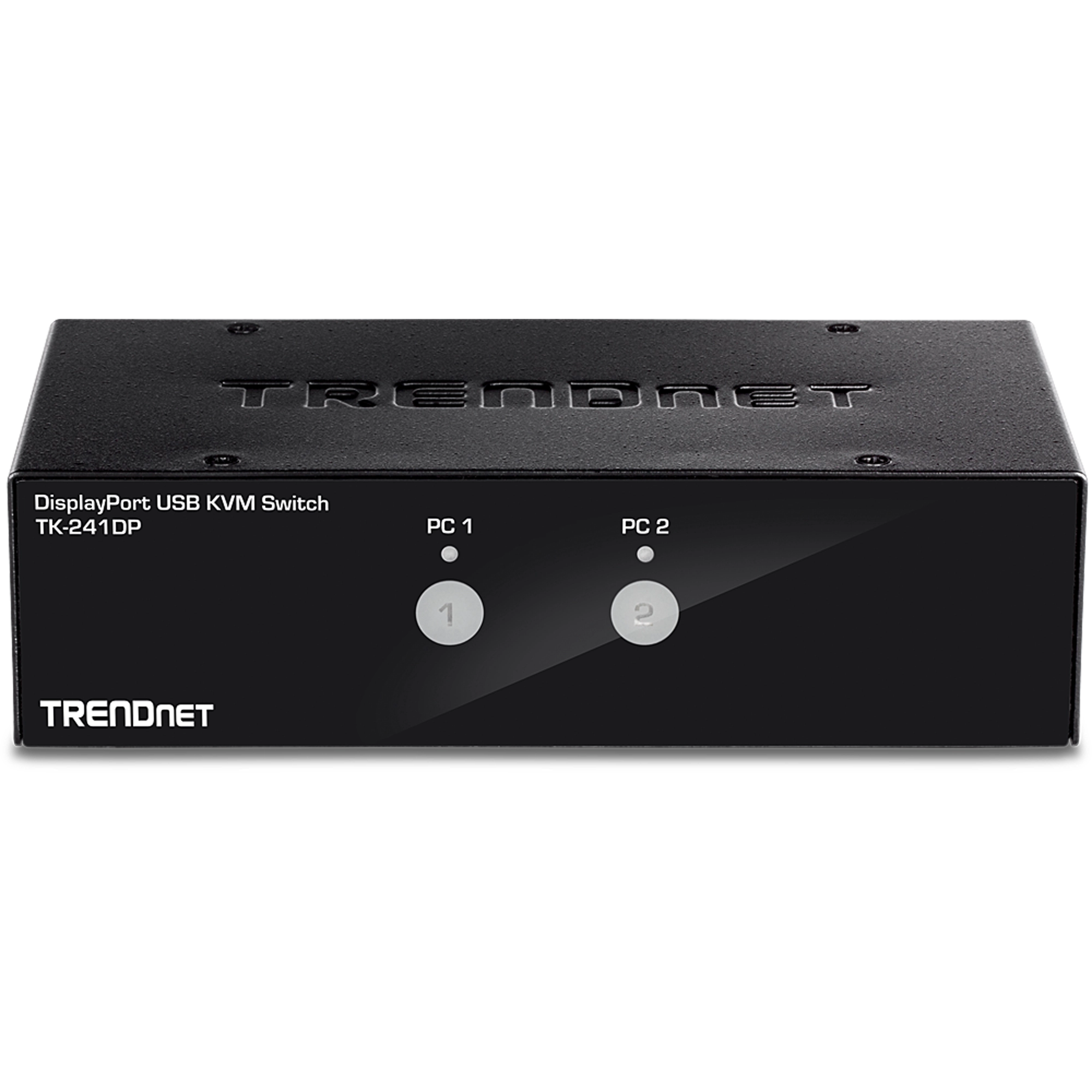

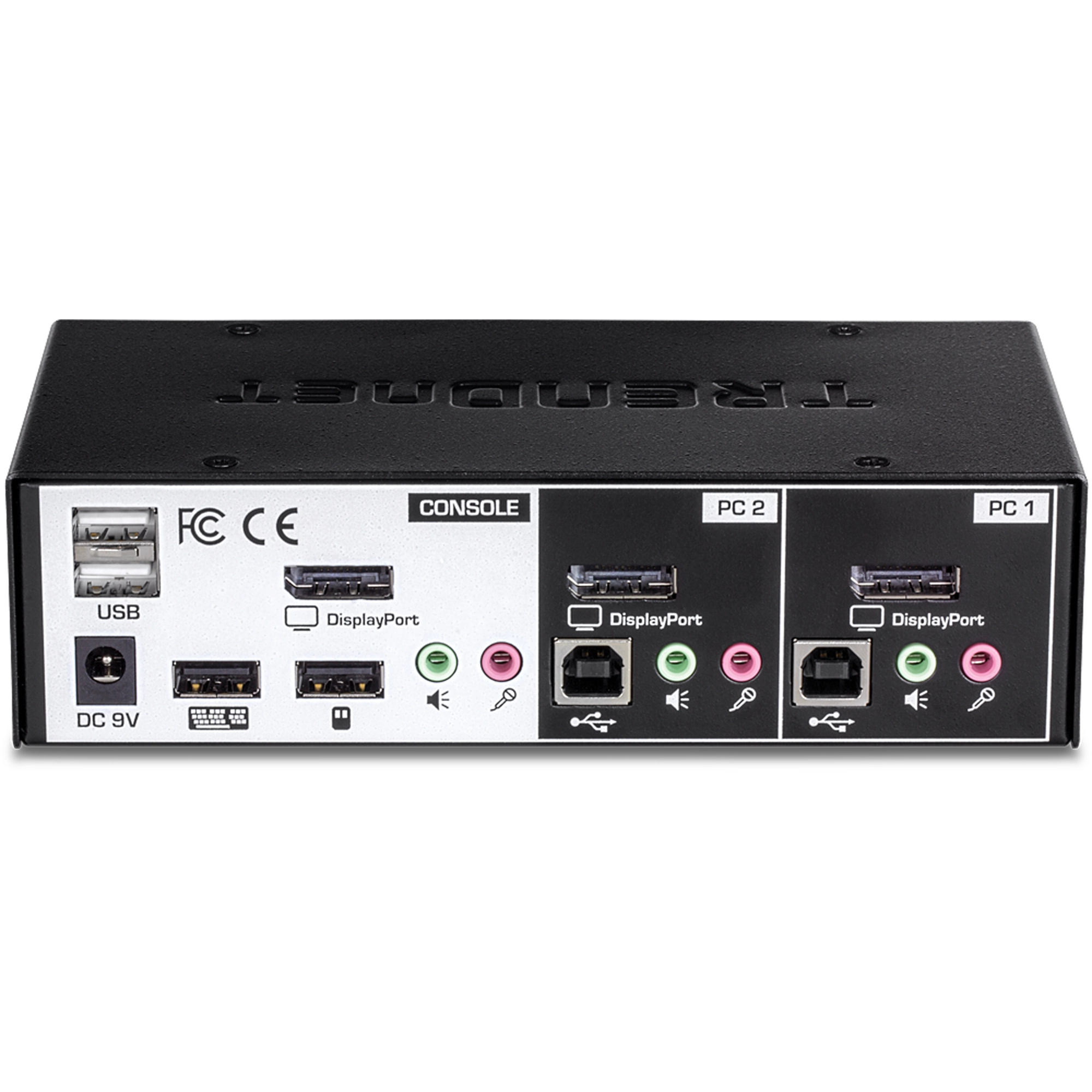

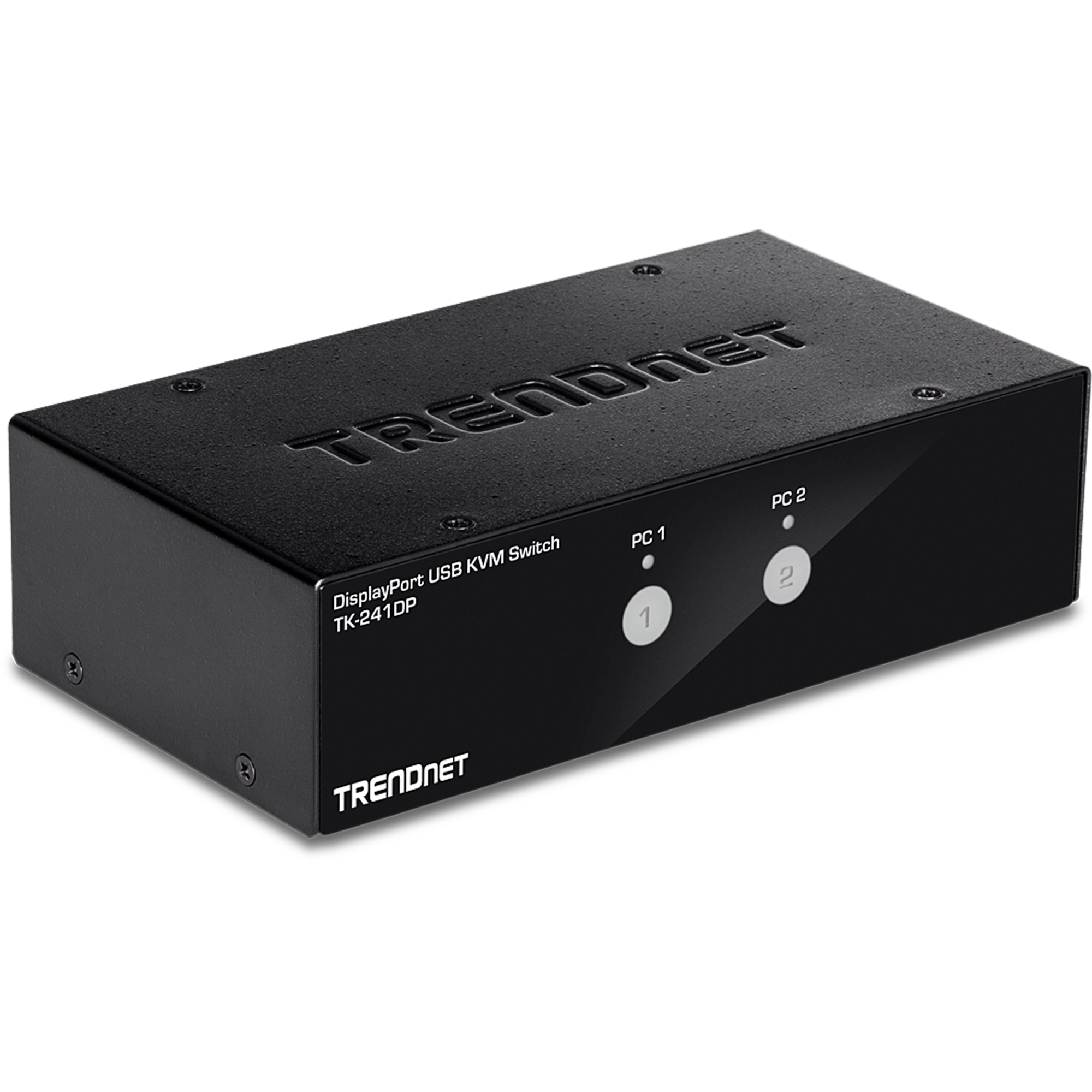

The visual shows a TRENDnet DisplayPort USB KVM Switch model TK-241DP. The left side features the front view with two PC select buttons labeled PC 1 and PC 2. The right side provides a detailed back view, highlighting various ports and connectors. The console port connectors include DisplayPort 1.2, USB 2.0 hub, power port, keyboard and mouse ports, and microphone and speaker jacks. The KVM port interface section supports two computers, each with DisplayPort 1.2, USB Type B to PC, and microphone and speaker jacks. Labels identify each port and button, offering a comprehensive overview of the switch's connectivity options.

2-Port Monitor KVM

Control up to two separate computers with up to 4K resolution

DisplayPort Monitor

Designed to connect to two DisplayPort computers

4K UHD

Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz)

Audio Support

Full audio support maximizes work station productivity

USB Mouse & Keyboard

True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs

Housing

DisplayPort KVM switch with rugged metal enclosure

USB 2.0 Hub

Two additional USB ports to connect storage drives and other USB peripherals

Hot Keys

Hot Key command shortcuts

Easy Installation

DisplayPort KVM switch features simple setup with driverless installation

Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 1 x DisplayPort 1.2
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
KVM Port Interface (up to 2)
  • Keyboard/Mouse: USB Type B
  • Monitors: 1 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Computer Interface (up to 2)
  • Keyboard/Mouse: USB Type A
  • Monitors: 1 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Monitor Resolution
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz
Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 2A external power adapter
  • Max. consumption: 0.7W
Dimensions
  • 164 x 87 x 45mm (6.4 x 3.4 x 1.77 in.)
Weight
  • 920g (2.02 lbs.)
Warranty
  • 2 year
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TK-241DP
  • Quick Installation Guide
  • Power adapter (9V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
