100Base-T to 100Base-FX Multi-Mode SC Fiber Converter

TFC-FMSC (Version v2.0R)

  • Functions as a standalone converter
  • 10/100 Mbps Auto-MDIX Fast Ethernet port
  • 100 Mbps SC-type multi-mode fiber port
  • Fiber networking over distances of up to 2 km (1.25 mi.)
  • 200 Mbps switching capacity
  • LEDs convey power and copper / fiber link and activity
  • Not compatible with TFC-1600

TRENDnet's TFC-FMSC, Fast Ethernet Fiber Converter, is a Multi-Mode SC-Type fiber converter that converts 10/100 Mbps Ethernet to 100 Mbps Fiber and spans distances up to 2 km (1.25 mi.). Ports include a 100Base-T (RJ-45) port and a 100Base-FX (SC-Type) fiber port.

A diagram showing network connectivity between two buildings, each with workstations and a central networking device connected by a data link, suitable for long-distance data transmission in corporate environments.

Building-to-Building

Well suited for corporate interbuilding and intrabuilding backbones where fiber networking over longer distances is required.

A line drawing showing a media converter connected to a power adapter, which is plugged into an electrical outlet. This illustration highlights that the media converter includes a power adapter for independent use.

Standalone Converter

A durable metal enclosure with included power adapter for standalone converter installations.

A hand emphasizing the small size of the Converter.

Compact

Small and compact metal housing design provides greater installation flexibility

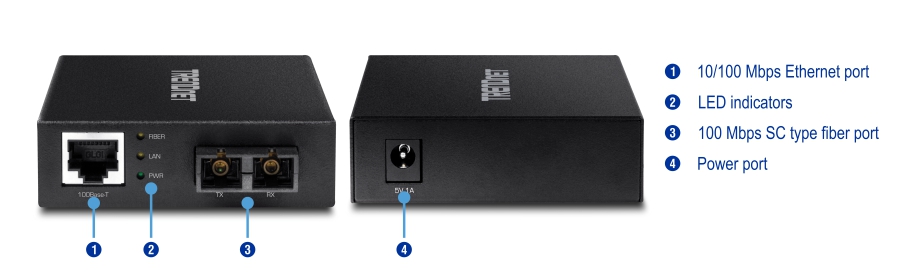

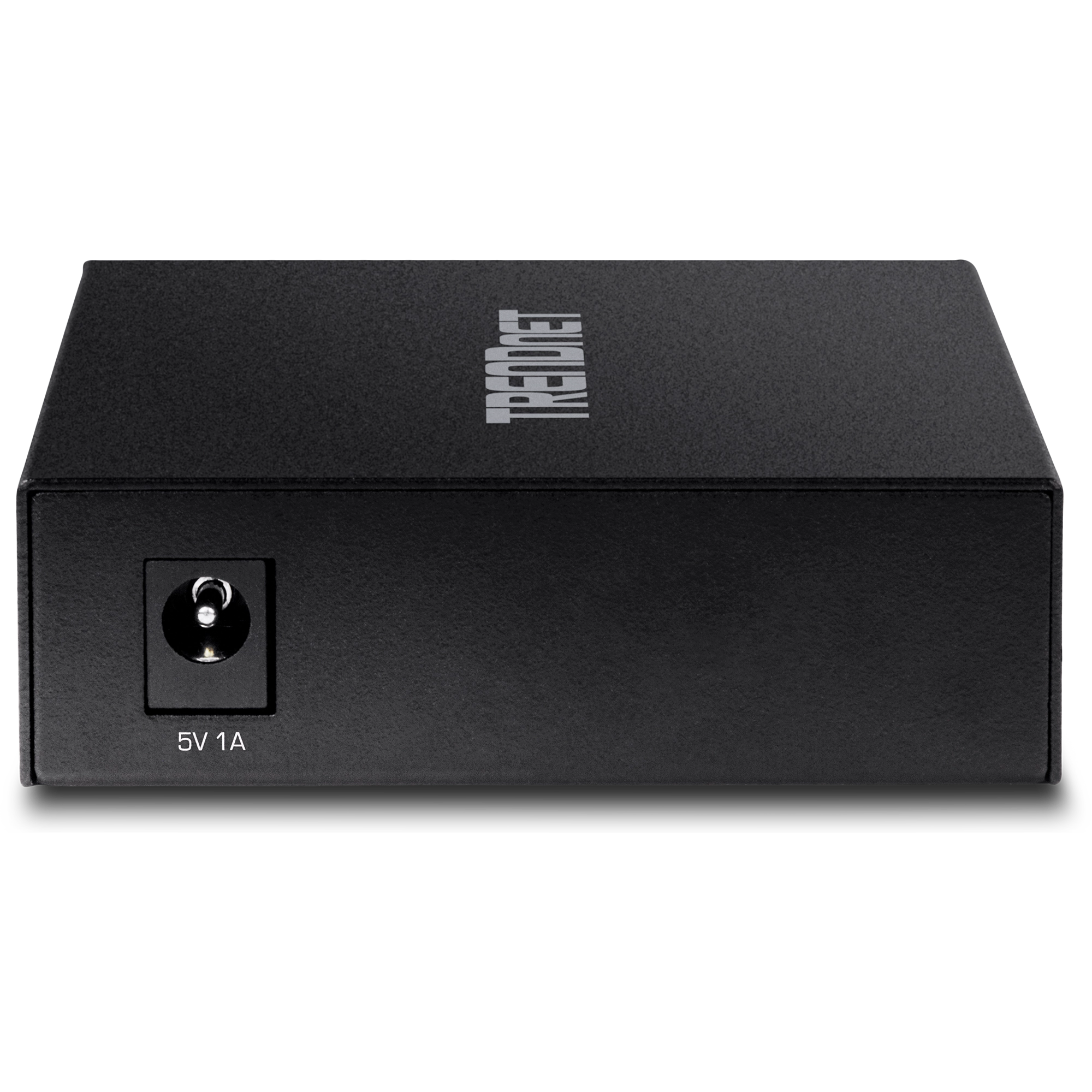

A TRENDnet device with various ports and indicators. On the left side, there is a 10/100 Mbps Ethernet port labeled as number 1. Next to it are LED indicators labeled as number 2, including indicators for fiber, LAN, and power. To the right of the LED indicators is a 100 Mbps SC type fiber port labeled as number 3. On the right side of the device is a power port labeled as number 4, marked with 5V 1A. The device is black with the TRENDnet logo on the top.

Standalone Converter

Comes in a durable metal enclosure

Ethernet Port

1 x 100Base-T Ethernet port

Fiber Port

1 x 100Base-FX multi-mode port, compatible with SC-Type fiber connector

Networking Distance

Supports fiber networking over distances of up to 2 km (1.25 mi.)

Switching Capacity

200 Mbps switching capacity

LED Indicators

LEDs convey power and copper / fiber link and activity

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
Device Interface
  • 1 x 10/100 Mbps Fast Ethernet port
  • 1 x 100 Mbps SC type fiber port
  • LED indicators
Network Media
  • 100Base-TX: Cat.5e EIA / TIA-568 100-ohm STP, up to 100 m
  • 100Based-FX: 50 / 125 μm multi-mode SC-Type fiber optic, up to 2 km
  • 100Based-FX: 62.5 / 125 μm multi-mode SC-Type fiber optic, up to 2 km
Protocol
  • CSMA / CD
Data Transfer Rate
  • Fast Ethernet: 200 Mbps (full duplex)
  • Optical fiber: 155 Mbps
Wavelength
  • 1310 nm
Optical Output Power
  • Min: -20 dBm
  • Max: -10 dBm
Optical Input Power
  • Min. (Sensitivity): -3 dBm
  • Max: 0 dBm
Power Budget
  • -14 dB
Distance
  • 2 km (1.25 mi.)
Power
  • Input: 100–240 V 50/60 Hz 0.2 A
  • Output: 5 V DC 1 A
  • Consumption: 2 W max.
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 102 x 75 x 22.6 mm. (4 x 2.95 x 0.9 in.)
Weight
  • 194 g (6.8 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TFC-FMSC
  • Quick Installation Guide
  • Power Adapter (5 V DC, 1 A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
