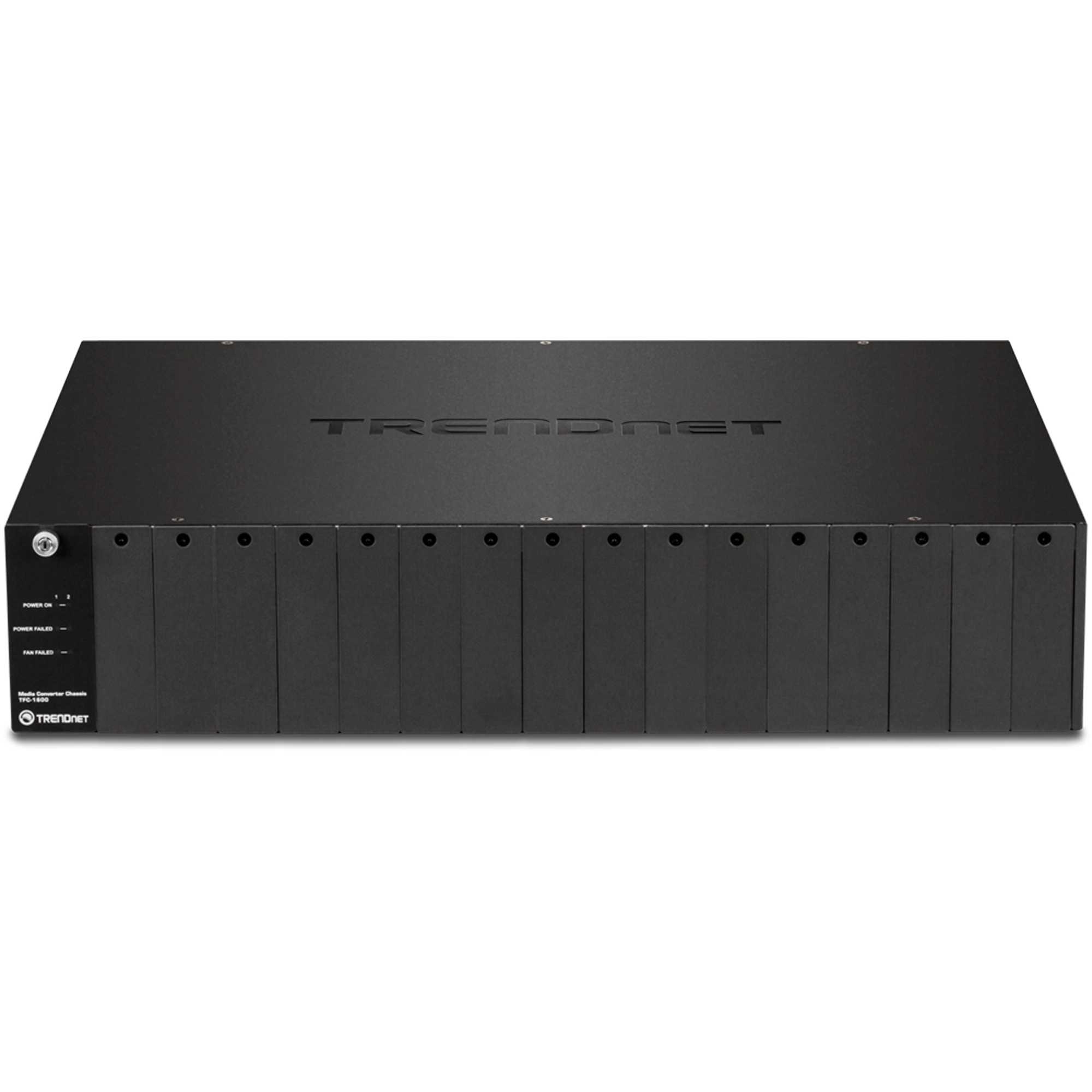

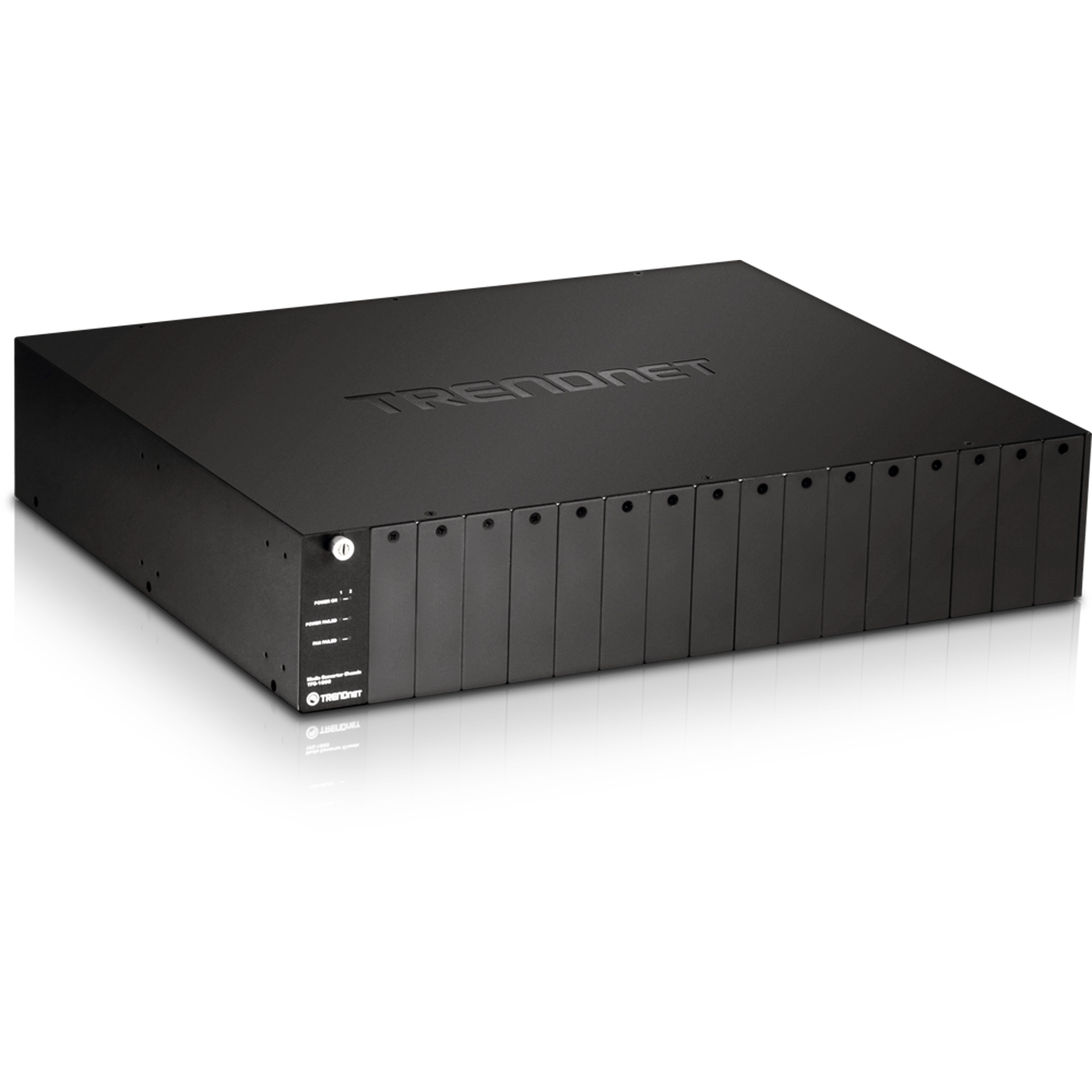

TRENDnet's TFC-1600 16-slot EIA-19" Rack-Mount Chassis System provides housing for up to 16 TFC series media converters. Designed for continuous operation, the chassis is equipped with dual cooling fans and redundant power supplies (optional). Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. TFC-1600 rack-mount chassis eliminates the external power adapters for TFC series media converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple TFC series converters.
| Hardware |
| Capacity: | - 16 slots for housing up to 16 TFC series media converters
|
|---|
| Management Ports: | - 1 x 10/100Mbps Fast Ethernet RJ45 and 1 x RS-232
|
|---|
| Management Protocol: | - SNMP(RFC1157), ARP(RFC826), IP(RFC791), ICMP(RFC792), UDP(RFC768), TCP(RFC793), TFTP(RFC783), Telnet(RFC854), BOOT(RFC951), MIB II (RFC1213)
|
|---|
| Diagnostic LEDs: | - Power x 2, In Use x 2, Fan Fault x 2
|
|---|
| Power: | - One power supply; optional second power supply
|
|---|
| Input: | - AC 100 ~ 240 VAC. Power Consumption: 150 watts max.
|
|---|
| Power Overload Protection: | - All outputs protected from short circuit condition with automatic recovery

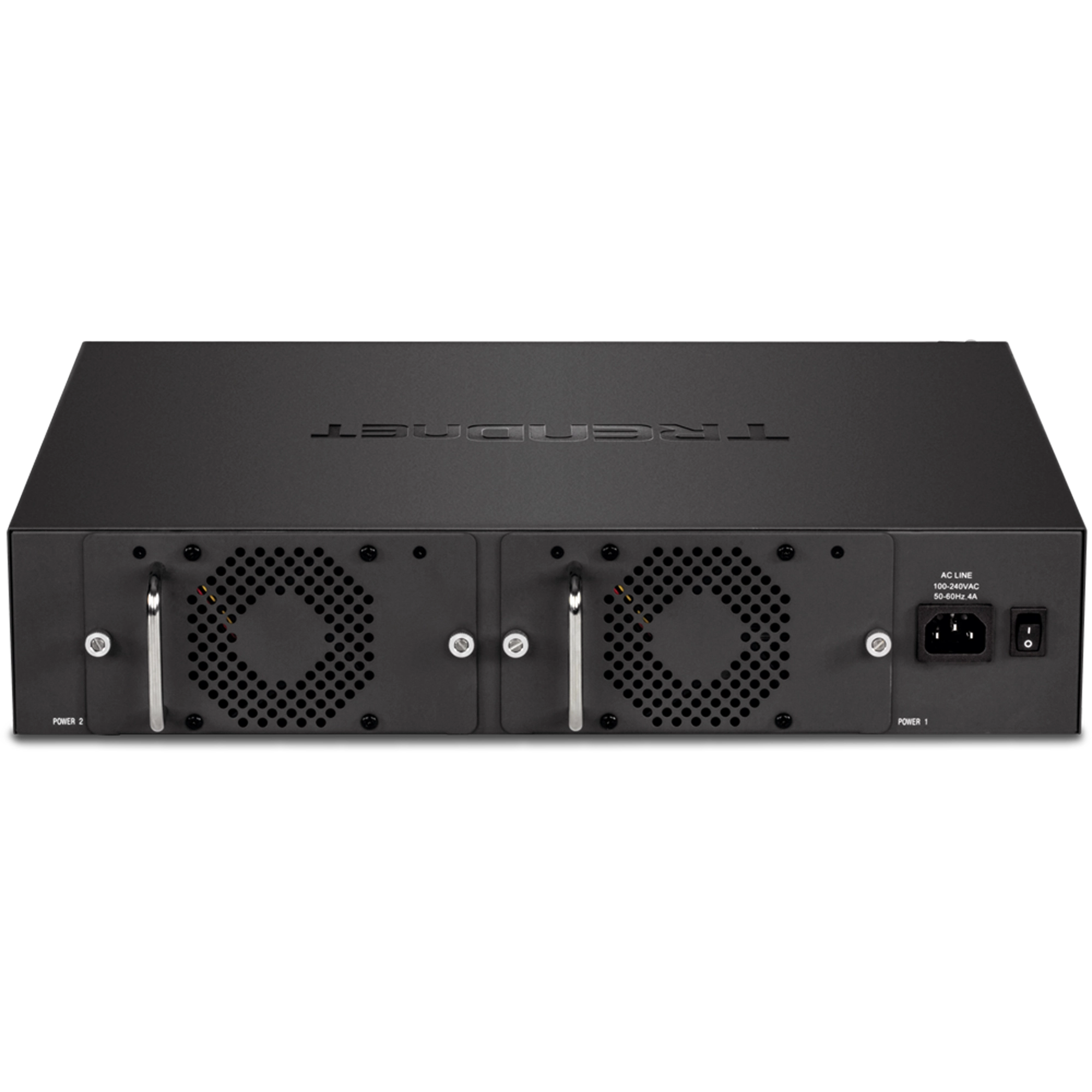

- Single cooling fan (internal) mounted at the rear panel
|
|---|
| Housing: | |
|---|
| Dimensions: | - 440 x 390 x 89 mm (17.3 x 15.4 x 3.5 inches)
|
|---|
| Weight: | - appr. 7Kg (15.4 lbs) (with one power supply)
|
|---|
| Temperature: | - Operating: 0° ~ 40° C (32° ~ 104° F)
- Storage: -10° ~ 50° C (14° ~ 122° F)
|
|---|
| Humidity: | - Operating: 10% ~ 90%;
- Storage: 5% ~ 90% (no-condensing)
|
|---|
| Certifications: | |
|---|

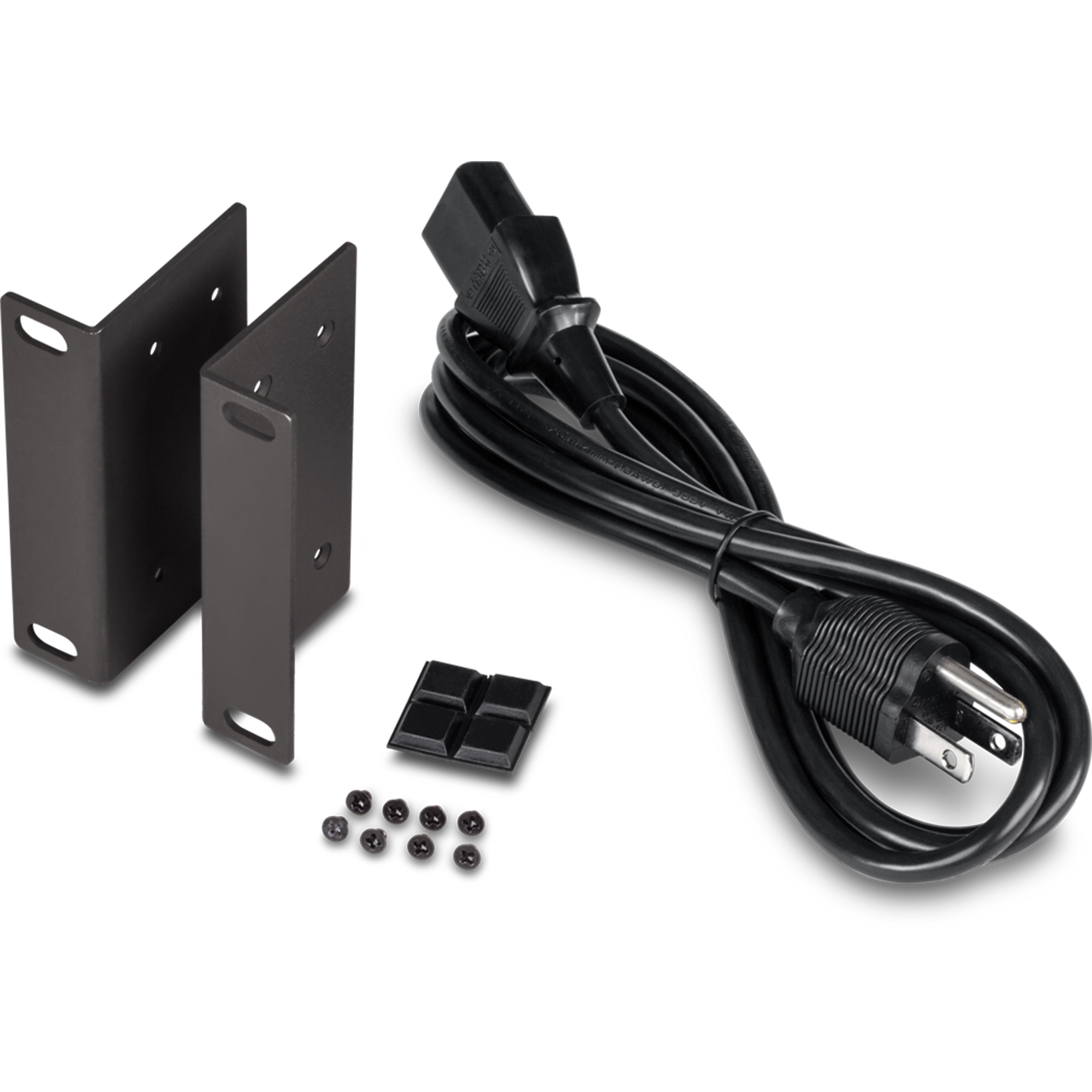

PACKAGE CONTENTS |
- TFC-1600
- Quick Installation Guide
- Power cord
- Mounting Brackets
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
