5-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

TI-PG50F (Version v1.0R)

4 x Gigabit PoE+ ports
1 x Gigabit port
120W PoE power budget
10Gbps switching capacity
Supports jumbo frames up to 9KB
Hardened IP30 rated metal housing

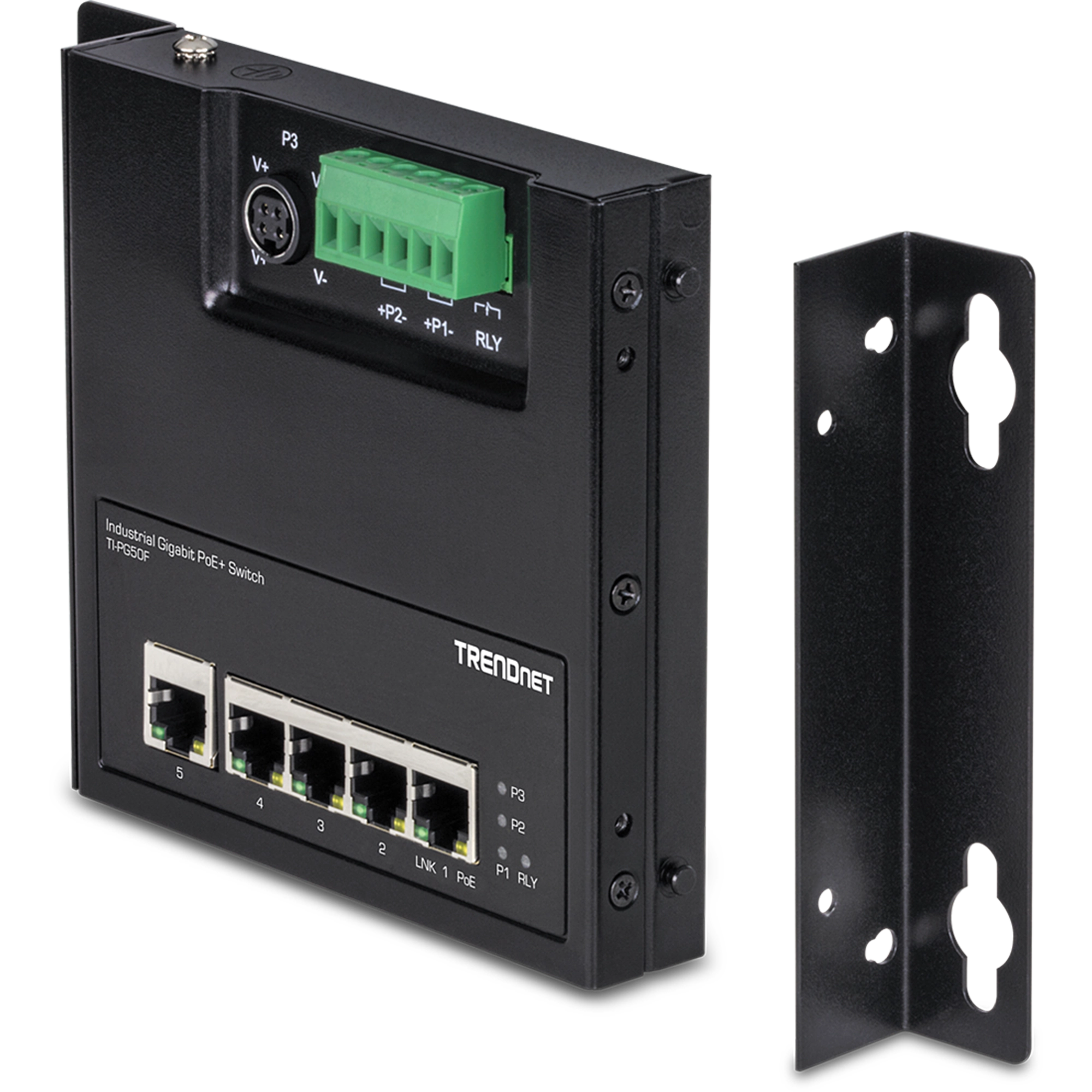

Includes wall mounting and DIN-Rail brackets
Operating temperature range of -40° – 75° C (-40° – 167° F)
Redundant power inputs with overload current protection
Alarm relay triggered by power failure
Power supply sold separately (models: TI-S12048, TI-S24048, and 48VDC3000)
Lifetime Warranty*

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Industrial Gigabit PoE+ Wall-Mounted Front Access mounted to a network cabinet showcasing its flat and compact size ideal where space is limited.

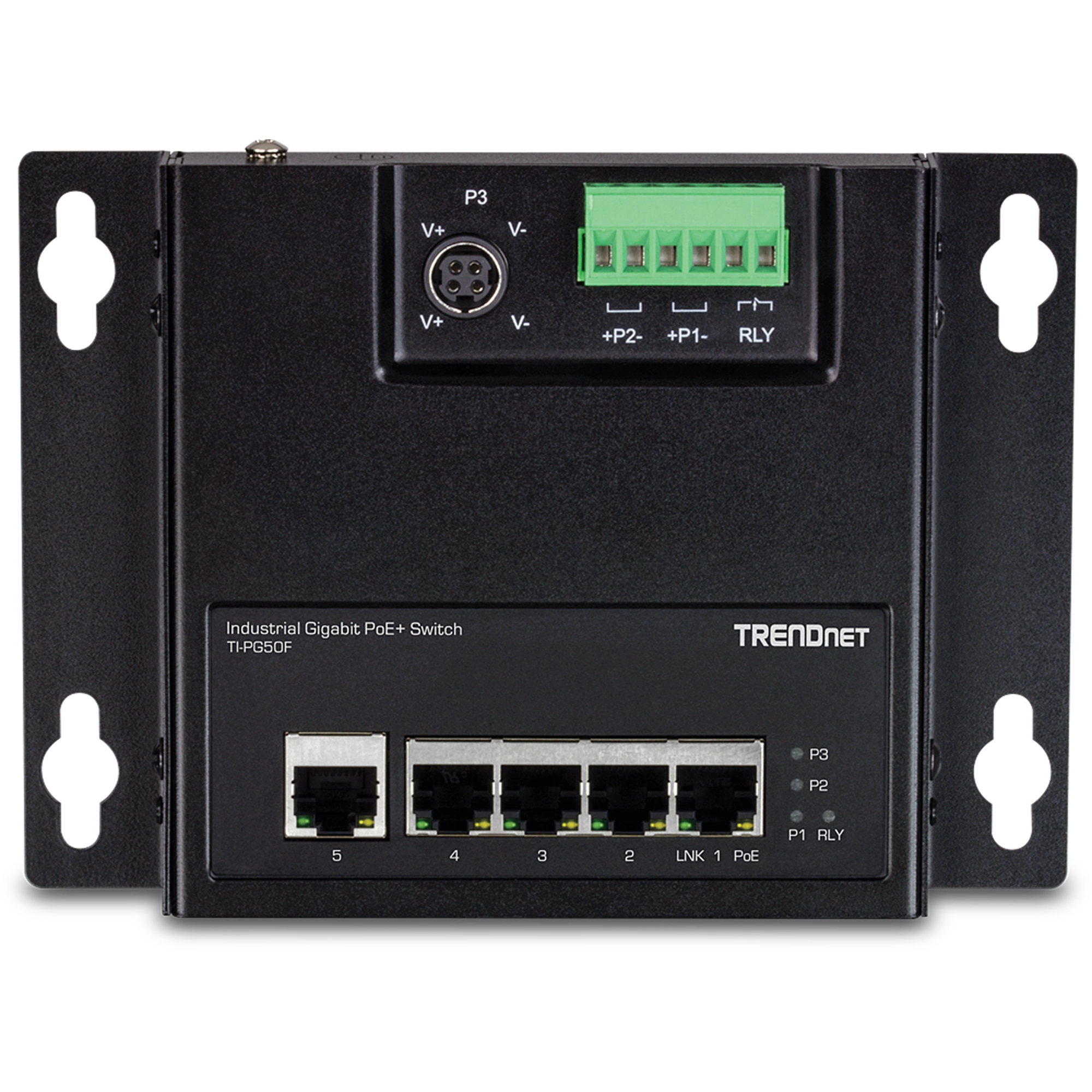

Wall-Mounted Front Access Switch

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.

PoE+ Power

A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices.

four icons, each representing different features or protections, Vibration Lines: This indicates vibration or shock resistance, Thermometer: Signifies temperature resistance. Lightning Bolt: Represents electrical resistance or protection against electrical surges and Text IP30: Indicates a specific level of ingress protection (IP) rating against dust and water.

Hardened Industrial Design

Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

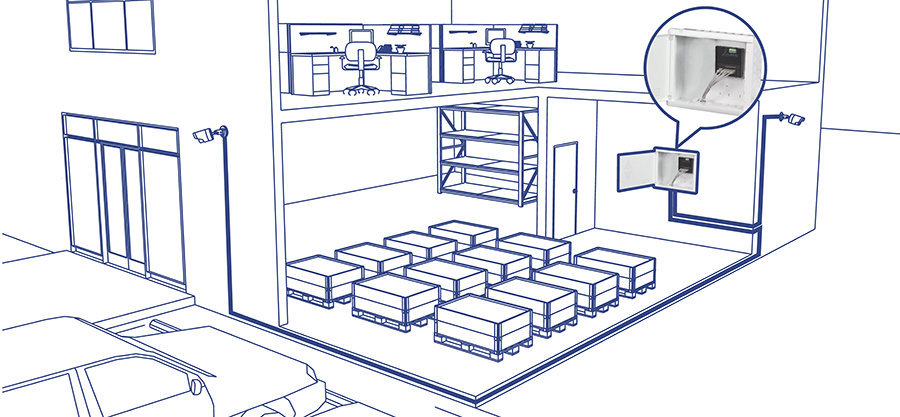

A blueprint-style illustration depicts a two-story building with a warehouse on the ground floor and an office area on the upper floor. The warehouse contains multiple storage units arranged in rows, while the office area has desks and chairs. A close-up inset shows a detailed view of a security or control panel mounted on a wall. The building exterior includes security cameras and large windows.

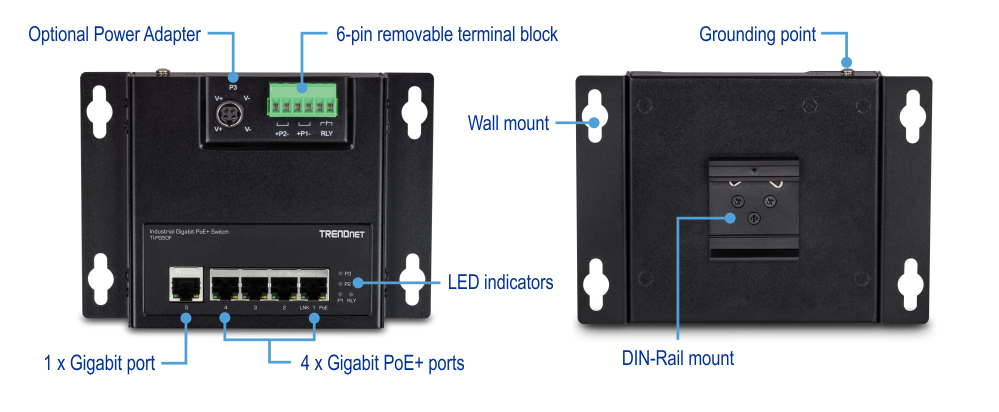

A TRENDnet Industrial Gigabit PoE+ Switch model TI-PG50F with front and back views. The front view highlights an optional power adapter, a 6-pin removable terminal block, LED indicators, one Gigabit port, and four Gigabit PoE+ ports. The back view shows the wall mount, grounding point, and DIN-Rail mount.

Network Ports

4 x Gigabit PoE+ ports and 1 x Gigabit port

PoE Power

Supplies up to 30W of PoE+ power per port with a 120W power budget

Hardware Design

Wall mountable hardware design provides front access to ports and power interfaces for easier installation

Compact

The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

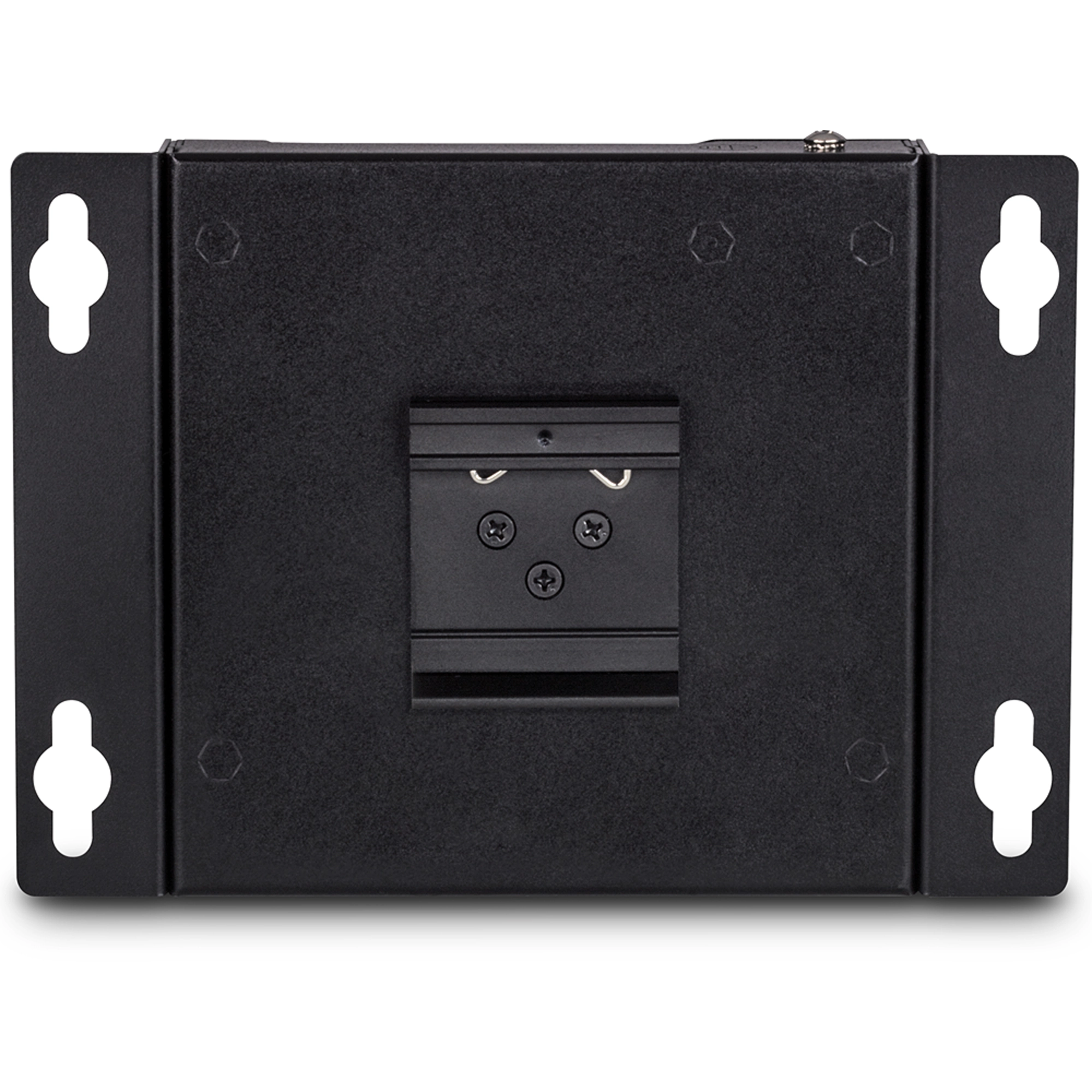

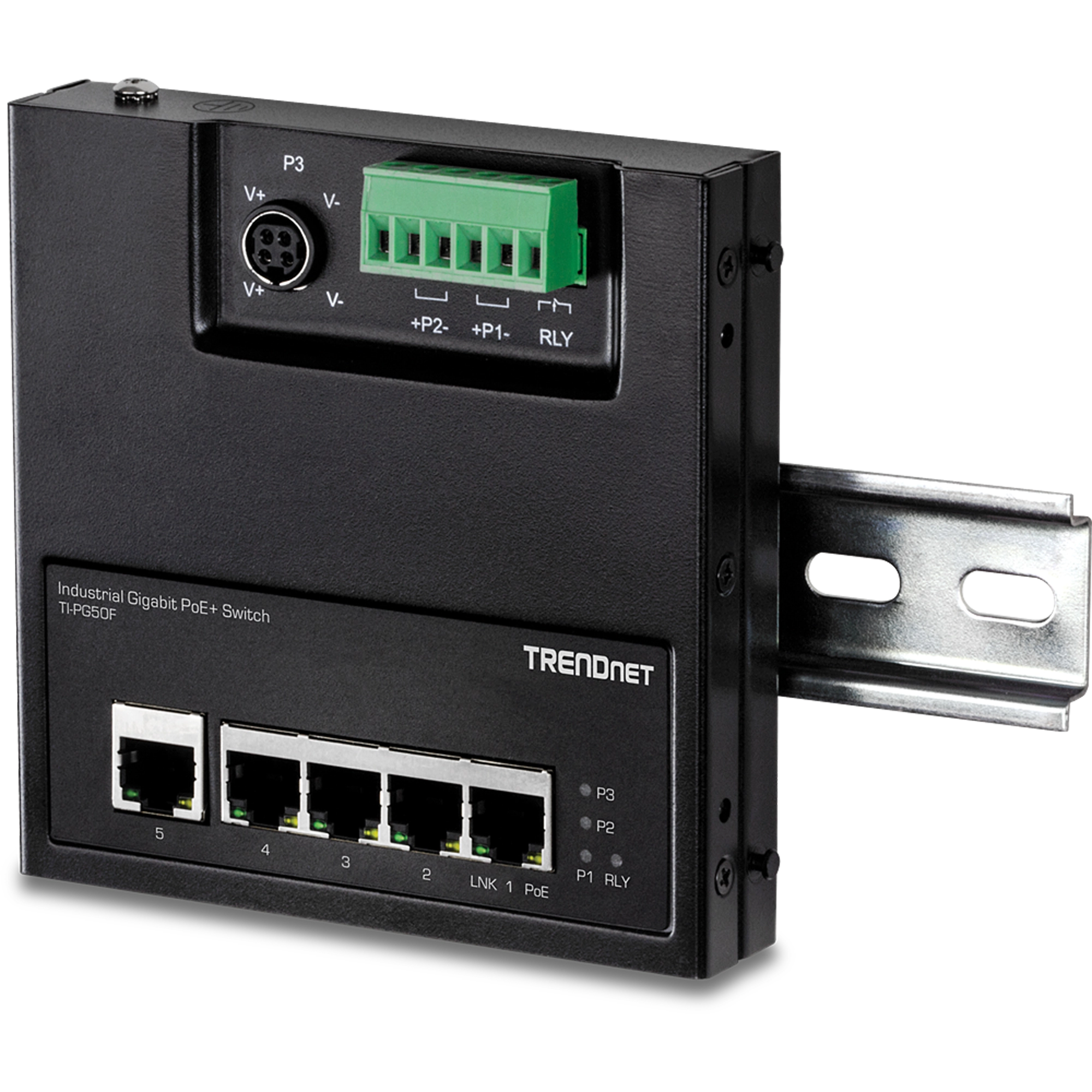

DIN-Rail Mount

Includes DIN-Rail mounting bracket

Switching Capacity

10Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately: TI-S12048, TI-S24048, and 48VDC3000)

Alarm Relay

Alarm relay output triggered by power failure of primary or secondary power inputs

Jumbo Frames

Sends larger packets, or jumbo frames (up to 9KB), for increased performance

Wide Temperature Range

Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments

Shock and Vibration Resistant

Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings

Grounding Point

Grounding point protects equipment from external electrical surges

LED Indicators

Front access switch with LED indicators that convey power and port status

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3af IEEE 802.3at
Device Interface	4 x Gigabit PoE+ ports 1 x Gigabit port 6-pin removable terminal block LED indicators DIN-Rail mount Wall mount Grounding point
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex)
Performance	Data RAM Buffer: 1024KB Switching Fabric: 10Gbps MAC Address Table: 2K entries Jumbo Frame: 9KB Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features	Hardened components rated for extreme temperatures Redundant power inputs Auto-Negotiation Auto store and forward architecture Automatic address learning and address aging ESD 8KV support
DC Power	Input: 48 - 56 V DC Compatible power supply: TI-S24048 (sold separately) Max. consumption: 5W (no PoE)
Optional Power Adapter (48VDC3000 sold separately)	Input: 100 - 240 V AC, 50/60 Hz, 2 A Output: 48V DC, 3.34A 160W max.
PoE	PoE budget: 120W
Terminal Block	Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. – In / 0.5Nm / 0.56 Nm Wire strip length: 7-8mm
Alarm Relay Contact	Relay outputs with current carrying capacity of 1A, 24V DC Open circuit mode when two power sources are connected Short circuit mode when only one power source is connected
MTBF	454,556 hours
Housing	IP30 metal case DIN-rail mount Wall mount Grounding point
Operating Temperature	- 40° - 75° C (-40° - 167° F)
Operating Humidity	Max. 95 % non-condensing
Dimensions	118 x 118 x 23.2mm (4.6 x 4.6 x 0.9 in.)
Weight	425g (14.9 oz.)
Certifications	CE FCC Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TI-PG50F
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
