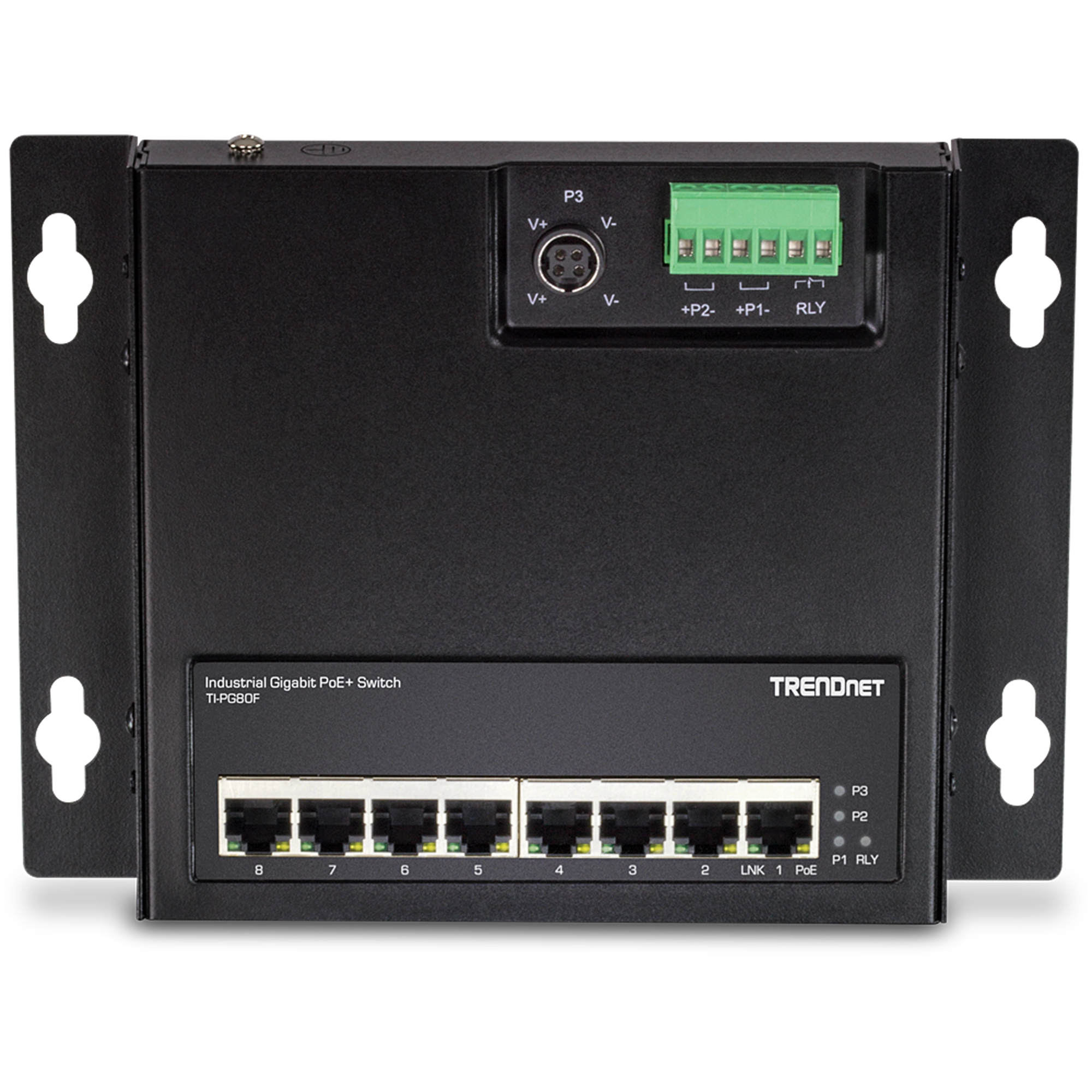

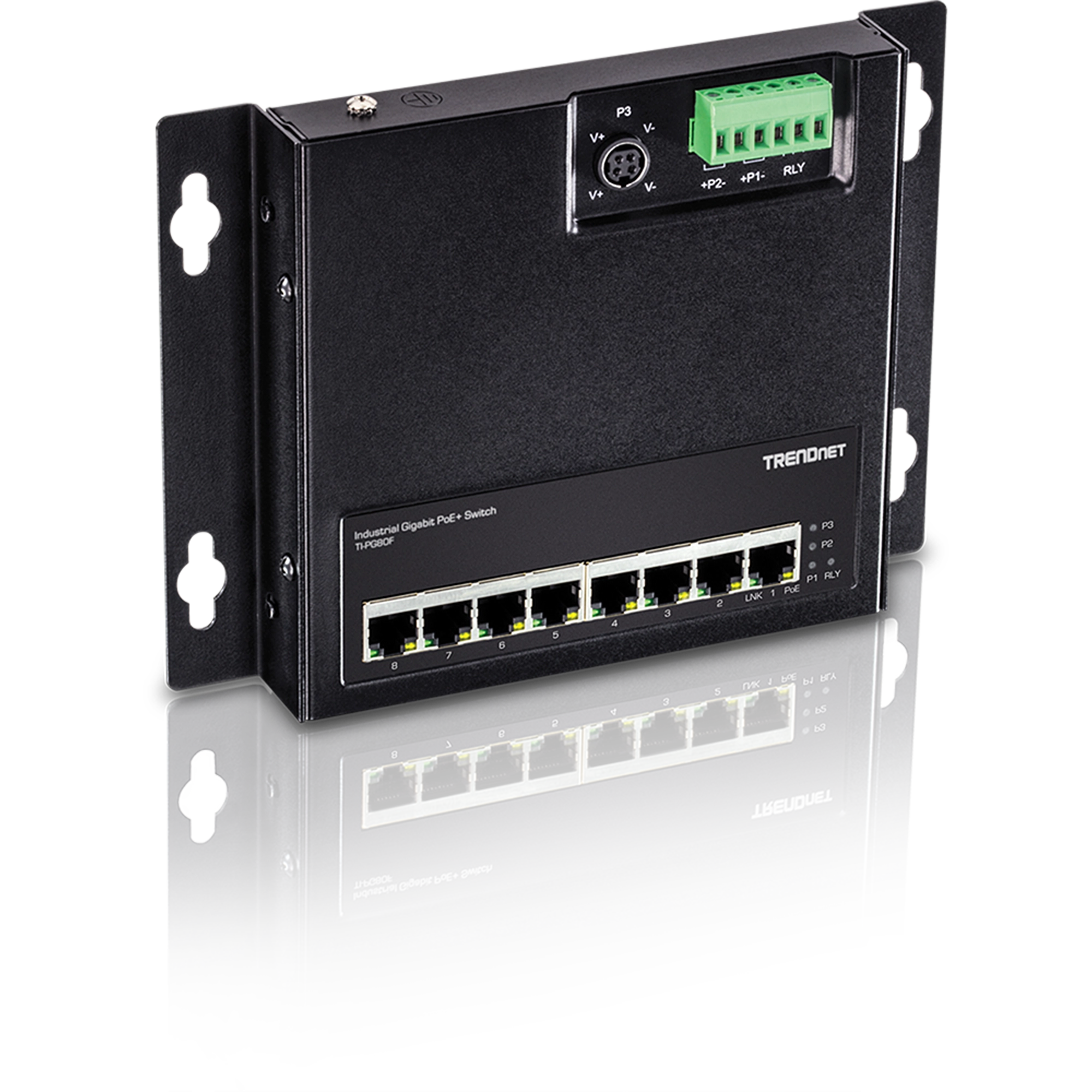

8-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

TI-PG80F (Version v1.0R)

  • 8 x Gigabit PoE+ ports
  • 200W PoE power budget
  • 16Gbps switching capacity
  • Supports jumbo frames up to 9KB
  • Hardened IP30 rated metal housing

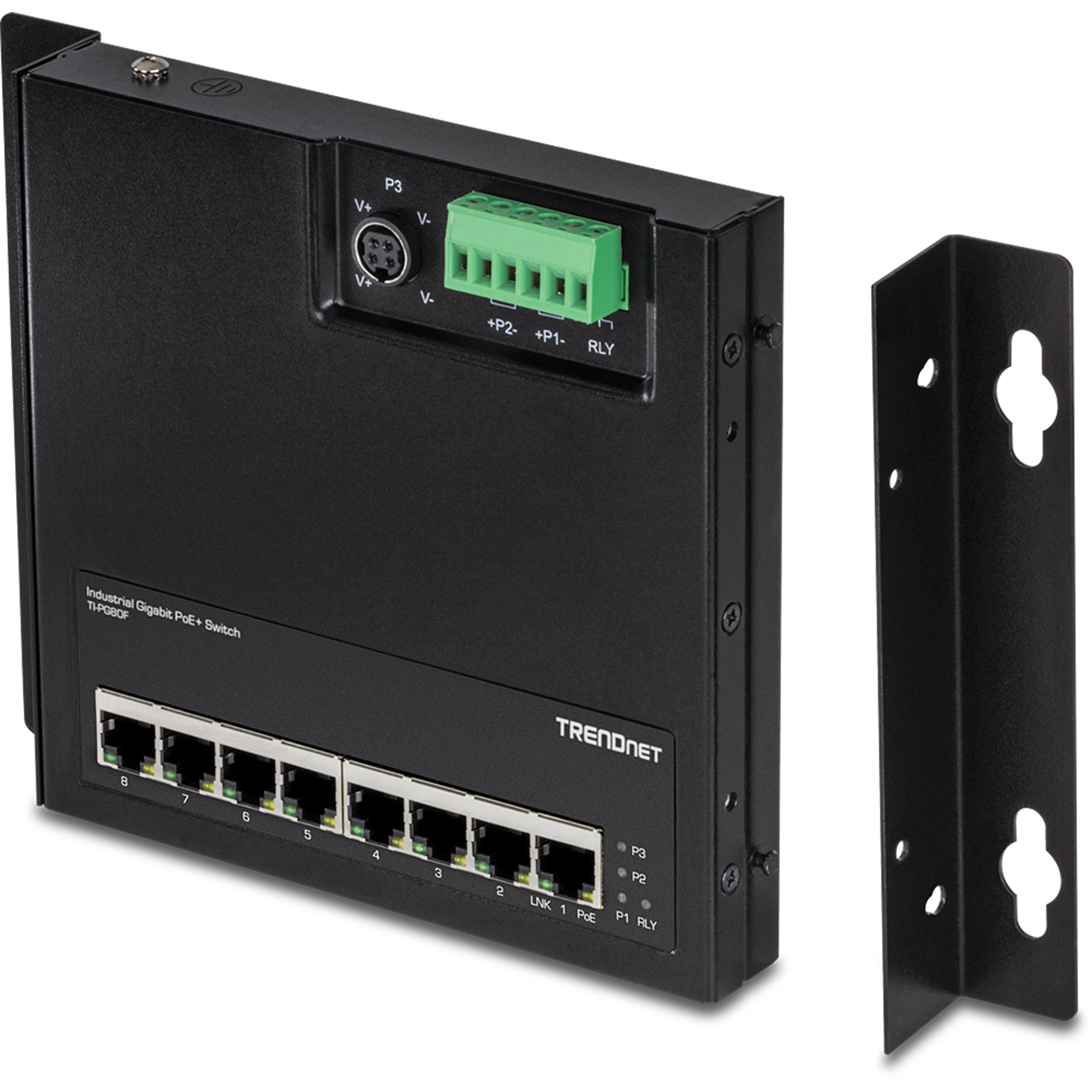

  • Includes wall mounting and DIN-Rail brackets
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Redundant power inputs with overload current protection
  • Alarm relay triggered by power failure
  • Power supply sold separately (models: TI-S24048, TI-S48048, and 48VDC3000)
  • Lifetime Warranty*
DISCONTINUED PRODUCT
The TI-PG80F (Version v1.0R) has been discontinued. It has been replaced by the TI-PG80F (Version v2.0R). For a list of discontinued products, click here.

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Industrial Gigabit PoE+ Wall-Mounted Front Access mounted to a network cabinet showcasing its flat and compact size ideal where space is limited.

Wall-Mounted Front Access Switch

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.

Industrial Gigabit PoE+ Wall-Mounted Front Access with three devices connected (two cameras and a access point) using 200 Watt PoE power budget.

PoE+ Power

A 200W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.

four icons, each representing different features or protections, Vibration Lines: This indicates vibration or shock resistance, Thermometer: Signifies temperature resistance. Lightning Bolt: Represents electrical resistance or protection against electrical surges and Text IP30: Indicates a specific level of ingress protection (IP) rating against dust and water.

Hardened Industrial Design

Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

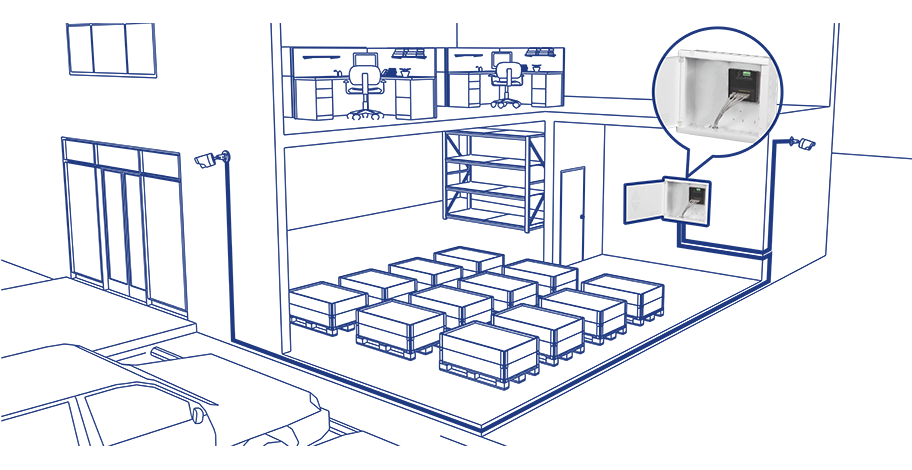

The diagram depicts a two-story building with a storage area on the ground floor and office space on the upper floor. The ground floor features multiple storage units arranged in rows and a shelving unit against the back wall. The upper floor includes several desks and chairs, indicating an office environment. Security cameras are mounted on the exterior walls. A circular inset in the upper right corner highlights a close-up of an 8-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch and a power supply in an enclosure. There is also a car parked outside, suggesting the building's exterior setting.

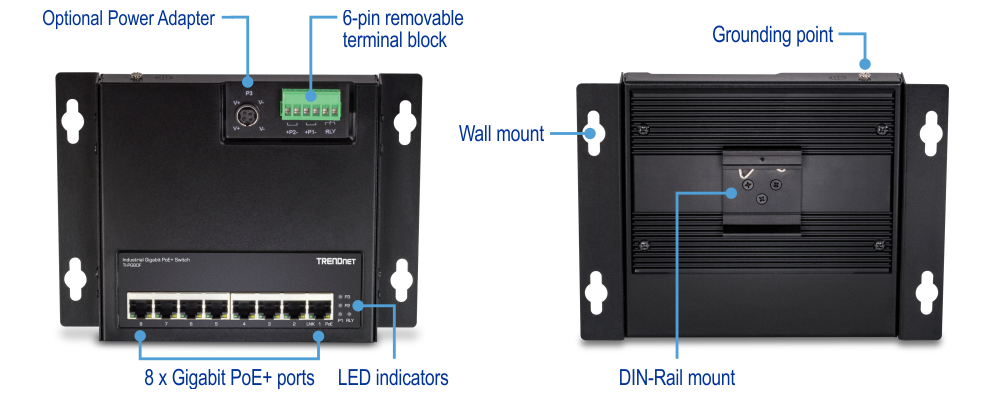

A TRENDnet Industrial Gigabit PoE+ Switch with various labeled components. On the left side, the front view highlights the optional power adapter, 6-pin removable terminal block, 8 x Gigabit PoE+ ports, and LED indicators. On the right side, the rear view indicates the grounding point, wall mount, and DIN-Rail mount.

Network Ports

8 x Gigabit PoE+ ports

PoE Power

Supplies up to 30W of PoE+ power per port with a 200W power budget

Hardware Design

Wall mountable hardware design provides front access to ports and power interfaces for easier installation

Compact

The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

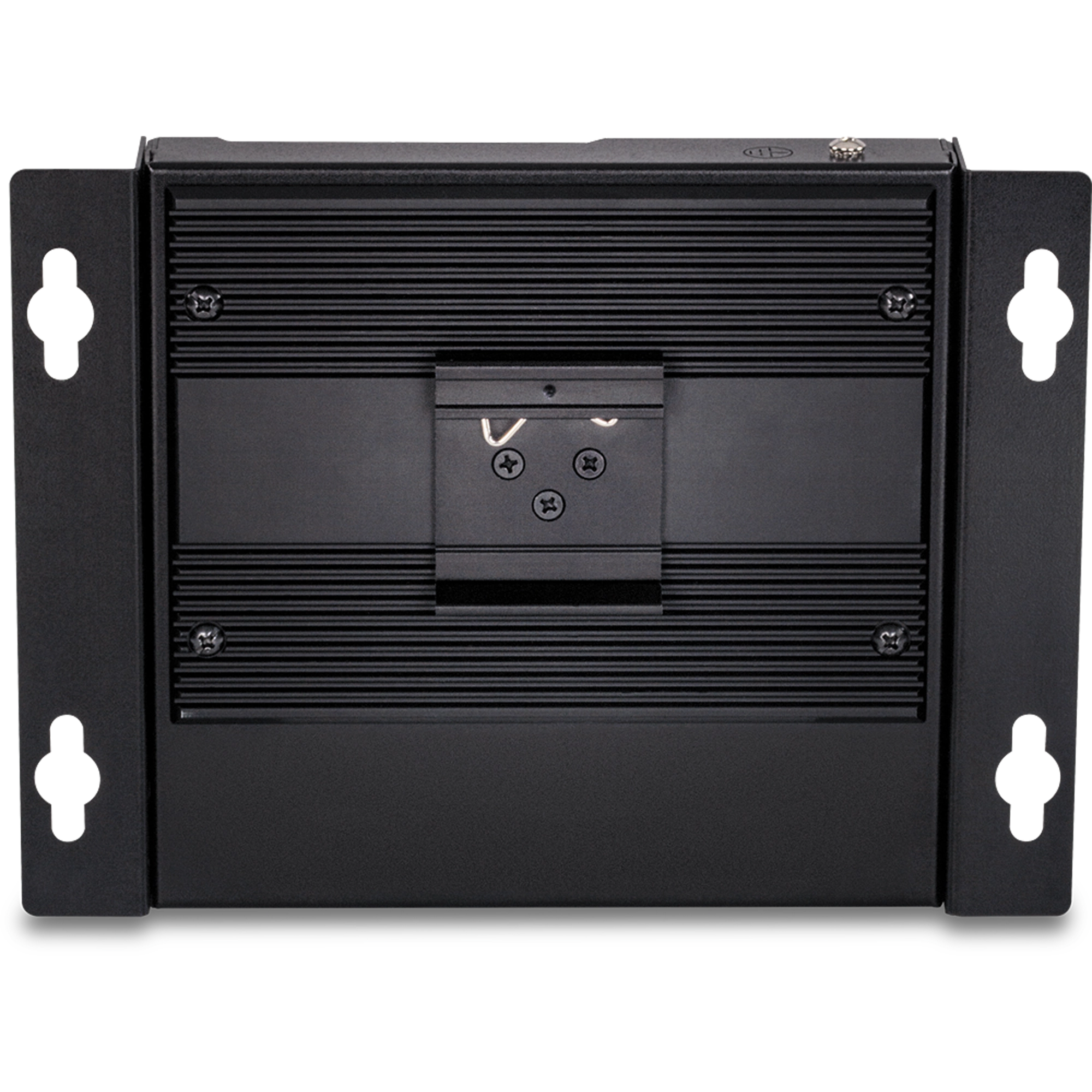

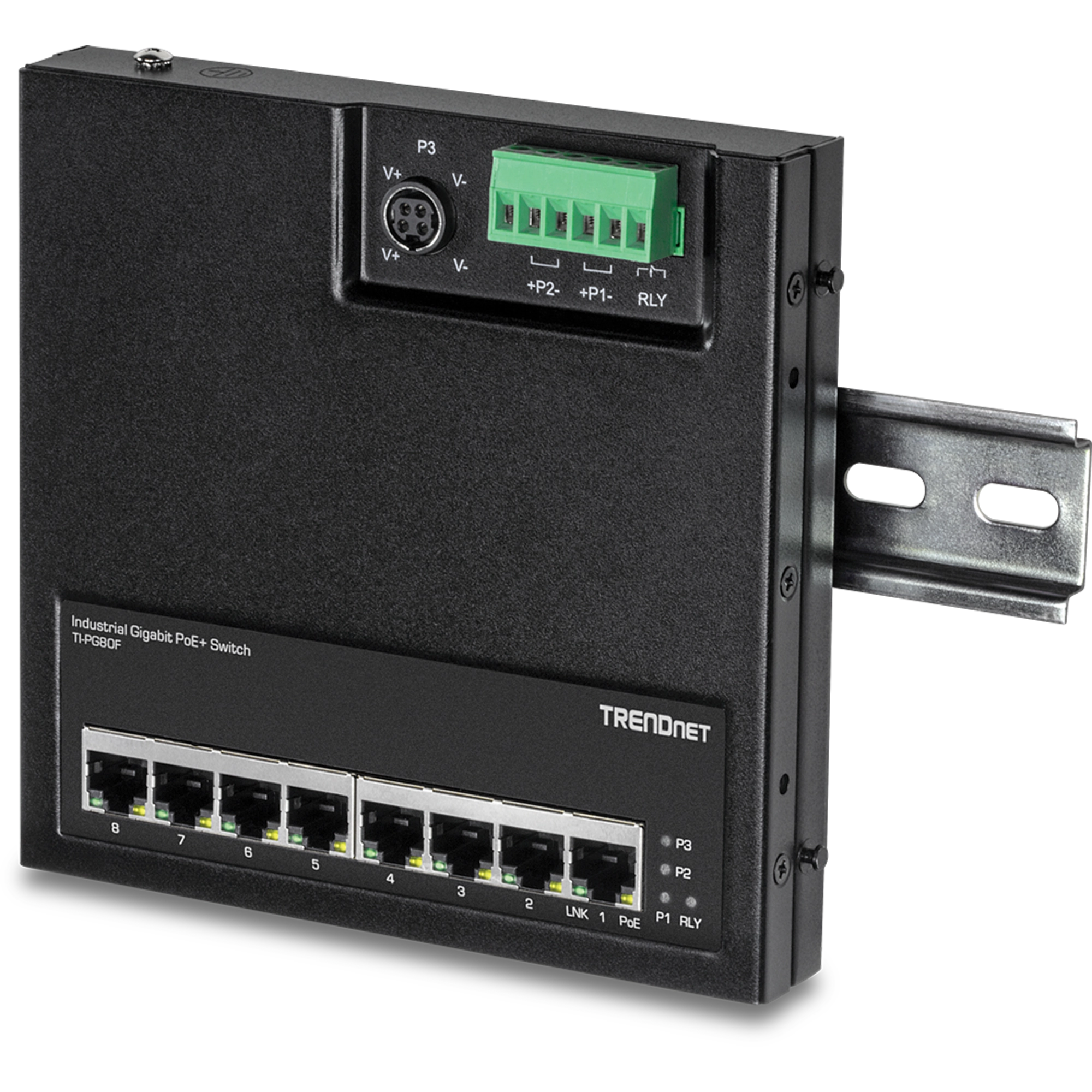

DIN-Rail Mount

Includes DIN-Rail mounting bracket

Switching Capacity

16Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately: TI-S24048, TI-S48048, and 48VDC3000)

Alarm Relay

Alarm relay output triggered by power failure of primary or secondary power inputs

Jumbo Frames

Sends larger packets, or jumbo frames (up to 9KB), for increased performance

Wide Temperature Range

Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments

Shock and Vibration Resistant

Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings

Grounding Point

Grounding point protects equipment from external electrical surges

LED Indicators

Front access switch with LED indicators that convey power and port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 8 x Gigabit PoE+ ports
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 1024KB
  • Switching Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8KV support
DC Power
  • Input: 48 - 56 V DC
  • Compatible power supply: TI-S24048 (sold separately)
  • Max. consumption: 5.76W (no PoE)
Optional Power Adapter (48VDC3000 sold separately)
  • Input: 100 - 240 V AC, 50/60 Hz, 2 A
  • Output: 48V DC, 3.34A 160W max.
PoE
  • PoE budget: 200W
Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Open circuit mode when two power sources are connected
  • Short circuit mode when only one power source is connected
MTBF
  • 500,000 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
Operating Temperature
  • - 40° - 75° C (-40° - 167° F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 150 x 145 x 26.7mm (5.9 x 5.7 x 1.1 in.)
Weight
  • 635g (22.5 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS
  • TI-PG80F
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
