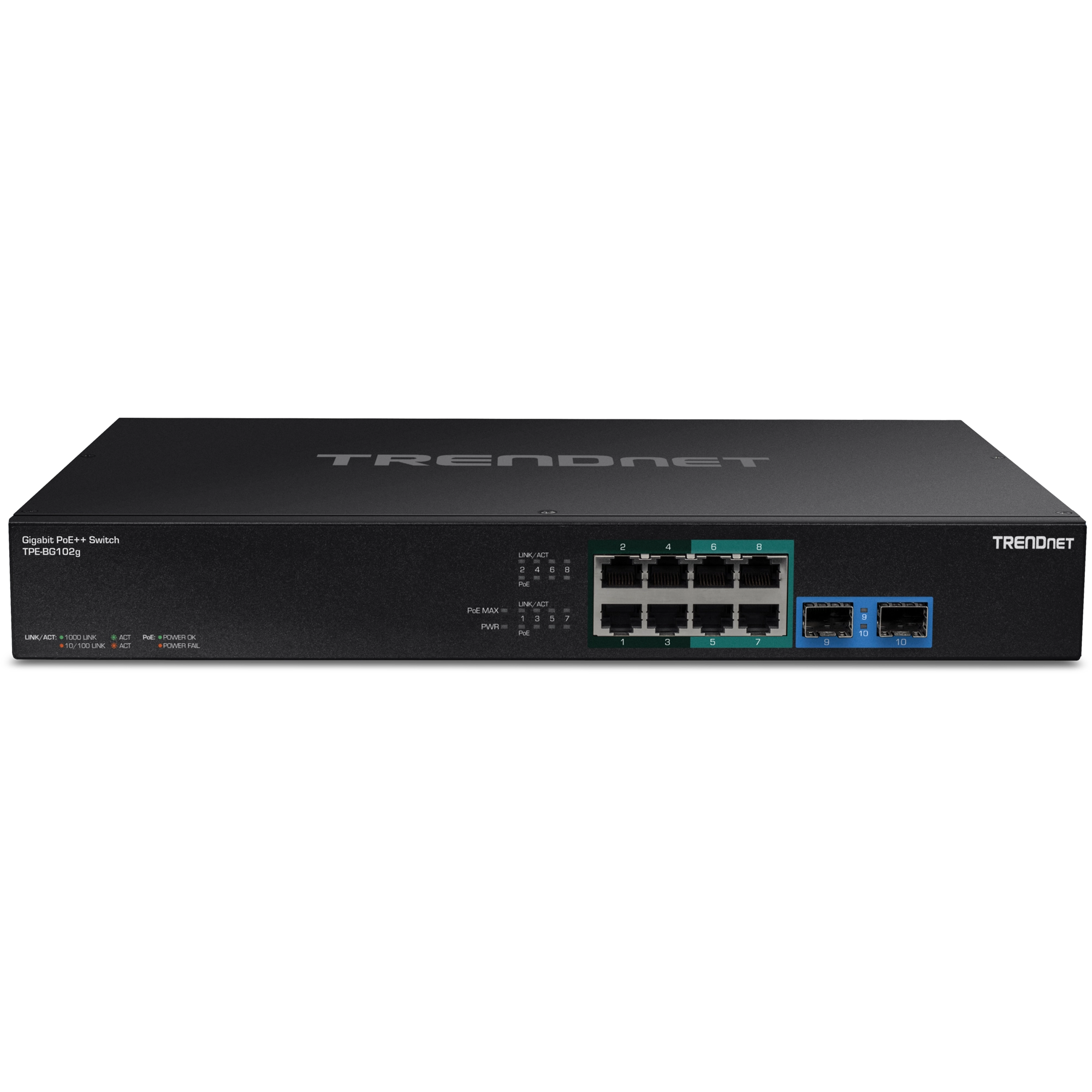

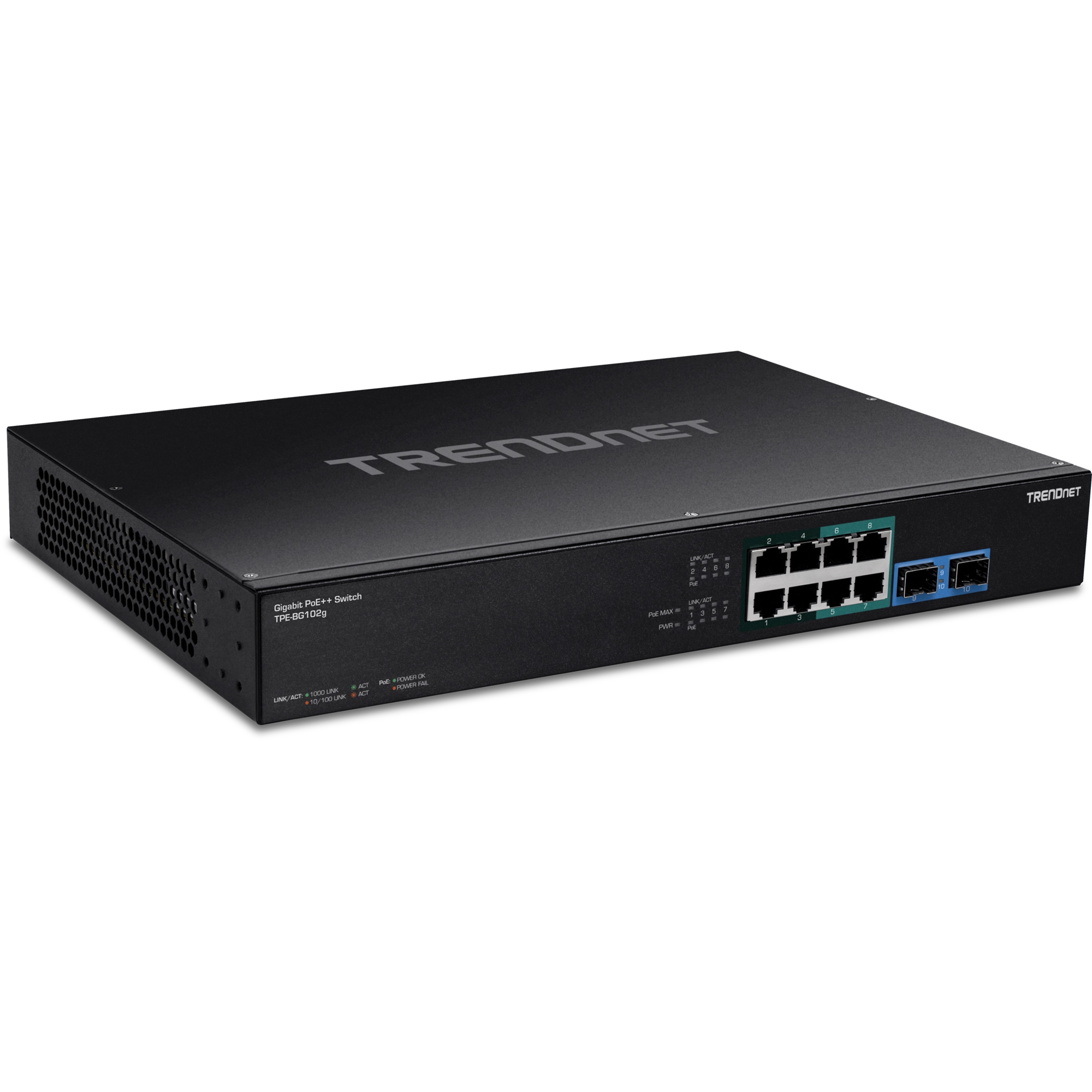

10-Port Gigabit PoE++ Switch

TPE-BG102g (Version v1.0R)

  • 4 x Gigabit PoE++ ports (up to 95W)
  • 4 x Gigabit PoE+ ports (up to 30W)
  • 2 x Gigabit SFP Slots
  • 240W PoE power budget
  • 20Gbps switching capacity
  • Internal power supply
  • Sturdy 1U 19” rack mountable metal housing
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet’s Unmanaged Gigabit PoE++ Switches provide high bandwidth performance, ease of use, and reliability. These IEEE 802.3bt compliant switches feature a sturdy 1U 19” rack mountable metal housing with mounting brackets included. These high power PoE++ switches also offer SFP slots for long distance fiber network applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s unmanaged high power PoE++ switches by delivering up to 95W per port of PoE++ power and data over existing Ethernet cables. Easily network PoE devices such as high-power wireless access points, PTZ cameras, digital signage, IPTV decoders, access controls, and more with these high power PoE++ switches.

Illustration of a network cable labeled 20Gbps SWITCHING CAPACITY with icons representing music, video, data transfer moving through the network.

Gigabit Ports

Gigabit ports provide a full switching capacity to this high power PoE++ switch, with SFP slots for long distance fiber applications.

An illustration of a rackmount with four switches installed.

Hardware Design

With a sturdy metal housing and rackmount brackets included, this high power PoE++ switch is well-suited for 19” 1U rack installations.

A network diagram of 10-Port Network Switch, connected to PoE Camera and wireless access point device up to 240 Watt.

PoE Power

A 240W total PoE power budget on this high power PoE++ switch supplies four PoE++ devices with up to 95W per port, and four PoE+ devices with up to 30W per port.

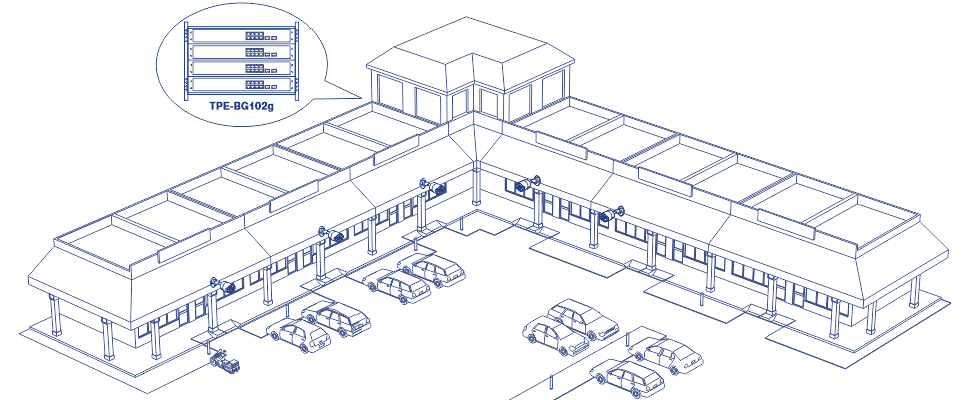

The visual shows a detailed architectural drawing of a commercial building with an L-shaped layout. The building features large windows and doors along its facade, supported by columns. The roof has multiple skylights, and there is a central elevated section. In front of the building, there is a parking lot with several cars parked in designated spaces. The drawing also includes security cameras mounted on the exterior walls of the building. Additionally, there is an inset detail showing a close-up of a rack-mounted equipment labeled TPE-BG102g, highlighted with a circular callout to indicate its location within the building.

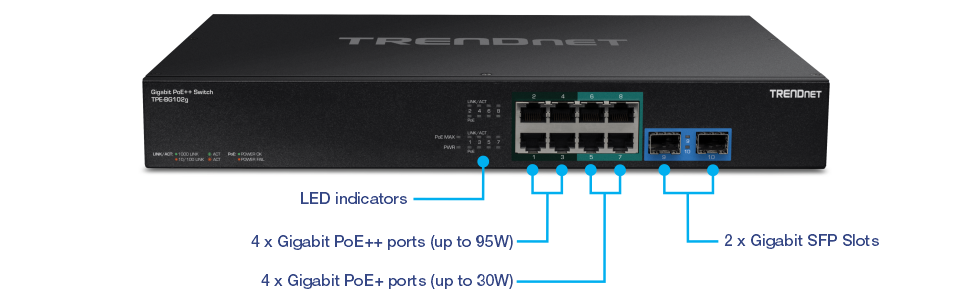

The illustration shows a TRENDnet Gigabit PoE++ Switch model TPE-BG102g. The front panel of the switch features several components. On the left side, there are LED indicators that display the status of various functions such as link, activity, and power. In the center, there are eight Ethernet ports arranged in two rows. The first four ports are labeled as Gigabit PoE++ ports, capable of delivering up to 95W of power each. The next four ports are labeled as Gigabit PoE+ ports, capable of delivering up to 30W of power each. On the right side, there are two Gigabit SFP slots for fiber optic connections. The TRENDnet logo is visible on the top right corner of the switch.

Hardware Design

With a sturdy metal housing and rackmount brackets included, this high power PoE++ switch is well-suited for 19” 1U rack installations.

PoE Power

A 240W total PoE power budget on this high power PoE++ switch supplies four PoE++ devices with up to 95W per port, and four PoE+ devices with up to 30W per port.

Gigabit Ports

Gigabit ports provide a full switching capacity to this high power PoE++ switch, with SFP support for long distance fiber applications

Jumbo Frame

Sends larger packets, or Jumbo Frames, for increased performance

LED Indicators

LED indicators conveniently convey port status on the high power PoE++ switches

Standards
  • IEEE 802.1p
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Device Interface
  • 4 x Gigabit PoE++ ports
  • 4 x Gigabit PoE+ ports
  • 2 x Gigabit SFP Slots
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
  • Fiber: 2000Mbps (full duplex)
Performance
  • Switch Fabric: 20Gbps
  • RAM Buffer: 512KB
  • MAC Address Table: 8K entries
  • Forwarding Rate: 14.88Mpps (64-byte packet size)
  • Jumbo Frames: 9KB
Power

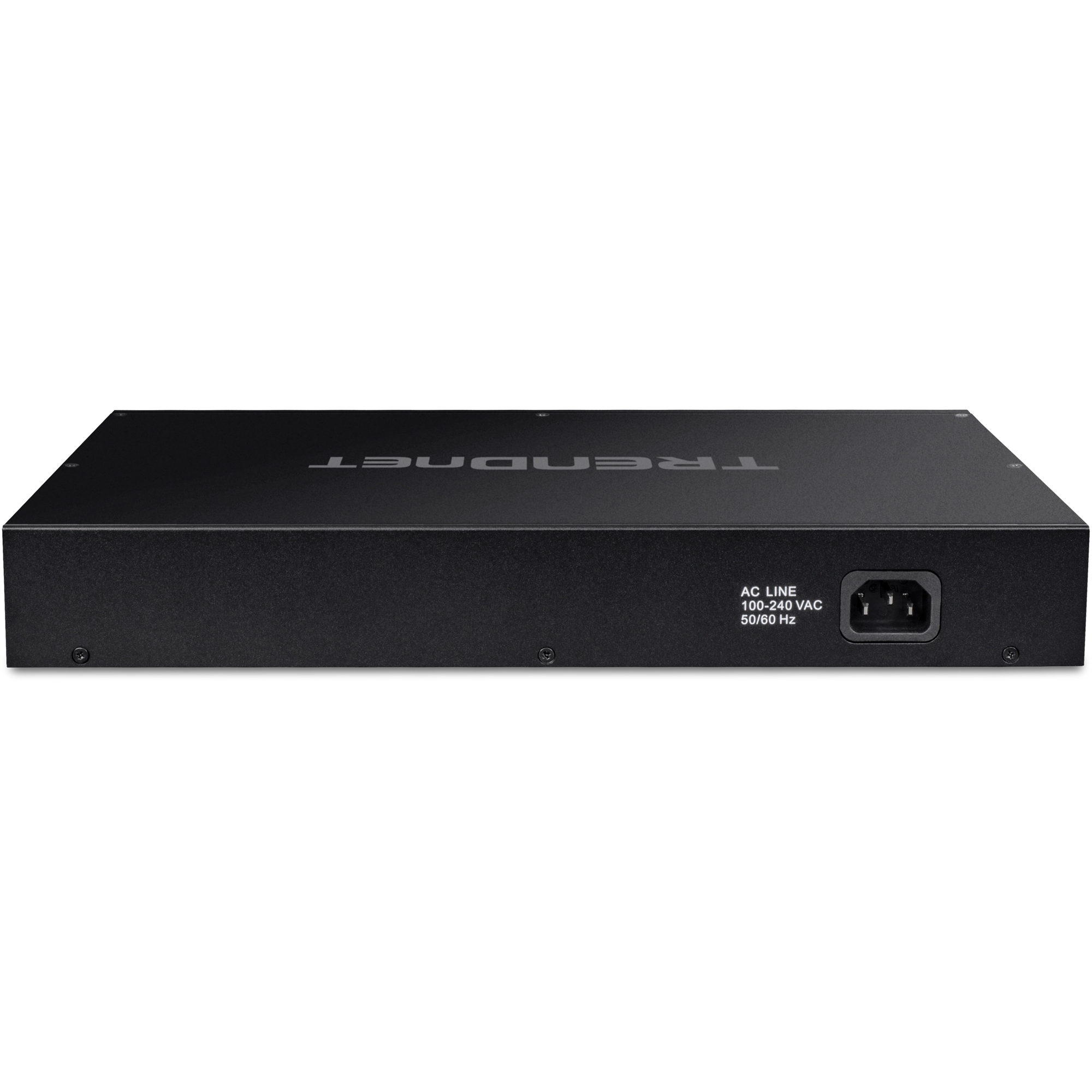

  • Input: 100-240V AC, 50/60Hz, internal power supply
  • Max. Consumption: 280W
PoE
  • PoE budget: 240W
  • Port 1 – 4: up to 95W
  • Port 5 – 8: up to 30W
MTBF
  • 427,588 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 330 x 230 x 44mm (13 x 9.0 x 1.7 in.)
Weight
  • 1.7kg (3.74 lbs.)
Certifications
  • CE
  • FCC
  • ETL
Warranty

PACKAGE CONTENTS

  • TPE-BG102g
  • Quick Installation Guide
  • Rackmount kit
  • Power Cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Not Available in the UK
