5-Port Industrial Fast Ethernet DIN-Rail Switch

TI-E50 (Version v1.0R)

  • 5 x Fast Ethernet ports
  • 1Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail mount and wall mount brackets
  • Wide operating temperature range of -40° – 75° C (-40° – 167° F)
  • Dual inputs provide redundant power with overload current protection
  • Power supply sold separately (model: TI-M6024)
  • Fanless design for silent operation
  • NDAA / TAA compliant
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° – 75° C (-40° – 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.

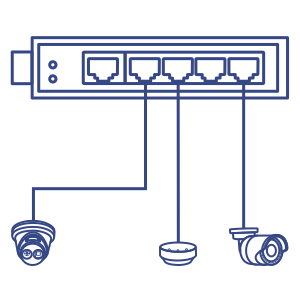

TI-E50 connected to two cameras and an access point illustrating easy installation

Easy Installation

No configuration needed, simply connect network devices to the industrial Ethernet switch.

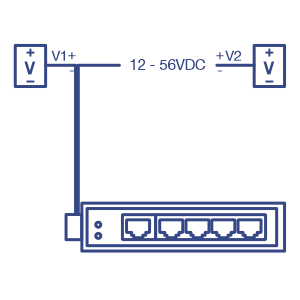

TI-E50 connected to two external powers (v1 and v2) illustrating power redundancy

Redundant Power

The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection.

Four icons, each representing different features or protections, Device with Vibration Lines: indicates vibration or shock resistance, Thermometer: Signifies temperature resistance. Lightning Bolt: Represents electrical resistance or protection against electrical surges and Text “IP30”: Indicates a specific level of ingress protection (IP) rating against dust and water

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F).

The illustration shows a warehouse with a zoomed-in view of the TI-E50 in the middle. It highlights a PLC in the storage room, another PLC in the production room, and a SCADA host in the server room, demonstrating connectivity throughout the warehouse.
The illustration shows a vertical angled view of the 5-Port Industrial Fast Ethernet DIN-Rail Switch TI-E50, with labels for the 4-pin removable terminal block, LED indicators, and five fast Ethernet ports on the left. The middle displays a back-angled view labeled with wall mount and DIN-Rail mount. On the right, the back view is labeled with IP30 metal case, 4-pin removable terminal block, and grounding point.

Easy Installation

Industrial Ethernet switches feature a quick and easy installation process with an intuitive guided setup

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with DIN-Rail mount and wall mount hardware included

Redundant Power

Dual power inputs provide redundant power with overload current protection (power supply sold separately, model: TI-M6024)

Wide Temperature Range

A wide operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV

Grounding Point

Grounding point on each industrial Ethernet switch designed to protect equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
Device Interface
  • 5 x Fast Ethernet ports
  • 4-pin removable terminal block
  • LED indicators
  • Wall mount
  • DIN-Rail mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Performance
  • Data RAM Buffer: 56KB (change unit of measure)
  • Switching Fabric: 1Gbps
  • MAC Address Table: 1K entries
  • Forwarding rate: 0.744Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • ESD 8kV support
  • Low-profile design
DC Power
  • Input: 12 – 56V DC
  • Recommended power supply: TI-M6024 (sold separately)
  • Max. consumption: 2.24W
Terminal Block
  • Redundant power inputs, 4-pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – in. / 0.5Nm / 0.56Nm
  • Wire strip length: 7-8mm
MTBF
  • 510,304 hours
Housing
  • IP30 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 104 x 82 x 32mm (4 x 3.2 x 1.25 in.)
Weight
  • 486g (17.1 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty

PACKAGE CONTENTS
  • TI-E50
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
