5-Port Industrial Gigabit PoE+ DIN-Rail Switch

TI-PG50 (Version v1.0R)

  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 120W PoE power budget
  • 10Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Redundant power inputs with overload current protection
  • Power supply sold separately (models: TI-S12048, TI-S24048)
  • Lifetime Warranty*
DISCONTINUED PRODUCT
The TI-PG50 (Version v1.0R) has been discontinued. It has been replaced by the TI-PG50 (Version v1.1R). For a list of discontinued products, click here.

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

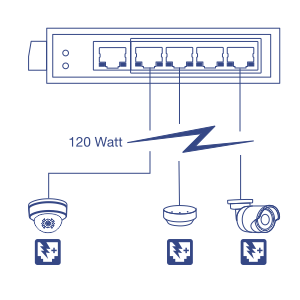

A network diagram of 5-Port Network Switch, connected to PoE Cameras and wireless access point device up to 120 Watt.

PoE Power

A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.

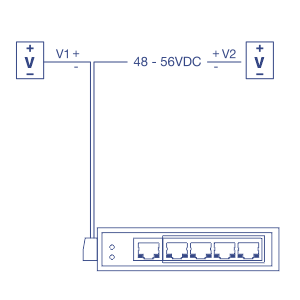

Schematic diagram of a 5-Port Industrial Gigabit PoE+ DIN-Rail Switch with a 48-56V DC power input.

Fault Tolerance

The industrial switch features redundant power inputs with overload current protection.

Graphic with four icons: vibration, temperature, shock, and IP30 rating.

Industrial Design

Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° – 75° C (-40° – 167° F).

The diagram illustrates a technical setup within an industrial environment, featuring a device labeled TI-PG50. This central device is connected to three other devices labeled PLC, PLC, and SCADA HOST, indicating a network configuration. The background shows a detailed layout of an industrial facility, including machinery, workstations, and storage areas. The connections between the TI-PG50 and the other devices are illustrated with dashed lines, emphasizing the network's structure and connectivity.
The device is shown from two perspectives. The front view highlights LED indicators, one Gigabit port, and four Gigabit PoE+ ports. The rear view shows a grounding point, a 4-pin removable terminal block, a wall mount, and a DIN-Rail mount.

PoE+ Power Budget

Supplies up to 30W of PoE/PoE+ power per port on the industrial PoE switch with a 120W PoE power budget

Network Ports

4 x Gigabit PoE+ ports and 1 x Gigabit port

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-Rail and wall mount hardware

Switching Capacity

10Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Extreme Temperatures

Industrial switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point on the industrial switch protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 4-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 10Gbps
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • Surge and ESD protection
  • Low-profile design
Power
  • Input: 48 – 56V DC
  • Compatible power supply: TI-S12048, TI-S24048 (sold separately)
  • Max. consumption: 2.24W (no PoE load)
PoE
  • PoE budget: 120W@56V DC
  • 802.3at: Up to 30W per port
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
Terminal Block
  • Redundant power inputs, 4-pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56Nm
  • Wire strip length: 7-8mm
MTBF
  • 538.451 hours
Enclosure
  • IP30 rated metal enclosure
  • Fanless passive cooling
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • ESD Protection: Contact: 6kV / Air: 8kV
  • Surge Protection: 2kV
  • Overload current protection
  • Reverse polarity protection
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 104 x 82 x 32mm (4.0 x 3.2 x 1.2 in.)
Weight
  • 190g (6.7 oz.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty

PACKAGE CONTENTS
  • TI-PG50
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
