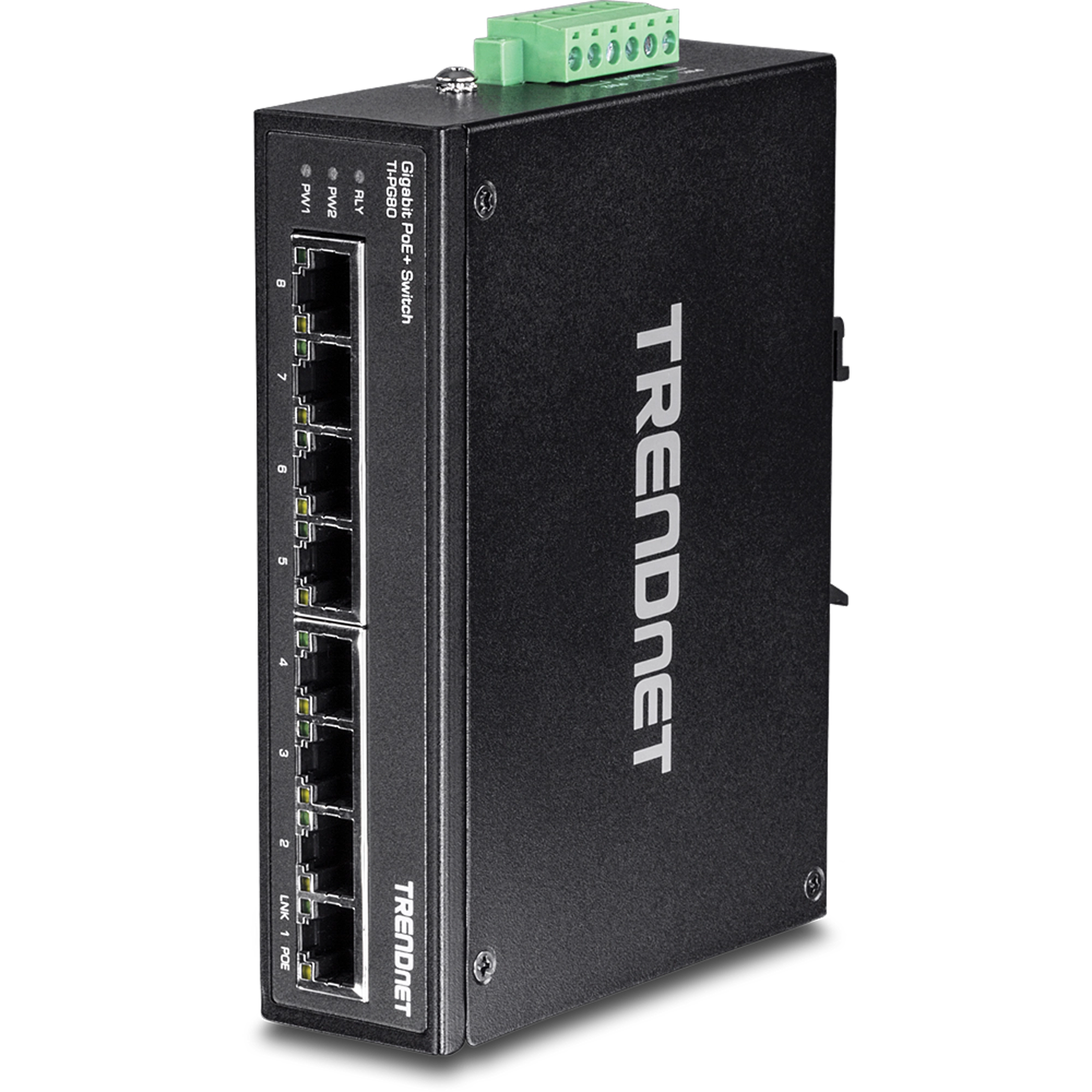

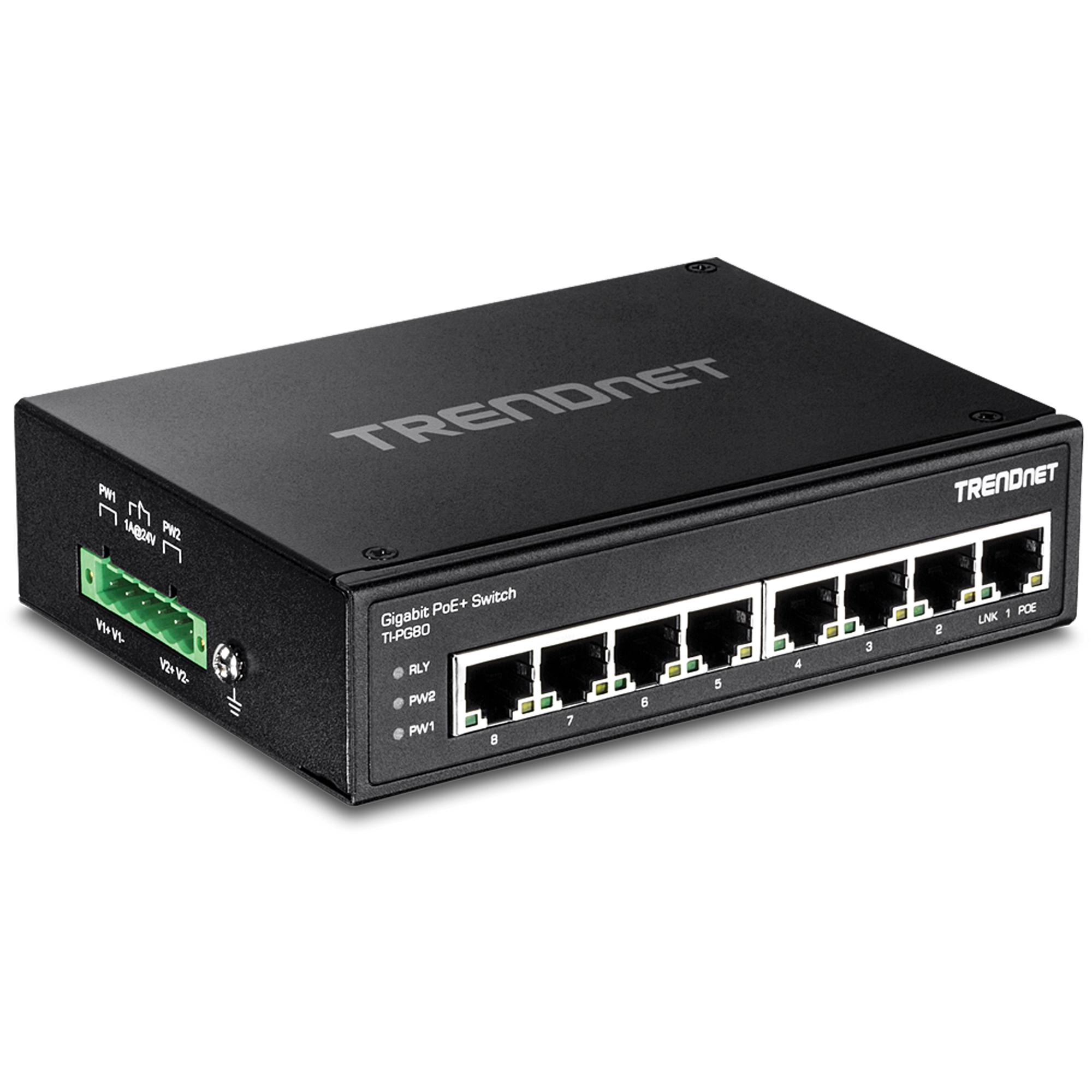

8-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch

TI-PG80 (Version v1.0R)

  • 8 x Gigabit PoE+ Ethernet ports
  • Up to a 200 Watt full PoE+ power budget
  • 16 Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-rail and wall mounts
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Powers supply sold separately (Model TI-S24048)
  • Lifetime Warranty*

TRENDnet's TI-PG80 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications.

Full PoE+ Power Budget

Supplies up to 30 Watts of PoE/PoE+ power per port (802.3at/802.3af) with an up to 200 Watt PoE power budget

Network Ports

8 x Gigabit PoE+ Ethernet ports

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

16 Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately: model TI-S24048)

Alarm Output

Alarm output triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Extreme Temperatures

Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE+

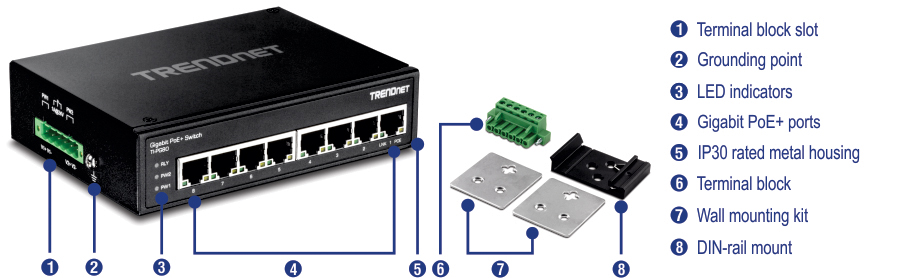

Device Interface
  • 8 x Gigabit PoE+ ports
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 1024 KB
  • Switching Fabric: 16 Gbps
  • MAC Address Table: 8 K entries
  • Jumbo Frame: 9 KB
  • Forwarding rate: 11.9 Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
  • ESD 8 KV and Surge 6 KV protection
Power
  • Input: 48 - 56 V DC
  • Compatible power supply: TI-S24048 (sold separately)
  • Consumption: Max. 5.76 Watts (without PD)
PoE
  • PoE budget: 200 Watts
  • Pin 1,2 for power+ and pin 3,6 for power- (mode A)
Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7-8 mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1 A, 24 V DC
  • Open circuit mode when two power sources are connected
  • Short circuit mode when only one power source is connected
Power Consumption
  • Max. 5.76 Watts (without PoE)
MTBF
  • 510,304 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • 8 KV ESD protection
  • 6 KV surge protection
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.)
Weight
  • 554 g (1.22 lb)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty

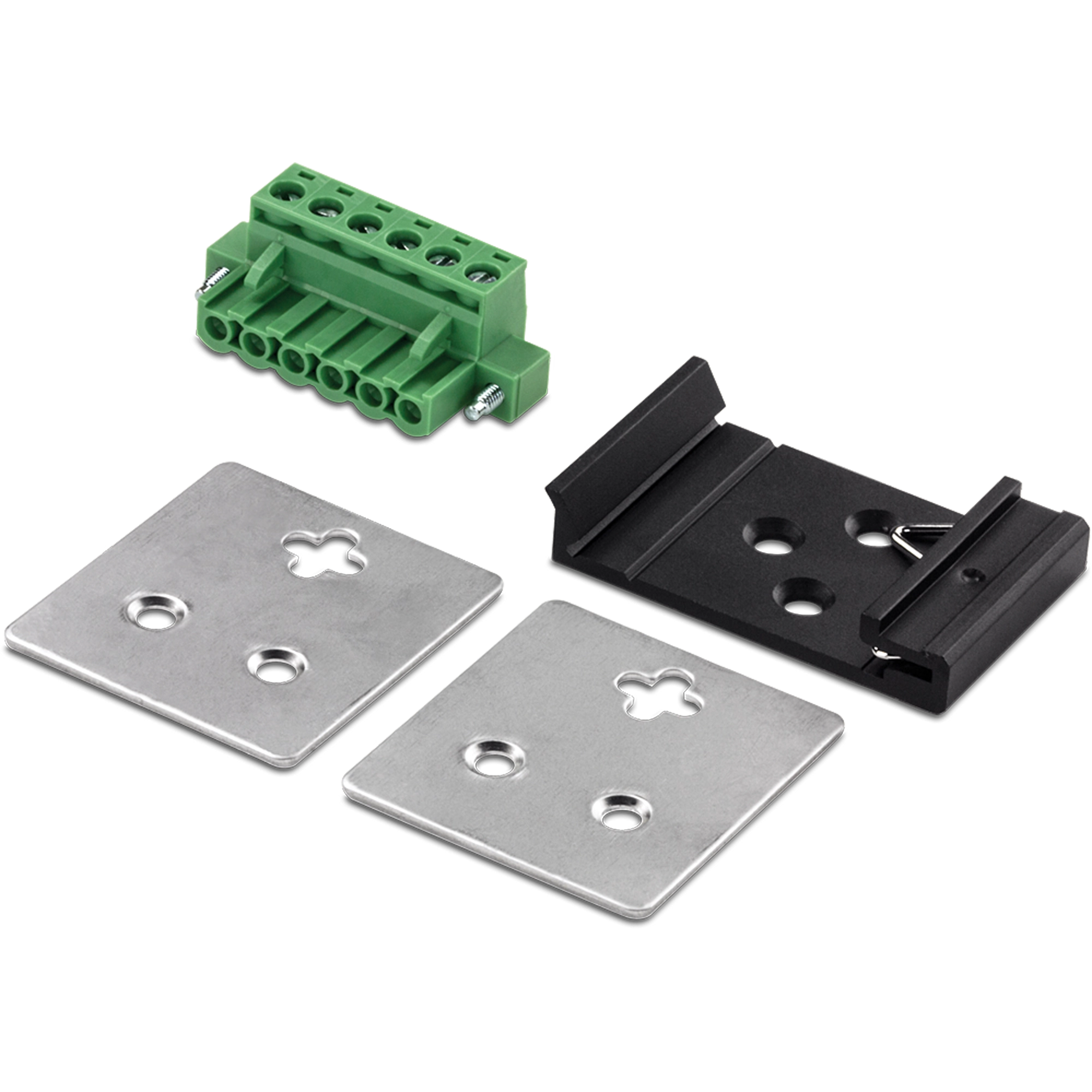

PACKAGE CONTENTS
  • TI-PG80
  • Quick Installation Guide
  • Removable terminal block
  • DIN-rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
