8-Port Industrial Gigabit PoE+ DIN-Rail Switch (24 – 56V)

TI-PG80B (Version v1.0R)

  • 8 x Gigabit PoE+ ports
  • PoE power budget 120W@24V – 200W@48V
  • 16Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Dual 24 – 56V DC power inputs for redundancy
  • Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12024, TI-S24048)
  • NDAA / TAA compliant
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet's 8-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG80B, is an industrial variable voltage switch with eight gigabit PoE+ ports and a 200W PoE power budget. Users are able to connect eight PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP30 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Dual 24 – 56V DC power inputs on the industrial variable voltage switch provide redundancy with power failure alarm relay.

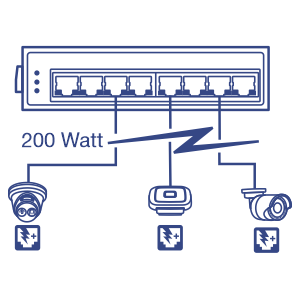

A network diagram of 8-Port Network Switch, connected to PoE Cameras and wireless access point device up to 200 Watt.

PoE Power

The industrial variable voltage PoE switch features a 200W PoE+ power budget, and supplies up to eight Power over Ethernet devices with PoE+ power.

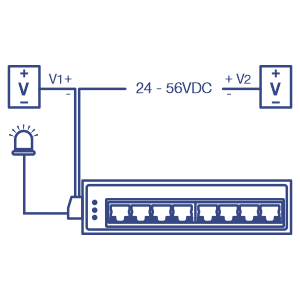

Schematic diagram of a 8-Port Industrial Gigabit PoE+ DIN-Rail Switch (24 – 56V) with a 24-56V DC power input, overload current protection, and an icon of an alarm light.

Fault Tolerance

The industrial variable voltage PoE switch features dual 24V – 56V DC power inputs for redundancy with overload current protection.

Graphic with four icons: vibration, temperature, shock, and IP30 rating.

Industrial Design

Equipped with a rugged IP30 rated housing, resistant to a high degree of vibration and shock, and operates within a wide temperature range of -40° – 75° C (-40° – 167° F).

A technical diagram depicts a network setup within an industrial environment. At the center is a TI-PG80B device, highlighted with a blue circle. This device is connected to several other components via dotted lines. To the left, a PLC (Programmable Logic Controller) is connected to a surveillance camera. Another PLC is located towards the right side of the diagram. Additionally, a SCADA (Supervisory Control and Data Acquisition) host is connected at the bottom. The background shows a detailed layout of an industrial facility, including machinery, conveyor belts, and seating arrangements, indicating a complex and interconnected system.

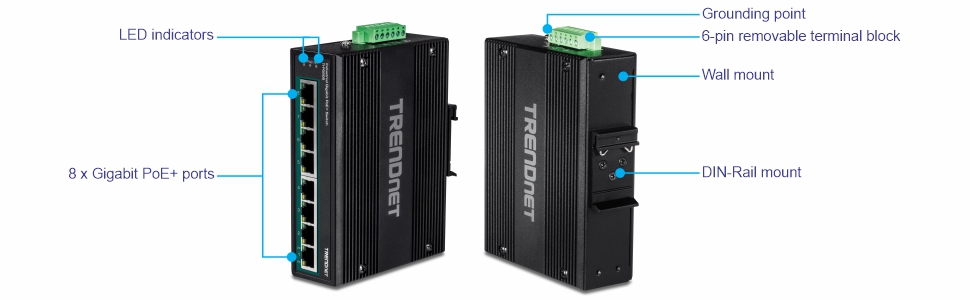

Multiple views of an 8-Port Industrial Gigabit PoE+ DIN-Rail Switch. The left view features eight vertically aligned Gigabit PoE+ ports with LED indicators. The right view highlights several components, including a grounding point at the top, a 6-pin removable terminal block adjacent to the grounding point, a wall mount on the side, and a DIN-Rail mount below the wall mount. Designed for network connectivity and mounting flexibility.

PoE+ Power Budget

Supplies up to 30W of PoE power per port on the industrial variable voltage switch with a 200W PoE power budget

Network Ports

8 x Gigabit PoE+ ports

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with DIN-Rail and wall mount hardware included

Switching Capacity

16Gbps switching capacity

Redundant Power

Dual 24V – 56V DC power inputs with overload current protection (compatible power supplies for this industrial variable voltage PoE+ switch sold separately, models: TI-S15052, TI-S24052, TI-S12024, TI-S24048)

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance on the variable voltage switch

Wide Operating Temperature

Industrial variable voltage switch rated for an operating temperature range of -40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point on the industrial variable voltage switch protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 8 x Gigabit PoE+ ports
  • 6-pin removable terminal block
  • LED indicators
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Dual power inputs
  • ESD 8KV support
DC Power
  • Input: 24 – 56V DC
  • Compatible power supply: TI-S15052, TI-S24052, TI-S12024, TI-S24048 (sold separately)
  • Max. consumption: 5.3W (no PoE)
PoE
  • Max. power budget: 200W @56V DC
  • Max. power budget: 120W @24V DC
Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34mm^2 to 2.5mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm / 0.56 Nm
  • Wire strip length: 7-8mm
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Open circuit mode when two power sources are connected
  • Short circuit mode when only one power source is connected
MTBF
  • 529,765 hours
Housing
  • IP30 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Operating Temperature
  • -40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 142 x 105 x 36mm (5.6 x 4.1 x 1.4 in.)
Weight
  • 622g (1.4 lb.)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty

PACKAGE CONTENTS
  • TI-PG80B
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
