6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch

TI-PG62 (Version v1.0R)

  • 4 x Gigabit PoE+ ports
  • 1 x shared Gigabit port (RJ-45 / SFP)
  • 1 x dedicated SFP slot
  • 120 Watt power budget
  • 12 Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes wall and DIN-rail mounts
  • Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)
  • NDAA / TAA compliant
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet's TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Redundant power inputs and a power failure alarm relay.

TI-PG62 6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch with three devices (two Cameras and Access Points) connected using 120 Watt PoE+ power budget in text

PoE Power

A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.

TI-PG62 6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch connected to two external powers (v1 and v2) with alarm output

Fault Tolerance

Features redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.

Four icons, each representing different features or protections, Device with Vibration Lines: indicates vibration or shock resistance, Thermometer: Signifies temperature resistance. Lightning Bolt: Represents electrical resistance or protection against electrical surges and Text “IP30”: Indicates a specific level of ingress protection (IP) rating against dust and water

Industrial Hardened Design

Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.

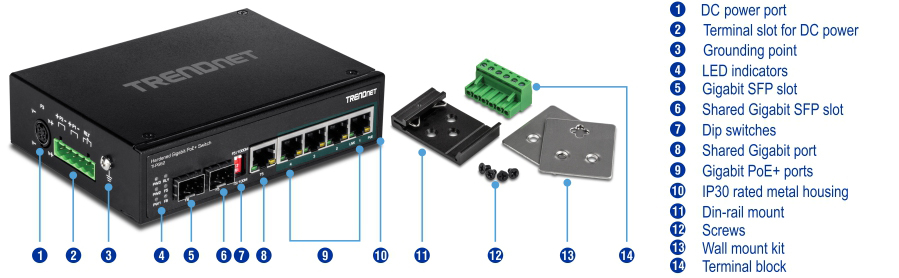

A TRENDnet network switch with black metal housing displaying various components and ports. It includes a DC power port, terminal slot for DC power, grounding point, LED indicators, Gigabit SFP slot, shared Gigabit SFP slot, dip switches, shared Gigabit port, and Gigabit PoE+ ports. The device also features an IP30 rated metal housing, din-rail mount, screws, wall mount kit, and terminal block. All components are neatly arranged with corresponding numbers and descriptions listed beside them, clearly highlighting their functionality and placement for users.

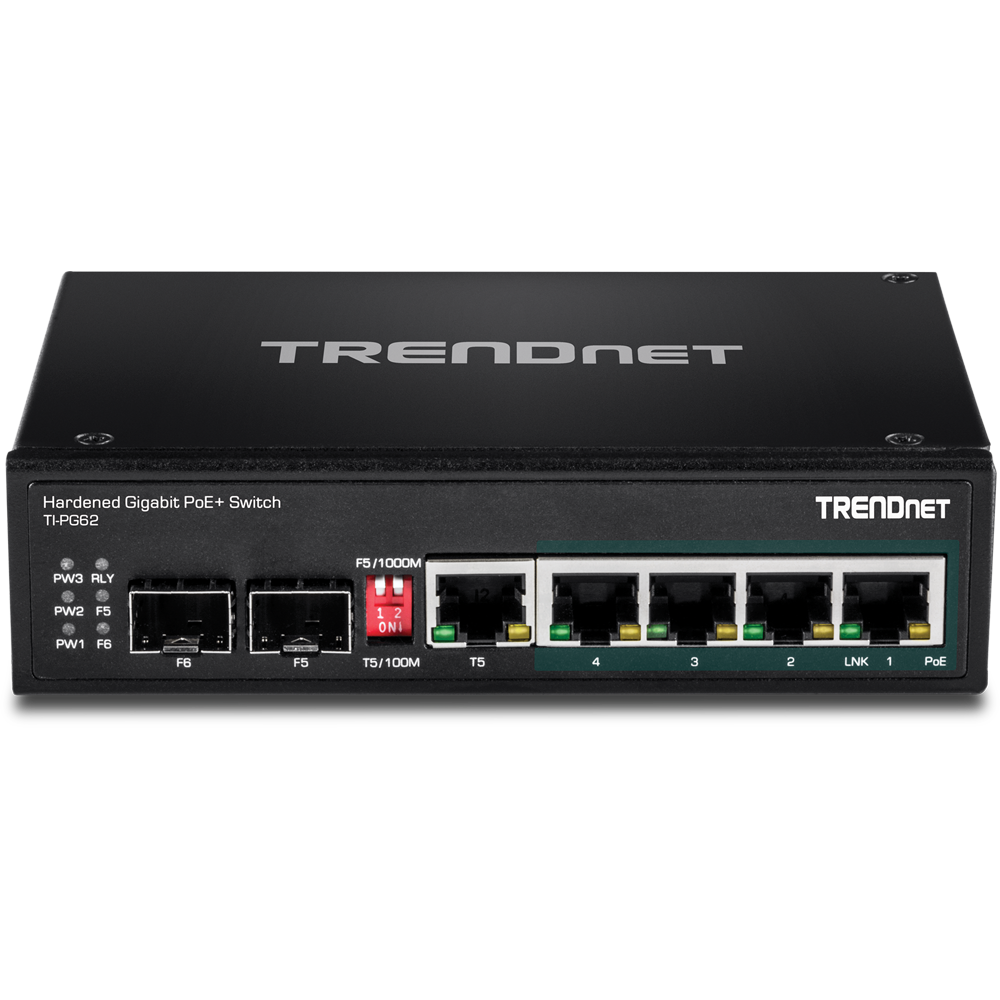

Network Ports

4 x Gigabit PoE+ ports, 1 x shared Gigabit port (RJ-45 / SFP) and 1 x dedicated SFP slot

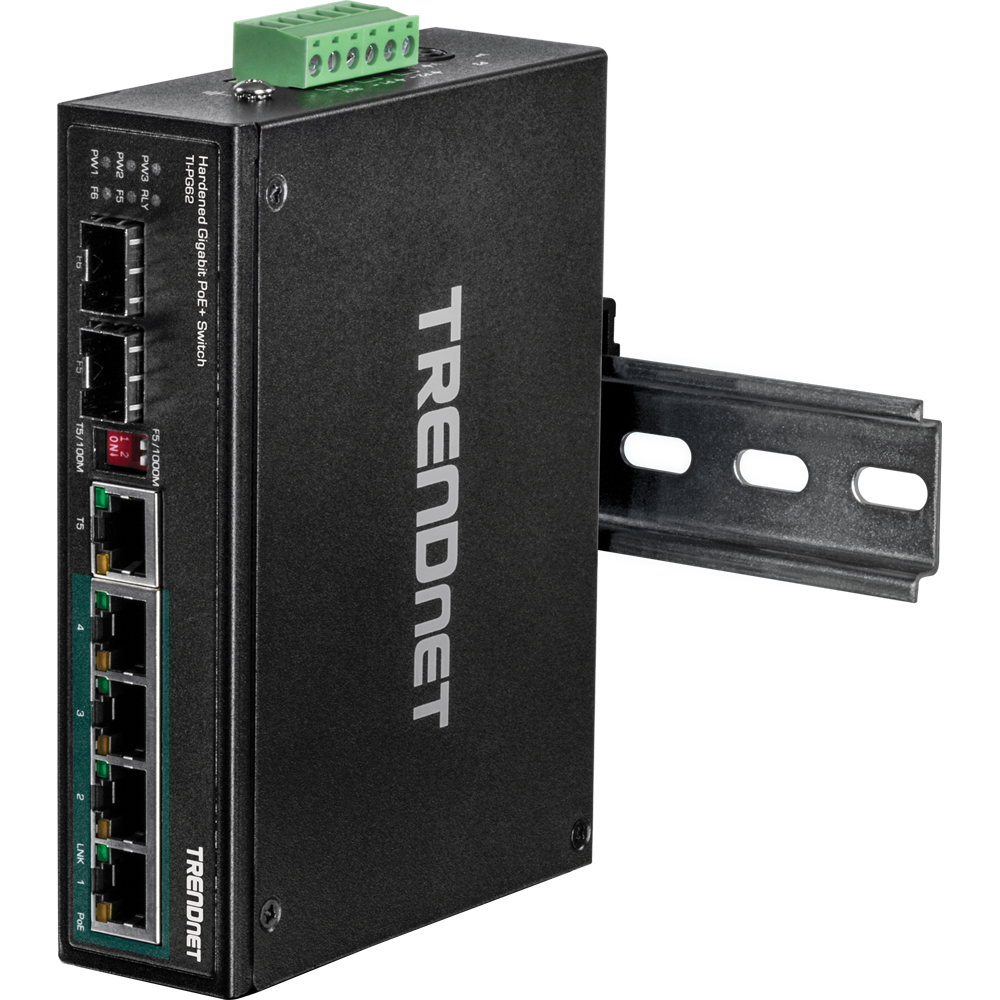

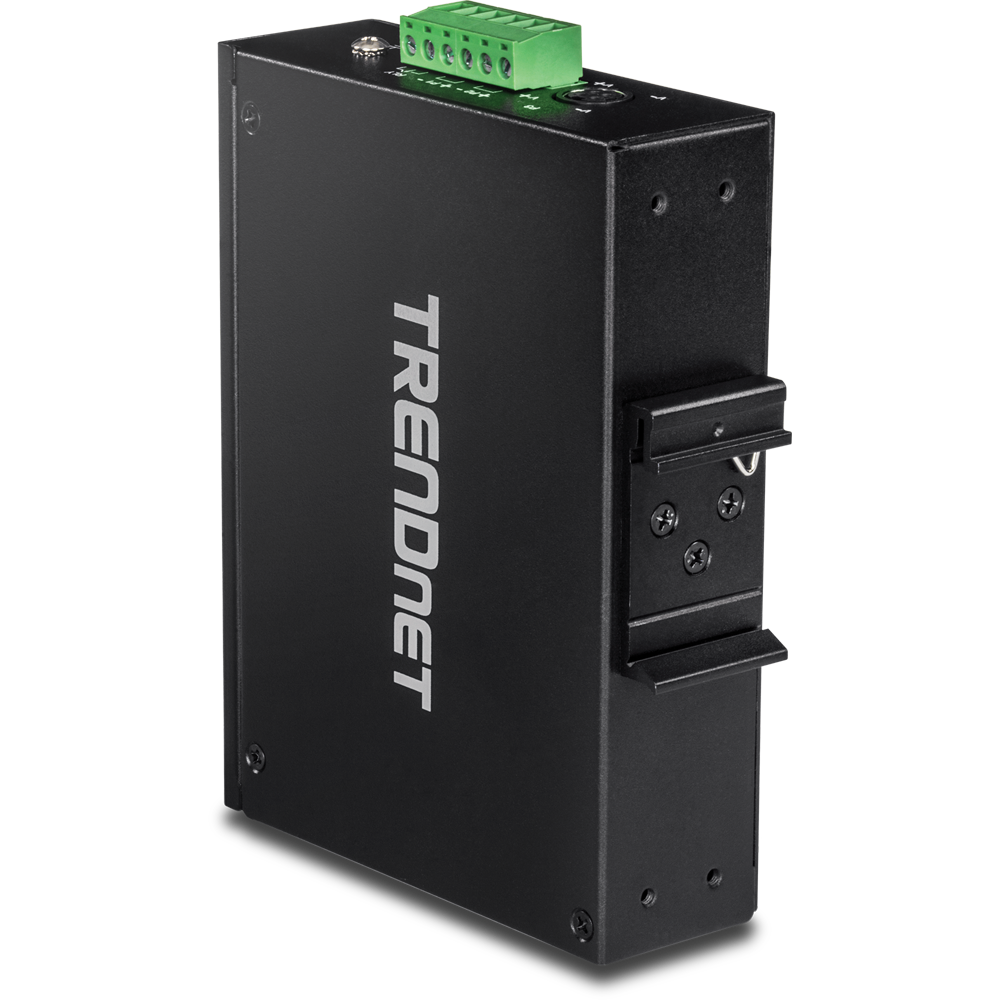

DIN-Rail / Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Switching Capacity

12 Gbps switching capacity

Redundant Power

Redundant power inputs with overload current protection (power supply sold separately models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, 48VDC3000)

Alarm Relay

Alarm relay triggered by power failure of primary and / or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance

Extreme Temperatures

Hardened switch is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022 / 24); industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x Gigabit PoE+ ports
  • 1 x Shared Gigabit port
  • 1 x Shared SFP slot
  • 1 x Dedicated SFP slot
  • 6-pin removable terminal block
  • LED indicators
  • DIP switch
  • DIN-Rail mount
  • Wall mount
  • Grounding point
Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000 Mbps (full duplex)
Performance
  • Data RAM Buffer: 128 KB
  • Switching Fabric: 12 Gbps
  • MAC Address Table: 1 K entries
  • Jumbo Frame: 9 KB
  • Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • Redundant power inputs
  • Auto-Negotiation
  • Auto store and forward architecture
  • Automatic address learning and address aging
DC Power
  • Input: 48 - 56 V DC
  • Compatible power supply: TI-S15052, TI-S24052, TI-S12048, TI-S24048 (sold separately)
  • Consumption: Max. 5.76 Watts (no PoE)
AC Power
  • Input: 100 - 240 V AC, 50/60 Hz, 2 A
  • Compatible power adapter: 48VDC3000 (sold separately)
  • Output: 48V DC, 3.34 A 160 W max.
PoE
  • PoE budget: 120 Watts

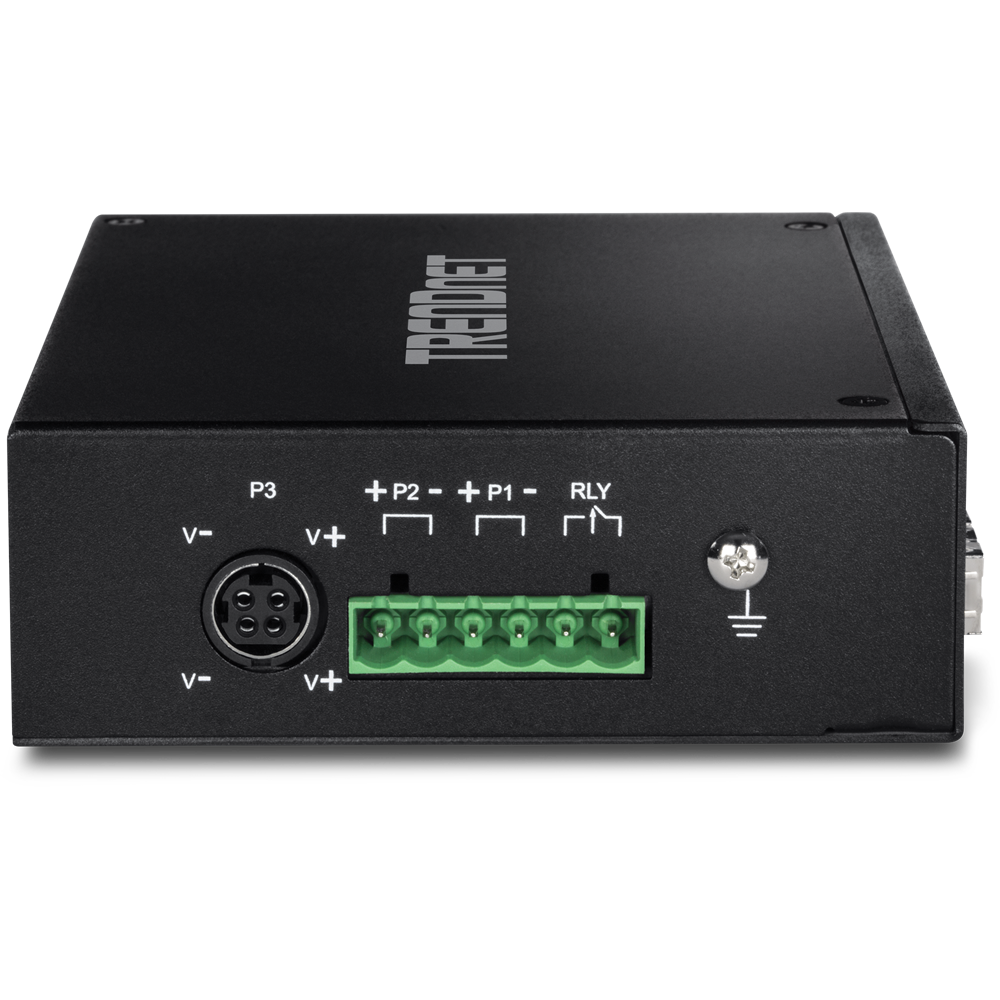

Terminal Block
  • Redundant power inputs, alarm relay contact, 6 pin
  • Wire range: 0.34 mm^2 to 2.5 mm^2
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
  • Wire strip length: 7-8 mm
DIP Switch
  • 1: OFF (port 5 SFP on, default), ON (port 5 SFP off)
  • 2: OFF (SFP 1000M, default), ON (SFP 100M)
Alarm Relay Contact
  • Relay outputs with current carrying capacity of 1A, 24V DC
  • Open circuit mode when two power sources are connected
  • Short circuit mode when only one power source is connected
MTBF
  • 460,304 hours
Housing
  • IP30 metal case
  • DIN-rail mount
  • Wall mount
  • Grounding point
  • ESD Protection: Contact: 6kV / Air: 8kV
  • Surge Protection: 2kV
Operating Temperature
  • - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
  • Max. 95 % non-condensing
Dimensions
  • 143 x 105 x 36 mm (5.6 x 4.1 x 1.4 in.)
Weight
  • 500 g (1.1 lb)
Certifications
  • CE
  • FCC
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS
  • TI-PG62
  • Quick Installation Guide
  • Removable terminal block

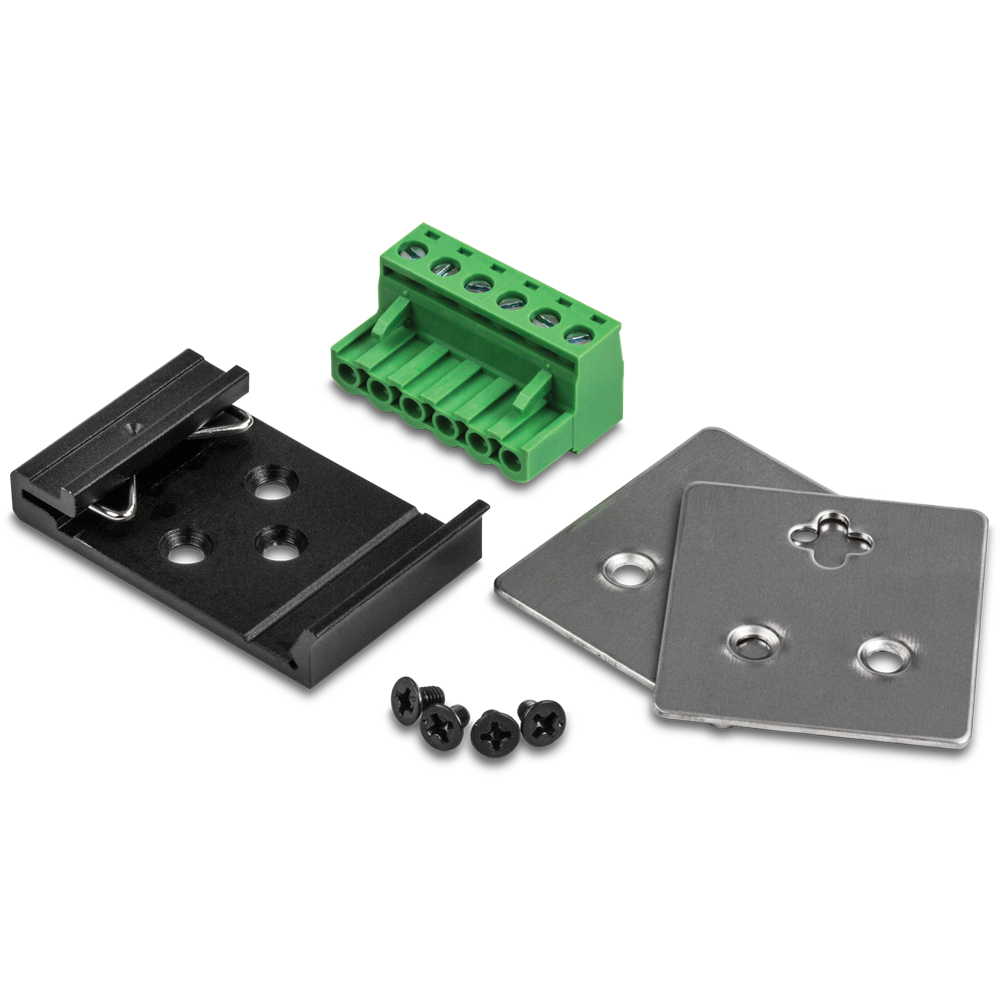

  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
