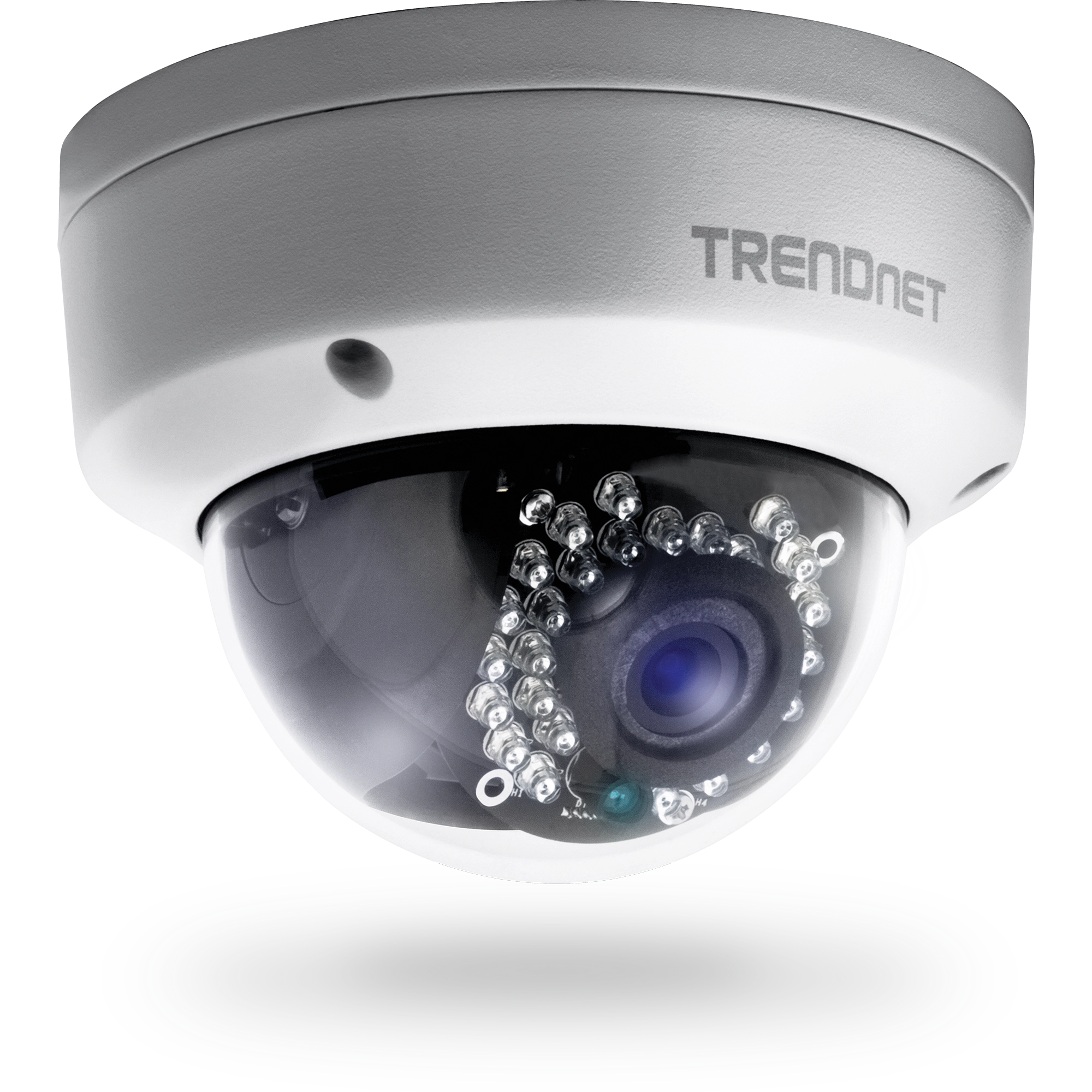

Indoor / Outdoor 1.3 MP HD PoE Dome IR Network Camera

TV-IP321PI (Version v1.0R)

  • 1.3 Megapixel HD resolution
  • Compact IP66 weather rated fixed dome housing
  • Night vision up to 25 meters (82 ft.)
  • Save installation costs with Power over Ethernet (PoE)
  • Program motion detection recording and email alerts
  • Vandal resistant housing
  • Digital Wide Dynamic Range image balancing
  • ONVIF and IPv6 support


The Indoor / Outdoor 1.3 MP HD PoE Dome IR Network Camera, model TV-IP321PI, provides powerful 1.3 megapixel night vision in complete darkness for up to 25 meters (82 ft.). This ultra-compact vandal resistant fixed dome camera is outdoor ready with an IP66 weather rated housing. It comes with a free Apple® and Android™ mobile app and complimentary pro-grade software to manage up to 32 TRENDnet cameras.

Compact Fixed Dome

Manually pan 355° and tilt 75° to set the camera's final viewing field

PoE

Save installation costs with Power over Ethernet (IEEE 802.3af)

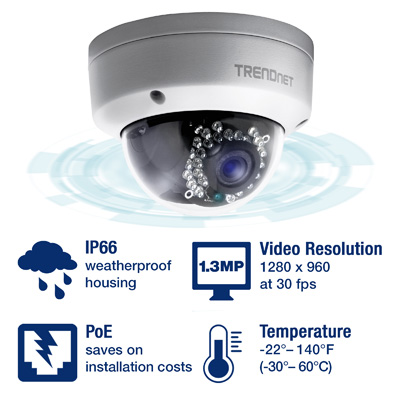

Outdoor Ready

Outdoor IP66 weather rated and an operating temperature range of -30 – 60 °C (-22 – 140 °F)

Vandal Resistant

Impact protection rated: IEC60068-275Eh, 50J; EN50102, exceeding IK10

1.3 Megapixel

Record 1280 x 960 pixel video at 30 fps in H.264 compression

Night Vision

Night vision up to 25 meters (82 ft.) in complete darkness

Smart IR

Dynamic IR adjustment optimizes night visibility

D-WDR

Digital Wide Dynamic Range improves video quality in high contrast lighting environments

Storage

SMB/CIFS support with notification if storage drive is full

Motion Detection

Create motion detection windows with separate sensitivity settings and event triggers

Recording Schedule

Define a weekly recording schedule

Tamper Detection

Receive tamper detection video clips via email

IPv6

IPv6 support

ONVIF

ONVIF v2.2 compliant

Free Apps

See live video on a mobile device with free iOS®and Android™apps

Complimentary Software

Complimentary pro-grade software to manage up to TRENDnet 32 cameras

Lens
  • Focal length: 4 mm
  • Focal depth: 20 cm +
  • Aperture: F2.0
  • Board lens
  • Sensor: 1/3” progressive scan CMOS
Viewing Angle
  • Horizontal: 70°
  • Vertical: 52°
  • Diagonal: 89°
Zoom
  • User-defined digital zoom
Pan/Tilt
  • Fix position adjustable
  • Pan: 355°
  • Tilt: 15 - 90°
Minimum Illumination
  • IR off: 0.01 lux
  • IR on: 0 lux
  • 25 meter IR illumination distance
  • Smart IR
Video
  • D-WDR: 0-100 scale
  • Shutter speed: 1/3 - 1/10,000
  • H.264: 1280 x 960 up to 30 fps
  • MJPEG: 704 x 480 up to 30 fps
Hardware Standards
  • IEEE 802.1X
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af

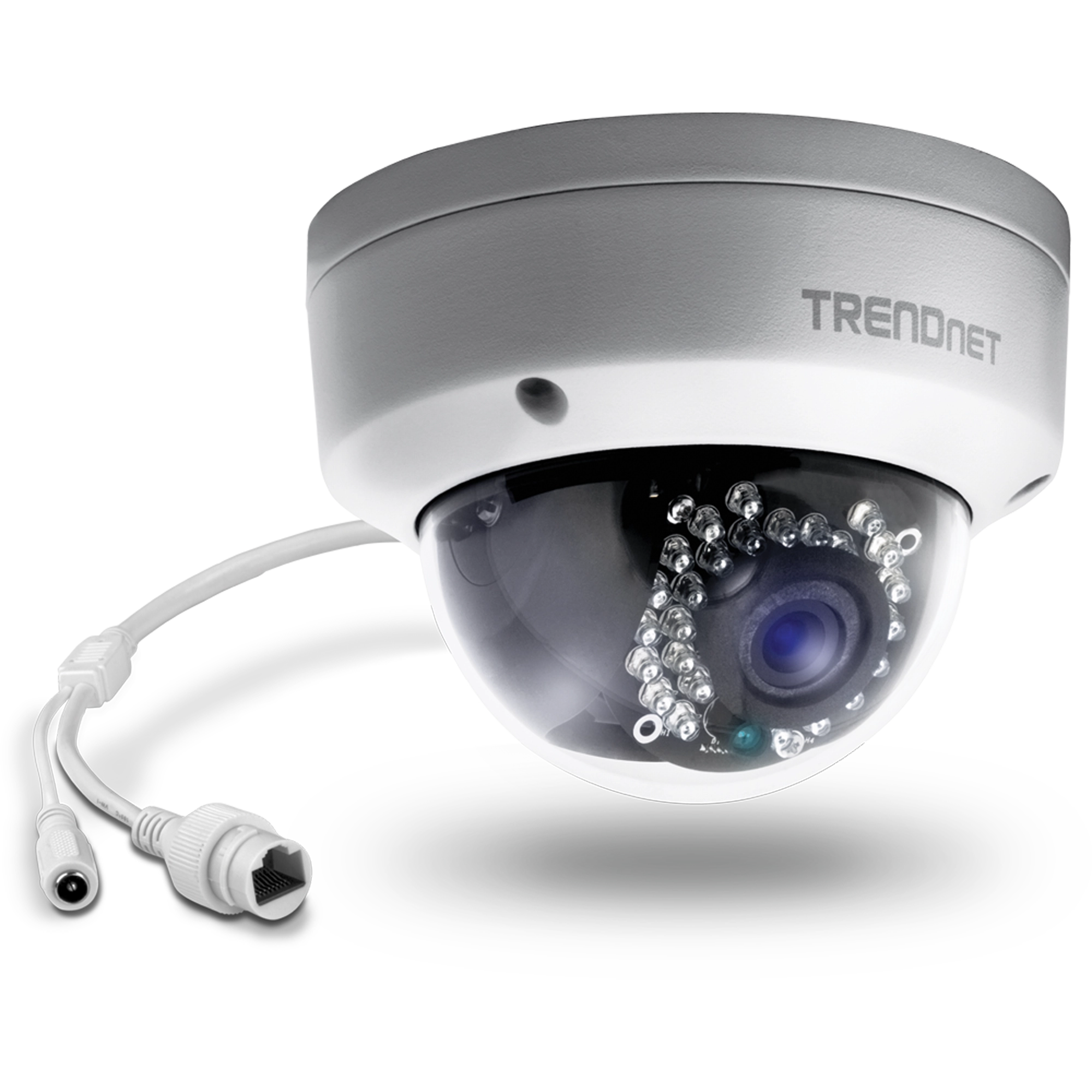

Device Interface
  • 10/100 Mbps PoE port
  • Power port (for non-PoE installations, power adapter sold separately (12VDC1A))
  • Reset button
Housing
  • Weather rating: IP66
  • Impact rating: IK10
Network Protocol
  • IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
  • DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
  • NFS, SMB/CIFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, Bonjour, RTSP, RTP, RTCP, SSL
Operating Temperature
  • -30 - 60 °C (-22 - 140 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
  • UL 60950
Dimensions
  • 111 x 111 x 82 mm (4.4 x 4.4 x 3.2 in.)
Weight
  • 370 g (13.1 oz.)
Power
  • Input: PoE (802.3af)
  • Consumption: 7 Watts max.
Optional Power Supply (Sold separately)
  • Output: 12 V DC 1 A
  • 5.5 mm barrel connector
  • TRENDnet power adapter, model 12VDC1A, sold separately
Management Interface
  • Multi-language support: English, French, German, Russian, and Spanish
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, saturation, sharpness, smart IR, exposure time (1/3 – 1/100,000), video standard, day/night switch, sensitivity, switch time, mirror, D-WDR, white balance, digital noise reduction
  • D-WDR enhances video quality in high contrast daytime lighting
  • 3D Digital Noise Reduction enhances night vision quality
  • Scheduled recording: continuous and motion detection
  • Video storage: to computer, NAS, SMB/CIFS share, or through software
  • Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
  • Privacy masks: define custom privacy mask areas
  • Tamper detection: email notification if the viewing field darkens suddenly
  • Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
  • Alert messages: storage full, storage error, and illegal login
  • Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule
  • Supported dynamic DNS services: Dyn.com, and NO-IP.com
  • Management Setting: maximum 32 user accounts
  • Supports remote management
  • Compatibility: Internet Explorer® 9.0 or higher, Safari® 4.0 or higher,
TRENDnetView Pro Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
TRENDnetVIEW App
  • Free iOS® and Android™ app
  • View your camera on your mobile device
  • Take snapshots
  • Zoom
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TV-IP321PI
  • CD-ROM (Utility Software & User's Guide)
  • Multi-Language Quick Installation Guide
  • Camera mounting hardware
  • (Optional power adapter not included)

Compatible NVR: www.trendnet.com/info/tv-nvr104

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
