Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera

TV-IP322WI (Version v1.0R)

  • 1.3 Megapixel HD resolution (960p)
  • Connect to a WiFi N or PoE network
  • Compact IP66 weather rated housing
  • Night vision up to 30 meters (100 ft.)
  • Program motion detection recording and email alerts
  • MicroSD card slot (up to 64 GB)
  • Digital Wide Dynamic Range image balancing
  • ONVIF and IPv6 support


DISCONTINUED PRODUCT
The TV-IP322WI (Version v1.0R) has been discontinued. It has been replaced by the TV-IP1314PI (Version v1.0R). For a list of discontinued products, click here.

TRENDnet's Indoor / Outdoor 1.3 MP HD WiFi IR Network Camera, model TV-IP322WI, provides powerful 1.3 megapixel night vision in complete darkness for up to 30 meters (100 ft.). This ultra-compact camera is outdoor ready with an IP66 weather rated housing, embedded WiFi N, and a MicroSD card slot. It comes with a free iOS® and Android™ mobile app and complimentary pro-grade software to manage up to 32 TRENDnet cameras.

WiFi or PoE

The ability to connect the camera to an existing WiFi (2.4 GHz) or PoE network offers installation flexibility.

Day/Night HD Surveillance

960p video (1.3 Megapixel) at 30 fps in H.264 compression and 30 meter rated night vision provide 24 hour surveillance.

Outdoor Ready

Built for extreme environments with an IP66 weather rating and an operating temperature range of -30 – 60 °C (-22 – 140 °F).

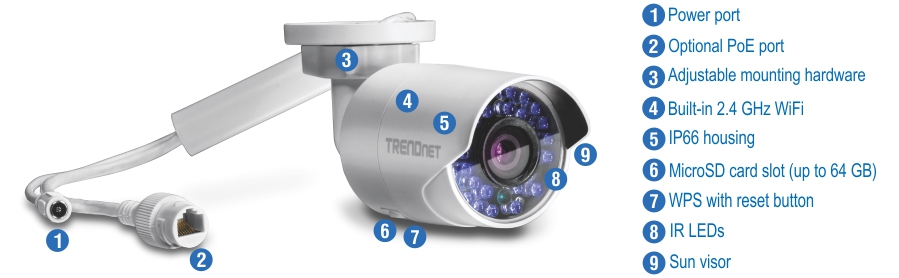

A surveillance camera with a power port, optional PoE port, adjustable mounting hardware, built-in 2.4 GHz WiFi, IP66 housing, MicroSD card slot supporting up to 64 GB, WPS with reset button, IR LEDs, and a sun visor, branded TRENDnet.

1.3 Megapixel

Record up to 1280 x 960 pixel video (960p) at 30 fps in H.264 compression

Night Vision

Night vision up to 30 meters (100 ft.) in complete darkness

WiFi N

Network the camera to an existing Wireless N (2.4 GHz) network

PoE

Supports a Power over Ethernet (IEEE 802.3af) network connection for an optional PoE installation

Outdoor Ready

Outdoor IP66 weather rated and an operating temperature range of -30 – 60 °C (-22 – 140 °F)

Storage

Store video to a MicroSD (SDHC, SDXC) card up to 64 GB (sold separately) or set up SMB or FTP Server storage

Smart IR

Dynamic IR adjustment optimizes night visibility

D-WDR

Digital Wide Dynamic Range improves video quality in high contrast lighting environments

Advanced Playback

Advanced in-camera archived video review functionality

Motion Detection

Create motion detection windows with separate sensitivity settings and event triggers

Recording Schedule

Define a weekly recording schedule with a mixture of continuous and motion detection recording

IPv6

IPv6 support

ONVIF

ONVIF Profile S compliant

Free Apps

See live video on a mobile device with free iOS® and Android™ apps

Complimentary Software

Complimentary pro-grade software to manage up to 32 TRENDnet cameras

Adjustable Bracket

Adjustable integrated mounting bracket provides installation flexibility

Lens
  • Focal length: 4 mm
  • Focal depth: 20 cm+
  • Aperture: F2.0
  • Board lens
  • Sensor: 1/3" progressive scan CMOS
Viewing Angle
  • Horizontal: 71.6°
  • Vertical: 52°
  • Diagonal: 92°
Zoom
  • User-defined digital zoom
Minimum Illumination
  • IR off: 0.028 lux
  • IR on: 0 lux
  • IR Wavelength: 850nm
  • 30 meter IR illumination distance
  • Smart IR reduces close object overexposure
Video
  • D-WDR: 0-100 scale
  • 3D Digital Noise Reduction (DNR)
  • Shutter speed: 1/3 - 1/100,000
  • H.264: 1280 x 960 up to 30 fps
  • MJPEG: 704 x 480 up to 30 fps
Hardware Standards
  • IEEE 802.1X
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Device Interface
  • 10/100 Mbps PoE port
  • Power port (for wireless installations)
  • Integrated adjustable mounting base
  • MicroSD card slot (up to 64 GB)
  • WPS button
  • Reset button
  • LED indicator
Frequency
  • 2.412 – 2.483 GHz
Modulation
  • 802.11b: CCK, QPSK, BPSK
  • 802.11g/n: OFDM
Antenna Gain
  • Built-in 3dBi
Encryption
  • 64/128-bit, WPA/WPA2-PSK
Data Rate
  • 802.11b: up to 11 Mbps
  • 802.11g: up to 54 Mbps
  • 802.11n: up to 150 Mbps
Output Power
  • 802.11b: 17 ± 1.5 dBm (typical)
  • 802.11g: 14 ± 1.5 dBm (typical)
  • 802.11n: 12.5 ± 1.5 dBm (typical)
Receiving Sensitivity
  • 802.11b: -90 dBm at 11 Mbps
  • 802.11g: -75 dBm at 54 Mbps
  • 802.11n: -74 dBm at 150 Mbps
Channel
  • 1-11 (FCC), 1-13 (ETSI)
Wireless Range
  • 50 Meter (depends on the environment)
Housing
  • Weather rating: IP66
Network Protocol
  • IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3), QoS, IGMP, Bonjour
  • NFS, SMB/CIFS
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP, RTCP, SSL
Operating Temperature
  • -30 – 60 °C (-22 – 140 °F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
  • UL 60950
Dimensions
  • 150 x 60 x 75 mm (5.9 x 2.4 x 3.0 in.)
Weight
  • 334 g (11.9 oz.)
Power
  • Input: 100 – 240 V 50/60 Hz 0.3 A
  • Output: 12 V 1 A
  • Consumption: 7 Watts max.
  • PoE: 802.3af
Management Interface
  • Multi-language support: English, French, German, Russian, and Spanish
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, saturation, sharpness, smart IR, exposure time (1/3 – 1/100,000), video standard, day/night switch, sensitivity, switch time, mirror, D-WDR, white balance, digital noise reduction
  • D-WDR enhances video quality in high contrast daytime lighting
  • 3D Digital Noise Reduction enhances night vision quality
  • Scheduled recording: continuous and motion detection
  • Video storage: to computer, NAS, CIFS/SAMBA share or through software
  • Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
  • Privacy masks: define custom privacy mask areas
  • Tamper detection: email notification if the viewing field darkens suddenly
  • Video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
  • Alert messages: storage full, storage error, and illegal login
  • Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule
  • Supported dynamic DNS services: Dyn.com and NO-IP.com
  • Management Setting: maximum 32 user accounts
  • Supports remote management
  • Storage logs: Alarm, Exception, Operation, and others
  • Compatibility: Internet Explorer® 9.0 or higher
TRENDnetView Pro Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
TRENDnet IPView App
  • Free iOS and Android™ app
  • View your camera on your mobile device
  • Take snapshots
  • Zoom
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TV-IP322WI
  • CD-ROM (Utility, Software & User's Guide)
  • Quick Installation Guide
  • Camera mounting hardware
  • Power adapter (12V 1A)
  • Network Cable (2 m / 6.5 ft.)

Compatible NVR: www.trendnet.com/info/tv-nvr104

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
