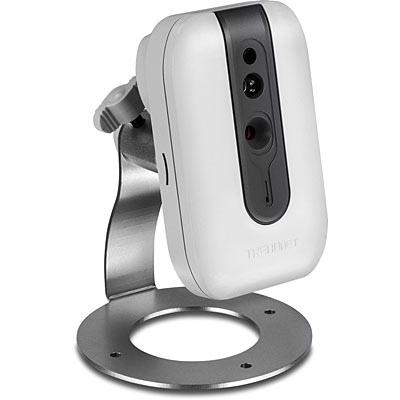

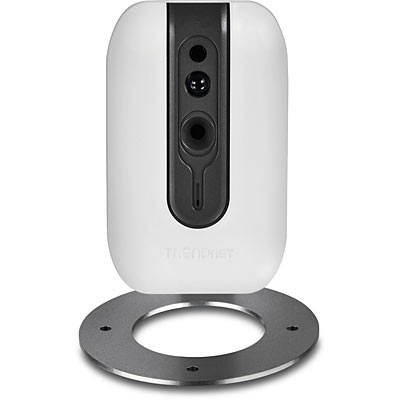

Megapixel HD Wireless Day/Night Network Camera

TV-IP562WI (Version v1.0R)

  • Megapixel resolution
  • Night vision up to 5 meters (16 ft.)
  • Receive motion and sound detection video clips via email
  • Record video to a Micro SD card or network storage device
  • Two way audio
  • Free mobile apps
  • Free pro-grade management software

The Megapixel HD Wireless Day/Night Network Camera, model TV-IP562WI, provides megapixel night vision in complete darkness for up to 5 meters (16 feet). A mounting bracket and Wireless N networking support a variety of installations. Each camera comes with a free Apple® and Android™ mobile app and Complimentary pro-grade software to manage up to 32 TRENDnet cameras.

Wireless N

Wireless N network increases installation options

Megapixel Video

Record 1280 x 720 megapixel video at 30 frames in the space savings H.264 compression format

Night Vision

Night vision up to 5 meters (16 ft.) in complete darkness

Digital Zoom

Zoom in by a factor of four

Motion Detection Emails

Receive snapshots and video clips of motion via email

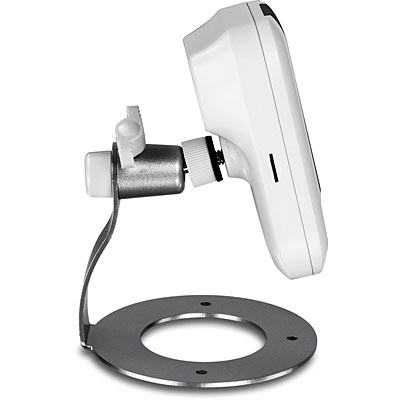

Mounting Bracket

An articulated mounting bracket increase installation options

Two-Way Audio

Hear sounds from the camera (install a third party speaker for two-way audio)

Storage

Store video to a Micro SD card (up to 32 GB) or to a Samba server

Free Apps

See live video on a mobile device with free Apple® and Android® apps

Complimentary Software

Complimentary pro-grade software to manage up to 32 TRENDnet cameras

ONVIF

ONVIF Profile S compliant

IPv6

IPv6 support

Lens
  • Focal Length: 3.35 mm, F2.0
  • Focal Depth: 30 cm~ infinity
  • Fixed Lens
  • Sensor: 1/4” CMOS sensor
  • Zoom: 4x digital
Viewing Angle
  • Diagonal: 68˚
  • Horizontal: 60˚
  • Vertical: 40˚
Minimum Illumination
  • IR off: 0.5 lux
  • IR on: 0 lux
  • 5 meters (16 ft.) IR illumination distance
Video Codecs/Resolution
  • H.264: 1280 x 720 up to 30 fps
  • MPEG4: 1280 x 720 up to 30 fps
  • MJPEG: 1280 x 720 up to 5 fps (or 640 x 480 up to 30 fps)
Audio
  • Built-in microphone
  • 3.5 mm audio jack for 3rd party speakers
Standard
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n

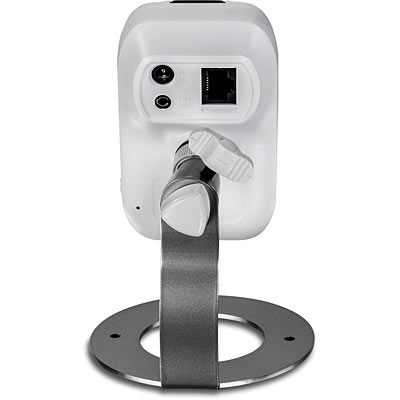

Device Interface
  • 10/100 Mbps Ethernet port
  • Micro SD slot (up to 32 GB)
  • Reset button
  • WPS button
  • LED indicators
  • Speaker jack
  • Power jack
Network Protocol
  • IPv4, IPv6, ARP, TCP, UDP, ICMP, ONVIF Profile S
  • DHCP, NTP, DNS, DDNS, SMTP, FTP, Samba
  • HTTP
  • PPPoE
  • UPnP
  • RTP, RTCP, RTSP, 3GPP
Dimension
  • Camera: 103 x 62 x 35 mm (4.1 x 2.5 x 1.4 in.)
  • With bracket: 125 x 93 x 93 mm (4.9 x 3.7 x 3.7 in.)
Weight
  • Camera: 88 g (3.1 oz)
  • With bracket: 238 g (8.4 oz)
Operating Temperature
  • 0 - 40°C (32 - 104°F)
Humidity
  • Max. 85% non-condensing
Power
  • Input: 100 - 240 V AC, 50/60 Hz, 0.2 A
  • Output: 5 V DC, 1 A external power adapter
  • Max consumption: 5 Watts
Management Interface
  • Image settings: brightness, saturation, contrast, hue, black/white, mirror, flip, day/night, frequency, white balance, slow shutter
  • Recording: to a Samba share, Mirco SD Card or through software
  • Recording Type: continues, scheduled, motion, or sound detection
  • Event Trigger: motion or sound detection event triggers
  • Event capture: snapshot or video (up to 15 seconds)
  • Event activity: email or FTP alert
  • DynDNS: support for NO-IP.com and Dyn.com
  • Settings: Max. 20 user accounts and support for remote management
  • Compatibility: Internet Explorer® 7.0 or higher, Safari® 4.0 or higher
TRENDnetVIEW Pro Software
  • Supports up to 32 cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows Server® 2003, 2008
TRENDnetVIEW App
  • Free Apple® and Android™ apps
  • View your camera on your mobile device
  • Take snapshots
  • Zoom
  • 2- way audio
Warranty
  • 3 years

PACKAGE CONTENTS
  • TV-IP562WI
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility, Software, & User's Guide)
  • Network cable (1.8 m/6 ft.)
  • Power adapter (5 V DC, 1 A) (1.5 m/5 ft.)
  • Camera mounting kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
