2-Port Dual Monitor DisplayPort KVM Switch

TK-240DP (Version v1.0R)

  • Dual Monitor DisplayPort™ 1.2 KVM
  • 3.5mm speaker and microphone connections
  • Designed for use with Dual DisplayPort systems
  • Supports 4K UHD resolutions up to 3840 x 2160 @ 60Hz
  • Up to 2560 x 1440 @ 144Hz
  • 2-Port USB 2.0 hub for storage devices and printers
  • Required cabling (TK-CP06) sold separately
  • No CD installation required

TRENDnet's 2-Port Dual Monitor DisplayPort KVM Switch, model TK-240DP, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolutions, no driver installation required. The TK-240DP is designed for dual monitor systems with USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or printers between computers.

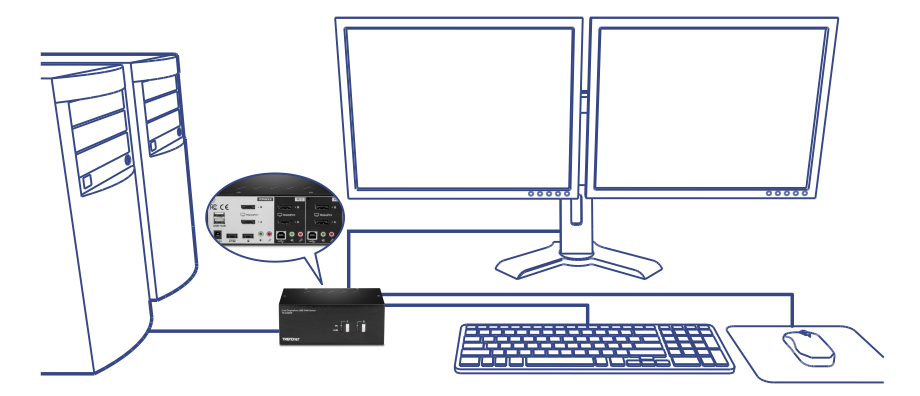

A schematic diagram illustrating a dual monitor system connected to a KVM Switch. Monitors ‘A’ and ‘B’ are labeled. Both monitors are connected to the KVM Switch via DisplayPort. The KVM Switch serves as a hub for managing both monitors.

DisplayPort Monitor

Designed to connect to two DisplayPort monitors

4K UHD logo on monitor.

4K UHD Resolution

Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz)

An illustration of the back of a KVM Switch with a USB port, showing in a speech bubble.

USB 2.0 Hub

Two additional USB ports to connect storage drives and printers

Computers

Control up to 2 computers

4K UHD

Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz)

Audio Support

Full audio support maximizes work station productivity

USB Mouse & Keyboard

True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs

DisplayPort Monitor

Designed to connect to two DisplayPort monitors

Housing

Rugged metal enclosure

USB 2.0 Hub

Two additional USB ports to connect storage drives and printers

Hot Keys

Hot Key command shortcuts

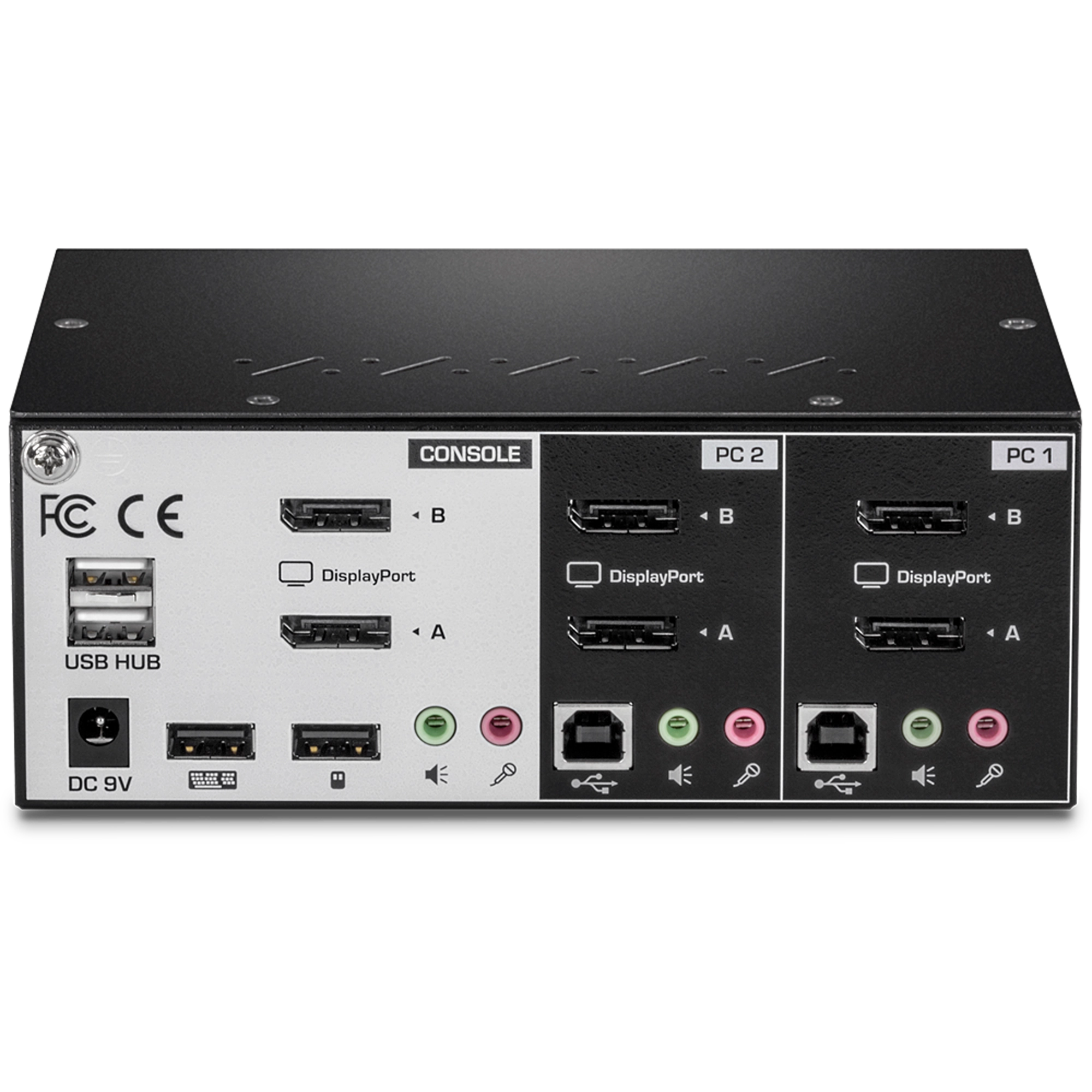

Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
KVM Port Interface (up to 2)
  • Keyboard/Mouse: USB Type B
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Computer Interface (up to 2)
  • Keyboard/Mouse: USB Type A
  • Monitors: 2 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Monitor Resolution
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

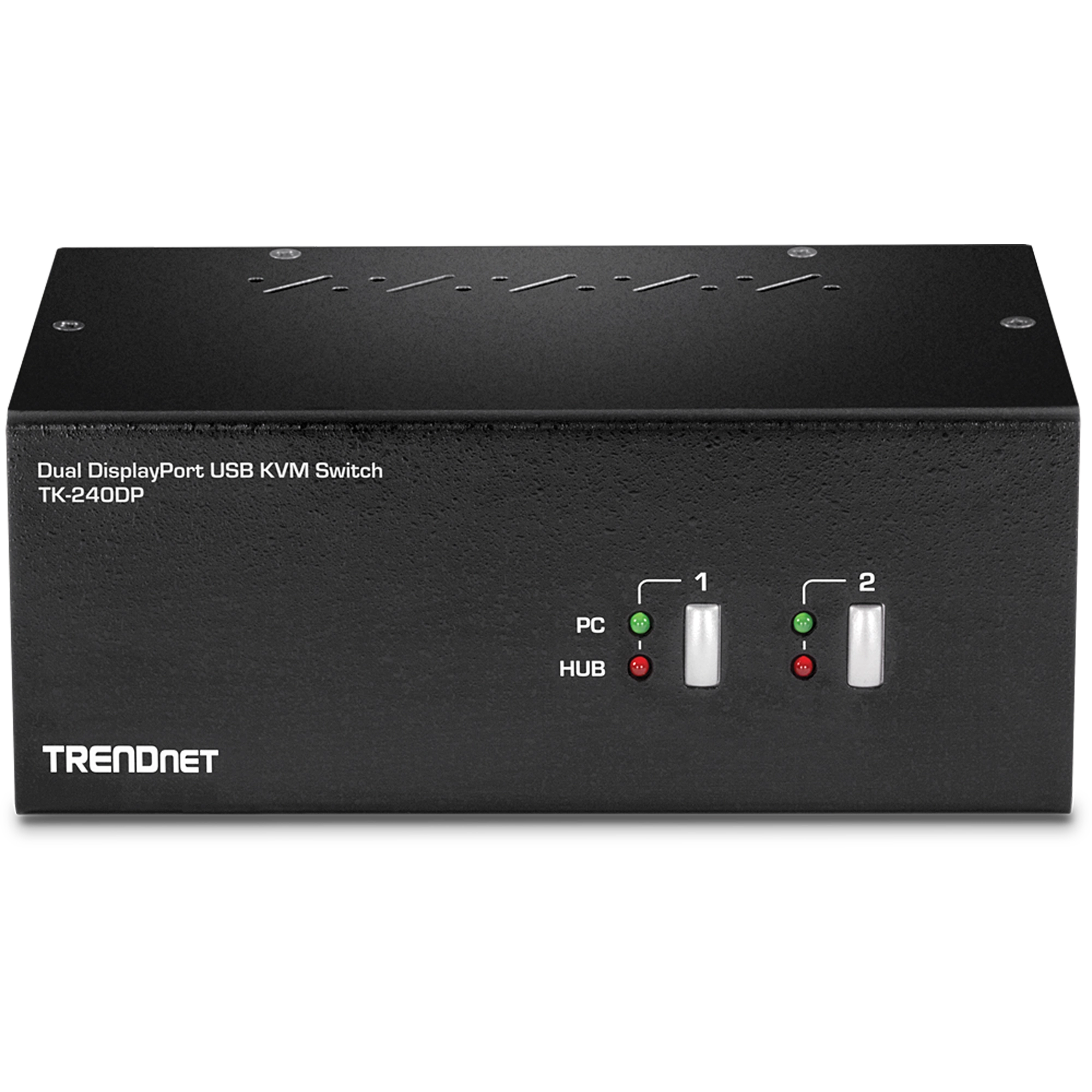

Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 2A external power adapter
  • Max. consumption: 0.7W
Dimensions
  • 163 x 100 x 66mm (6.4 x 3.9 x 2.6 in.)
Weight
  • 750g (1.65 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS
  • TK-240DP
  • Quick Installation Guide
  • Power adapter (9V DC, 2A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
