Magnetic Dual Antenna Mounting Base RP-SMA Female with RP-SMA Male Extension Cable

TEW-LB101 (Version 1.0R)

  • Extends two wireless antennas up to 1m (3.3 ft.)
  • Magnetic base allows for easy mounting, positioning, and optimal placement of antennas
  • Compatible with 2.4GHz or 5GHz directional and omni-directional RP-SMA detachable antennas
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

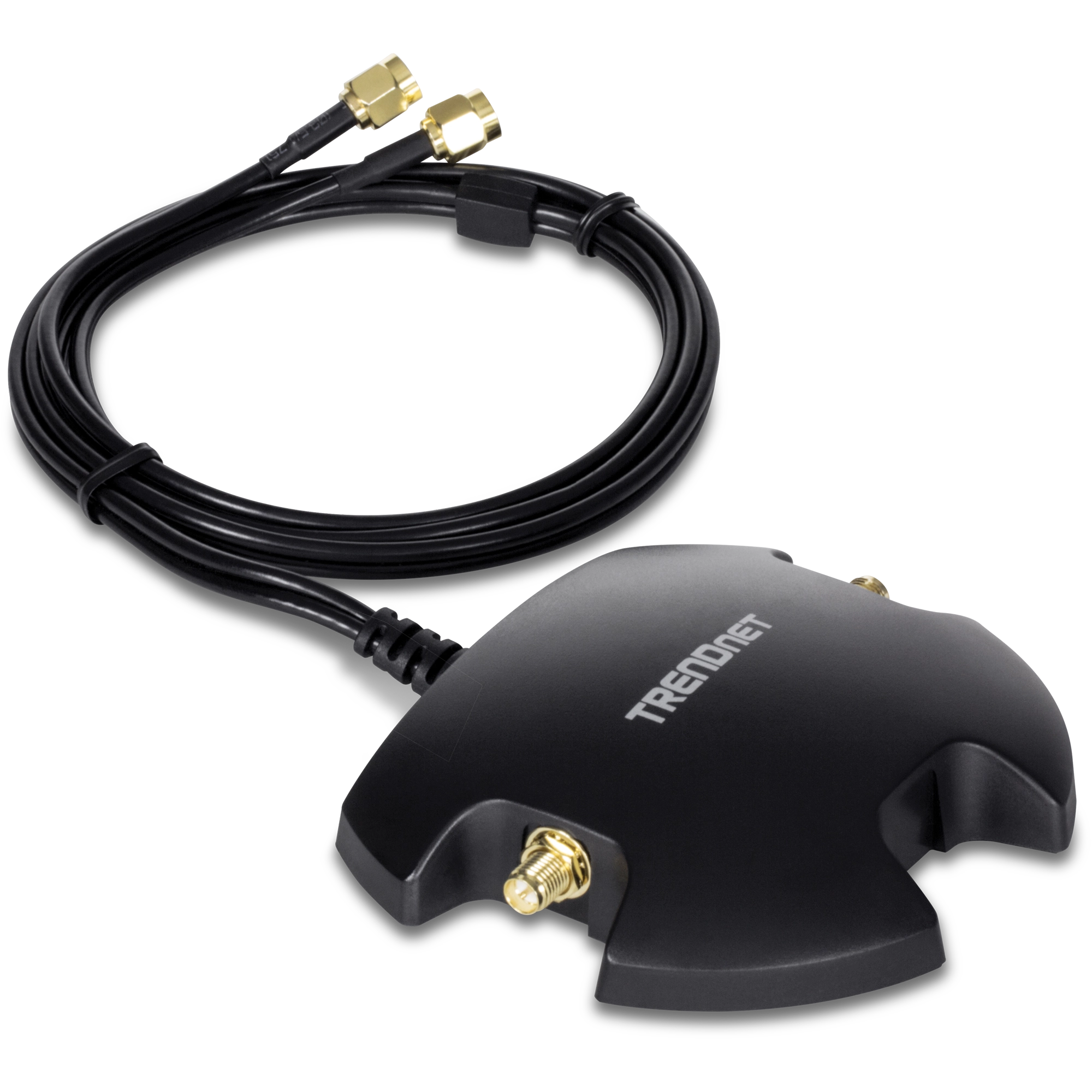

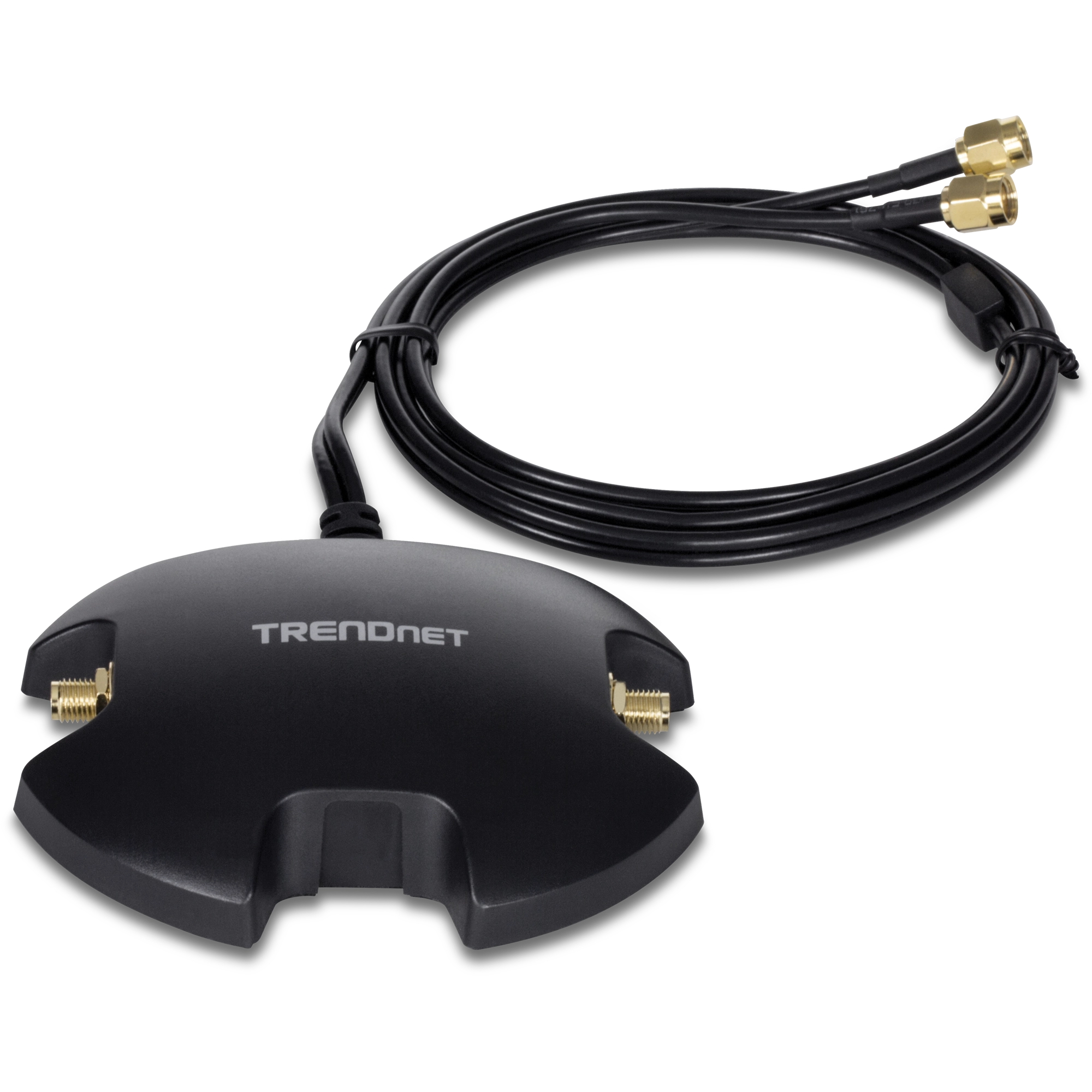

TRENDnet’s Dual Antenna Magnetic Mounting Base RP-SMA Female with RP-SMA Male Extension Cable, model TEW-LB101, extends two wireless antennas up to 1m (3.3 ft.) and can be used with wireless routers, access points, and wireless network adapters that use detachable RP-SMA antennas. The magnetic mounting base provides convenient placement and positioning of antennas to attain optimal signal range.

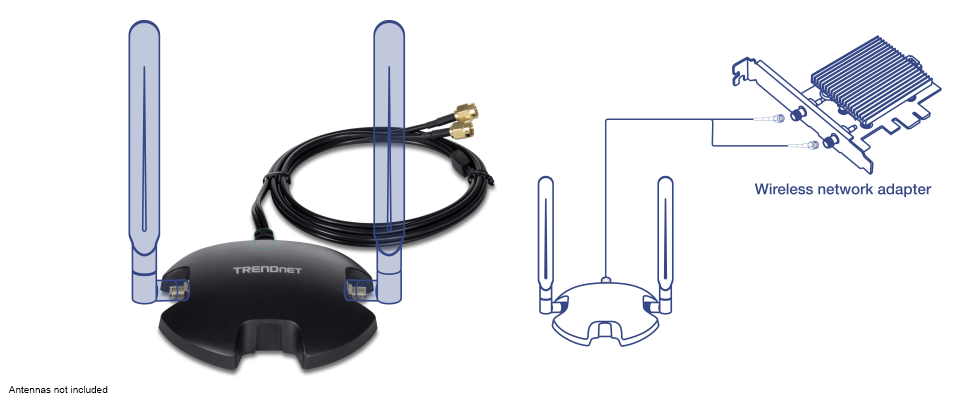

The visual depicts a TRENDnet wireless network adapter setup. It includes a central black base unit labeled TRENDnet, with two antenna slots on either side. A long black cable with gold connectors is attached to the base unit. To the right, a diagram illustrates the connection between the base unit and a wireless network adapter card, showing how the antennas connect to the adapter. The text Antennas not included is located in the bottom left corner.

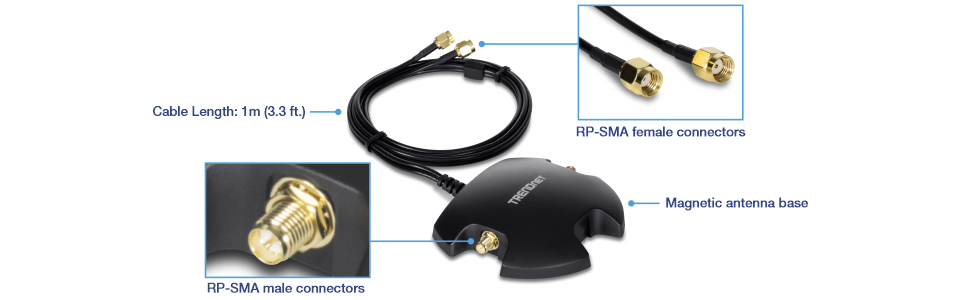

The visual shows a TRENDnet magnetic antenna base with RP-SMA connectors. The cable length is 1 meter or 3.3 feet. The RP-SMA male connectors are highlighted on the base, while the RP-SMA female connectors are shown at the end of the cable.

Interface

Dual RP-SMA plug (female) mounting base to RP-SMA (male) cable

Installation Flexibility

Magnetic base along with 1m (3.3 ft.) cable allows for easy mounting, positioning, and placement of antennas for optimal signal range

Compatibility

Compatible with 2.4GHz or 5GHz directional and omni-directional RP-SMA detachable antennas

Connector

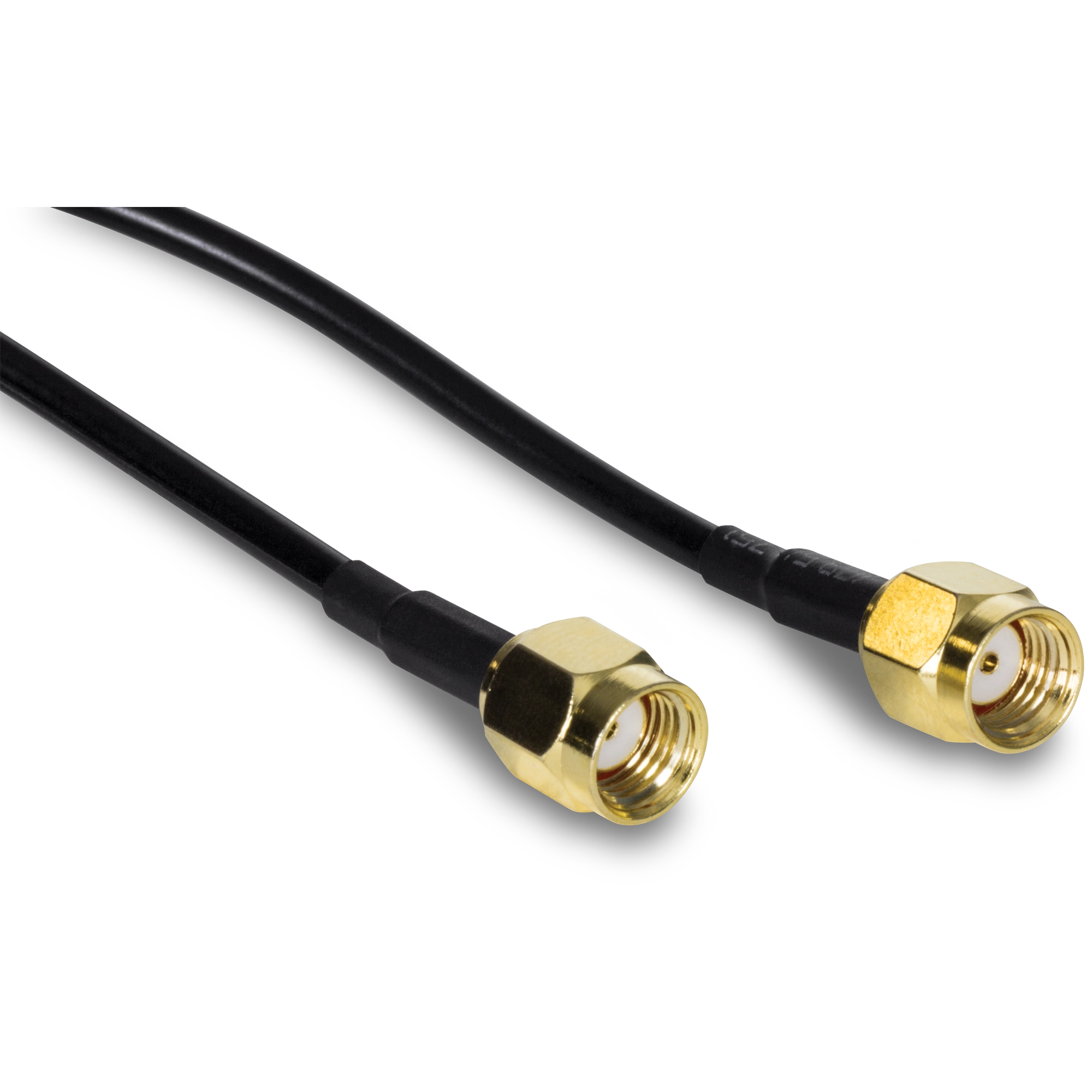

  • 2 x RP-SMA male connectors (magnetic base) to RP-SMA female connectors (cable)
Cable Length
  • 1m (3.3 ft)
Cable Loss
  • Max 3dB
Dimension
  • Base: 91 x 19 x 78mm (3.58 x 0.74 x 3.07 in.)
  • Cable: 1m (3.3ft.)
Weight
  • Base + Cable: 114g (4 oz.)
  • Base only: 71.1g (2.5 oz.)
Operating Temperature
  • 0° – 55° C (32° – 131° F)
Operating Humidity
  • Max. 95% non-condensing
Antenna Base
  • Magnetic antenna base
Warranty
  • 2 years

PACKAGE CONTENTS
  • TEW-LB101

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
