5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass Through

TPE-P521ES (Version v1.0R)

1 x Gigabit PoE+ input port
2 x Gigabit PoE output ports
2 x Gigabit ports
18W PoE power budget
Easy to use web-based management interface
Supports static link aggregation, VLAN, QoS, STP, RSTP and IGMP Snooping
Voice VLAN for VoIP applications
Bandwidth control per port
10Gbps switching capacity
IEEE 802.1p QoS with queue scheduling support
Compact fanless design
Wall mountable metal housing
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty*

5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass Through, model TPE-P521ES, is powered by a PoE+ switch or injector, no AC adapter is required. It features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras, VoIP handsets, and wireless access points. Reducing unnecessary switch complexity, this EdgeSmart switch is equipped with only the most commonly used managed switch features. The simple web-based user interface allows you to easily manage VLANs, QoS, and monitoring.

Integration Flexibility

Managed features include access control lists, VLAN, IGMP Snooping, and QoS for flexible network integration.

Diagram of a PoE network setup with a security camera consuming 18 watts and another device consuming 30 watts connected to a PoE switch.

PoE+ Powered

No AC adapter required—this switch is powered by a PoE+ switch or injector, and features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras.

Line art of a Network switch with dashboard management speech bubble.

EdgeSmart Management

Provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.

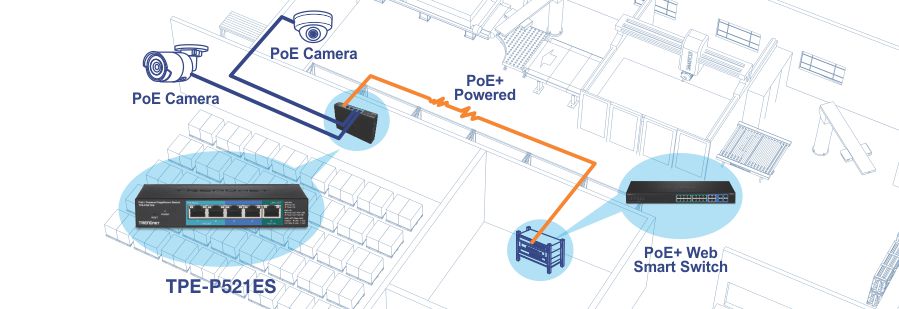

The diagram illustrates a network setup involving Power over Ethernet (PoE) devices. It shows two PoE cameras connected to a TPE-P521ES switch, which is linked to a PoE+ powered device, itself connected to a PoE+ Web Smart Switch. Connections between devices are indicated by blue lines for PoE cameras and orange lines for the PoE+ powered device and PoE+ Web Smart Switch. The layout appears to be within a building, with the devices placed in different rooms or areas.

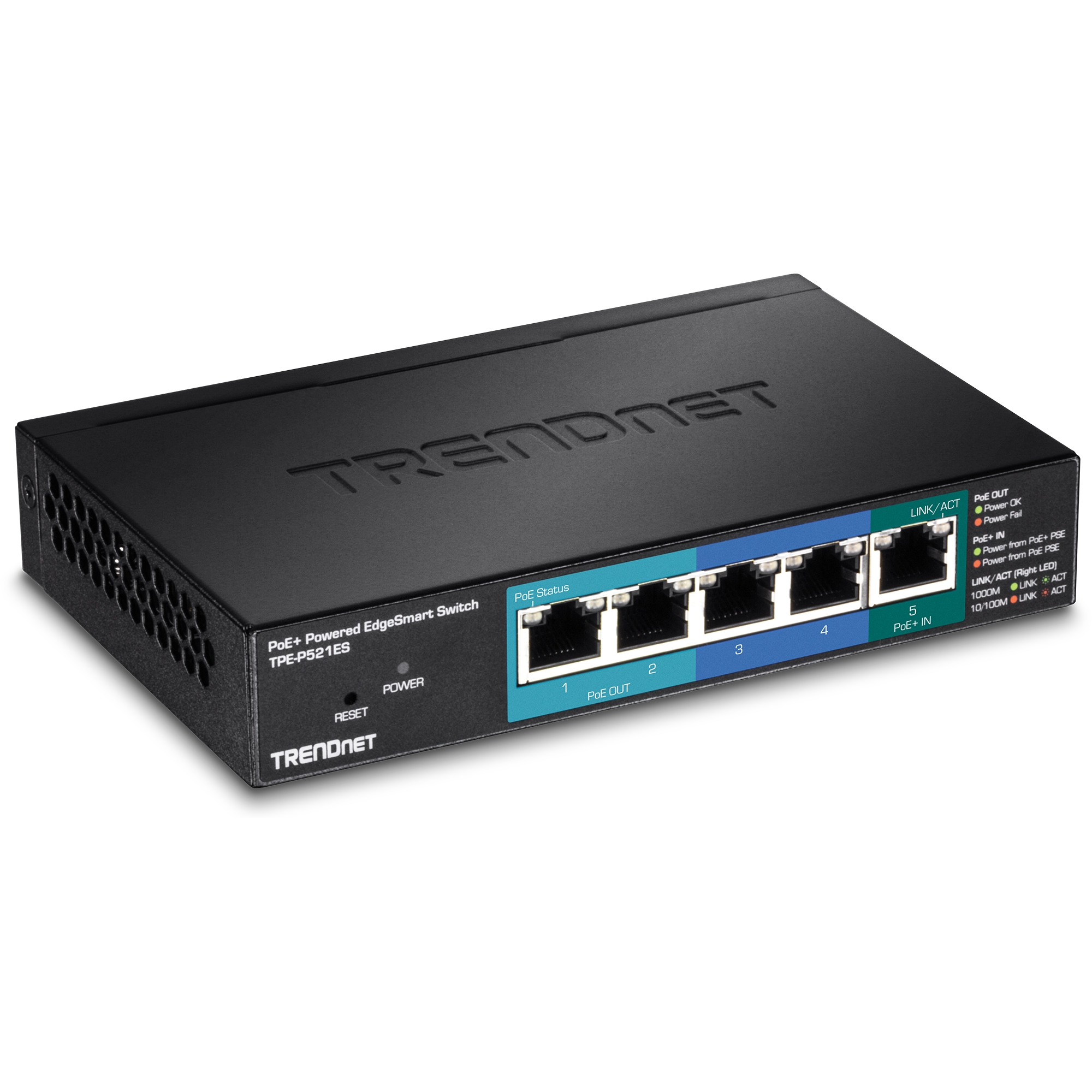

Ports

One gigabit PoE+ input port, two gigabit PoE output ports, and two gigabit ports provides a 10Gbps switching capacity

PoE Power

Two gigabit PoE pass through ports with an 18W total PoE power budget

Compact Design

With a compact and lightweight housing design this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.

Network Management

A broad range of network configurations are supported by: static link aggregation, 802.1Q VLAN, bandwidth controls, IGMP, loopback detection, port mirroring, STP, RSTP and 802.1p (QoS).

Troubleshooting

Traffic statistics and a convenient cable diagnostic test aid in network troubleshooting.

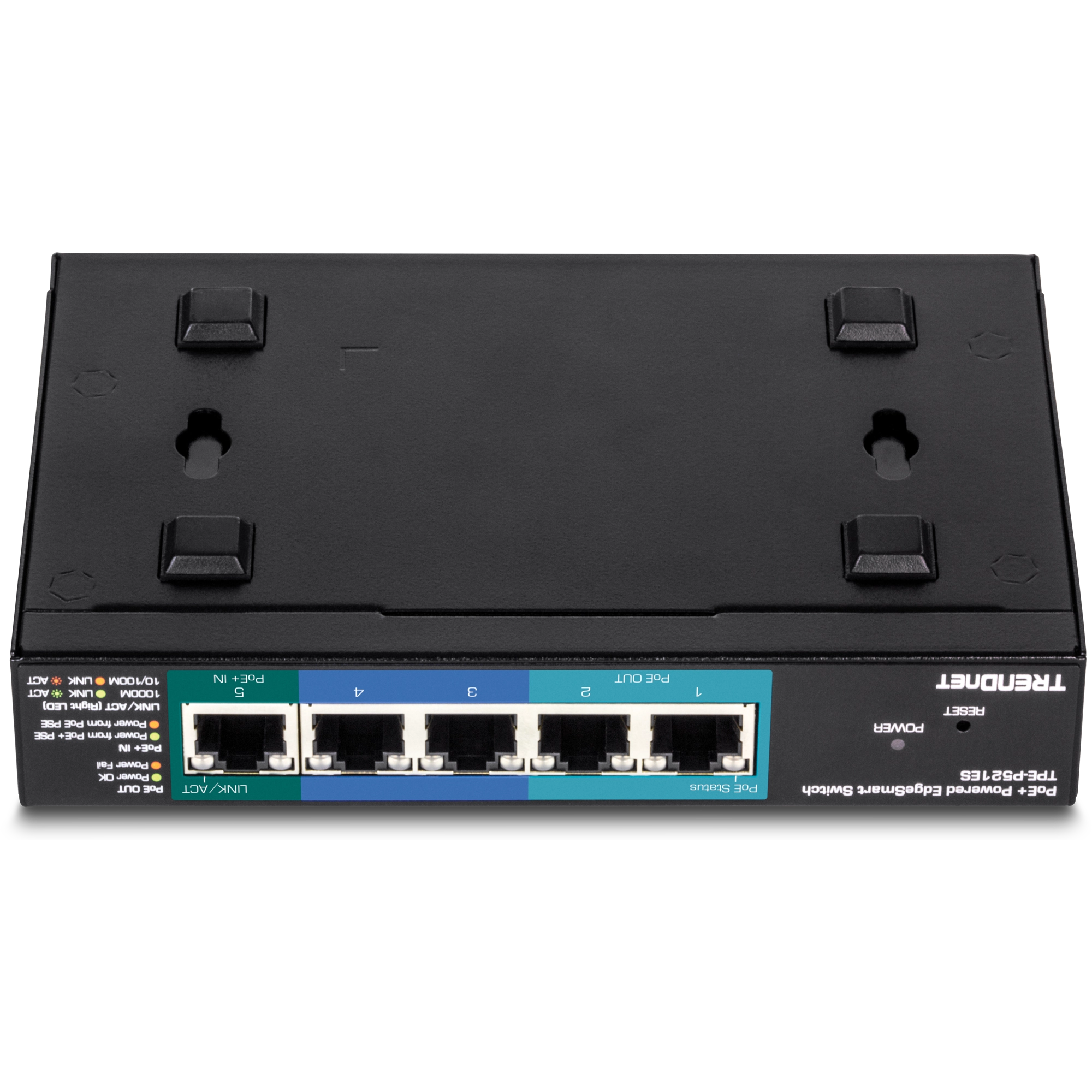

Housing

Compact wall mountable metal housing

LED Indicators

LED indicators convey port status

Standards	IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az
Device Interface	1 x Gigabit PoE+ PD port 2 x Gigabit PoE PSE ports 2 x Gigabit Ports LED indicators Reset button
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Switch fabric: 10Gbps RAM buffer: 512KB MAC Address Table: 2K entries Jumbo Frames: 9KB Forwarding rate: 7.44Mpps (64-byte packet size)
Management	HTTP Web based GUI SNMP v1, v2c Cable diagnostic test Backup/Restore Configuration Upload Firmware
Spanning Tree	IEEE 802.1d STP (spanning tree protocol) IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation	Static link aggregation (up to 2 groups)
Quality of Service (QoS)	Port-based QoS 802.1p Class of Service (CoS) Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN	Port-based VLAN 802.1Q Tagged VLAN Up to 32 VLAN groups, ID Range 1-4094 Private VLAN Asymmetric VLAN Voice VLAN (5 user defined OUIs)
Multicast	IGMP Snooping v1/2/3 Block unknown multicast source Up to 32 multicast groups
Port Mirror	One to one Many to one
Storm Control	Broadcast (Min. Limit: 8Kbps) Multicast (Min. Limit: 8Kbps) Loopback Detection
Special Features	PoE Powered Enable/disable 802.3az Power Saving Wall mountable
Power	IEEE 802.3at (30W) or IEEE 802.3af (15.4W) PoE input only (no external power supply) IEEE 802.3at Type 2 PoE PD Class 4 IEEE 802.3af Type 1 PoE PD Class 0 Max. Consumption 2.4W (without PoE load) Max. Consumption 20.4W (with max PoE load)
PoE	18W PoE Budget with IEEE 802.3at (30W) input power 8W PoE Budget with IEEE 802.3af (15.4W) input power PoE Mode A: Pins 1,2 for power and pins 3,6 for power PD auto classification Over current/short circuit protection
Fan / Acoustics	Fanless design
MTBF	730,455 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	150 x 97 x 28.6mm (5.9 x 3.81 x 1.12 in.)
Weight	370g (13.05 oz.)
Certifications	CE FCC
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TPE-P521ES
Quick Installation Guide

*If 802.3at PoE+ powered, the device can supply PoE power for up to two PoE class 1 or class 2 PDs or one PoE class 0 or class 3 PD.
**If 802.3af PoE powered, the device can supply PoE power for one PoE class 1 or class 2 PD.
