5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass-Through

TPE-P521ES (Version v2.0R)

  • 1 x Gigabit PoE+ input port
  • 2 x Gigabit PoE output ports
  • 2 x Gigabit ports
  • 18W PoE power budget
  • Easy to use web-based management interface
  • Supports static link aggregation, VLAN, QoS, STP, RSTP and IGMP Snooping
  • Voice VLAN for VoIP applications
  • Bandwidth control per port
  • 10Gbps switching capacity
  • 802.1p / DSCP / Queue Scheduling (SP/WRR) QoS support
  • Compact fanless design
  • Wall mountable metal housing
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass-Through, model TPE-P521ES, is powered by a PoE+ switch or injector, no AC adapter is required. It features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras, VoIP handsets, and wireless access points. Reducing unnecessary switch complexity, this EdgeSmart switch is equipped with only the most commonly used managed switch features. The simple web-based user interface allows you to easily manage VLANs, QoS, and monitoring.

Line art of a Network switch with dashboard management speech bubble.

EdgeSmart Management

Provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.

A simplified network diagram showing key components: a cloud labeled ‘Network’ at the top, connected to three rectangles (‘VLAN,’ ‘QoS,’ and ‘IGMP’). Below, a larger rectangle represents a switch with multiple ports.

Integration Flexibility

Managed features include access control lists, VLAN, IGMP Snooping, and QoS for flexible network integration.

Diagram showing two phones connected to a 5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass-Through. The switch connected via pass-through provides 30 watts.

PoE+ Powered

No AC adapter required—this switch is powered by a PoE+ switch or injector, and features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras

The illustration depicts a network setup involving VoIP phones and PoE+ devices within an office environment. Multiple VoIP phones are connected to a PoE+ powered device, which is then linked to a PoE+ web smart switch. The VoIP phones are shown in various locations within the office, connected via network cables to the PoE+ powered device, labeled as TPE-P521ES. The PoE+ web smart switch is highlighted, with network cables color-coded in orange to indicate the connection between the PoE+ powered device and the PoE+ web smart switch.

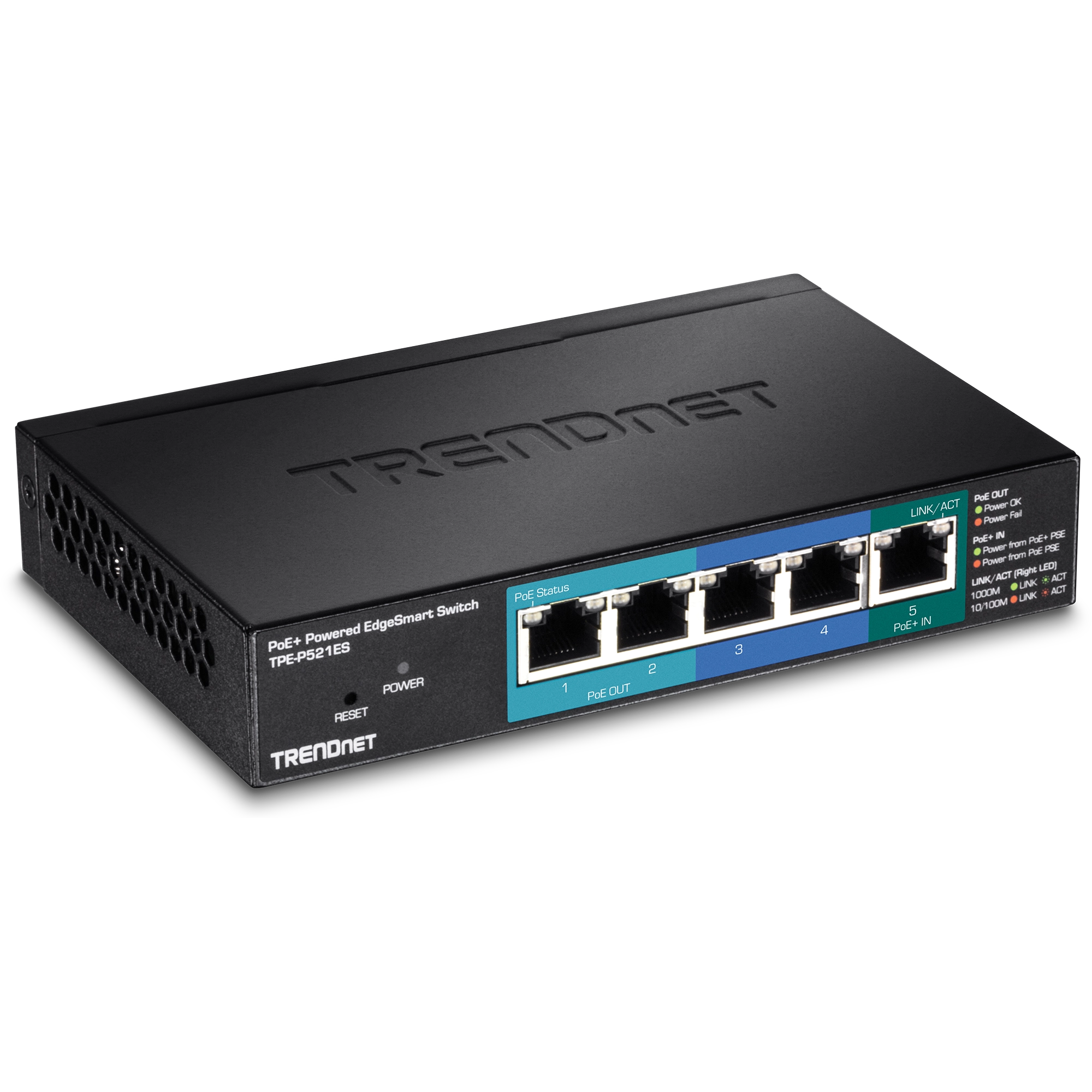

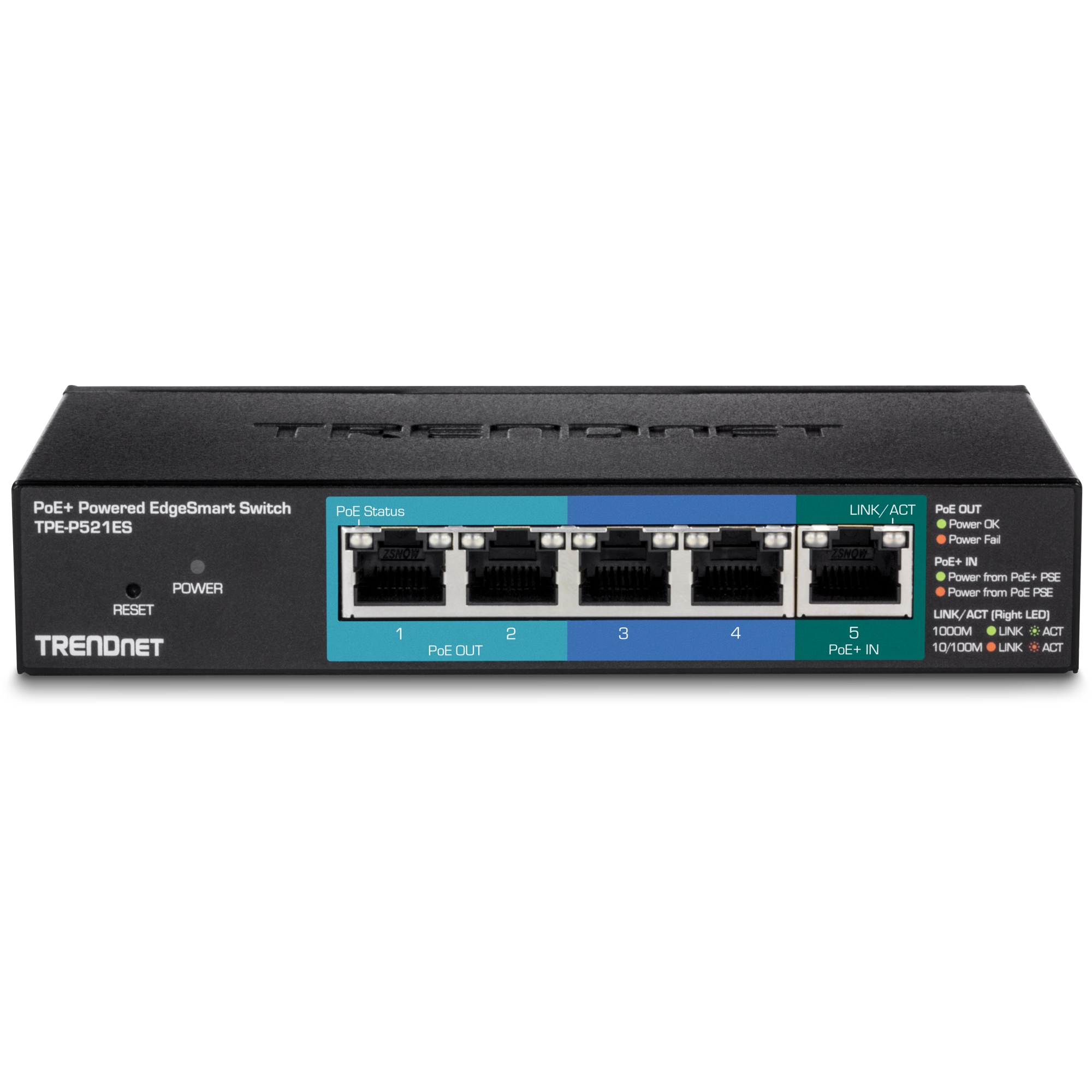

The visual content shows a TRENDnet PoE+ Powered EdgeSmart Switch, model TPE-P521ES. The front panel features five Ethernet ports. Ports 1 and 2 are labeled as Gigabit PoE PSE ports, providing Power over Ethernet to connected devices. Ports 3 and 4 are labeled as Gigabit ports, which do not provide PoE. Port 5 is labeled as a Gigabit PoE+ PD port, receiving power from another PoE source. The switch has indicators for PoE status and link/activity status above the ports. The left side includes a power indicator and a reset button. The TRENDnet logo is displayed on the top of the switch.

Ports

One gigabit PoE+ input port, two gigabit PoE output ports, and two gigabit ports provides a 10Gbps switching capacity

PoE Power

Two gigabit PoE pass-through ports with an 18W total PoE power budget

Compact Design

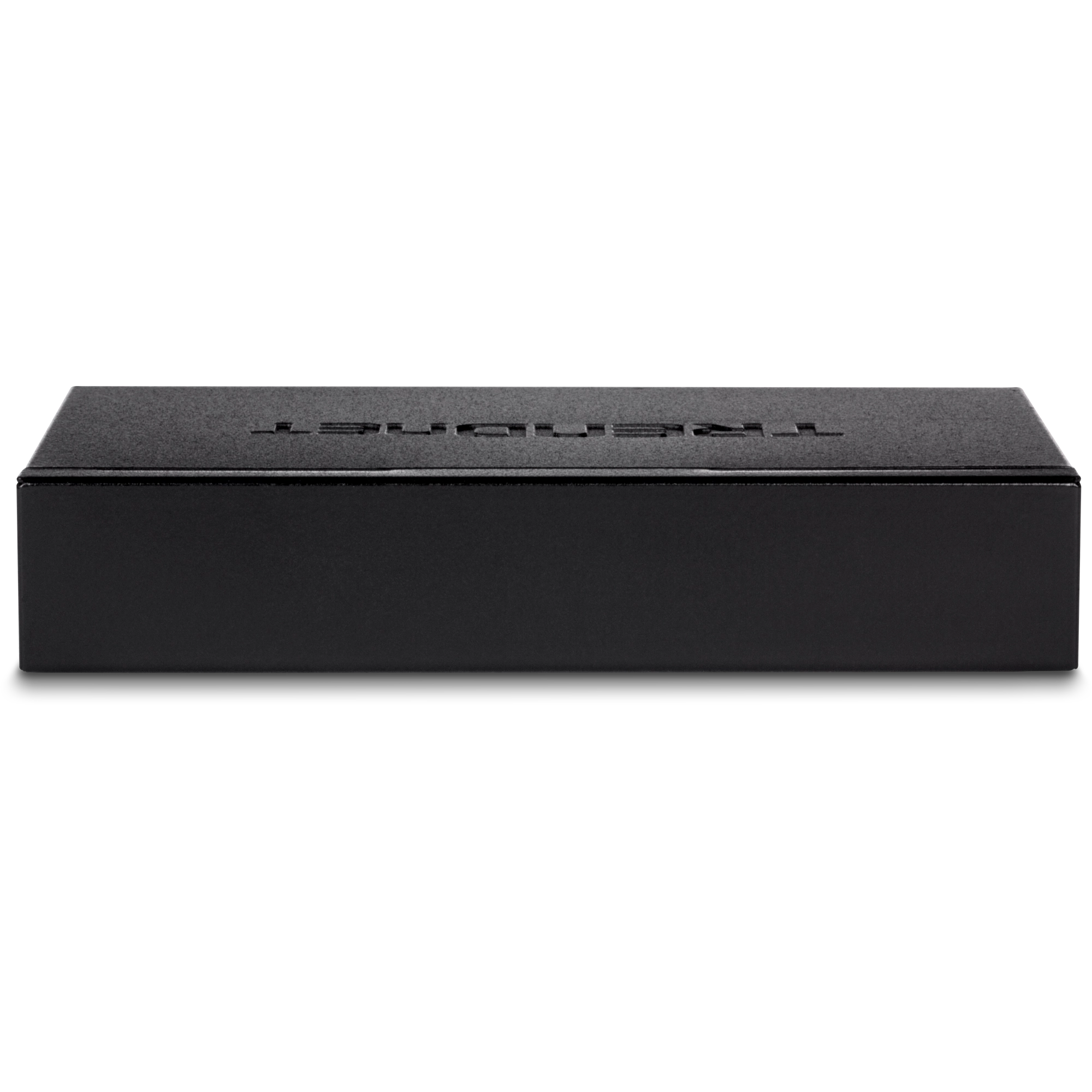

With a compact and lightweight housing design this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.

Network Management

A broad range of network configurations on the PoE pass-through switch are supported by static link aggregation, 802.1Q VLAN, bandwidth controls, IGMP, loopback detection, port mirroring, STP, RSTP and 802.1p (CoS)

Troubleshooting

Traffic statistics and a convenient cable diagnostic test aid in network troubleshooting.

Housing

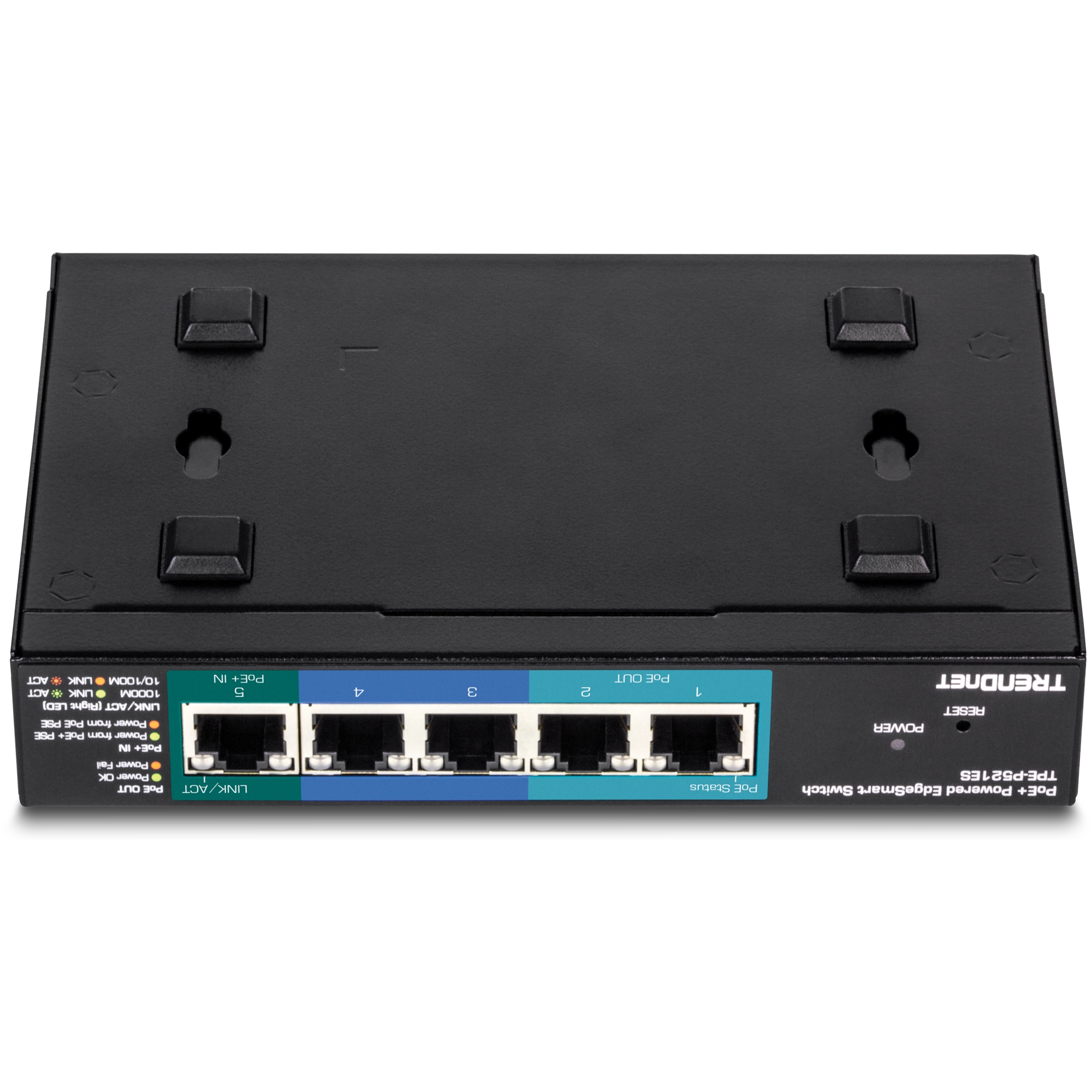

Compact wall mountable metal housing

LED Indicators

LED indicators convey port status

Standards
  • IEEE 802.1d
  • IEEE 802.1w
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 1 x Gigabit PoE+ PD port
  • 2 x Gigabit PoE PSE ports
  • 2 x Gigabit Ports
  • LED indicators
  • Reset button
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit Ethernet: 2000Mbps (full duplex)
Performance
  • Switch fabric: 10Gbps
  • RAM buffer: 48KB
  • MAC Address Table: 2K entries
  • Jumbo Frames: 9KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)
Management
  • HTTP Web based GUI
  • SNMP v1, v2c
  • Cable diagnostic test
  • Backup/Restore Configuration
  • Upload Firmware
Spanning Tree
  • IEEE 802.1d STP (spanning tree protocol)
  • IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation
  • Static link aggregation (up to 2 groups)
Quality of Service (QoS)
  • Port-based QoS
  • 802.1p Class of Service (CoS)
  • Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps)
  • Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN
  • Port-based VLAN
  • 802.1Q Tagged VLAN
  • Up to 32 VLAN groups, ID Range 1-4094
  • Private VLAN
  • Asymmetric VLAN
  • Voice VLAN (5 user defined OUIs)
Multicast
  • IGMP Snooping v1/2/3
  • Block unknown multicast source
  • Up to 32 multicast groups
Port Mirror
  • One to one
  • Many to one
Storm Control
  • Broadcast (Min. Limit: 8Kbps)
  • Multicast (Min. Limit: 8Kbps)
  • Loopback Detection
Special Features
  • PoE Powered
  • Enable/disable 802.3az Power Saving
  • Wall mountable
Power
  • IEEE 802.3at (30W) or IEEE 802.3af (15.4W) PoE input only (no external power supply)
  • IEEE 802.3at Type 2 PoE PD Class 4
  • IEEE 802.3af Type 1 PoE PD Class 0
  • Max. Consumption 2.4W (without PoE load)
  • Max. Consumption 24W (with max PoE load)
PoE
  • 18W PoE Budget with IEEE 802.3at (30W) input power
  • 8W PoE Budget with IEEE 802.3af (15.4W) input power
  • PoE Mode A: Pins 1,2 for power and pins 3,6 for power
  • PD auto classification
  • Over current/short circuit protection
Fan / Acoustics
  • Fanless design
MTBF
  • 2,357,475 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 150 x 97 x 28.6mm (5.9 x 3.81 x 1.12 in.)
Weight
  • 370g (13.05 oz.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TPE-P521ES
  • Quick Installation Guide

*If 802.3at PoE+ powered, the device can supply PoE power for up to two PoE class 1 or class 2 PDs or one PoE class 0 or class 3 PD.
**If 802.3af PoE powered, the device can supply PoE power for one PoE class 1 or class 2 PD.

TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year warranty.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
