16-Port Cat6A Shielded 1U Patch Panel

TC-P16C6AS (Version v1.0R)

  • 10G-ready rackmount 16-port 1U patch panel
  • Cat6A patch panels deliver a steady connection to copper gigabit & 10G switches
  • Shielded design to eliminate EMI and crosstalk
  • Compatible with Cat5e, Cat6 and Cat6A cabling
  • Color-coded labeling for T568A and T568B wiring schemes
  • 110 IDC type terminal blocks (use 110 or Krone type tool)
  • Use with TRENDnet TC-PDT Punch Down Tool (sold separately)
  • Supports ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801
  • Supports ANSI/EIA/TIA 310-D, and EN50173-1
  • 90° angle type
  • Operating temperature: -25° – 50° C (-13° – 122° F)
  • 3 year warranty
  • NDAA compliant
NDAA Compliant

TRENDnet's 16-Port Cat6A Shielded 1U Patch Panel, model TC-P16C6AS, is ideal for gigabit and 10G Copper Ethernet network applications. This patch panel is perfect for use with Cat6A shielded cabling, which is specifically designed to eliminate EMI and crosstalk, ensuring peak performance and data integrity.

Illustration of a network cable labeled Gigabit Speeds up to 10Gbps with icons representing music, video, data transfer moving through the network.

Cat6A Performance

Cat6A cabling allows performance of up to 10Gbps speeds over Cat6A Ethernet cables.

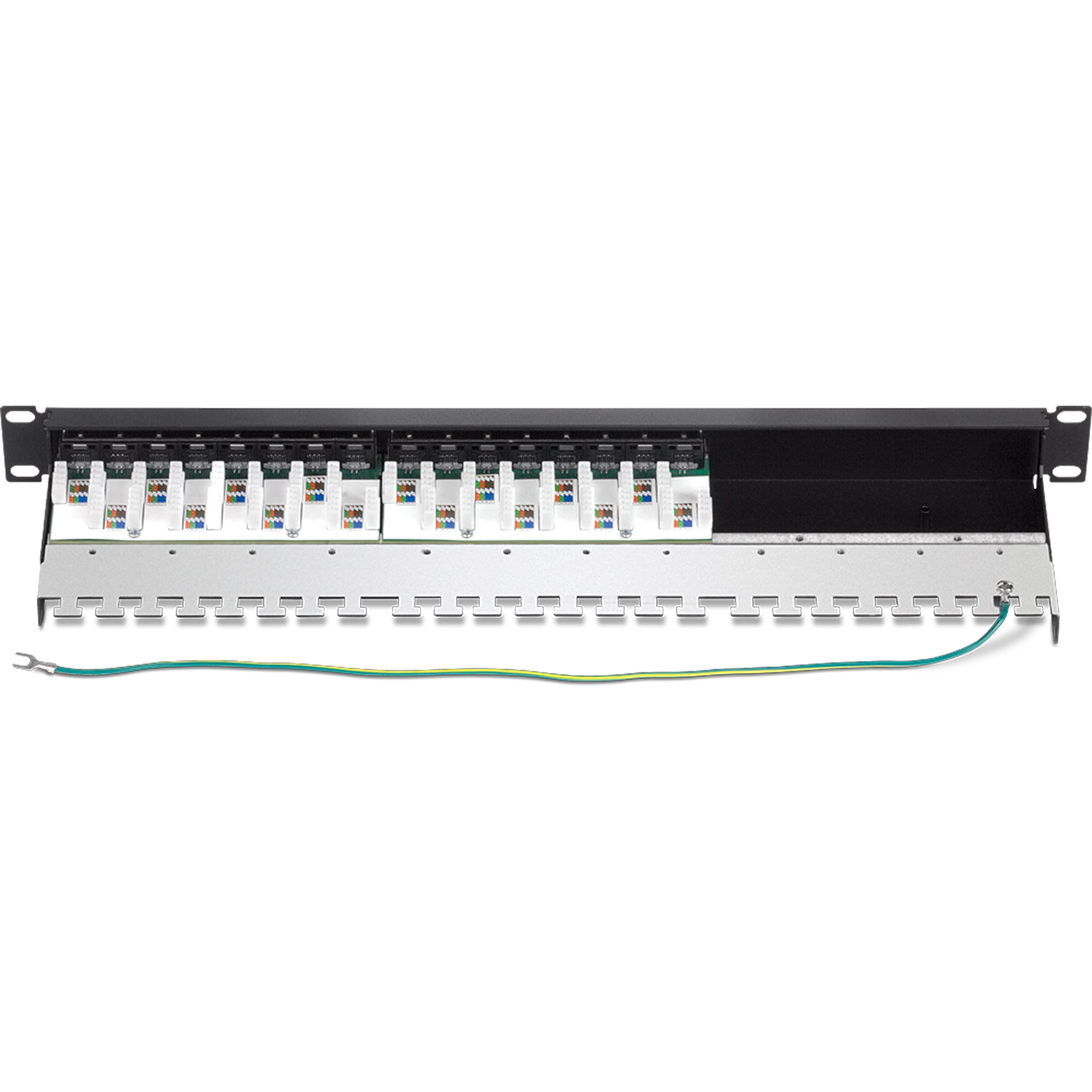

Internal components of 16-port Cat6A Shielded Patch Panel with grounding point.

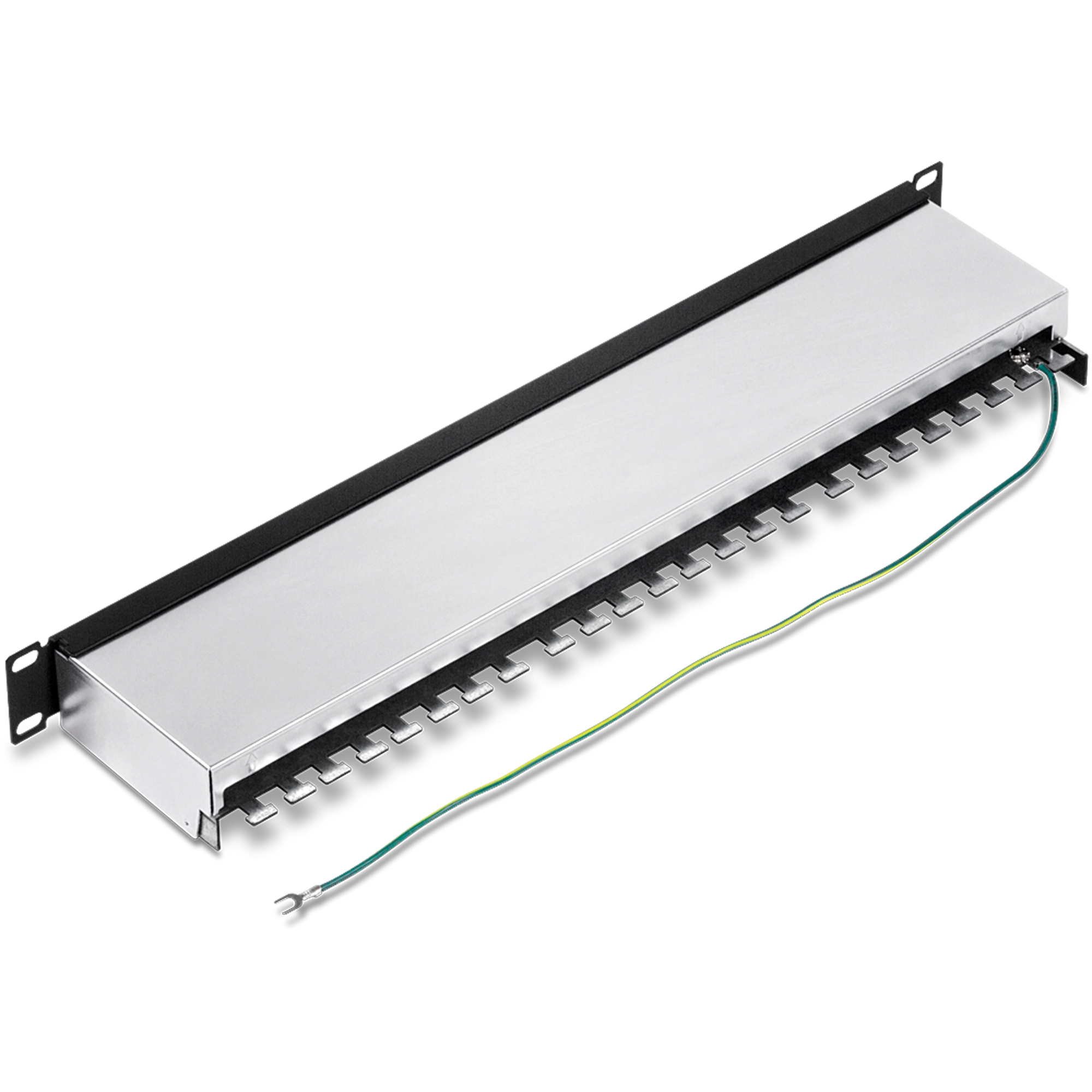

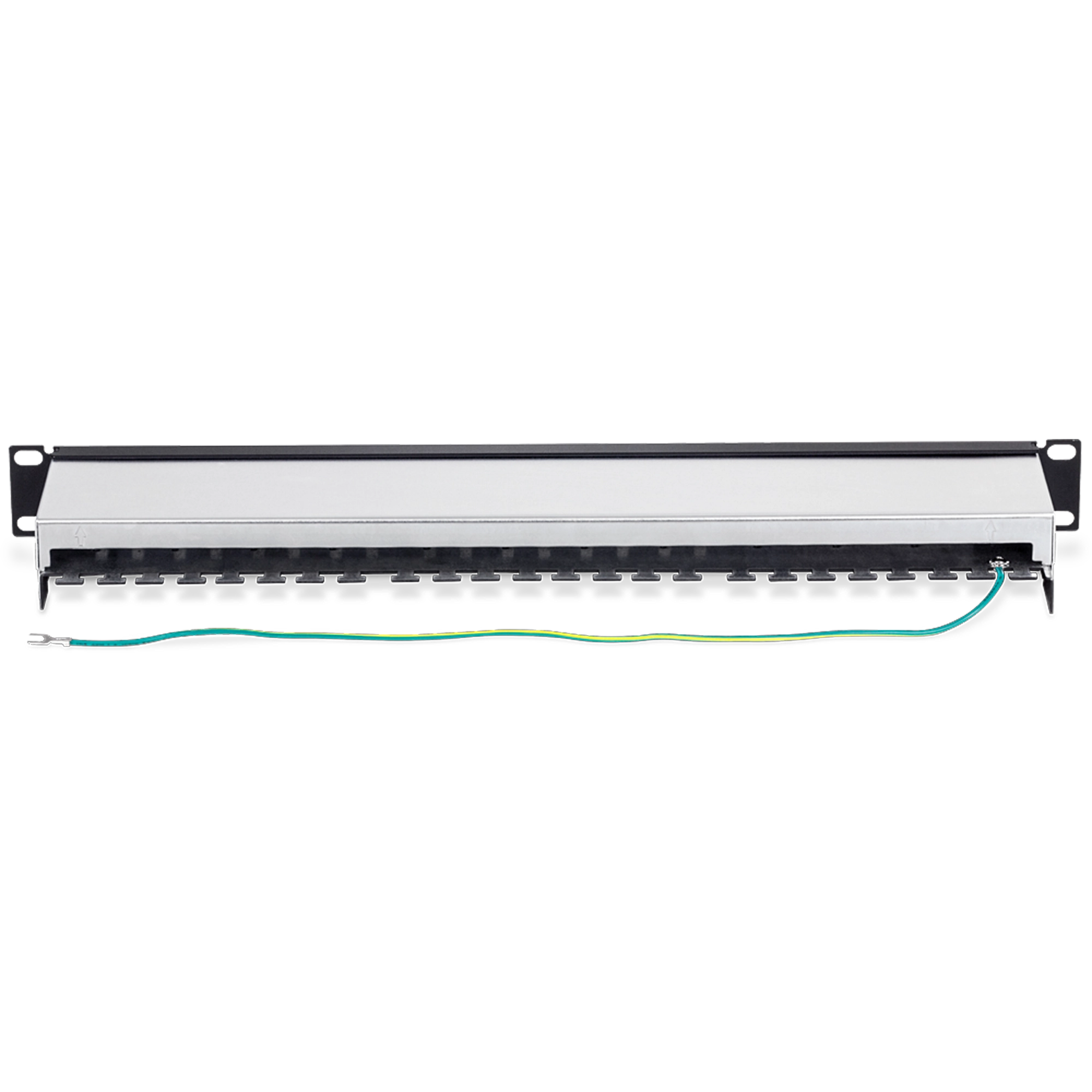

Shielded Housing Design

19" 1U sturdy metal rackmount housing design protects against EMI/RFI noise for a more stable connection.

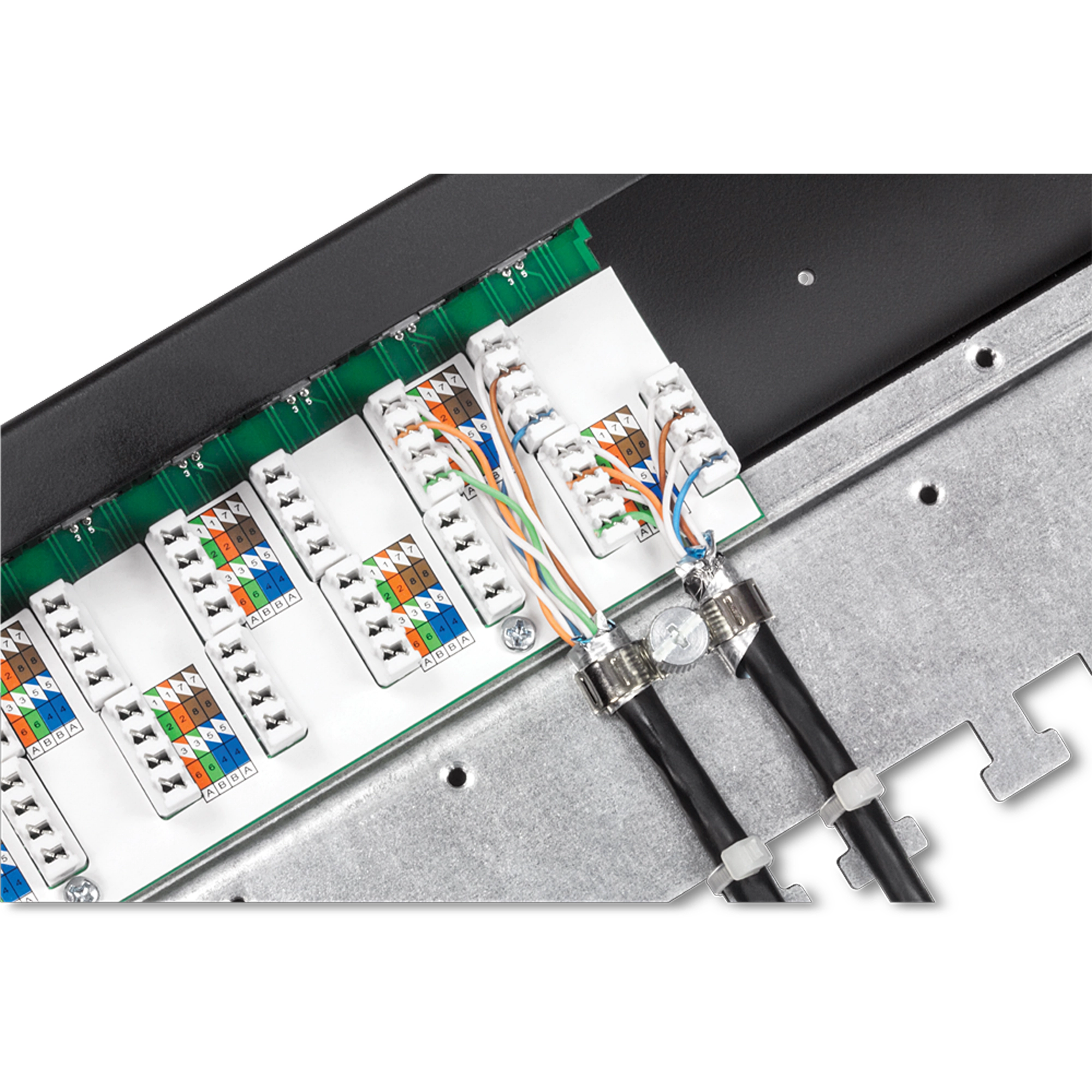

Isometric drawing of a cable management assembly with a screw securing a grounding clip, a cable fixture hole, and a cable tie holding the cable.

Cable Management

Integrated cable management cover plate with convenient cable separation for better organization and reduced cable clutter.

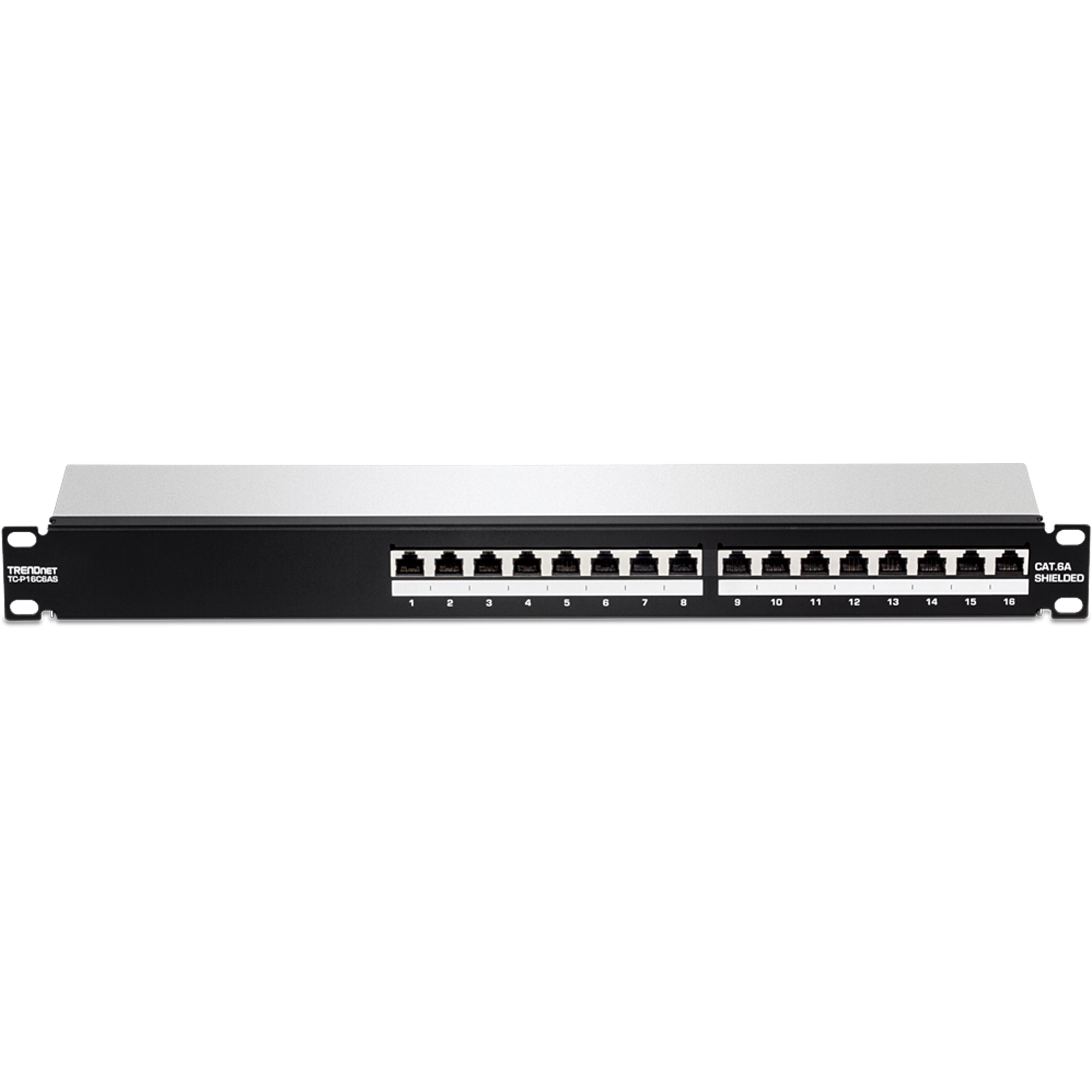

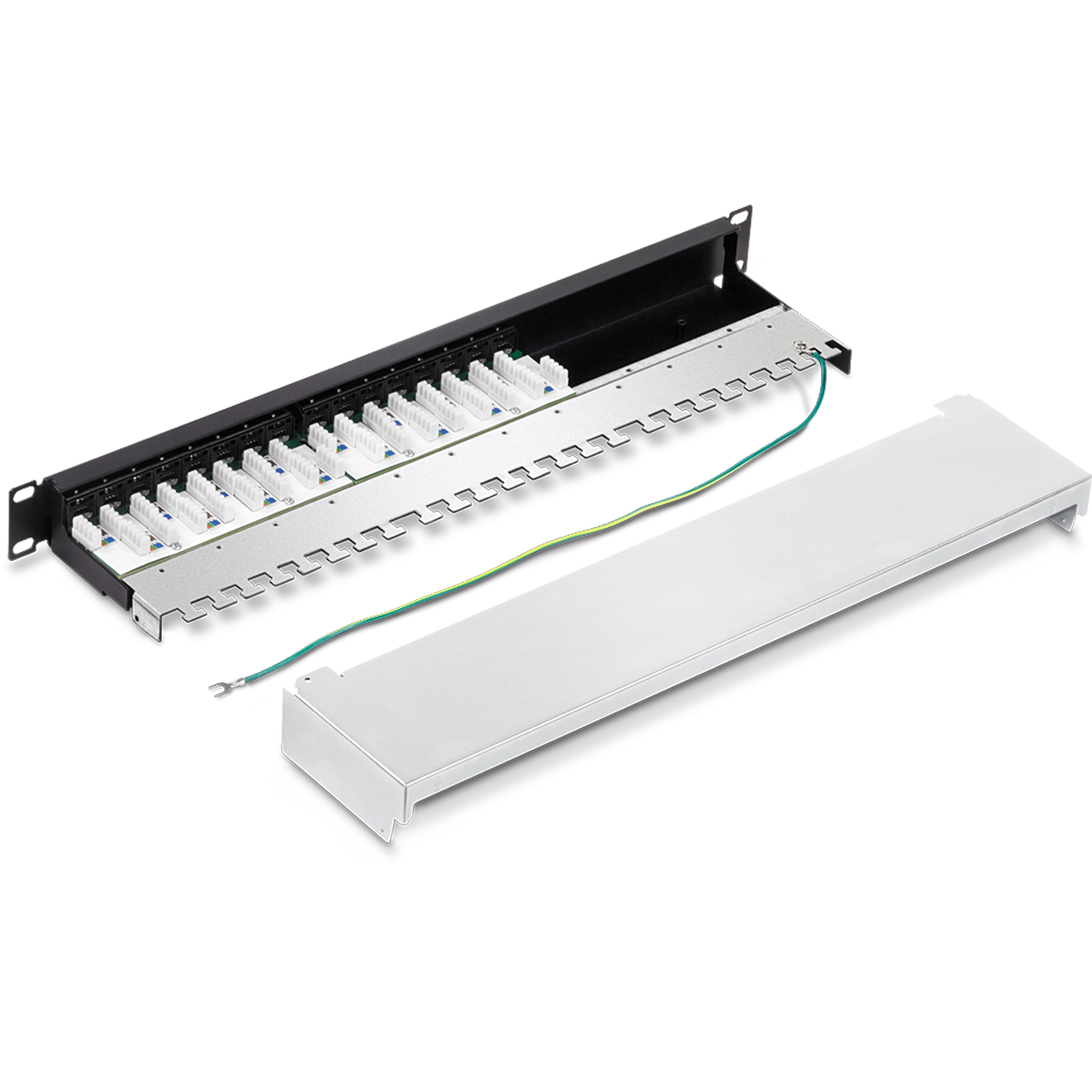

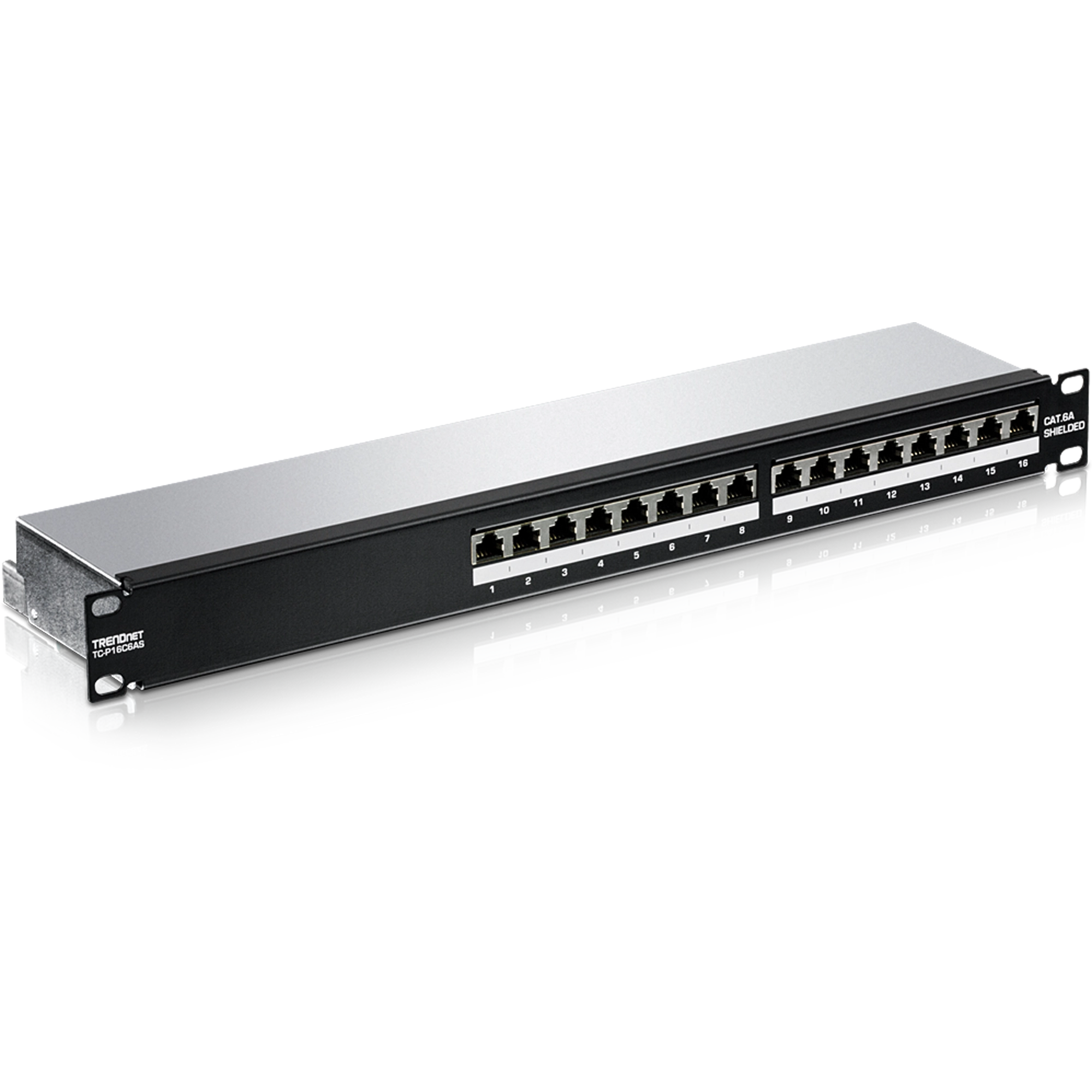

TRENDnet TC-P16C6AS 16-Port Cat6A Shielded 1U Patch Panel. The panel boasts a shielded housing design to protect against electromagnetic interference. It includes 16 RJ-45 ports for Cat6A cables and has 110 IDC type terminal blocks for cable termination. It supports both T568A and T568B wiring schemes and includes a grounding wire for proper grounding. The design also incorporates cable management features to keep cables organized and secure.
Standards
  • ANSI/TIA/EIA-568-B.2-1
  • ANSI/TIA/EIA-310-D
  • EN50173-1: 2002
  • ISO/IEC 11801 2nd edition: 2002
Interface
  • 16 x RJ-45 ports with 50 micron gold-plated 8P/8C contacts

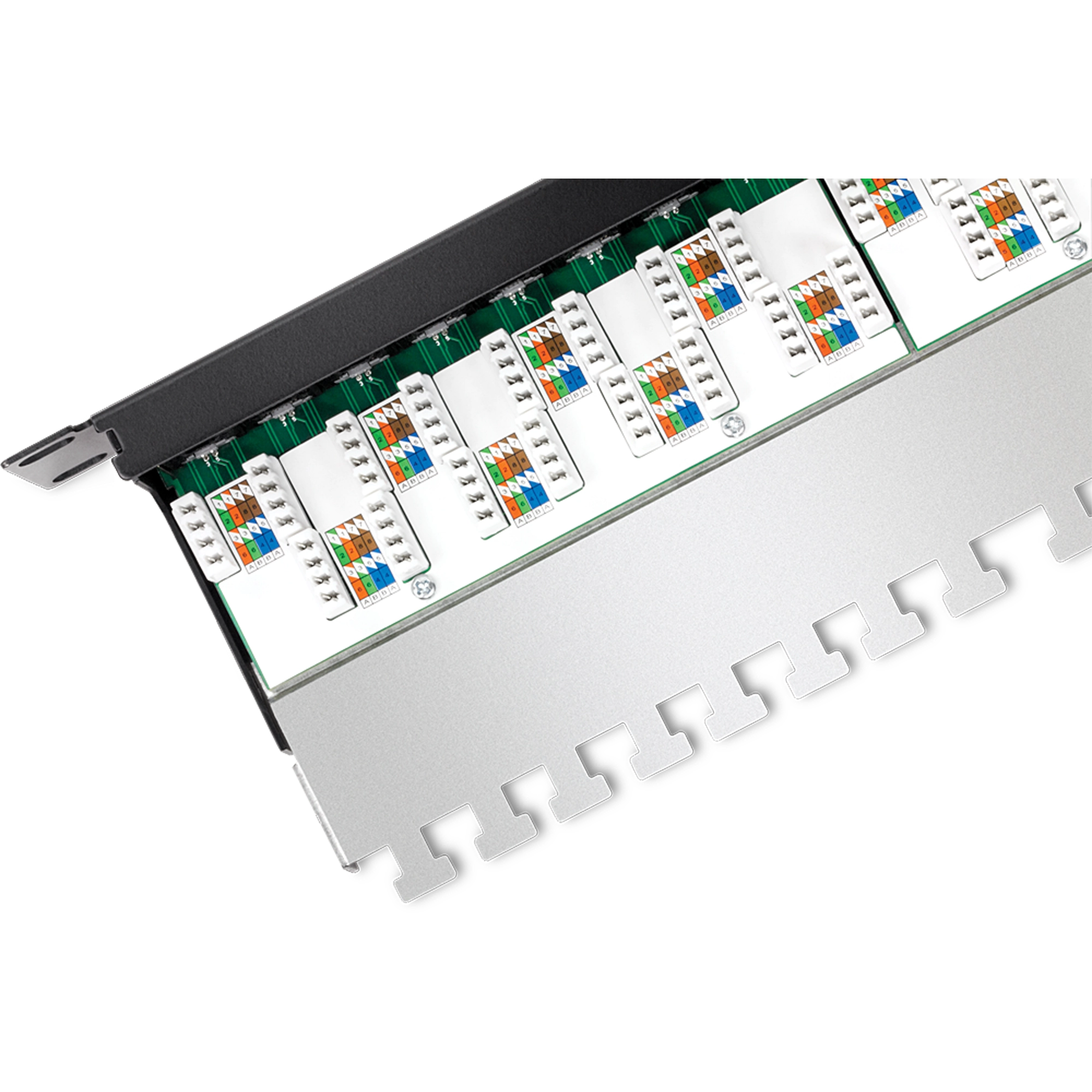

  • T568A/T568B wiring cards for Krone 110 termination with color-coded wiring diagram
  • 90° IDC terminals
  • Compatible with 22 – 26 AWG solid or stranded wire
  • Integrated cable management
  • SGCC steel construction
  • 18 AWG grounding wire with screw terminal
Electrical Specification
  • Insulation resistance: >= 500 MΩ
  • Dielectric Withstand Voltage: 1000V DC
  • Contact resistance: <= 20 MΩ
  • Current rating: 1.5A at 20° C (68° F)
Mechanical Specification
  • Contact force 99.2g (3.5 oz.)
  • Plug retention force: 13.3kg (29 lb.)
  • 110/ Krone IDC insertion force: min. 4.5kg (9.9 lb.)
  • 110/ Krone IDC retention force: min. 0.5kg (1.1 lb.)
Operating Temperature
  • -25° – 50° C (-13° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 1U design
  • 440 x 105 x 44.45mm (17.3 x 4.13 x 1.75 in.)
Weight
  • 1.6kg (3.5 lb.)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TC-P16C6AS
  • Quick Installation Guide

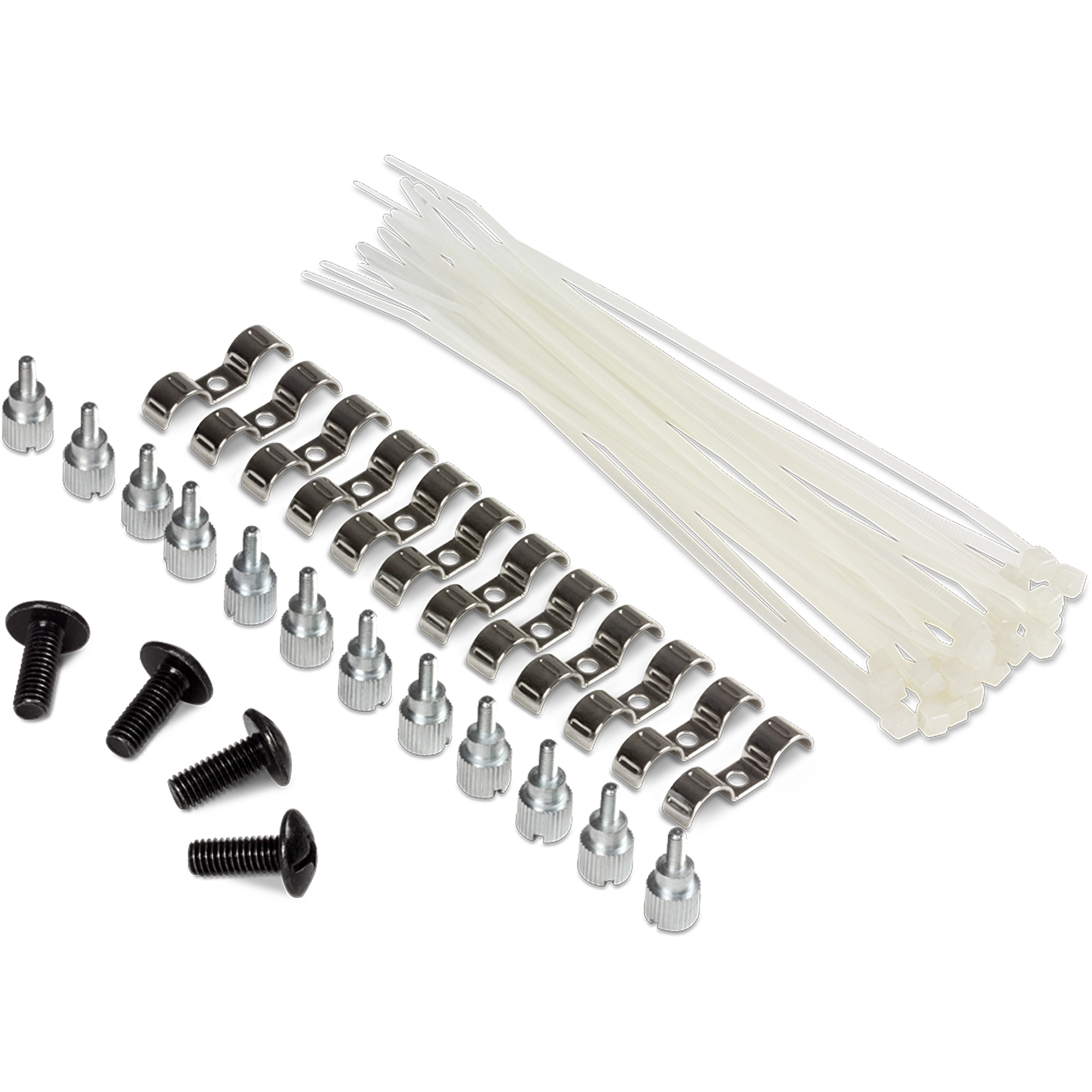

  • Cable ties & screws

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
