10 Gigabit PCIe Network Adapter

TEG-10GECTX (Version v1.0R)

  • Converts a PCIe slot into a 10 G Ethernet Port
  • Supports 802.1Q VLAN Tagging
  • Includes standard and low-profile brackets
  • Windows® and Linux® support

TRENDnet's 10 Gigabit PCIe Network Adapter, model TEG-10GECTX, converts a free PCI Express slot into a 10 Gigabit Ethernet port.

Illustration of a PCIe Network Adapter with three desktop computers connected to a network switch, highlighting the adapter’s role in providing network connectivity.

10 G Port

Supports five selectable speeds: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps

Illustration of a network tunnel labeled Gigabit Speeds Jumbo Frame Up to 16KB with icons for music, film, and images, indicating data transfer.

Jumbo Frame

Sends larger packets, or jumbo frames (up to 16 KB), for increased performance

Three computers, including a desktop, server, and laptop, connected in a circular arrangement, representing compatibility with various operating systems.

Operating Systems

Compatible with Windows®, Windows Server®, and Linux®operating systems

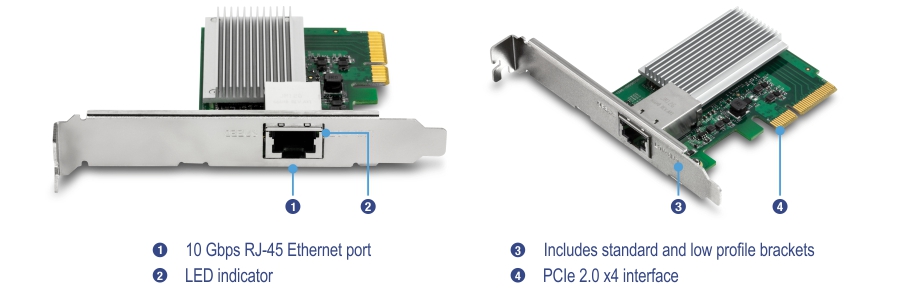

The illustration depicts a 10 Gigabit PCIe Network Adapter. On the left side, it shows a view with labels for the 10 Gbps RJ-45 Ethernet port and LED indicator. On the right side, an angled view includes labels for standard and low-profile brackets and PCIe 2.0 x4 interface.

10 G Port

Supports five selectable speeds: 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps

PCI Express

Converts a PCIe 3.0 x4 slot into a 10 G Ethernet Port

NBASE-T™ Ethernet Technology

NBASE-T draft specification supports 2.5 and 5 Gbps speeds over standard Cat 5e cables at distances up to 100 m

Jumbo Frame

Sends larger packets, or jumbo frames (up to 16 KB), for increased performance

VLAN Support

IEEE 802.1Q tagged-based VLAN support

Brackets

Supports most installations with included standard and low-profile brackets

Operating Systems

Compatible with Windows®, Windows Server®, and Linux® operating systems.

LED Indicators

LED indicators convey port status, link speed and activity

Standards
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3ad
  • IEEE 802.1Q
Hardware Interface
  • PCIe 3.0 x4 interface
  • 1 x 10 Gbps RJ-45 Ethernet port (Supported Speeds: 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)
  • LED indicator
  • Standard and low profile brackets
Minimum Cable Requirements
  • 10GBASE-T (10 Gbps): Cat 6 twisted pair @ 55 m / 180 ft. (max.) / Cat 6a or Cat 7 twisted pair @ 100 m / 328 ft. (max.)
  • NBASE-T™ (5 Gbps): Cat 6 twisted pair @ 100 m / 328 ft. (max.)
  • NBASE-T™ (2.5 Gbps): Cat 5e twisted pair @ 100 m / 328 ft. (max.)
  • 1000BASE-T (1 Gbps): Cat 5e twisted pair @ 100 m / 328 ft. (max.)
  • 100BASE-TX (100 Mbps): Cat 5 twisted pair @ 100 m / 328 ft. (max.)
Compatibility
  • Windows® 10, 8.1, 8, 7
  • Windows® Server 2012, 2012 R2, 2008, 2008 R2
  • Linux® 2.6.x, 3.x.x, 4.6.x or later
  • VMware® ESXi™ 6.5 & Microsoft® Hyper-V
Jumbo Frames
  • Up to 16 KB
Special Features
  • 10GBASE-T (10 Gbps) & NBASE-T (5 Gbps / 2.5 Gbps) support for high speed network connectivity
  • Windows Server support
  • VMware® ESXi™ 6.5 & Microsoft® Hyper-V hypervisor support for virtualization
Additional Support
  • 802.3ad LACP NIC teaming
  • 802.1Q VLAN Tagging
  • Microsoft Scalable Networking
  • Receive-side scaling (RSS)
  • Message Signaled Interrupts (MSI)
  • IP, TCP, and UDP checksum offloading
  • Minimize overhead with reduced host bus traffic and CPU utilization
Power
  • Consumption: 4.12 W max.
Operating Temperature
  • 0 - 50 °C (32 – 122 °F)
Operating Humidity
  • Max. 95 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 84 x 63 x 18 mm (3.3 x 2.5 x 0.7 in.)
Weight
  • 62 g (2.2 oz.)
Warranty
  • 3-year

PACKAGE CONTENTS
  • TEG-10GECTX
  • Quick Installation Guide
  • CD-ROM (Driver & User's Guide)
  • Standard & low profile brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
