5-Port Unmanaged Gigabit PoE+ Switch

TE-GP051 (Version v1.0R)

4 x Gigabit PoE+ ports
1 x Gigabit port
10Gbps switching capacity
35W PoE power budget
Reduces equipment cost by delivering data and power over existing network cables
Compact wall-mountable metal housing
Fanless design

TRENDnet's 5-Port Unmanaged Gigabit PoE+ Switch, model TE-GP051, reduces equipment and installation costs by delivering data and power over your existing Ethernet cables. This PoE+ network switch provides four gigabit PoE+ ports with a total PoE power budget of 35W. It also features, one gigabit port for high-speed connection back to your network.

With PoE technology, users only need one set of cables to deliver both data and power simultaneously. This PoE+ network switch allows you to network PoE devices such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more.

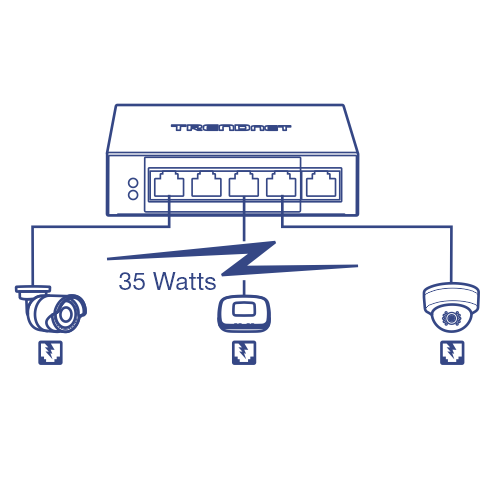

A network diagram of 5-Port Network Switch, connected to PoE Camera and wireless access point device up to 35 Watt.

PoE+ Power

The PoE+ network switch features a 35W total PoE power budget that supplies up to four Power over Ethernet devices.

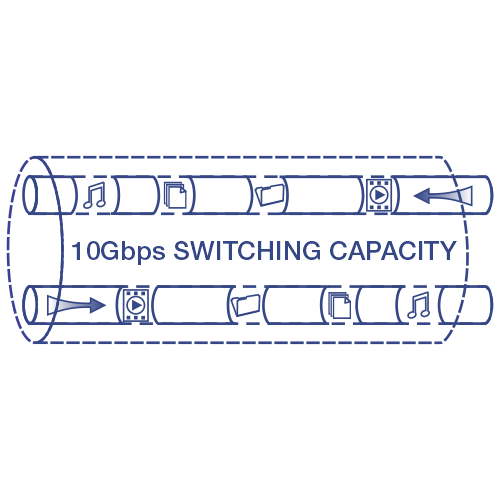

Illustration of a network cable labeled 10Gbps SWITCHING CAPACITY with icons representing music, video, data transfer moving through the network.

Gigabit

Five gigabit ports support a full 10Gbps switching capacity for edge network solutions.

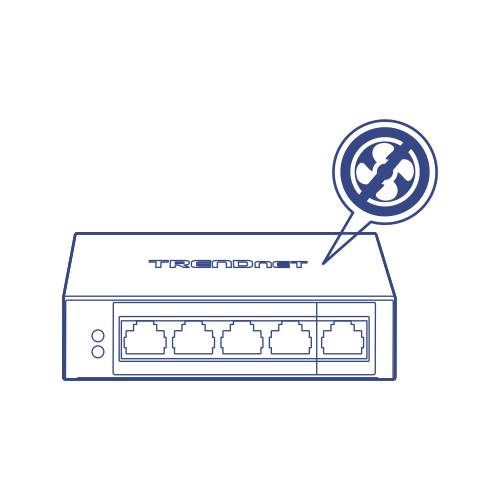

Line art of a 5-Port Network Switch with a no-fan icon.

Fanless Design

The PoE+ network switch’s fanless design is ideal for quiet environments that require silent operation.

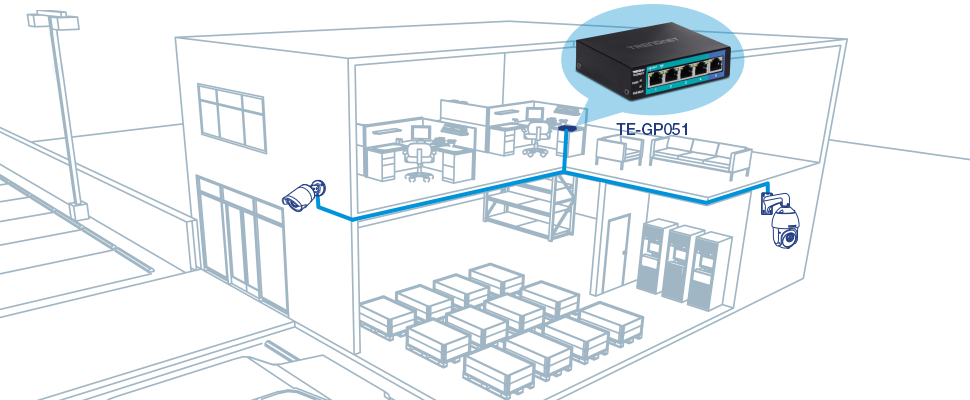

The illustration depicts a building with a network setup that includes two surveillance cameras connected via Ethernet cables. The cables are routed through the building, extending to various locations, including the exterior. The setup highlights the use of a TE-GP051 device, shown in a blue circle, to extend PoE. The building's interior includes office spaces with desks and computers, a lounge area, and a storage room with shelves and boxes. The exterior features a parking lot with additional surveillance cameras mounted on the wall.

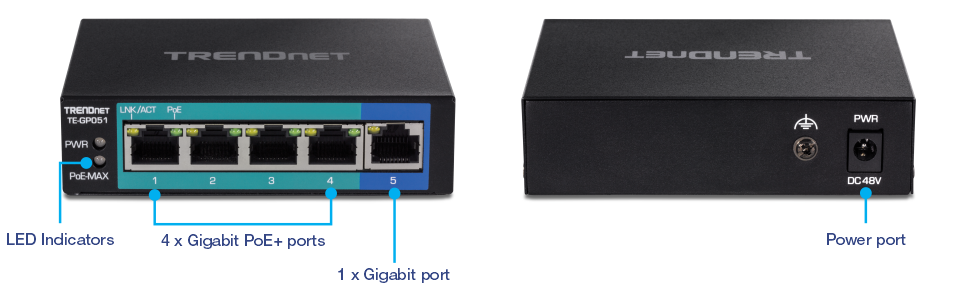

Views of TE-GP051: on the left is the front view with labels for LED Indicators, 4 x Gigabit PoE+ ports, and 1 x Gigabit port. On the right is the back view with a label for the Power port.

Network Ports

Four gigabit PoE+ ports, and one gigabit port

PoE+

Supplies up to 30W of PoE+ power per PoE port with a 35W total PoE power budget

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Housing Design

Sturdy metal housing is also compact and lightweight

Wall Mountable

Well-suited for desktop installations, but also features convenient wall mountable design for greater installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB) for increased performance

LED Indicators

LED indicators on this PoE+ network switch conveys port status

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	4 x Gigabit PoE+ ports 1 x Gigabit port LED indicators Wall mountable
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 125KB Switch Fabric: 10Gbps MAC Address Table: 2K entries Forwarding rate: 7.44Mpps (64-byte packet size) Jumbo Frame: 9KB
Power	Input: 100 – 240V AC, 50/60Hz Output: 48V DC, 0.8A external power adapter Max. consumption: 3W (no PD)
PoE	PoE budget: 35W PoE Mode A: Pins 1, 2, 3, and 6 for power Over current protection Short circuit protection
MTBF	612,220 hours
Operating Temperature	-10° – 55° C (14° – 131° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	105 x 83 x 28mm (4.1 x 3.3 x 1.1 in.)
Weight	0.3kg (0.77 lbs.)
Certifications	CE FCC UL
Warranty	3 year

PACKAGE CONTENTS

TE-GP051
Quick Installation Guide
Power Adapter (48V DC, 0.8A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
