5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough

TPE-B541 (Version v1.0R)

  • 1 x Gigabit PoE++ input port
  • 4 x Gigabit PoE+ output ports
  • 60W PoE power budget with PoE++ Type 4 (90W) input power
  • Easy-to-use web-based management interface
  • Supports RSTP, VLAN, QoS, and IGMP Snooping
  • Voice VLAN for VoIP applications
  • Bandwidth control per port
  • 10Gbps switching capacity
  • Compact fanless design
  • Wall-mountable metal housing
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet’s 5-Port Gigabit PoE++ Powered Managed Switch with PoE Passthrough, model TPE-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The compact PoE++-powered managed switch features four gigabit PoE+ ports to power devices, such as IP cameras, VoIP handsets, and wireless access points, with a 60W total PoE power budget. Reducing unnecessary switch complexity, this PoE++ passthrough managed switch is equipped with management features such as VLANs, QoS, PoE control, and monitoring.

A PoE++ switch connected to a PoE++ injector and a PoE camera, showcasing its power and data connectivity features. The setup highlights one PoE++ IN port and four PoE OUT ports, demonstrating how the switch can power PoE devices like IP cameras without requiring an AC adapter.

PoE++ Powered

No AC adapter required—this switch is powered by a PoE++ switch or injector. It features four gigabit PoE+ ports to power PoE devices, such as IP cameras.

A black TRENDnet Gigabit PoE++ Powered Switch model TPE-BS41 is set against a blue gradient background. The switch features five Ethernet ports labeled PoE++ IN and PoE++ OUT, numbered 1 through 5. It has indicator lights for power and PoE status, along with a reset button. The switch is positioned above a stylized white hand icon, emphasizing its compact size.

Compact Design

Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.

A TRENDnet Gigabit PoE++ Powered Switch model TPE-BS41 with five Ethernet ports, one labeled PoE++ IN and four labeled PoE++ OUT, indicators for power, PoE, and link/activity status. Above the switch, a cloud icon connects to four boxes labeled VLAN, QoS, IGMP, and PoE, indicating the switch's supported features.

Management

Managed features include loopback detection, RSTP, VLAN, IGMP Snooping, and QoS for flexible network integration.

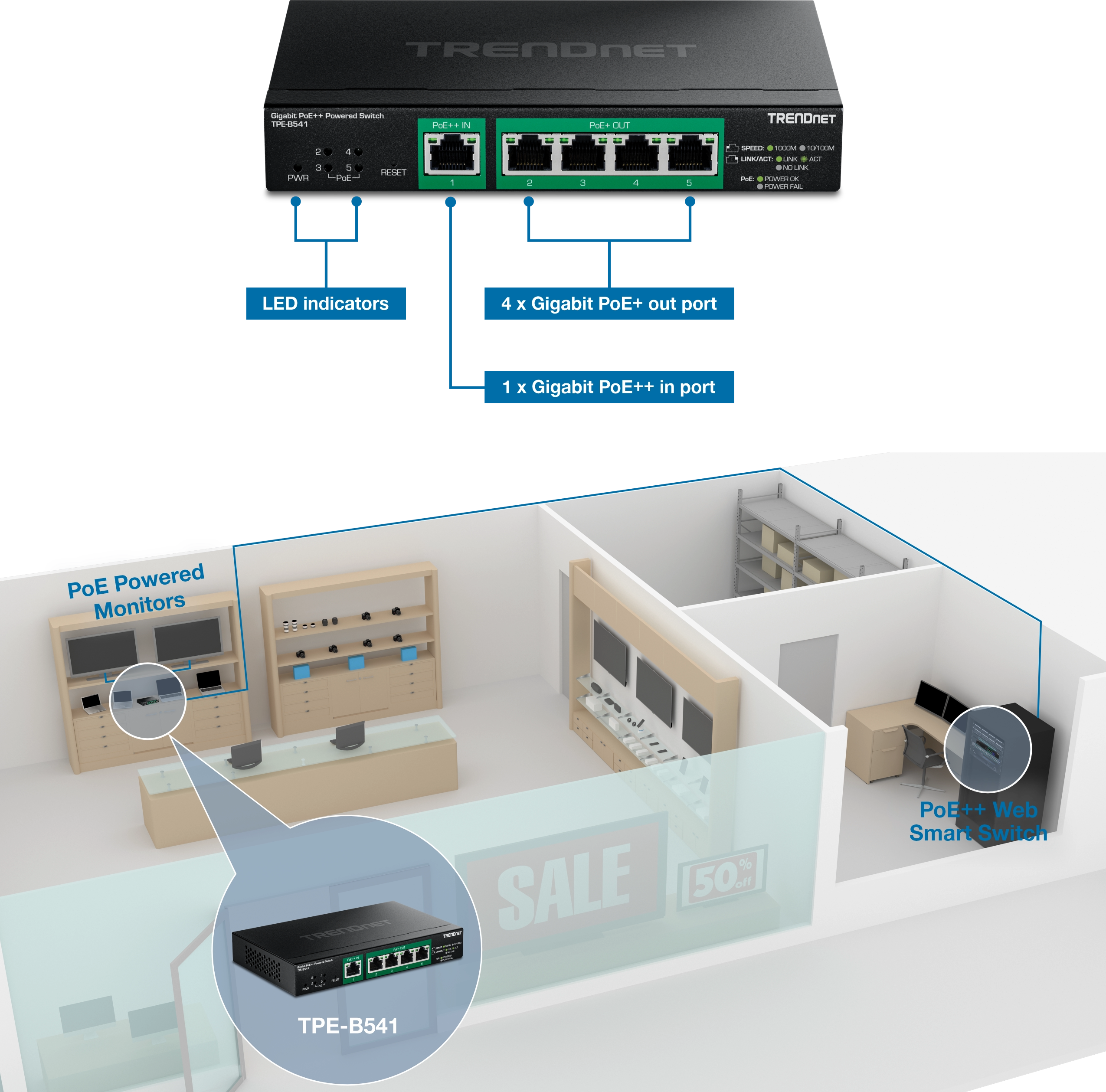

The TRENDnet Gigabit PoE++ Powered Switch TPE-B541 has LED indicators, four Gigabit PoE+ out ports, and one Gigabit PoE++ in port. A diagram shows a room with PoE powered monitors and a PoE++ web smart switch, highlighting the TPE-B541 switch's placement and its role in powering monitors and connecting to the web smart switch.

PoE++ Powered

PD-powered switch, no external power required – powered by a PoE++ switch or injector

PoE Passthrough

This PoE passthrough switch features four gigabit PoE passthrough ports with a 60W total PoE power budget

Compact Design

With a compact and lightweight metal housing design, this PoE++-powered switch is well-suited for desktop installations

Network Management

The web-based management interface on the PoE++ powered managed switch offers features for loopback detection, RSTP, VLAN, IGMP Snooping, and QoS

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Switching Capacity

10Gbps switching capacity

LED Indicators

LED indicators on the PoE++-powered managed switch convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1q
  • IEEE 802.1w

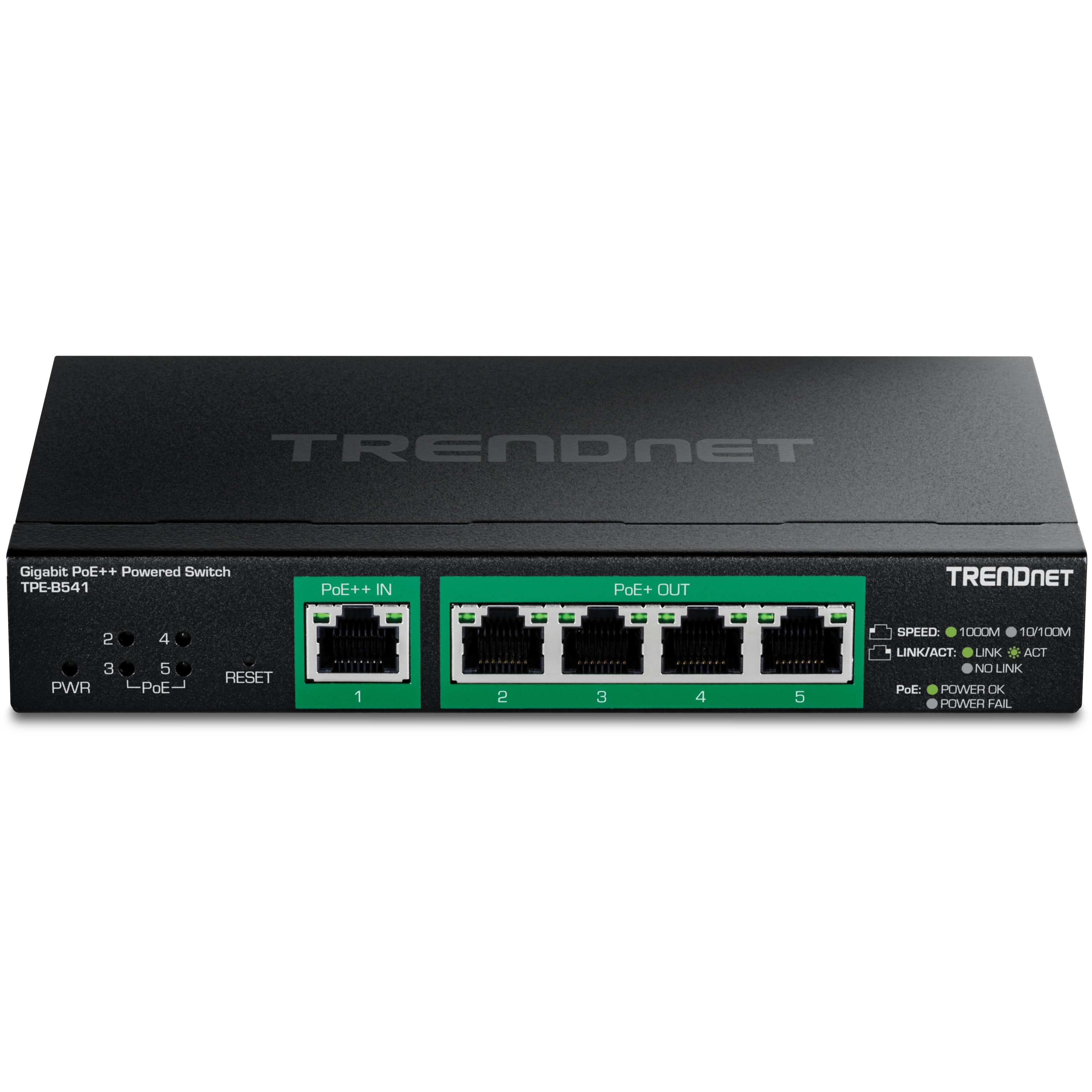

Device Interface
  • 1 x Gigabit PoE++ in port
  • 4 x Gigabit PoE+ out port
  • LED indicators

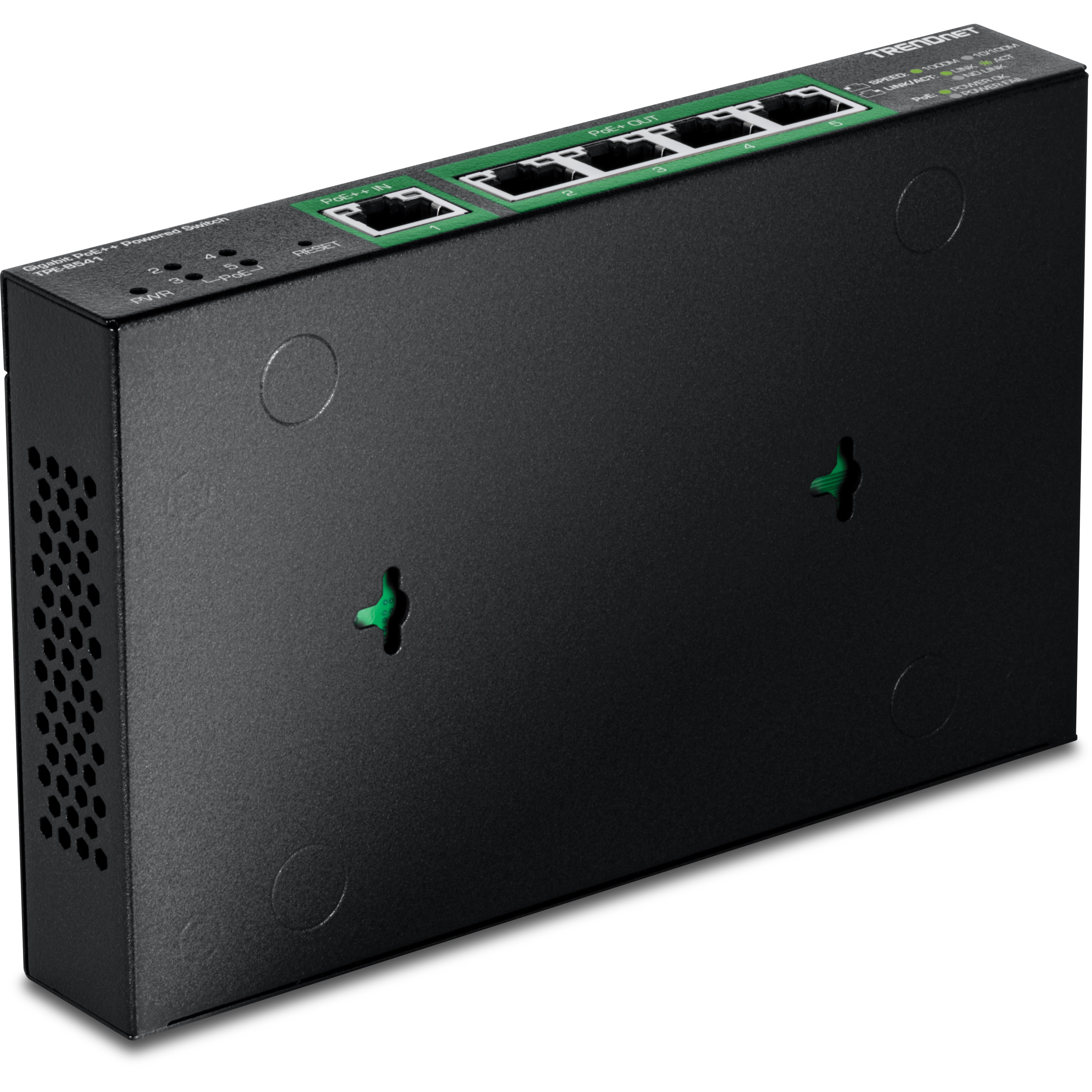

  • Wall mount
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)
Performance
  • Data RAM Buffer: 512KB
  • Switching Fabric: 10Gbps
  • MAC Address Table: 8K entries
  • Jumbo Frame: 10KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)
Management
  • HTTP Web based GUI
  • Backup/Restore Configuration
  • Upload Firmware
Spanning Tree
  • IEEE 802.1D STP (Spanning Tree protocol)
  • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
Quality of Service (QoS)
  • Port-based QoS
  • 802.1p Class of Service (CoS)
  • Bandwidth Control/Rate Limiting per port (Min. Limit: 16Kbps)
  • Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN
  • Port-based VLAN
  • 802.1Q Tagged VLAN
  • Up to 32 VLAN groups, ID Range 1-4094
  • VLAN port isolation
  • Voice VLAN (8 user defined OUIs)
Multicast
  • IGMP Snooping v1/2
  • Block unknown multicast source
Port Mirror
  • RX, TX, or Both
  • One to one
  • Many to one
Storm Control
  • Broadcast (Min. Limit: 16Kbps)
  • Multicast (Min. Limit: 16Kbps)
  • Loopback Detection
Special Features
  • PoE++ Powered
  • Auto-Negotiation
Power
  • IEEE 802.3bt Type 4 (90W), IEEE 802.3bt Type 3 (60W), or IEEE 802.3at (30W), PoE input only (no external power supply)
  • IEEE 802.3bt Type 4 PoE PD Class 8
  • IEEE 802.3bt Type 3 PoE PD Class 5
  • IEEE 802.3at Type 2 PoE PD Class 4
  • IEEE 802.3af Type 1 PoE PD Class 0
  • Max. consumption: 7.31W (no PoE)
PoE
  • 60W PoE budget with IEEE 802.3bt Type 4 (90W) input power
  • 50W PoE budget with IEEE 802.3bt Type 3 (60W) input power
  • 21W PoE budget with IEEE 802.3at (30W) input power
MTBF
  • 503,726 hours @ 25°C
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 170 x 105 x 28mm (4.21 x 4.13 x 1.10 in.)
Weight
  • 450g (15.9 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

PACKAGE CONTENTS
  • TPE-B541
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
