Powerline 200 AV Nano Adapter

TPL-308E (Version v1.0R)

  • Networking from an electrical outlet

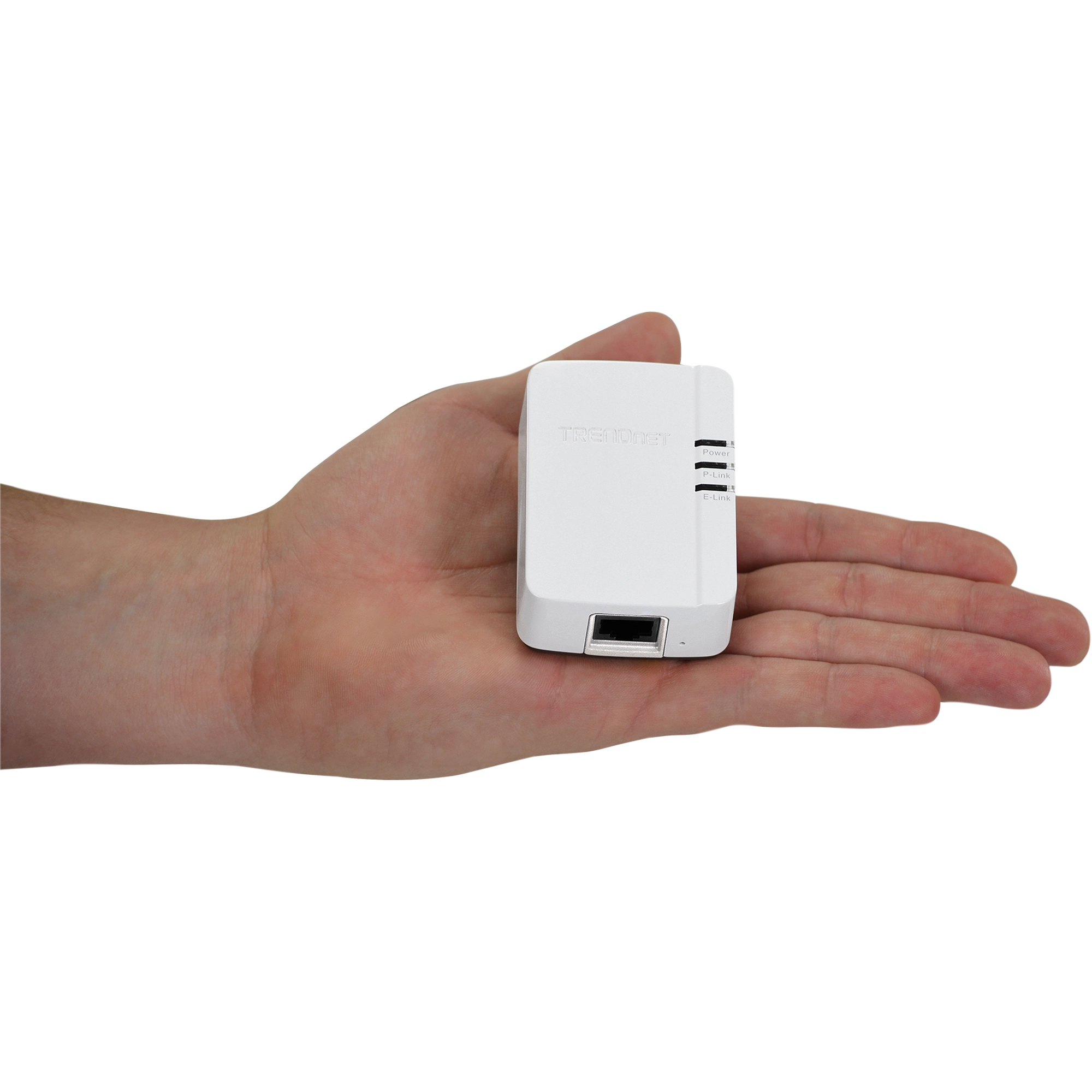

  • Compact form factor saves space
  • Up to 70% power savings
  • Use one unit to transmit, and up to 3 additional TPL-308Es to receive a network signal
  • Advanced AES data encryption

The Powerline 200 AV Nano Adapter, model TPL-308E, uses an electrical outlet to create a high speed network. Two adapters are needed to start a network. Connect one adapter to your router and plug another adapter into an outlet on your electrical system for instant high speed network access. The compact form factor saves space around crowded electrical outlets. This adapter automatically connects to other TRENDnet Powerline AV adapters with no installation required —TRENDnet recommends pressing the ‘Sync' button to automatically change default encryption keys.

Use up to 4 adapters to network devices in different rooms without running new cabling. Power Save mode reduces power consumption by up to 70%. Quality of Service technology prioritizes video, audio, and online gaming. LED displays convey device status for easy troubleshooting. Advanced 128-bit AES encryption secures your network. This adapter is ideal for use in buildings that interfere with wireless networking signals.

  • Networking over an existing electrical system
  • Compliant with IEEE 1901 and HomePlug® AV standards
  • 1 x 10/100 Mbps Auto-MDIX Ethernet port
  • Compact form factor saves space
  • Adapters automatically connect using an encrypted Powerline signal
  • One-touch Sync button changes encryption keys
  • Three LED indicators: Power (on/off), Powerline Link (green (best), amber (better), red (good), off(no connection), Ethernet Link (solid, blinking, off)
  • Connect one Powerline AV Adapter to the internet and then plug in up to 3* additional Powerline AVadapters for instant connectivity
  • Share data intensive files, play games, download music, and more at fast data transfer rates
  • Advanced 128-bit AES encryption to ensure total network security
  • Supports IPv6 pass through
  • Supports up to 4** IGMP based IPTV streams
  • Power Save mode reduces electrical consumption by up to 70%
  • Neighbor network support for up to 4 overlapping networks
  • Network signal transmits up to 300 meters (984 ft.)
  • Auto QoS supports traffic classification and multiple priority queuing
  • Optional management utility compatible with Windows® 8.1, 8, 7, Vista and XP
  • 3-year limited warranty

* Maximum of 4 adapters (nodes) recommended for streaming video across your network.** 200 Mbps is the maximum theoretical Powerline data rate. Actual throughput will vary depending on environment.*** Networked Powerline devices need to be plugged into power outlets that are on the same electrical system.**** GFCI outlets and AFCI circuit breakers may degrade Powerline network signals.

Hardware
Standards
  • IEEE 1901, HomePlug® AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u
Interface
  • 1 x 10/100 Mbps Auto-MDIX port
  • 1 x Sync / Reset button

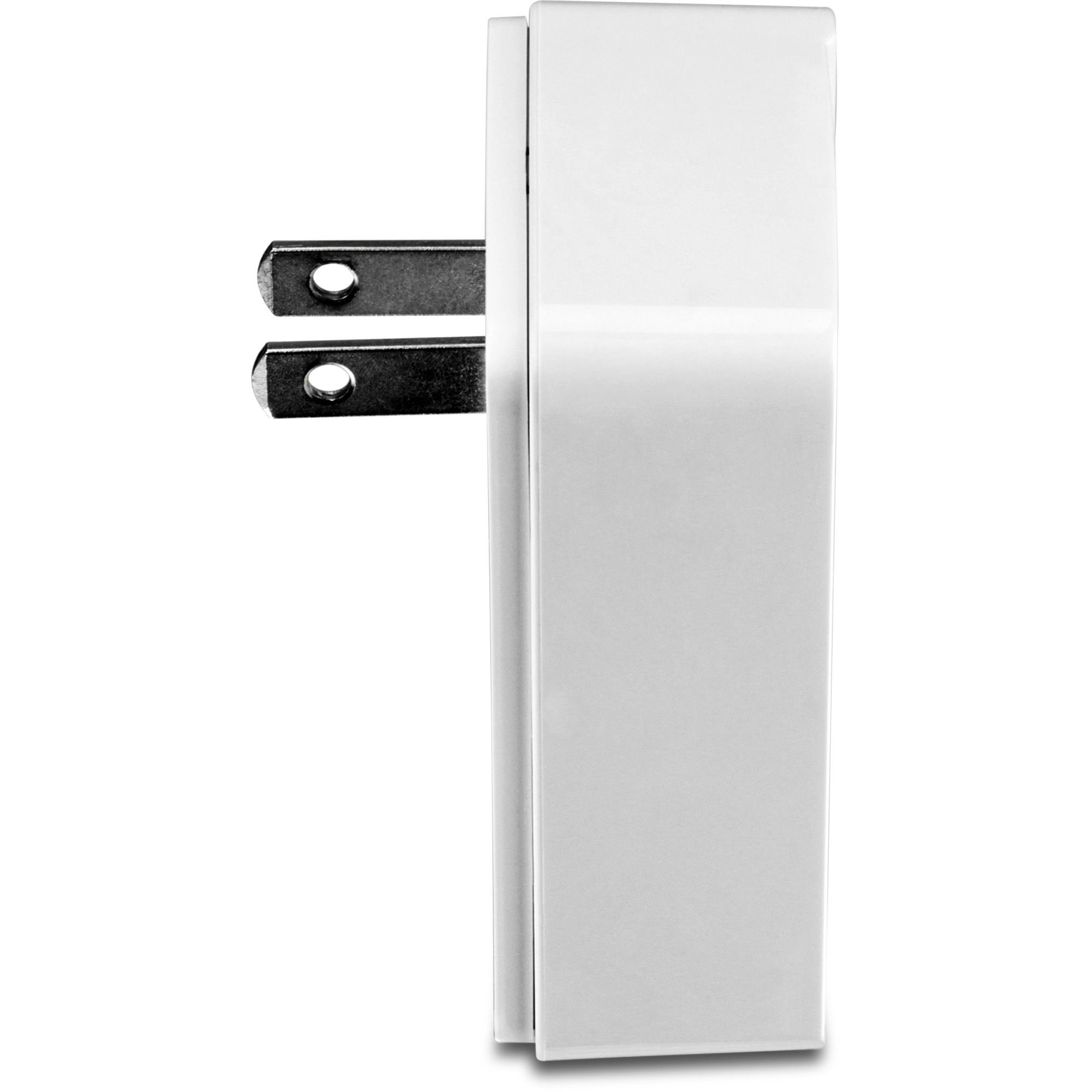

  • Power prong
  • A: North America Type B (NEMA 5–15)
  • EU: Euro Type C (CEE 7/16)
  • UK: United Kingdom Type G (BS 1363)
Frequency Band
  • 2 ~ 30 MHz
Modulation
  • OFDM Symbol Modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
Protocol
  • TDMA and CSMA/CA
Speed
  • Powerline: up to 200 Mbps**
  • Ethernet: up to 200 Mbps (Full Duplex mode)
Utility OS Compatibility
  • Windows® 8.1, 8, 7, Vista and XP
Nodes
  • Up to 4 (max)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Coverage
  • Up to 300 m (984 ft.)
Encryption
  • 128-Bit AES (Advanced Encryption Standard)

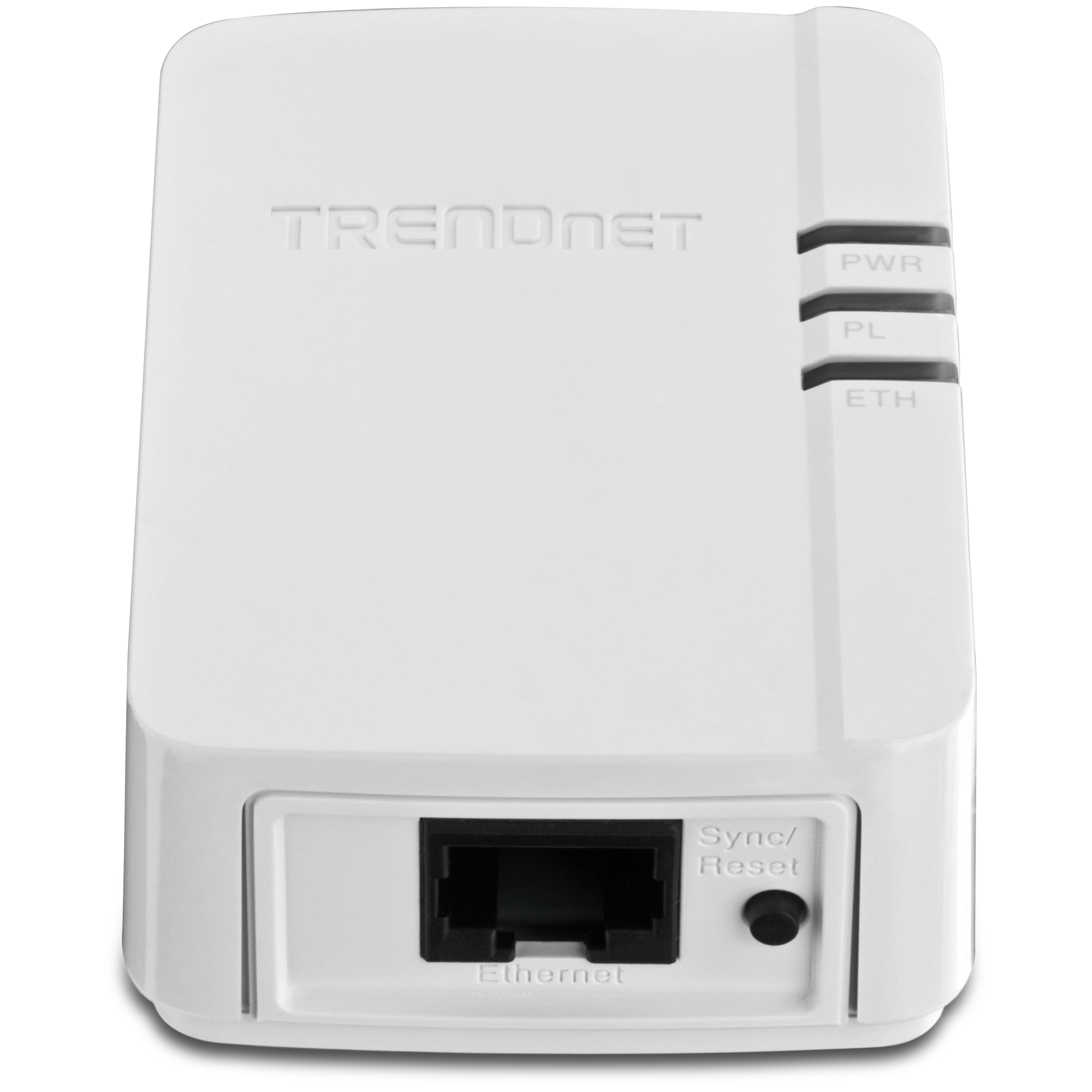

LED
  • Power (PWR)
  • Powerline (PL) Connection
  • Best (Green)
  • Better (Amber)
  • Good (Red)
  • No connection (Off)
  • Ethernet (ETH) Connection
  • Solid
  • Blinking
  • Off
Buttons
  • Sync (3 sec.) / Reset (20 sec.)
Dimension (L x W x H)
  • A: 70 x 50 x 43 mm (2.76 x 1.97 x 1.69 in.)
  • EU: 70 x 50 x 63 mm (2.76 x 1.97 x 2.48 in.)
  • UK: 70 x 50 x 58 mm (2.76 x 1.97 x 2.28 in.)
Weight
  • A: 62.4 g (2.2 oz)
  • EU: 68 g (2.4 oz)
  • UK: 79.4 g (2.8 oz)
Power Source
  • 100~240 V AC, 50~60 Hz
Consumption
  • Active mode: 1.75 watts (max.)
  • Standby mode: 0.56 watts (max.)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -10° ~ 55°C (14° ~ 131°F)
Humidity
  • Max 95% (non-condensing)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TPL-308E
  • Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Network cable (1.5 m / 5 ft.)

* Maximum of 4 adapters (nodes) recommended for streaming video across your network.
** 200 Mbps is the maximum theoretical Powerline data rate. Actual throughput will vary depending on environment.
*** Networked Powerline devices need to be plugged into power outlets that are on the same electrical system.
**** GFCI outlets and AFCI circuit breakers may degrade Powerline network signals.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
