Powerline 500 Wireless Kit

TPL-410APK (Version v1.0R)

  • Create a wireless network in an area with little to no wireless coverage
  • Combination Powerline and Wireless N
  • Connect a smart TV, gaming console, or media player to the two Ethernet ports
  • No CD installation: adapters auto-connect out of the box

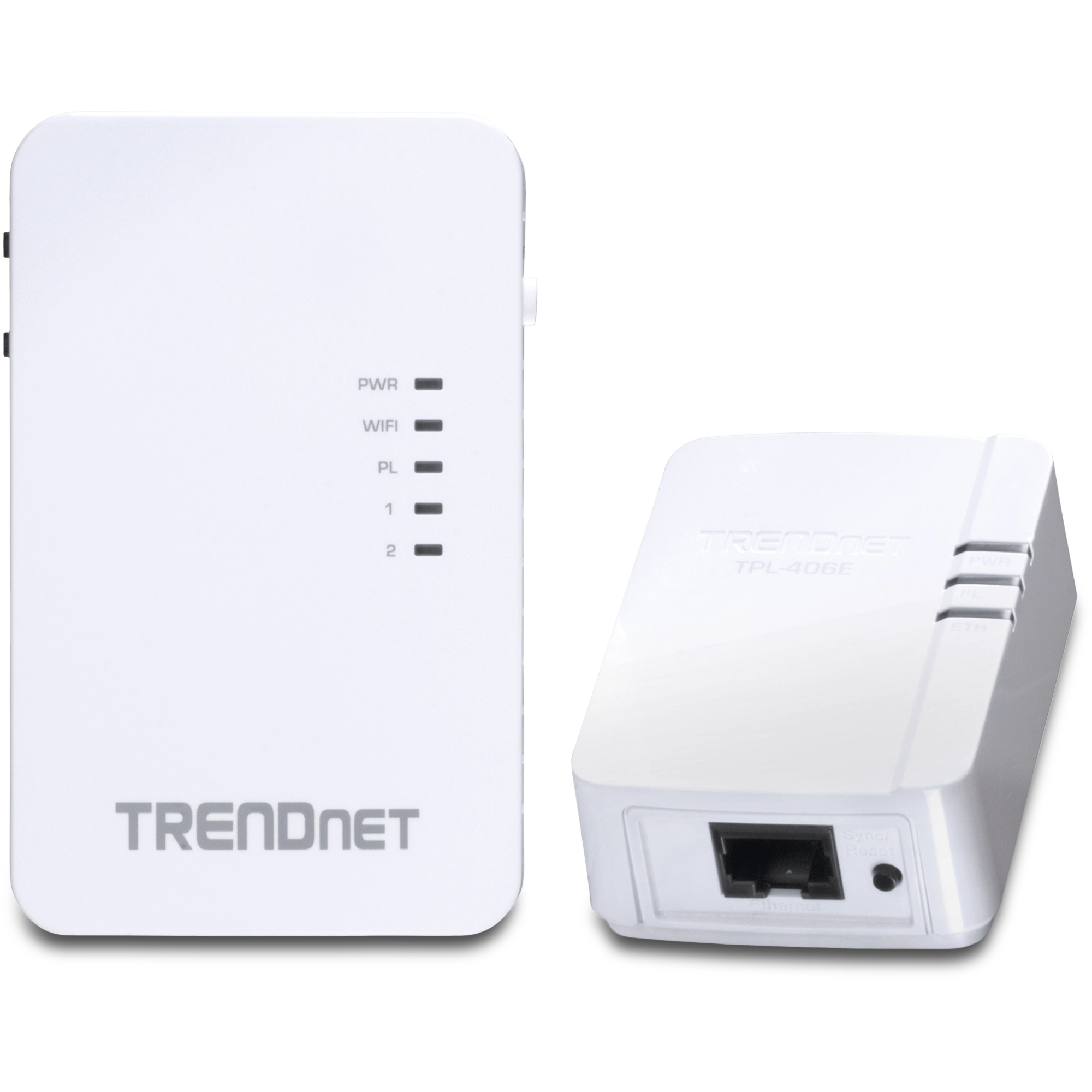

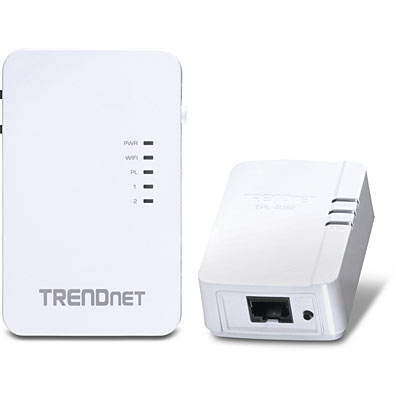

  • Includes TPL-406E + TPL-410AP adapters

TRENDnet's Powerline 500 Wireless Kit, model TPL-410APK, uses electrical outlets to create a hybrid Powerline-Wireless network. The included TRENDnet Powerline adapters (TPL-406E + TPL-410AP) auto-connect out of the box. Network the TPL-406E to a router and plug the TPL-410AP into an outlet on the electrical system to extend a high performance wireless network. Hard-wire a smart TV, gaming console, or media player to the two Ethernet ports on the TPL-410AP.

Powerline

No CD Installation

Simply plug in the adapters—all TRENDnet adapters auto-connect out of the box

Sync Button

Press the Sync button to change existing Powerline encryption keys

Pre-Encrypted

For your security the Powerline signal is pre-encrypted

Powerline 500

High speed Powerline networking over existing electrical lines

Ethernet Ports

The TPL-410AP offers two convenient Ethernet ports to hardwire computers, smart TVs, and other network enabled devices

Cross Compatible

TRENDnet Powerline 500 and 200 adapters work together

Whole Home Coverage

Connects over electrical lines, for houses up to 5000 square feet (300 m/984 ft. linear distance over electrical lines)

Energy Savings

Power Save mode reduces electrical consumption

Wireless

Quick Setup

Get up and running in minutes with the intuitive guided setup

N300 Wireless

Proven Wireless N 300

Wireless Coverage

Expanded wireless coverage with MIMO antenna technology

Pre-Encrypted

For your security the wireless is pre-encrypted with a unique password

One Touch Connection

Securely connect wireless devices at the touch of the Wi-Fi Protected Setup (WPS) button

Compatibility

Compatible with legacy 2.4 GHz Wireless devices


* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions** 500 Mbps is the maximum physical Powerline data rate. Data throughput may vary by circuit wire condition. Maximum of 8 adapters (nodes) recommended for streaming video across your network.*** Powerline networking is limited to the same electrical system. Power strips, GFCI outlets, and AFCI circuit breakers may degrade Powerline signals.

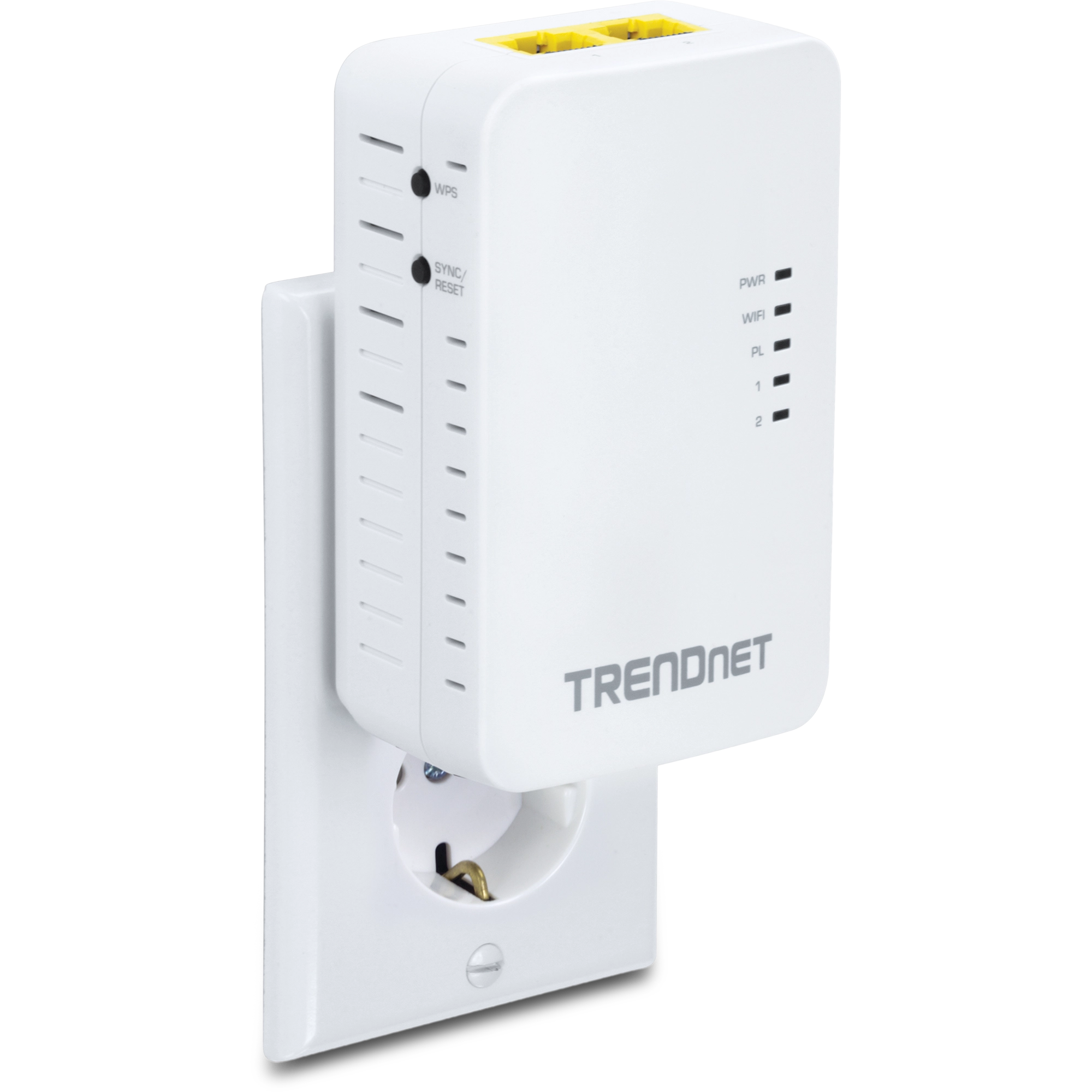

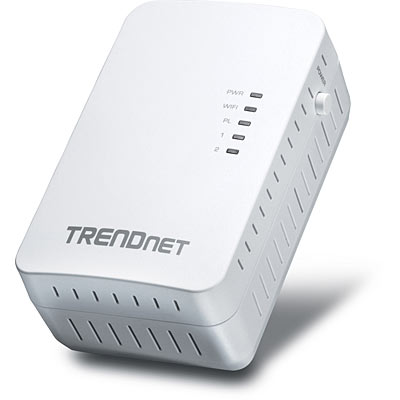

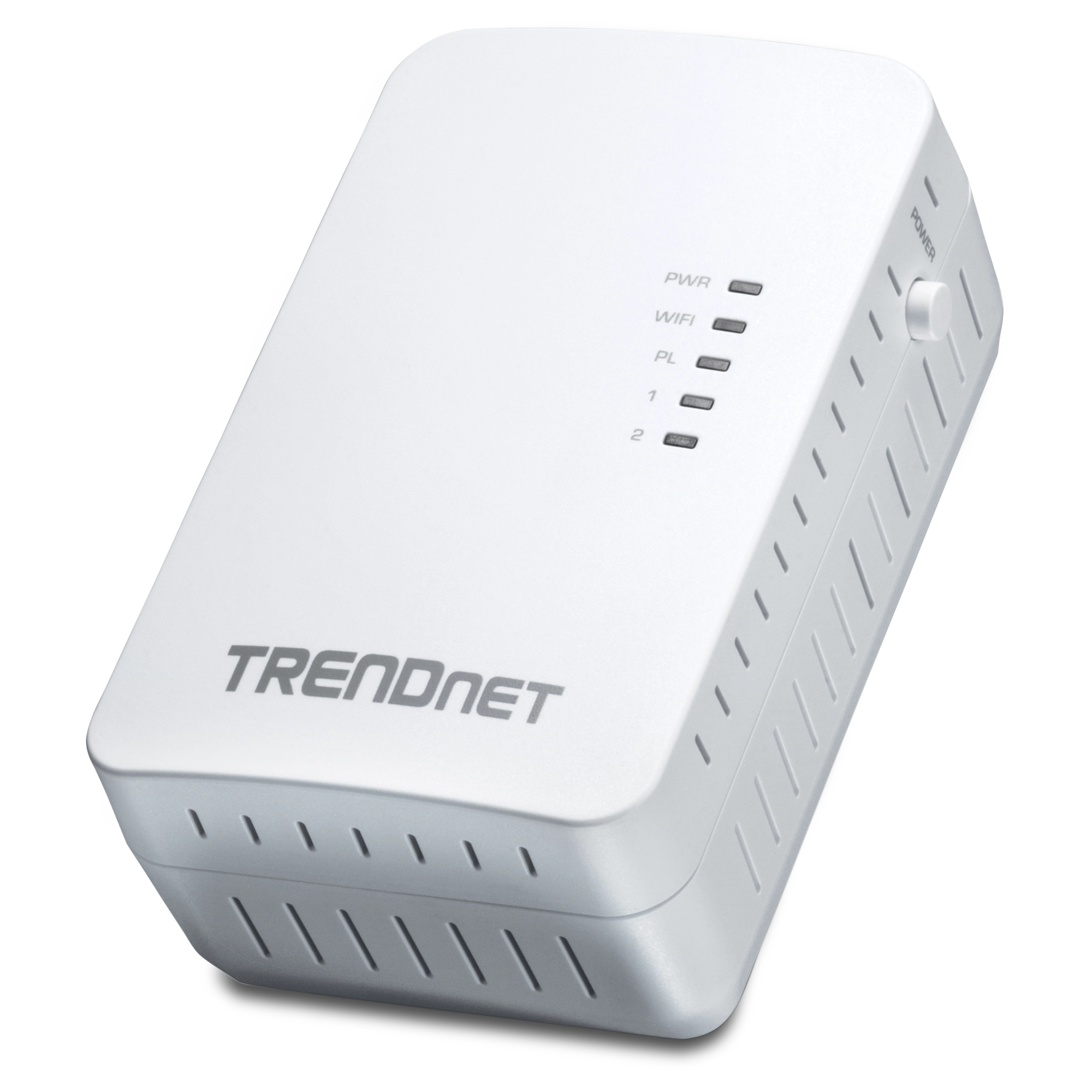

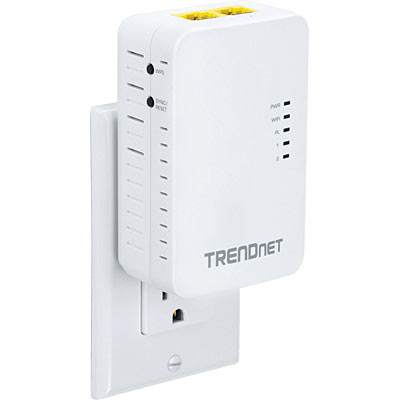

TPL-410AP
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3az
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 300 Mbps)
  • IEEE 1901/HomePlug® AV
Device Interface
  • 2 x 10/100 Mbps ports
  • Sync/reset button
  • WPS button
  • Power switch
  • LED indicators
  • Power Plug (A: North America Type B (NEMA 5–15); EU: European Type C (CEE 7/16); UK : United Kingdom Type G (BS 1363))
Frequency Band
  • 2 - 68 MHz
Networking Distance
  • Powerline: 5,000 sq. ft. home or 300 m (980 ft.) linear distance over electrical power lines**
Security
  • Wireless encryption: up to WPA2
  • Powerline encryption: 128-bit AES (Advanced Encryption Standard)
Utility OS Compatibility (optional)
  • Windows® 8.1, 8, 7, Vista, XP
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • Additional Ethernet port for wired connectivity
Antenna Gain
  • 2.4 GHz: 2 x 3 dBi
Wireless Output Power/Receiving Sensitivity
  • 802.11b: 17 dBm (typical)/-76 dBm (typical) @ 11 Mbps
  • 802.11g: 14 dBm (typical)/-65 dBm (typical) @ 54 Mbps
  • 802.11n: 14 dBm (typical)/-61 dBm (typical) @ 300 Mbps
Power
  • Input: 100 - 240 V AC, 50 - 60 Hz, 0.2 A
  • Consumption: 8 Watts Max.
Operating Temperature
  • 0 - 40°C (32 – 104°F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • A: 65 x 100 x 55 mm (2.56 x 3.94 x 1.97 in.)
  • EU: 65 x 100 x 77 mm (2.56 x 3.94 x 3.03 in.)
  • UK: 65 x 100 x 70 mm (2.56 x 3.94 x 2.76 in.)
Weight
  • A: 153 g (5.4 oz.)
  • EU: 164 g (5.8 oz.)
  • UK: 168 g (5.9 oz.)
Warranty
  • 3 year limited
TPL-406E
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 1901/HomePlug® AV
Device Interfaces
  • 1 x 10/100 Mbps port
  • Sync/reset button
  • LED indicators
  • Power Plug (A: North America Type B (NEMA 5–15); EU: European Type C (CEE 7/16); UK : United Kingdom Type G (BS 1363))
Frequency Band
  • 2 - 68 MHz
Networking Distance
  • 5,000 sq. ft. home or 300 m (980 ft.) linear distance over electrical power lines**
Security
  • 128-Bit AES (Advanced Encryption Standard)
Utility OS Compatibility
  • Windows® 8.1, 8, 7, Vista, XP
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
Power
  • Input: 100 - 240 V AC, 50 /60 Hz, 0.1 A
  • Consumption: Active mode: 3 Watts (max.); Standby mode: 0.5 Watts (max.)
Operating Temperature
  • 0 – 40°C (32 – 104°F)
Operating Humidity
  • Max. 95 % non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • A: 70 x 50 x 43 mm (2.76 x 1.97 x 1.69 in.)
  • EU: 70 x 50 x 63 mm (2.76 x 1.97 x 2.48 in.)
  • UK: 70 x 50 x 58 mm (2.76 x 1.97 x 2.28 in.)
Weight
  • A: 51 g (1.8 oz.)
  • EU: 56.7 g (2.0 oz.)
  • UK: 68 g (2.4 oz.)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TPL-410AP
  • TPL-406E
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • 2 x network cables (1.8 m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
