Powerline 200 AV PoE+ Adapter Kit

TPL-331EP2K (Version v1.0R)

Includes two TPL-331EP adapters – each adapter supports a single PoE+ connection
Powerline 200 networking over existing electrical lines
PoE+ output port for connecting a PoE device over a Powerline network
Encrypted TRENDnet adapters auto-connect out of the box
Powerline range of up to 300m (984 ft.) over existing electrical lines
Cross compatible with Powerline 1200, 600, and 500 adapters
An existing Powerline network is recommended

DISCONTINUED PRODUCT

The TPL-331EP2K (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's Powerline 200 AV PoE+ Adapter Kit, model TPL-331EP2K, comes with two PoE+ Powerline adapters that add PoE+ capabilities to your existing Powerline network. Each adapter features a single PoE+ output port to connect PoE+ devices such as IP cameras, wireless access points and VoIP handsets over a Powerline network. Two adapters are needed to start a network. Encrypted TRENDnet adapters auto-connect out of the box.

Two TRENDnet Powerline adapters are plugged into electrical outlets and connected wirelessly, as shown by the dotted line between them. The adapters feature a simple design with indicator lights, demonstrating the ease of installation and automatic connection.

Simple Plug-in Installation

No configuration needed! Simply plug in TRENDnet Powerline adapters and they will auto-connect right out of the box.

A speedometer-like gauge displays a speed of 200 Mbps, with the needle pointing to the right. The gauge is marked with evenly spaced lines, and the number 200 Mbps is prominently shown at the top center. The gauge is colored in blue.

Powerline 200

Powerline 200 technology delivers fast and stable networking to seamlessly connect devices.

A powerline adapter plugged into an electrical outlet with a network cable connected to a security camera, showing the use of PoE+ to power the camera through the network cable.

PoE+ Port

Features a PoE+ output port for connecting PoE devices such as IP cameras, wireless access points and VoIP handsets over a Powerline network.

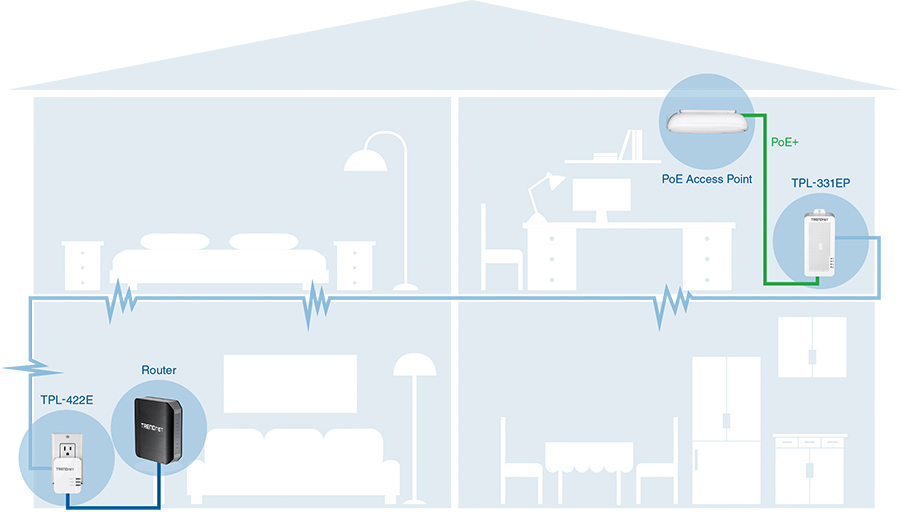

A diagram of a house illustrating a network setup. It shows a router connected to a powerline adapter labeled TPL-422E, which uses existing electrical wiring to extend the network to another room. In the second room, a power over Ethernet injector labeled TPL-331EP connects to a PoE access point, providing wired and wireless connectivity.

Sync Button

Press the Sync button to change existing Powerline encryption keys

Powerline 200

Powerline 200 technology delivers fast and stable networking to seamlessly connect devices.

PoE+ Port

Features a PoE+ output port for connecting PoE devices such as IP cameras, wireless access points and VoIP handsets over a Powerline network.

Cross Compatibility

Cross compatible with Powerline 1300, 1200, 600, and 500 adapters

Expandable

Use up to 8 adapters on a single Powerline network

Easy Installation

TRENDnet adapters auto-connect out of the box

128-bit AES Encryption

Powerline communication is protected with 128-bit AES encryption

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at
Device Interface	1 x 10/100Mbps PoE+ port Sync button Reset button LED indicators
Frequency Band	2 – 28MHz
Modulation/Protocol	OFDM, 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO CSMA/CA, TDMA, CSMA
Data PHY Rate	Up to 200Mbps
Networking Distance	Powerline: Up to 300m (980ft.) linear distance over electrical power lines***
Encryption	128-Bit AES (Advanced Encryption Standard)
Powerline Nodes	Up to 8 (max.) Overlapping Powerline Networks Up to 4 (per electrical system)
Special Features	Auto-connects to other TRENDnet Powerline adapters IPv6 support IGMP / MLDv2 Streams
Power	Input: 100 - 240V AC, 50-60Hz Consumption: Active mode: 2.3W (max.); Standby mode: 1.7W (max.) PoE Budget: 30 Watts (max.)
Operating Temperature	0 – 55°C (32 – 131°F)
Operating Humidity	Max. 93 % non-condensing
Certifications	FCC IC
Dimensions	156 x 67 x 43 mm (6.14 x 2.6 x 1.7 in.)
Weight	205g (7.2 oz.)
Warranty:	3 year

PACKAGE CONTENTS

2 x TPL-331EP
Quick Installation Guide
2 x Network cable (1.2m/4 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
