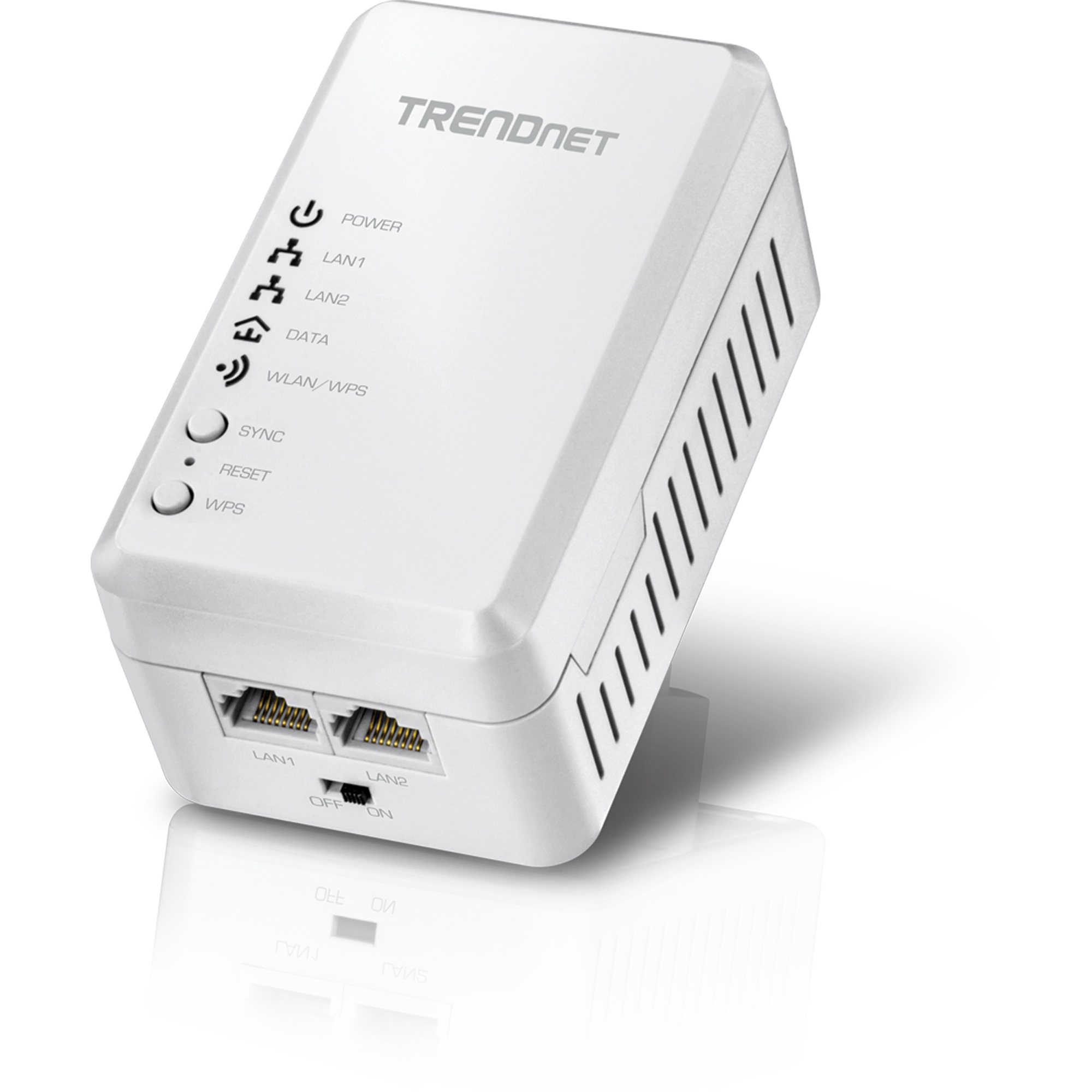

WiFi Everywhere™ Powerline 500 AV Access Point

TPL-410AP (Version v2.0R)

Create or expand a wireless network with this Powerline adapter
500 AV Powerline and Wireless N 300
Easy installation
Two convenient Ethernet ports
Two Powerline devices are required to start a network

DISCONTINUED PRODUCT

The TPL-410AP (Version v2.0R) has been discontinued. It has been replaced by the TPL-430AP (Version v1.0R). For a list of discontinued products, click here.

TRENDnet's WiFi Everywhere™ Powerline 500 AV Access Point, model TPL-410AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one adapter to a router and plug in the TPL-410AP on your electrical system to create or expand a wireless network.

A diagram shows a network setup with a central device, likely a network switch, connected to a desktop computer and a laptop via Ethernet cables. The diagram highlights how TRENDnet adapters can be plugged in for encrypted Powerline signal auto-connection over an existing electrical system.

Plug In Install

Simply plug in TRENDnet adapters! The encrypted Powerline signal auto-connects over an existing electrical system.

The illustration shows a central WiFi plug connecting wirelessly to various devices, including a laptop, TV, gaming controller, and lamp. The central WiFi plug, highlighted in a larger circle, acts as the main hub for connecting these devices within the network. This emphasizes the capability of the WiFi plug to connect multiple WiFi N devices.

WiFi for All

Connect all of your WiFi N devices to a WiFi N network.

The WiFi Everywhere™ Powerline 500 AV Access Point is plugged into a wall outlet and connected to a router with multiple antennas. The router connects to the internet, indicated by a globe icon. Several Ethernet ports on the router extend high-performance wired connections to various devices.

Ethernet Port

Ethernet port extends high performance wired connections.

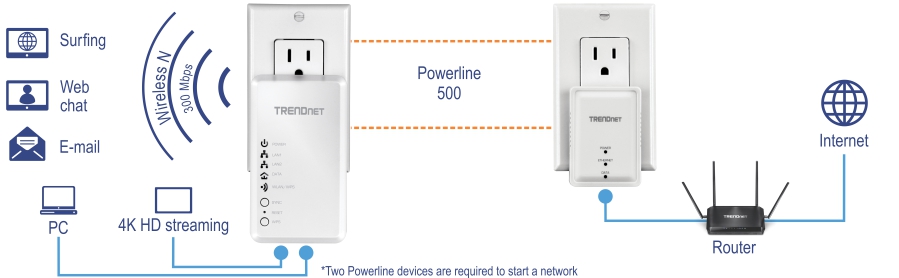

The setup illustrates a TRENDnet Powerline 500 adapter plugged into a wall outlet, with icons representing surfing, web chat, email, PC, and 4K HD streaming capabilities. The adapter provides Wireless N connectivity at 300 Mbps and connects to another TRENDnet adapter via an orange dashed line labeled Powerline 500. This second adapter, also plugged into a wall outlet, is connected to a router linked to the internet. Two Powerline devices are required to start a network.

Sync Button

Press the Sync button to change existing Powerline encryption keys

Powerline 500

High speed Powerline networking over existing electrical lines

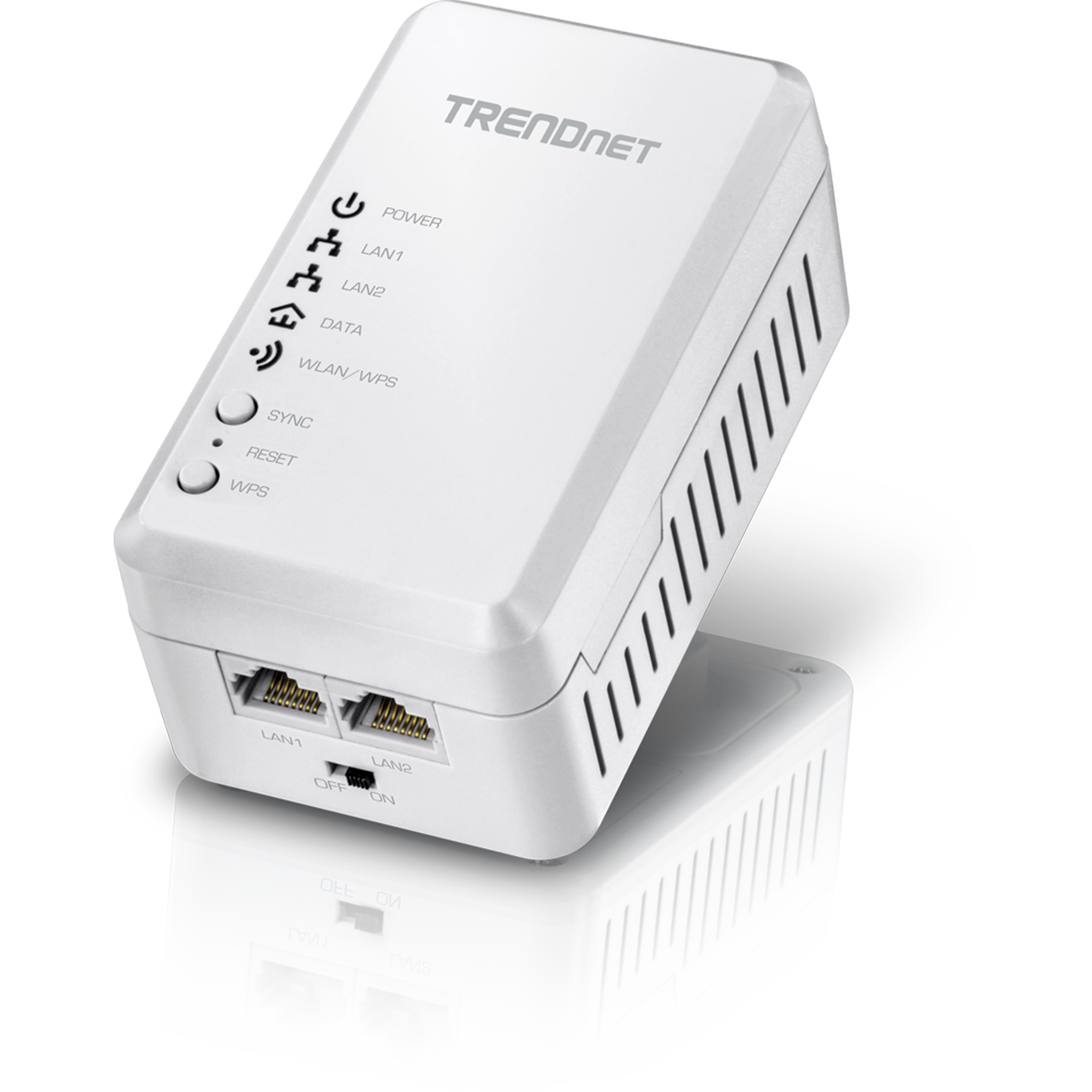

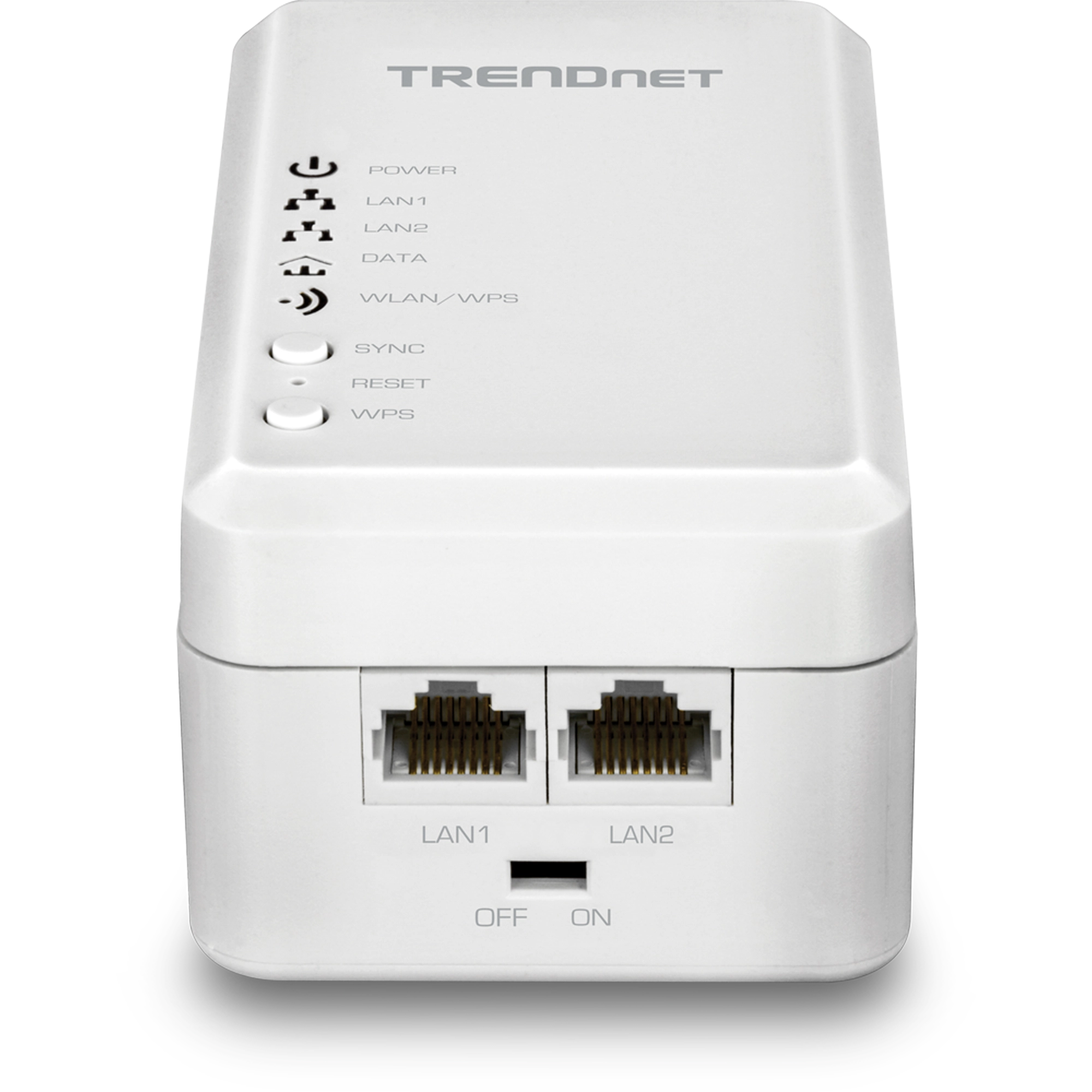

Ethernet Ports

Two convenient Ethernet ports to hardwire computers, smart TVs, or other network enabled devices

Cross Compatible

Backward compatible with all Powerline 600, 500, and 200 adapters

Quick Setup

Get up and running in minutes with the intuitive guided setup

N300 Wireless

Proven Wireless N 300

Wireless Coverage

Expanded wireless coverage with MIMO antenna technology

Pre-Encrypted

For your convenience the wireless is pre-encrypted with a unique password

Push Button Connection

Connect wireless devices at the touch of the Wi-Fi Protected Setup (WPS) button

Compatibility

Compatible with legacy 2.4 GHz Wireless devices

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3az IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300 Mbps) IEEE 1901

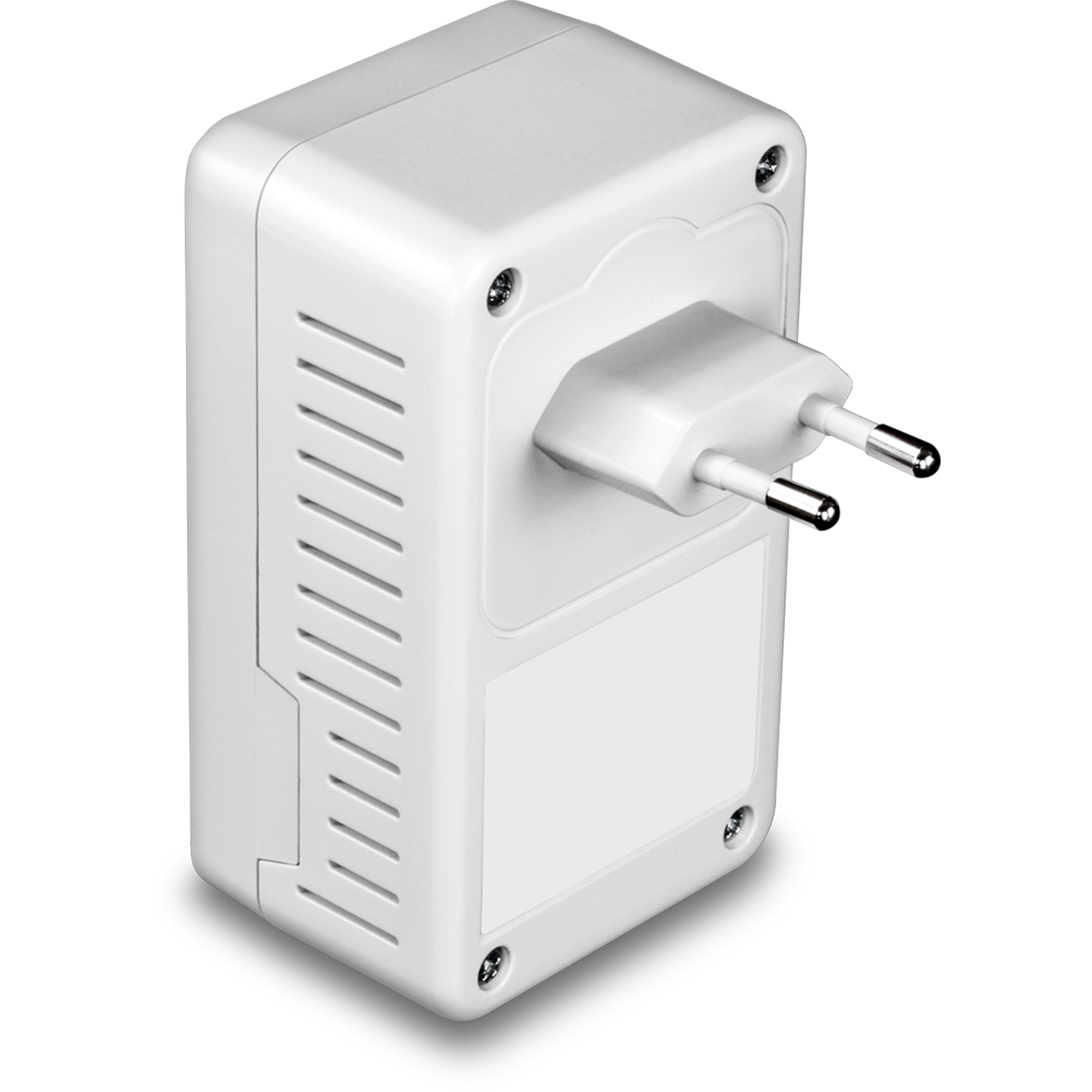

Device Interface	2 x 10 / 100 Mbps ports Sync button Reset button WPS button Power switch LED indicators Power plug A: North America Type B (NEMA 5–15) EU: Euro Type C (CEE 7/16) UK : United Kingdom Type G (BS 1363)
Frequency Band	2 – 68 MHz
Networking Distance	Up to 300 m (980 ft.) linear distance over electrical power lines***
Encryption	Wireless: up to WPA2 Powerline: 128-bit AES (Advanced Encryption Standard)
Utility OS Compatibility (optional)	Windows^® 10, 8.1, 8, 7, Vista, XP
Special Features	Auto-connects to other TRENDnet Powerline adapters Additional Ethernet ports for wired connectivity
Antenna Gain	2.4 GHz: 2 x 3 dBi
Wireless Output Power / Receiving Sensitivity	802.11b: 17 dBm (typical) / -76 dBm (typical) @ 11 Mbps 802.11g: 14.5 dBm (typical) / -66 dBm (typical) @ 54 Mbps 802.11n: 14 dBm (typical) / -68 dBm (typical) @ 300 Mbps
Power	Input: 100 – 240 V AC, 50 – 60 Hz, 0.2 A Active mode consumption: 6.5 Watts (max.)
Operating Temperature	0 - 40 °C (32 – 104 °F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC IC
Dimensions	107 x 62 x 48.5 mm (4.2 x 2.44 x 1.9 in.)
Weight	A: 180 g (6.3 oz.) EU: 190 g (6.7 oz.) UK: 190 g (6.7 oz.)
Warranty	3 year limited

PACKAGE CONTENTS

TPL-410AP
Quick Installation Guide
Network cable (1.5 m / 5 ft.)

* Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions
** 500 Mbps is the maximum physical Powerline data rate. Data throughput may vary by circuit wire condition. Maximum of 8 adapters (nodes) recommended for streaming video across your network.
*** Powerline networking is limited to the same electrical system. Power strips, GFCI outlets, and AFCI circuit breakers may degrade Powerline signals.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
