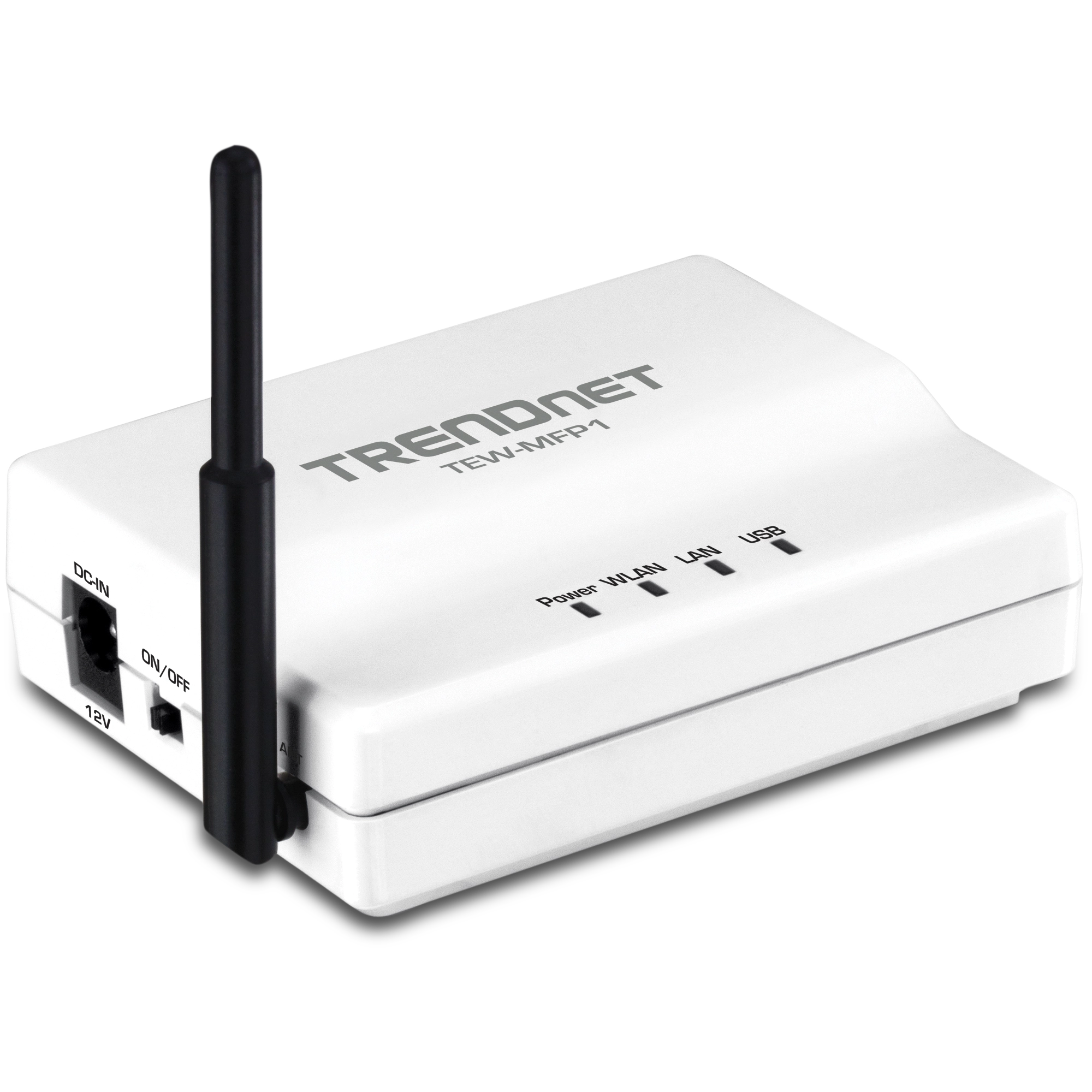

1-Port Wireless N Multi-Function USB Print Server

TEW-MFP1 (Version v1.0R)

  • Turn a multi-function or standard printer into a shared network resource
  • Scan, fax, and print from any workstation
  • High speed Wireless N
  • Compact form factor
  • Intuitive Utility supports Windows and Mac OS

TRENDnet's 1-Port Wireless N Multi-Function USB Print Server, model TEW-MFP1, transforms most stand-alone multi-function and standard USB printers into a shared network resource. Install your multifunction printer in the most ergonomic location and then connect the compact TEW-MFP1 to a high speed Wireless N network.

An intuitive utility supports Windows and Mac operating systems and provides a seamless user experience. Scan, fax, and print functionality from any networked workstation. Integrated Wireless N provides greater installation flexibility. An Ethernet port facilitates optional wired networking. Wi-Fi Protected Setup (WPS) streamlines the process of connecting to a wireless network. This compact device fits into the smallest spaces.

  • 1 x 10/100Mbps Auto-MDIX Fast Ethernet port (for optional wired installation)
  • 1 x USB 2.0 high speed port
  • Wi-Fi Protected Setup (WPS) connects to wireless networks at the push of a button
  • Compliant with IEEE 802.11n technology and compliant with IEEE 802.11b/g standards
  • High-speed data rates of up to 150Mbps with IEEE 802.11n*
  • Backwards Compatible with USB 1.1 Devices
  • Control Center utility supports Windows 7 (32/64-bit) / Vista (32/64-bit) / Windows XP(32/64-bit) and Mac OS X 10.4/10.5/10.6/10.7 operating systems
  • Supports most All-In-One multi-function printers and regular USB printers
  • Share multi-function printers and regular USB printers over the network
  • Control Center utility includes built in scan feature**
  • Supports NetUSB technology**
  • Share USB peripheral devices over the network including; digital cameras, web cams, speakers, iPods™, flash drives, external hard drives, printers, and memory card readers**
  • Universal Plug & Play (UPnP) installation
  • Diagnostic LEDs
  • 3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions** Control Center utility installation required for each computer in order to access the print server

Hardware
Standards
  • IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), USB 1.1/2.0

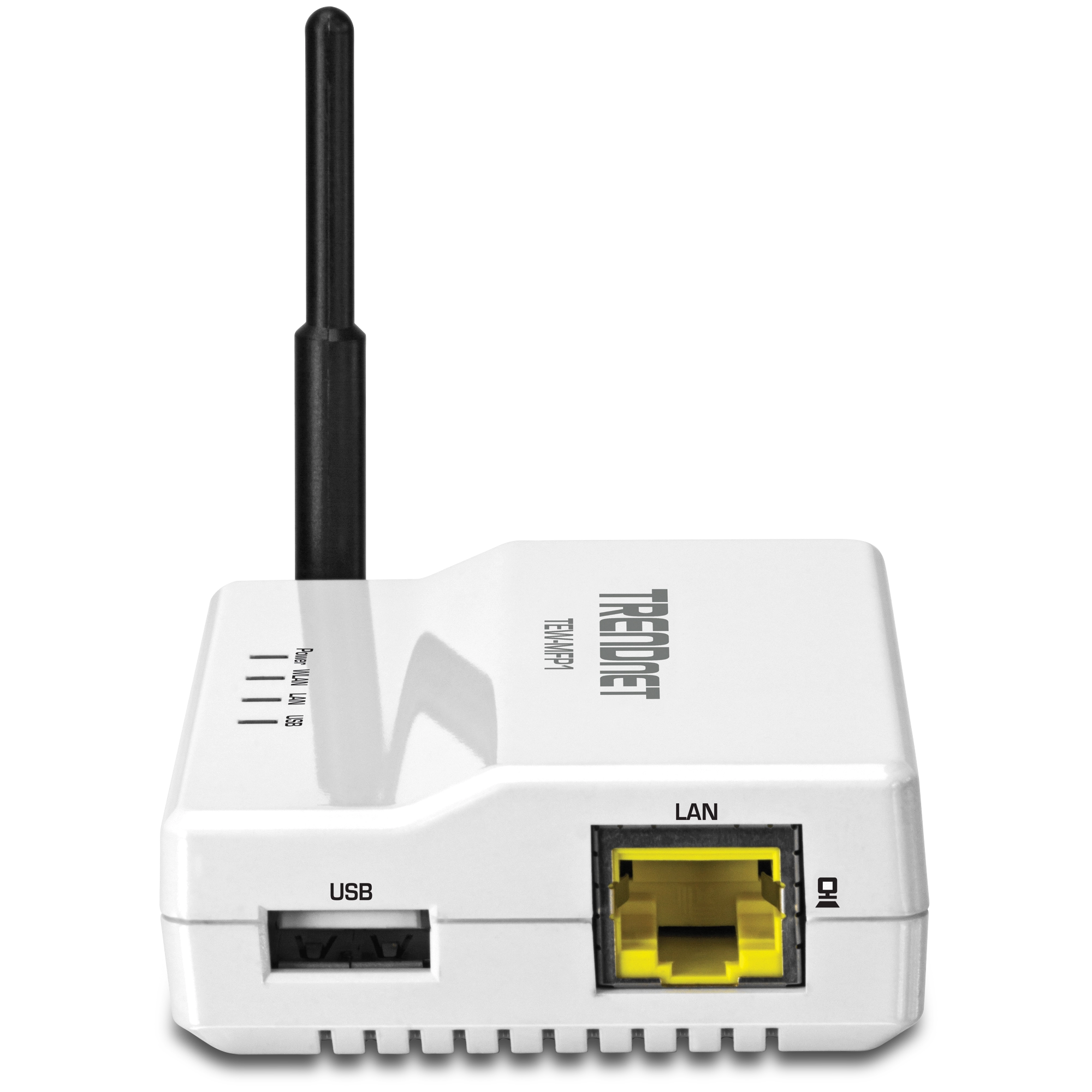

LAN Port
  • 1 x 10/100Mbps Auto-MDIX Ethernet port
USB Ports
  • 1 x USB 2.0 Type-A

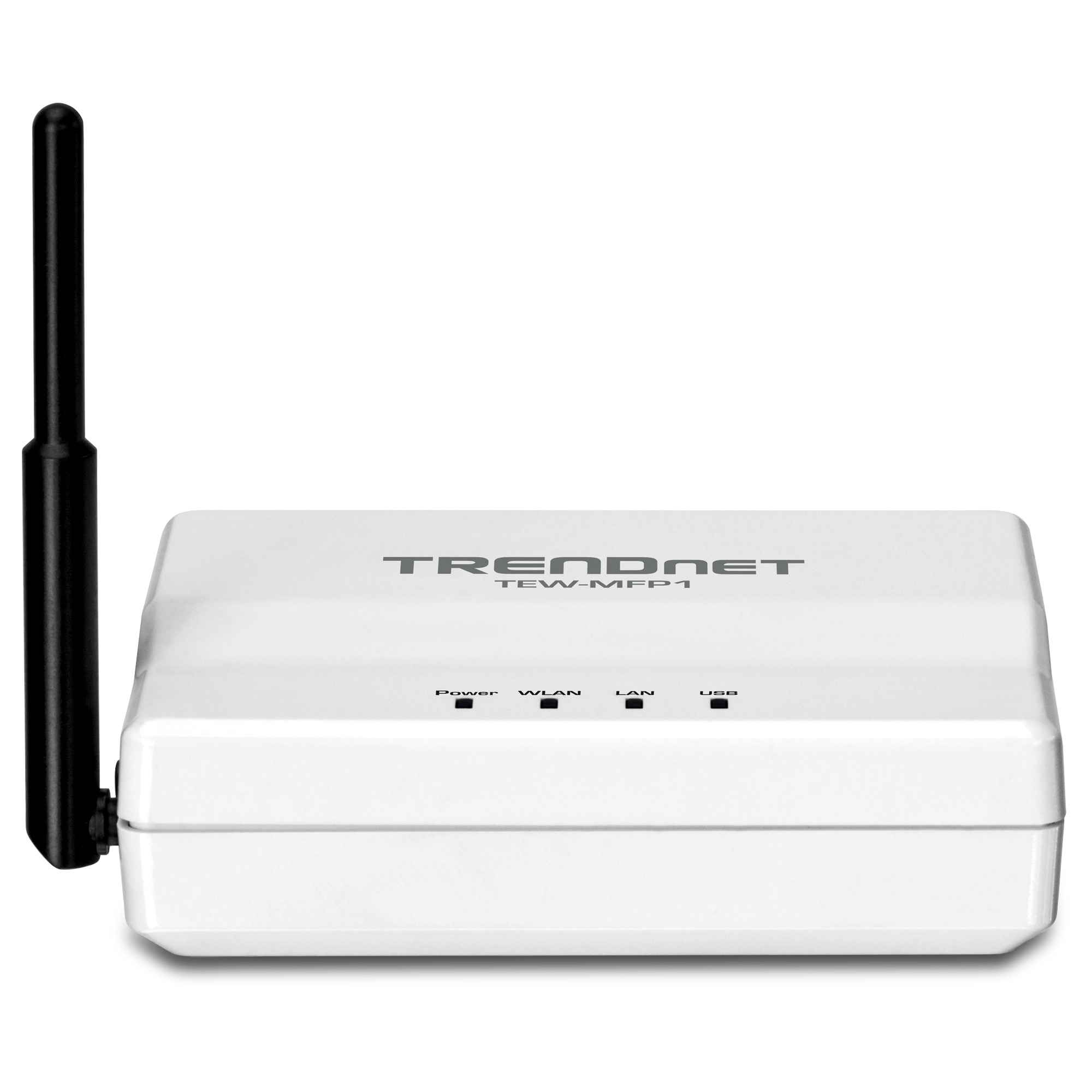

LED Indicators
  • Power, WLAN, LAN, USB
TCP/IP Protocol Supported
  • DHCP
Control Center Utility Supported OS
  • Windows® 8.1, 8, 7, Vista, XP
  • Mac OS® 10.4-10.9
USB Devices Supported
  • 127 Max.
Button

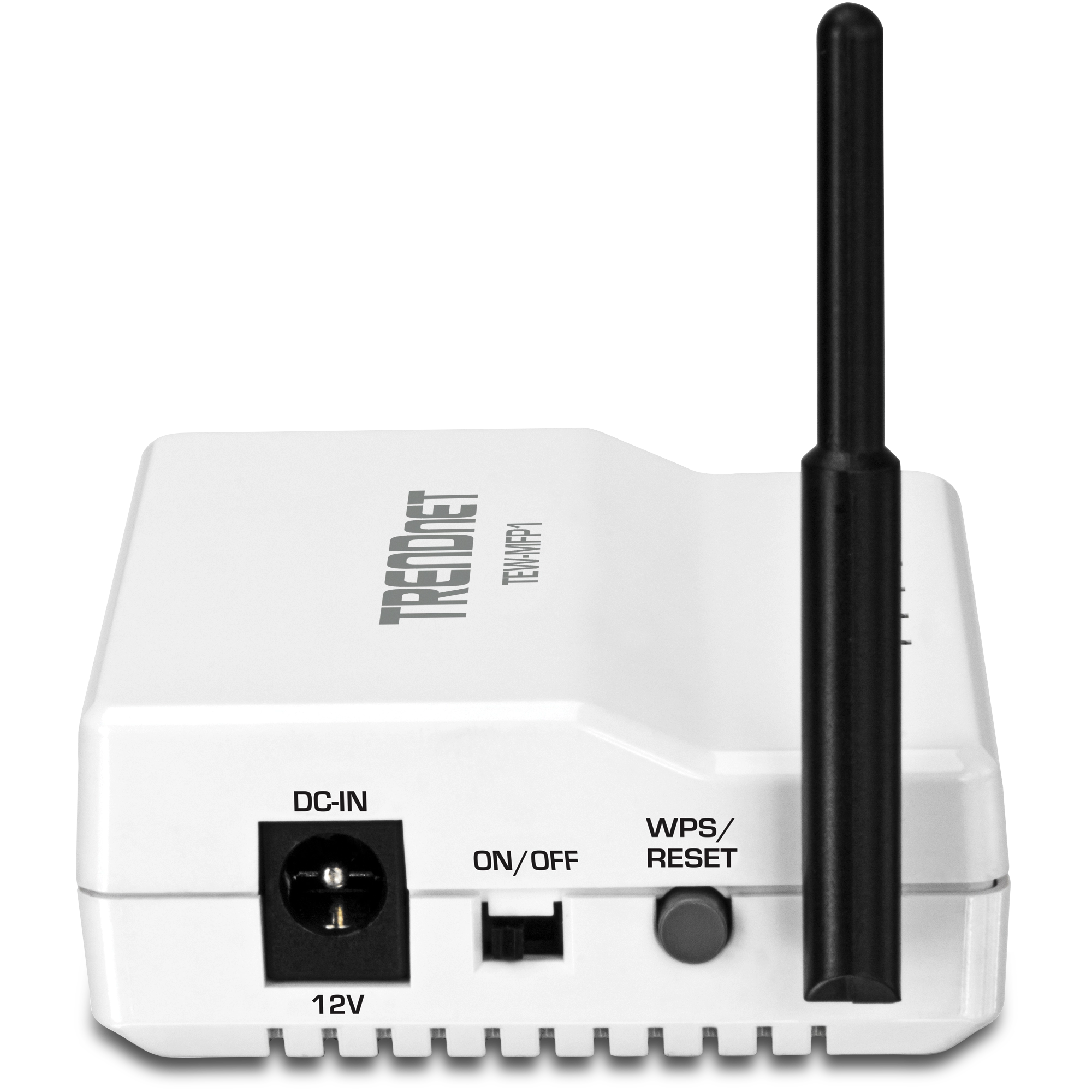

  • Init button: restores factory default settings (press over 10 seconds), Activates WPS Function (press for 2~9 seconds)
Power
  • Input: 120 ~ 240V AC, 50~60Hz
  • Output: 12V DC, 1A
Power Consumption
  • 2.04 Watts (max.)
Dimensions (LxWxH)
  • 75 x 58 x 24 mm (3 x 2.3 x 1 in.)
Weight
  • 62 g ( 2.2 oz.)
Temperature
  • Storage: -10 ~ 60°C (13.9~139 °F)
  • Operating: 5 ~ 40°C (41~104 °F)
Humidity
  • Max. 90% (non-condensing)
Wireless
Frequency
  • 2.412 ~ 2.462 GHz (FCC)
  • 2.412 ~ 2.472 GHz (ETSI)
Antenna
  • 2dBi external fixed dipole antenna
Media Access Protocol
  • CSMA/CA with ACK
Modulation
  • CCK, DQPSK, BDSPK, OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations
Data Rate
  • 802.11b:11Mbps
  • 802.11g: 54Mbps
  • 802.11n: 150Mbps
Security
  • 64/128-bit WEP, WPA/WP2-PSK
Output Power
  • 802.11b: 16dBm (typical)
  • 802.11g: 13dBm (typical)
  • 802.11n: 13dBm (typical)
Receiving Sensitivity
  • 802.11b: -85dBm (typical) @ 11Mpbs
  • 802.11g: -68dBm (typical) @ 54Mpbs
  • 802.11n: -68dBm (typical) @ 150Mpbs
Channels
  • 1~ 11 (FCC), 1~13 (ETSI)
Certifications
  • CE, FCC

PACKAGE CONTENTS
  • TEW-MFP1
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power adapter (12V DC, 1A)
  • Network cable (1.5 m / 5 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
