WiFi Baby Cam

TV-IP743SIC (Version v1.0R)

Easy guided setup
Live video to your mobile devices, tablets, and computers
Hear and comfort your baby with the built in microphone and speaker
See baby in complete darkness with night vision (5 meters, 16 ft.)
Receive motion and sound detection video clips via email
Free mobile app and cloud service
Play soothing songs
Requires a wireless network
Mobile App Compatibility List

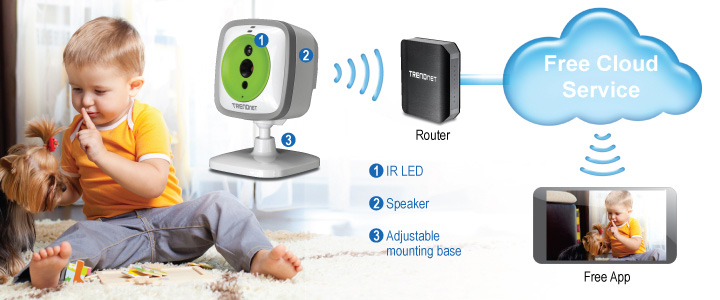

TRENDnet's WiFi Baby Cam, model TV-IP743SIC, allows you to monitor your baby from any internet connection. After a brief installation, simply open a web browser or app to view live video on your mobile devices, tablets, and computers. TRENDnet's free CloudView app brings live video to Apple® and Android™ mobile devices. Hear and comfort your baby with the built in microphone and speaker. See your baby in complete darkness with night vision (5 meters, 16 ft.). Setup motion and sound detection to receive video clips via email.

Features

Easy Setup

Quick intuitive guided installation

Remote Monitoring

Live video on your mobile devices, tablets, and computers from any internet connection

Two-Way Audio

Hear and comfort your baby with the built in microphone and speaker

Night Vision

See your baby in complete darkness with night vision (5 m, 16 ft.)

Free App

See live video on a mobile device with free Apple® and Android™ apps

Motion and Sound Detection Emails

Mounting Base

Adjustable mounting base for flat and vertical surfaces

Digital Zoom

Zoom in by a factor of four

Recording

Record video to a remote storage device

Wireless

Requires a home wireless network in order to function

Automatic Updates

Convenient automatic firmware updates

*This camera is designed for indoor use. For outdoor surveillance applications we recommend TRENDnet outdoor cameras

Lens	Focal length: 3.6 mm, F2.8 Focal depth: 20 cm - infinity Lens: fixed Sensor: 1/5” CMOS Zoom: 4x digital
Viewing Angle	Horizontal: 45 ° Vertical: 35 ° Diagonal: 55 °
Minimum Illumination	IR off : 1 lux IR on : 0 lux 5 m (16 ft.) IR illumination distance
Video Resolution	H.264: 640 x 480 up to 30 fps MPEG4: 640 x 480 up to 30 fps MJPEG: 640 x 480 up to 30 fps
Audio	Built-in microphone Built-in speaker
Hardware Standards	IEEE 802.11b IEEE 802.11g IEEE 802.11n
Device Interface	Reset button WPS button Microphone Speaker LED indicators Power jack (mini-USB) Flexible mounting base
Special Features	Hear and talk through the camera with built-in speaker and microphone Play five soothing songs Supports four video profiles simultaneously
Network Protocol	IPv4, UDP, TCP, ICMP DHCP, NTP, DNS, DDNS, SMTP, FTP SAMBA, 3GPP HTTP UPnP, Bonjour LLTD, RTSP, RTP, RTCP
Power	Input: 100 – 240 V AC, 50/60 Hz, 0.2 A Output: 5 V DC, 1 A Consumption: 5 Watts (Max.)
Dimensions	70 x 65 x 88 mm (2.8 x 2.6 x 3.5 in.)
Weight	102 g (3.6 oz.)
Operating Temperature	0 - 40 °C (32 - 104 °F)
Operating Humidity	Max. 85% non-condensing
Management Interface	Multi-language support: English, French, German, Russian, and Spanish Image settings: brightness, contrast, saturation, black/white mode, mirror, flip, light source, frequency, white balance, and slow shutter Recording: continuous, motion detection, and sound detection Motion detection fields: define custom motion detection areas and motion sensitivity Sound detection: define sound detection and sound sensitivity Snapshot: real time snapshot, motion detection, and sound detection Send alert to email and/or upload to FTP Supported dynamic DNS services: Dyn.com and NO-IP.com Management Setting: maximum 20 user accounts Supports remote management Compatibility: Internet Explorer® 9.0 or higher, Safari® 7.0.3 or higher on Microsoft® Windows and Apple® OS X
Cloud Service	Free Cloud service Automatically connect to TRENDnet Cloud camera over the Internet Password protected Cloud service Access to live video Cloud support with your mobile device
TRENDnet CloudView App	Free Apple®(iOS 10 and under) and Android™ apps View your camera on your mobile device Take snapshots Digital zoom 2- way audio support Music playback
Certifications	CE FCC
Warranty	3 year limited

PACKAGE CONTENTS

TV-IP743SIC
Multi-Language Quick Installation Guide
CD-ROM (User's Guide)
Power adapter (5 V DC, 1A) (1.5 m/5 ft.)
Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
