2-Port Gigabit Splitter with USB Type C Power

TEG-102S (Version v1.0R)

  • Splits one network connection into two
  • USB Type C power cable included
  • Compact design
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet's 2-Port Gigabit Splitter with USB Type C Power, model TEG-102S, provides a highly efficient network expansion solution. Quickly expand a single network connection into two, allowing two devices to transmit data simultaneously at up to 1,000Mbps. The gigabit Ethernet splitter includes a USB Type C power cable, simplifying installation and reducing connections for network setup. Easily power this gigabit Ethernet splitter with an available USB Type A port.

Three numbered circles (1, 2, and 3).

Easy Installation

No configuration needed; the gigabit Ethernet splitter simply splits one network connection into two.

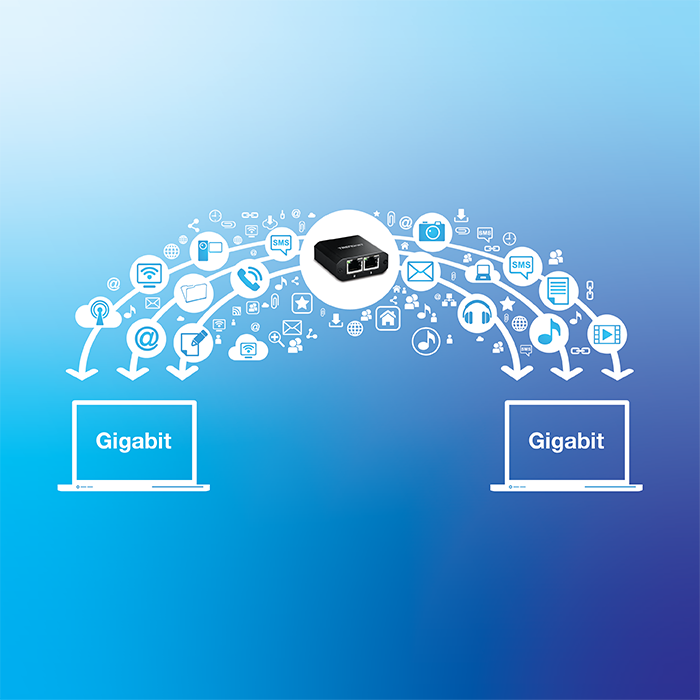

A Gigabit Splitter connected to a laptop and smartphone, with icons representing various digital services like email, cloud storage, and social media, all linked by lines.

Gigabit Speeds

Two gigabit ports provide high-speed network connections to devices, and a 4Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

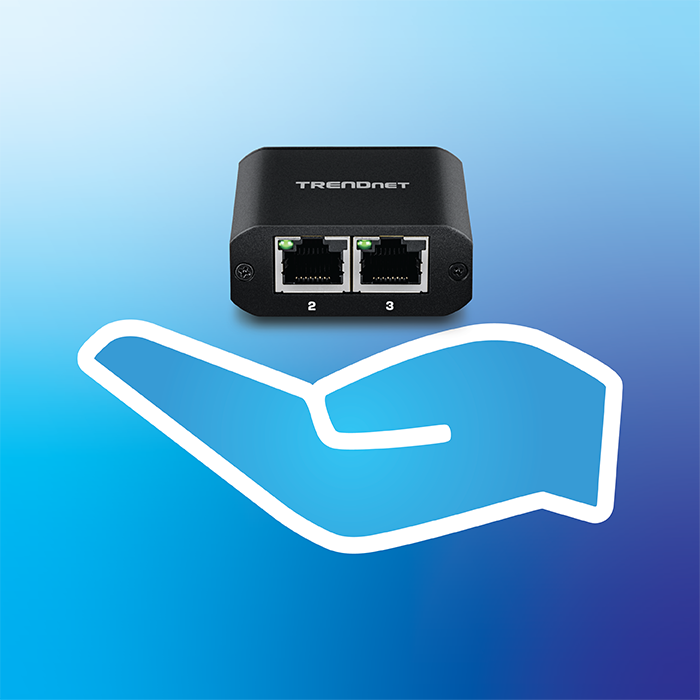

A hand emphasizing the small size of the Gigabit Splitter.

Compact Design

With a compact metal housing design, this RJ-45 splitter is well-suited for on-the-go applications. Its fanless design is perfect for quiet environments that require silent operation.

The TRENDnet TEG-102S is a 2-port Gigabit splitter with USB Type C power. The top part displays two views of the splitter: the left view shows the front with two Gigabit data-out ports labeled 2 and 3 and LED indicators, while the right view shows the back with a USB Type C power-in port labeled DC 5V and a Gigabit data-in port labeled 1. The bottom part illustrates the splitter in use, connected to two laptops via Ethernet cables, demonstrating how it splits the Ethernet connection between the devices.

Easy Installation

No configuration needed; the gigabit Ethernet splitter simply splits one network connection into two

Gigabit Ports

This Ethernet cable splitter is equipped with 2 gigabit Ethernet out ports

Switching Capacity

The Ethernet splitter has a 4Gbps switching capacity

Fanless

Fanless design on the Ethernet splitter lowers energy consumption and eliminates operating noise

Housing Design

Compact and sturdy metal housing

USB Type C Power

Includes one USB Type C power cable for easier installation flexibility

Jumbo Frame

Send larger packets, or Jumbo Frames (up to 9KB), for increased performance

LED Indicators

LED indicators on the gigabit Ethernet splitter convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
Device Interface
  • 1 x Gigabit data-in port
  • 2 x Gigabit data-out ports
  • 1 x USB Type C power-in port
  • LED indicator
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 4Gbps
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
  • Forwarding Rate: 2.97Mpps (64-byte packet size)
USB-C Power
  • DC Input: 5V 1A or 5V 2A
  • 80cm (31.5 in.)
MTBF
  • 2, 173, 812hours @ 40° C
Operating Temperature
  • 0° – 40° C (-32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 52 x 50 x 21mm (2 x 2 x 0.8 in.)
Weight
  • 52g (2 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2-year

PACKAGE CONTENTS
  • TEG-102S
  • Quick Installation Guide
  • USB Type C power cable (80cm / 31.5 in.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
