SFP Dual Wavelength Single Mode LC Module (20km)

TEG-MGBS20D3 (Version v2.0R)

  • Must pair with TEG-MGBS20D5 or other compatible module
  • Transmission distance of up to 20km (12.42 mi.)

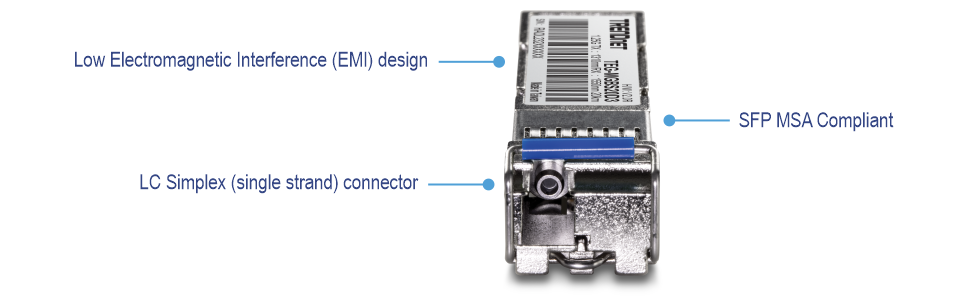

  • LC Simplex (single strand) connector type
  • Bi-Directional (WDM) SFP Module
  • Supports data rates of up to 1.25Gbps
  • Supports Transmit: 1310nm / Receive: 1550nm
  • Low Electromagnetic Interference (EMI) design
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • ANSI Fiber Channel compliant
  • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
  • Low power consumption
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s SFP Dual Wavelength Single Mode LC Modules are compatible with standard SFP slots found on network switches and fiber converters. Each single mode BiDi SFP transceiver is equipped with a simplex LC fiber connection interface, and supports high-speed data rates up to 1.25Gbps. All TRENDnet SFP fiber modules support connections for reliable, long-distance network applications.

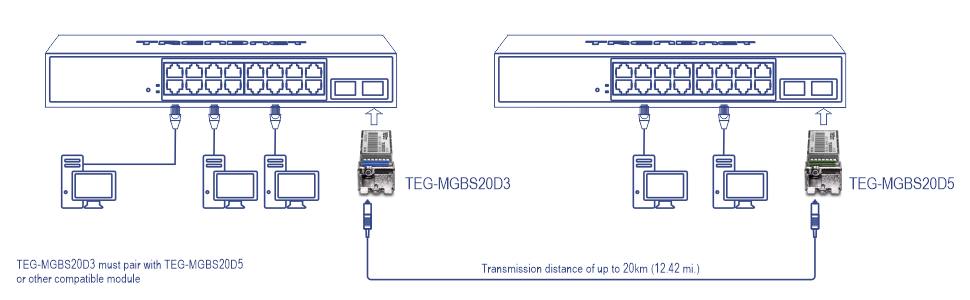

Diagram showing two network devices connected to each other, with three computers connected to one of the switches.

Fiber Applications

Long-distance fiber networking for manufacturing, business parks, and school campus applications.

Diagram of a single-strand fiber optic cable with bidirectional communication. Two wavelengths are indicated on the cable: 1310 nm for one direction labeled RX and TX, and 1550 nm for the opposite direction also labeled RX and TX. The labels suggest that this fiber optic cable can receive (RX) and transmit (TX) signals in both directions using different wavelengths.

Fiber Mode/Distance

Single mode SFP transceiver spans distances up to 20km (12.42 mi.) at gigabit speeds.

Three network switches, depicted in a simple line drawing, are stacked on top of each other. They represent various switch types.

Compatibility

Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type simplex connectors.

Fiber Distance

Ideal for long-range networking distances up to 20km (12.42 mi.)

Fiber Interface

This single mode fiber BiDi SFP transceiver supports LC-type simplex connector

Bi-Directional SFP

Transmit: 1310nm / Receive: 1550nm, pair with TEG-MGBS20D5 or compatible SFP module

Hot-Pluggable SFP

Hot-pluggable WDM SFP module compatible with an MSA compliant SFP slot

Operating Temperature

This BiDi SFP module is rated for an operating temperature range of 0° - 70° C (-32° - 158° F)

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
Device Interface
  • SFP MSA Compliant
  • LC Simplex connector
Data Transfer Rate
  • 1.25Gbps
Wavelength
  • TX: 1310nm
  • RX: 1550nm
Optical Output Power
  • -9 ~ -3 dBm
Distance
  • 20km (12.42 mi)
Special Features
  • Hot pluggable
  • Metal enclosure
Sensitivity
  • -25 dBm
Power
  • Max. Consumption: 0.8W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight
  • 18g (0.6 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year
PACKAGE CONTENTS
  • TEG-MGBS20D3
  • Quick Installation Guide
