10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch

TRENDnet's 10-Port Industrial Gigabit 400W PoE++ DIN-Rail Switch, model TI-BG108, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). This hardened industrial PoE++ switch features copper gigabit PoE++ ports for high-powered device connections, and SFP ports that support 1000Base-FX modules for long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. With PoE technology inside this industrial PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

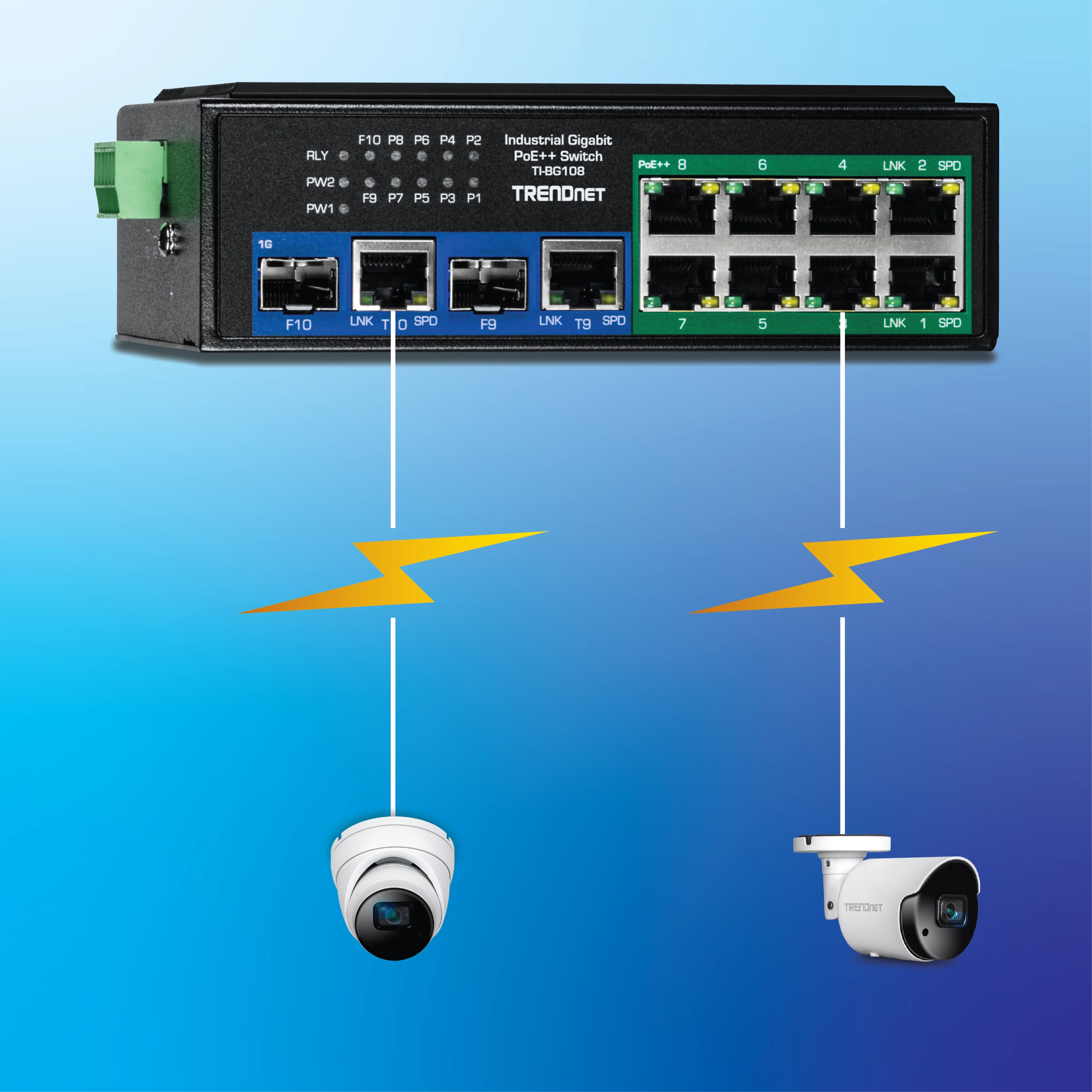

PoE++

A 400W PoE power budget supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power.

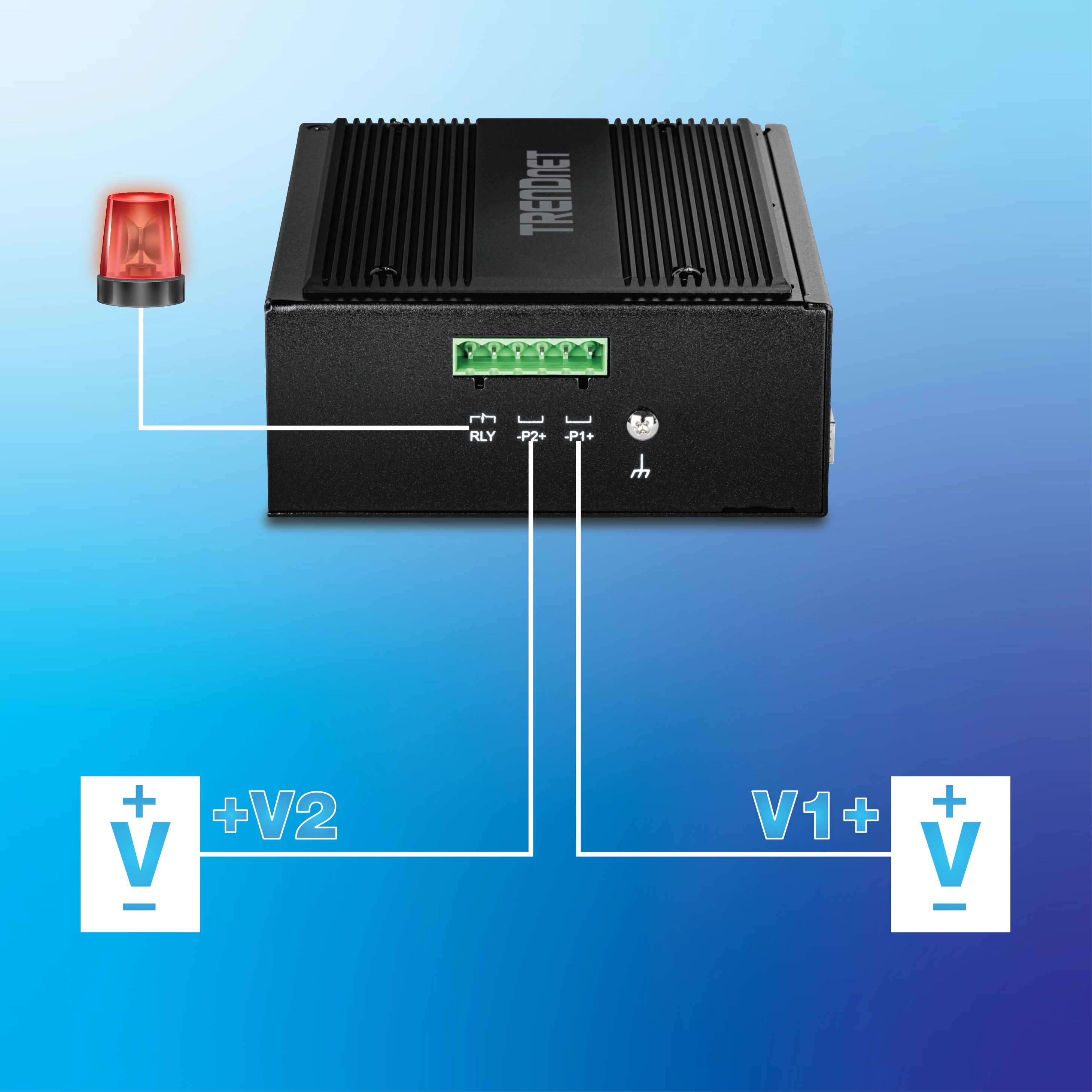

Redundant Power

Dual power inputs provide redundant power with overload current protection, minimizing network downtime (power supplies sold separately).

Industrial Hardened Design

Rugged IP50 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range -40° - 75° C (-40°- 167° F).

PoE Power Budget

A 400W PoE power budget on this industrial 802.3bt PoE++ switch supports up to eight Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power

Network Ports

8 x Gigabit PoE++ ports and 2 x Gigabit shared ports (RJ-45 / SFP)

DIN-Rail/Wall Mounts

IP50 rated metal enclosure with included DIN-Rail and wall mount hardware

Switching Capacity

20Gbps switching capacity

Redundant Power

Dual power inputs for redundancy with overload current protection (power supplies sold separately, model TI-S48048, TI-S24052)

Alarm Relay

Industrial PoE++ switch’s alarm relay is triggered by power failure of primary and/or redundant power

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB), for increased performance

Rated for Extreme Environments

Rugged IP50 rated enclosure designed to withstand a high degree of vibration and shock, and operate within a wide temperature range -40° - 75° C (-40° - 167° F) for harsh environments

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point on the industrial PoE++ switch protects equipment against external electrical surges
