10-Port Gigabit Web Smart PoE++ Switch

TRENDnet’s Gigabit Web Smart PoE++ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed PoE++ switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this managed PoE++ switch a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Gigabit Web Smart Managed PoE++ Switch by delivering up to 95W of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power. This PoE++ switch is ideal for networking PoE devices, such as high-power wireless access points, PoE lighting, digital signage, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

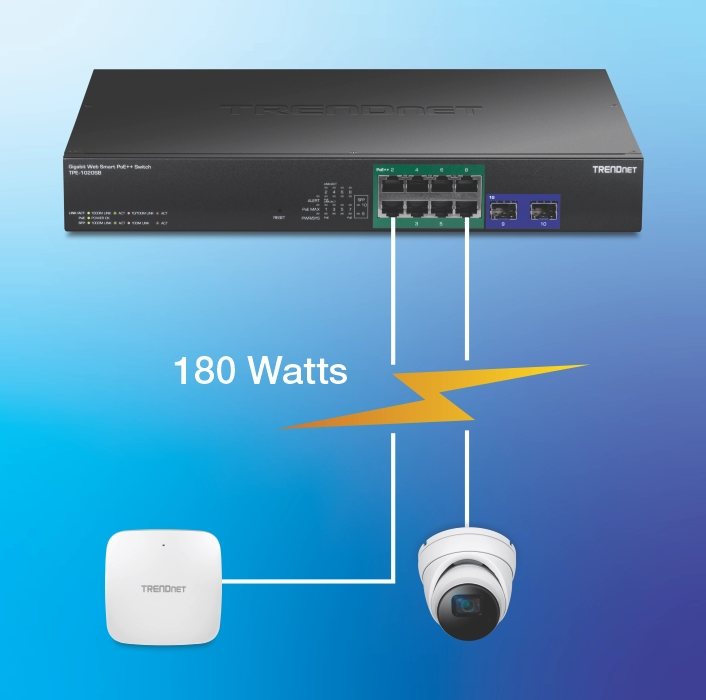

PoE Power

This managed PoE++ switch comes with eight PoE++ ports that can supply up to 180W of PoE power.

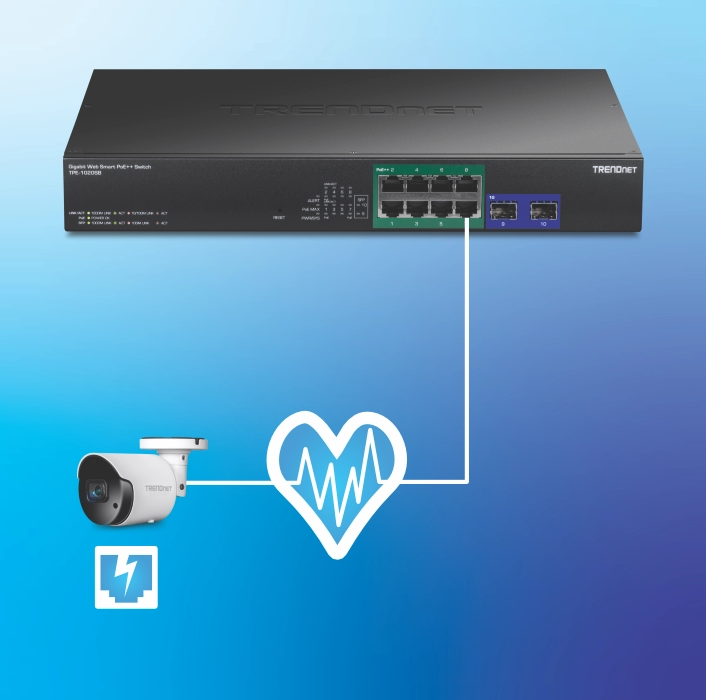

PoE Device Alive Check

PD alive check is an automated PoE self-healing switch feature. If a PoE device becomes unresponsive, the switch will auto-reboot the affected PoE port in an attempt to recover the device.

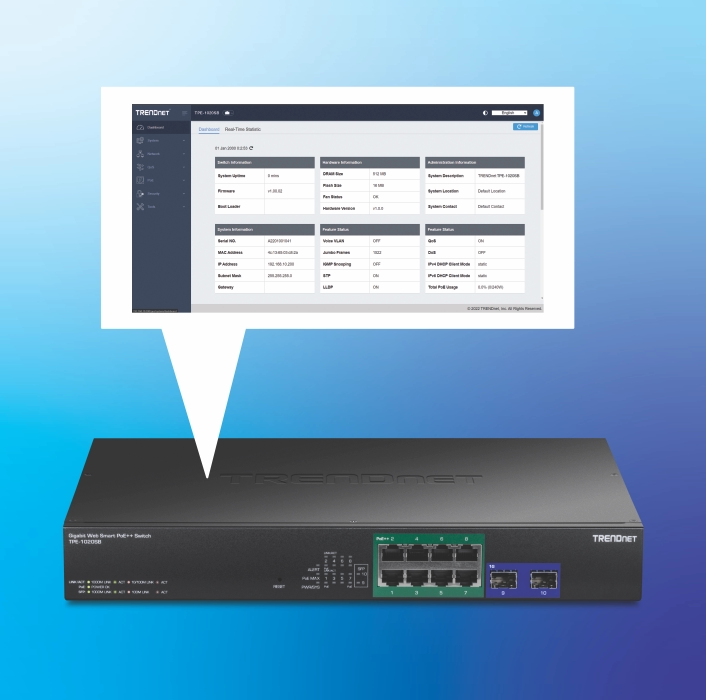

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment.

PoE++ Power

Supplies up to 95W of PoE+ power per port with a 180W power budget

Fiber SFP

The PoE++ switch with SFP ports supports up to two high-speed fiber connections for long-distance network applications

IPv6 Ready

This managed PoE++ switch supports IPv6 configuration and IPv6 neighbor discovery

Traffic Management

A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling

Troubleshooting

The managed PoE++ switch’s convenient cable diagnostic test and traffic statistics aid in network troubleshooting

Access Control

Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

Web Smart Management

Provides an easy-to-use web-based GUI management for reduced switch configuration complexity, and offers a combination of SMB management features for easy deployment

Housing Design

Sturdy metal housing

19” Rackmount Design

Rack mountable housing with mounting kit included

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

LED Indicators

LED indicators on this PoE++ switch convey port status

Network Monitoring

Managed features on the managed PoE++ switch include RMON, SNMP trap, and syslog for monitoring and flexible network integration
