1000BASE-T RJ-45 Copper SFP Module

TEG-MGBRJ (Version v2.0R)

  • Compliant with IEEE 802.3ab and IEEE 802.3z Gigabit Ethernet
  • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
  • Supports data rates of up to 1.25Gbps
  • Transmission distance of up to 100m (328 ft.)
  • Hot-Pluggable
  • RJ-45 connector
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet's 1000BASE-T RJ-45 Copper SFP Module, model TEG-MGBRJ, converts a standard SFP slot into a RJ-45 gigabit port for additional copper connectivity. This SFP module works with standard SFP slots commonly found in network switches and fiber media converters. Save on equipment costs by repurposing a switch's unused SFP slots for copper connectivity.

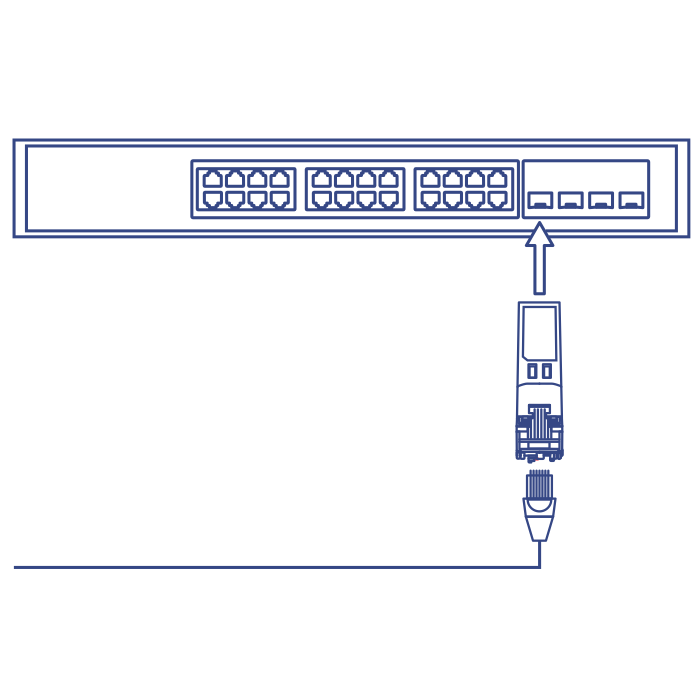

Network diagram showing a 1000BASE-T RJ-45 Copper SFP Module inserted into an SFP port, with an RJ-45 connector connected to it.

RJ-45 Copper SFP

Take advantage of unused SFP slots and repurpose them with RJ-45 copper Ethernet connectivity.

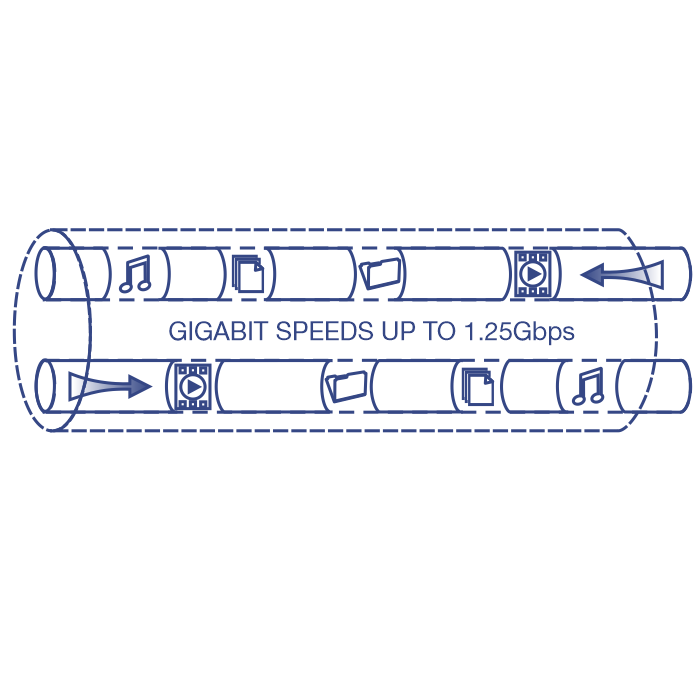

Illustration of a network cable labeled Gigabit Speeds up to 1.2Gbps with icons representing music, video, data transfer moving through the network.

Gigabit Speeds

1000BASE-T RJ-45 copper SFP spans distances up to 100m (328 ft.) and supports up to 1.25Gbps.

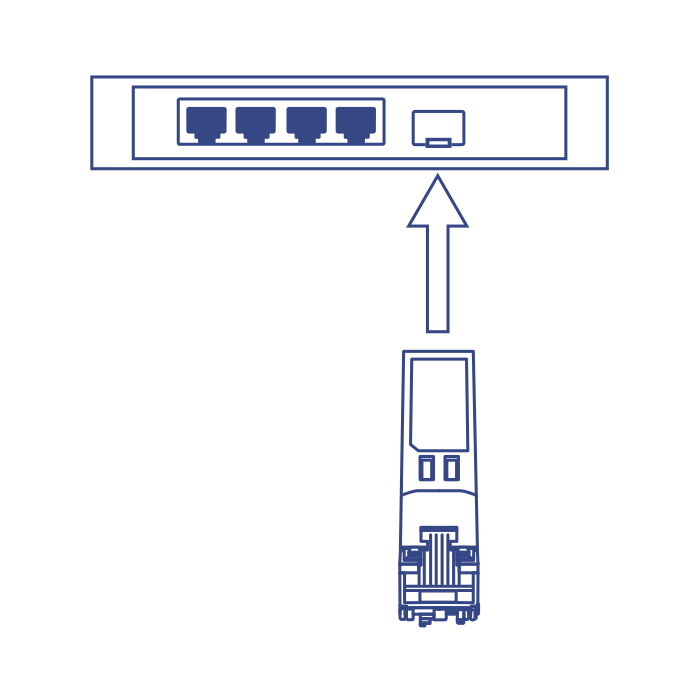

Illustration of a fiber module with an arrow pointing towards it, indicating placement.

Compatibility

Compatible with a MSA compliant SFP slot and 1000BASE-T RJ-45 connections.

Two views of a TRENDnet TEC-MGBRJ SFP (Small Form-factor Pluggable) transceiver module. The front view highlights the SFP MSA Compliant label and a 1000BASE-T RJ-45 gigabit port. The rear view shows the back end of the module, including the connector interface for plugging into a network device. This transceiver module is designed to comply with SFP Multi-Source Agreement (MSA) standards and is used for gigabit Ethernet connections via an RJ-45 port.

Ethernet Distance

Supports networking distances up to 100m (328 ft.)

Connection Interface

1000BASE-T RJ-45 gigabit port

Hot-Pluggable SFP

Hot-pluggable SFP compatible with a MSA compliant SFP slot

Operating Temperature

Operating temperature range of 0°– 70 °C (32° – 158 °F)

Standards
  • IEEE 802.3
  • IEEE 802.3z
  • IEEE 802.3ab
Device Interface
  • SFP MSA Compliant
  • RJ-45
Data Transfer Rate
  • 1.25 Gbps
Distance
  • 100m (328 ft.)
Special Features
  • Hot pluggable
  • Metal enclosure
Power
  • Max. Consumption: 0.9W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 68 x 13 x 13 mm (2.67 x 0.5 x 0.5 in.)
Weight
  • 22g (0.8 oz.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TEG-MGBRJ
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
