5 dBi Wireless AC1300 Outdoor PoE+ Omni-Directional Access Point

TEW-841APBO (Version v1.0R)

  • Dual band Wireless AC1300 point-to-point and point-to-multi-point bridge
  • 4 x 5 dBi omni-directional antennas
  • Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes
  • Supports IEEE 802.3at PoE+
  • IP67 outdoor weather rated housing
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet's 5 dBi Wireless AC1300 Outdoor PoE+ Omni-Directional Access Point, model TEW-841APBO, is designed for point-to-point and point-to-multi-point WiFi bridging applications. The wireless multi-point bridge can be powered with a PoE+ switch or PoE+ injector of your choosing. A variety of installation scenarios are facilitated with Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes. The IP67 rated housing on the wireless multi-point bridge is designed for outdoor environments, and includes wall and pole mounting hardware.

Illustration of a Wireless Multi-Point Bridge setup. Three devices with antennas emit signal waves towards a central building with a bridge and multiple windows. Another building is in the background. This setup highlights the devices’ function in providing wireless connectivity between locations with AC1300 speeds.

Wireless Multi-Point Bridge

Use this dual band wireless AC1300 point-to-multi-point bridge to conveniently link two or more locations together with wireless AC speeds and performance.

Diagram showing wireless modes. Top icon: Access Point with waves labeled AP Mode, with a laptop on the left side and a desktop on the right side. Below left: Access Point with waves to another Access Point labeled WDS Mode. Right: One Access Point emitting waves to another labeled WDS.

Wireless Modes

Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes for a variety of wireless applications.

Image showing IP67 rating for outdoor readiness. Two sections: Solids with a dust cloud icon indicating dust protection, and Liquids with water droplet icons indicating water immersion protection. Label IP67 at the bottom center confirms the rating.

Outdoor Ready

Built for outdoor installations with an IP67 outdoor protection rating and an operating temperature range of -20° – 60° C (-4° – 140° F).

The illustration depicts a courtyard between two buildings, each with multiple windows. Mounted on the exterior walls of both buildings are devices labeled TEW-841APBO, emitting signal waves. The courtyard features several round tables with chairs, and a few groups of people are standing or sitting around. The scene suggests the setup of wireless access points to provide network coverage in an outdoor area.

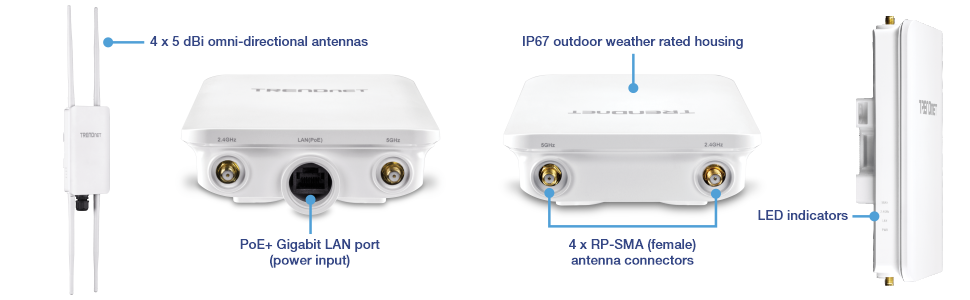

The visual shows a TRENDnet device with multiple views and labeled components. The device features four 5 dBi omni-directional antennas, an IP67 outdoor weather-rated housing, a PoE+ Gigabit LAN port for power input, four RP-SMA female antenna connectors, and LED indicators. The device is designed for outdoor use, providing robust connectivity and durability in various weather conditions.

Concurrent Dual Band

AC1300: concurrent 867Mbps WiFi AC + 400Mbps WiFi N bands

Wireless Modes

Supports Access Point, WDS Bridge, WDS Access Point, WDS Station, and Client Bridge modes

Outdoor Rated

Durable enclosure with an IP67 outdoor weather rating

Omni-Directional Antenna

4 x 5 dBi omni-directional antennas

PoE Powered

Supports 802.3at PoE+ power input

Logs

Real time logs and statistics help troubleshooting

Encrypted Wireless

Support for wireless encryption of up to WPA2

Multiple SSID

Create up to eight dual band SSIDs with band steering capabilities

Mounting Hardware

Pole and wall mount hardware included

Compatibility

Compatible with legacy wireless devices

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3at
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
IEEE 802.11g
  • IEEE 802.11n (up to 400Mbps @ 256QAM)
  • IEEE 802.11ac Wave 2 (5GHz: up to 867Mbps @ 256QAM)
Hardware Interface
  • 1 x PoE+ Gigabit LAN port (power input)
  • 4 x RP-SMA (female) antenna connectors
  • LED indicators
Features
  • 802.11ac MU-MIMO Wave 2 support
  • IP67 rated housing
  • Concurrent dual band
  • Band steering
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6)
  • LEDs on/off
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
Operation Modes
  • Access Point
  • Client Bridge
  • WDS Access Point
  • WDS Bridge
  • WDS Station
Management/Monitoring
  • Web based management
  • SNMP v1/v2c/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • Nslookup
  • Telnet
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
  • MAC filter
  • Maximum client limit
QoS
  • WMM
  • Bandwidth control per SSID or client
SSID
  • Up to 8 SSIDs
Frequency
  • 2.4GHz: 2.412 – 2.462GHz
  • 5GHz: 5.180 – 5.240GHz, 5.745 – 5.825GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique
MIMO Configuration
  • 5GHz: 2x2:2
  • 2.4GHz: 2x2:2
Antenna Gain
  • 2.4GHz: 2 x 5 dBi external
  • 5GHz: 2 x 5 dBi external
Wireless Output Power
  • 802.11a: FCC/IC: 19 dBm (max.)
  • 802.11b: FCC/IC: 19 dBm (max.)
  • 802.11g: FCC/IC: 19 dBm (max.)
  • 802.11n (2.4GHz): FCC/IC: 19 dBm (max.)
  • 802.11n (5GHz): FCC/IC: 19 dBm (max.)
  • 802.11ac: FCC: FCC/IC: 19 dBm (max.)
Receiving Sensitivity
  • 802.11a: -72 dBm (typical) @ 54 Mbps
  • 802.11b: -87 dBm (typical) @ 11 Mbps
  • 802.11g: -72 dBm (typical) @ 54 Mbps
  • 802.11n (2.4 GHz): -67 dBm (typical) @ 400 Mbps
  • 802.11n (5 GHz): -61 dBm (typical) @ 400 Mbps
  • 802.11ac: -58 dBm (typical) @ 867 Mbps
Power
  • IEEE 802.3at Type 2 PoE PD Class 4
  • Max. consumption: 12.6W
Operating Temperature
  • -22° – 60° C (-7.6° – 140° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
  • IC
Dimensions
  • 111 x 174 x 38mm (4.4 x 6.9 x 1.5 in.)
Weight
  • 302g (10.7 oz.)
Warranty:
  • 3 year

PACKAGE CONTENTS
  • TEW-841APBO
  • 2 x Detachable 2.4GHz 5 dBi antennas
  • 2 x Detachable 5GHz 5 dBi antennas
  • IP67 weather rated cable gland
  • Mounting hardware
  • Quick Installation Guide

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 400Mbps, use with a 400Mbps 802.11n wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
