Night Vision HD Surveillance
Night-time viewing up to 30 meters (98 ft.) away, with night vision infrared (IR) LEDs that dynamically adjusts as needed.
Indoor/Outdoor 5MP H.265 WDR PoE IR Bullet Network Camera
TV-IP1514PI (Version v1.0R)
- Easy Cloud P2P QR code installation
- 5MP HD video (2592 x 1920) at 20 fps
- Night vision IR LEDs for night vision up to 30m (98 ft.)
- Built-in microphone for one-way audio
- Outdoor IP66 weather rating
- Wide Dynamic Range image balancing
- Save installation costs with Power over Ethernet (PoE)
- Programmable motion detection recording and email alerts
- Micro SD card slot (up to 256GB)
- Free Sentinel iOS® and Android™ mobile apps
- Complimentary View Manager PC software
- Made in Taiwan
- NDAA / TAA compliant
TRENDnet’s Indoor/Outdoor 5MP H.265 PoE IR Bullet Network Camera, model TV-IP1514PI, provides day and night surveillance with a night vision range of up to 30 meters (98 ft.). This bullet network camera delivers year-round surveillance with an IP66 weather rated housing to withstand outdoor environments. Record up to 5MP HD video at 20fps in a space saving H.265 compression format. Easily view live video from the 5MP PoE camera on your mobile device using our free Sentinel mobile app, or on your PC with our free View Manager desktop camera video management software.

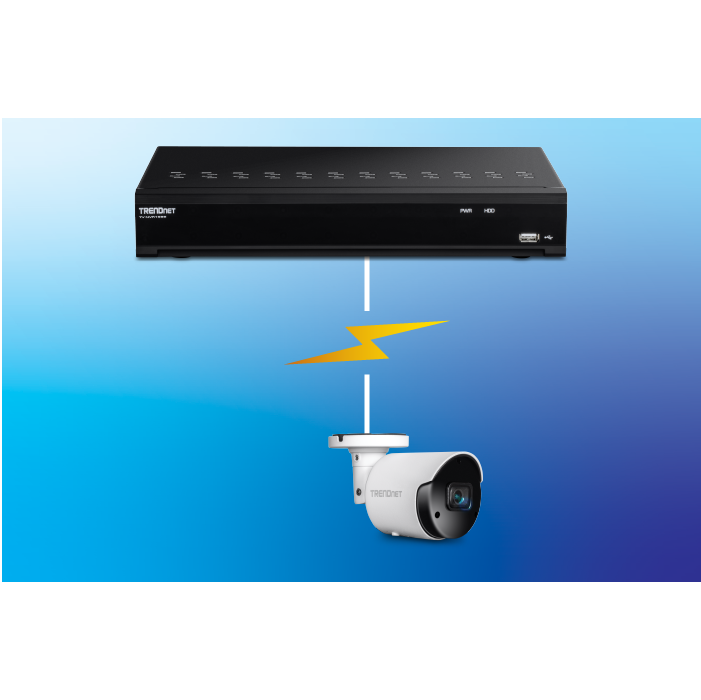

Power over Ethernet (PoE)
PoE offers cost savings and the flexibility to install this night vision 5MP PoE camera up to 100m (328 ft.) from the PoE source equipment.
Outdoor Ready
Built for outdoor environments with an IP66 weather rating and an operating temperature range of -30° – 50°C (-22° – 122°F).
_1.png)
_1.png)
5 Megapixel
Record up to 5MP HD video at 20fps in the space saving H.265 compression format

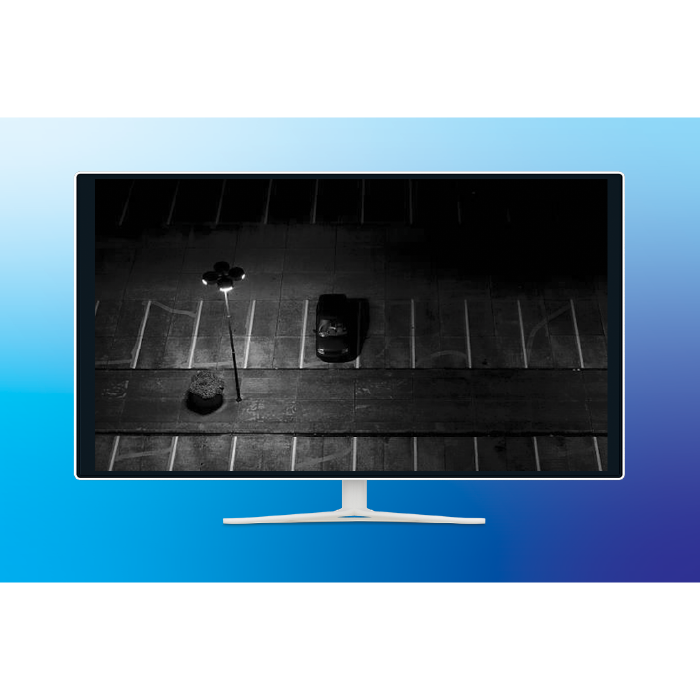

Night Vision HD Surveillance
Night vision infrared LEDs on the 5MP PoE camera dynamically adjusts the infrared (IR) LEDs by lowering the IR intensity when objects are near, and increasing IR intensity when objects are farther away. Night-time viewing up to 30 meters (98 ft.) away
PoE
Save installation costs with Power over Ethernet (PoE)

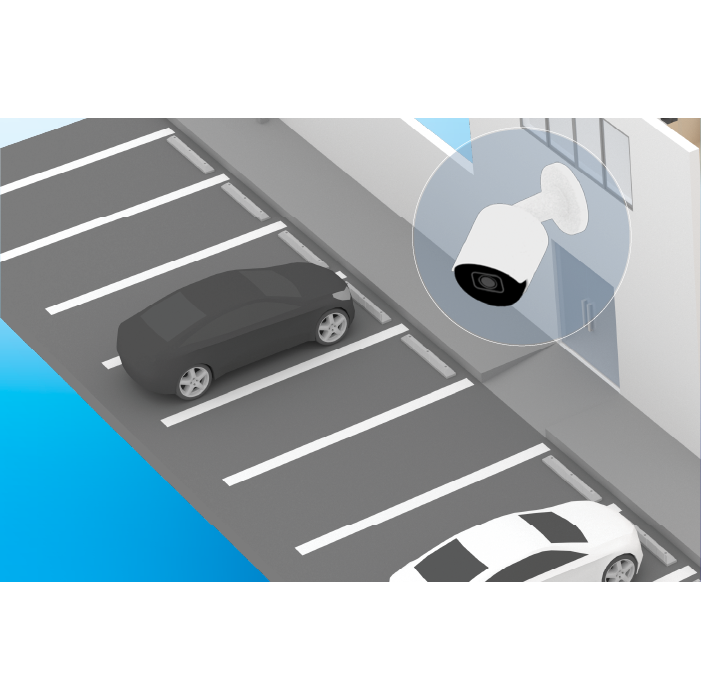

Outdoor Ready
This 5MP surveillance camera features an outdoor IP66 weather rated housing
Adjustable Mounting Base
Fully adjustable integrated mounting base on the 5MP PoE camera provides installation flexibility
Storage
Record video from the 5-megapixel network camera to a network storage device or to a Micro SD card (up to 256GB, not included)
Advanced Playback
Advanced in-camera archived video playback functionality
Motion Detection
Create custom motion detection zones to record video and send email notifications when a zone is triggered
Wide Dynamic Range (WDR)
WDR setting improves image quality and focus when the camera is exposed to high contrast lighting environments by enhancing the dark areas of the image to make them more visible
Recording Flexibility
Define custom schedules using continuous (24/7) and event-based recording modes
ONVIF
ONVIF Profile S
Complimentary Software
Complimentary View Manager software to manage TRENDnet cameras
Complimentary Apps
View live video from the 5MP PoE camera to a mobile device with free Sentinel iOS® and Android™ apps
| Lens |
|
|---|---|
| Viewing |
|
| Minimum Illumination |
|
| Compression |
|
| Resolution |
|
| Hardware Standards |
|
| Device Interface |
|
| Micro SD slot |
|
| Housing |
|
| Network Protocol |
|
| Compliant Standard |
|
| Dimension |
|
| Weight |
|
| Operating Temperature |
|
| Humidity |
|
| Power |
|
| Power Adapter (optional model: 12VDC1A) |
|
| Management Interface |
|
| View Manager |
|
| Sentinel App |
|
| Certifications |
|
| Warranty |
|
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
