2-Port Gigabit PoE++ Extender

TPE-BE200 (Version v1.0R)

  • Easy installation
  • Extends 100m (328 ft.) for a total distance of up to 200m (656 ft.)
  • Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)
  • Use a single PoE++ (60W) connection to extend PoE+ (30W) for up to two devices
  • Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices
  • Convenient wall mountable design
  • No external power adapter required
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s 2-Port Gigabit PoE++ Extender, model TPE-BE200, takes a single PoE++ (60W) connection and extends it an additional 100m (328 ft.) for up to two PoE+ (30W) devices. This dual/multi-port extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) input, and extends it for a total distance of up to 200m (656 ft.) from the PoE source. Daisy chain up to four extenders for a total PoE network extension of up to 500m (1,640 ft.). This gigabit PoE++ range extender features a single PoE++ (60W) input port and two PoE+ (30W) output ports.

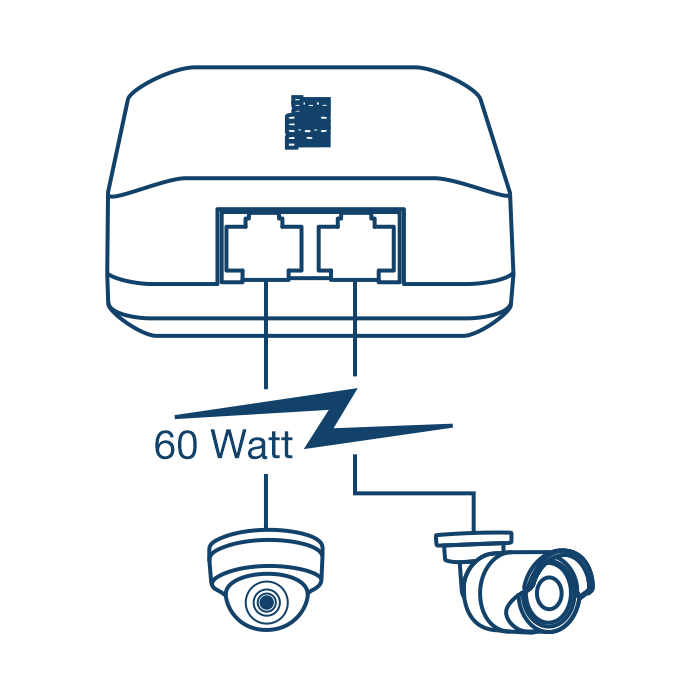

2-Port Gigabit PoE++ Extender connecting a dome camera and a bullet camera with up to 60 watts of power.

PoE++ Power

Extends a PoE++ connection up to 100m (328 ft.) to PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices.

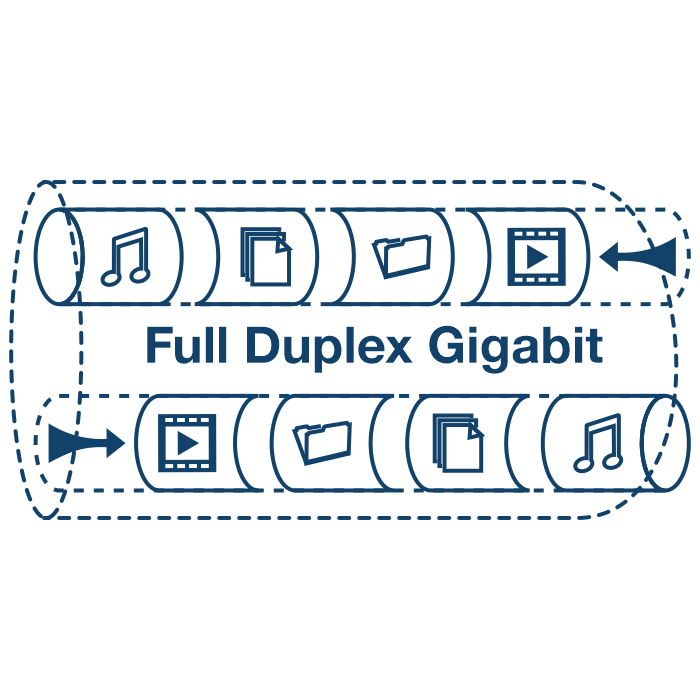

Illustration of a network cable labeled Full Duplex Gigabit with icons representing music, video, gaming, data transfer moving through the network.

Gigabit Ports

One gigabit PoE++ input port and two gigabit PoE+ output ports extend a single PoE++ connection an additional 100m (328 ft.) to two PoE+ devices.

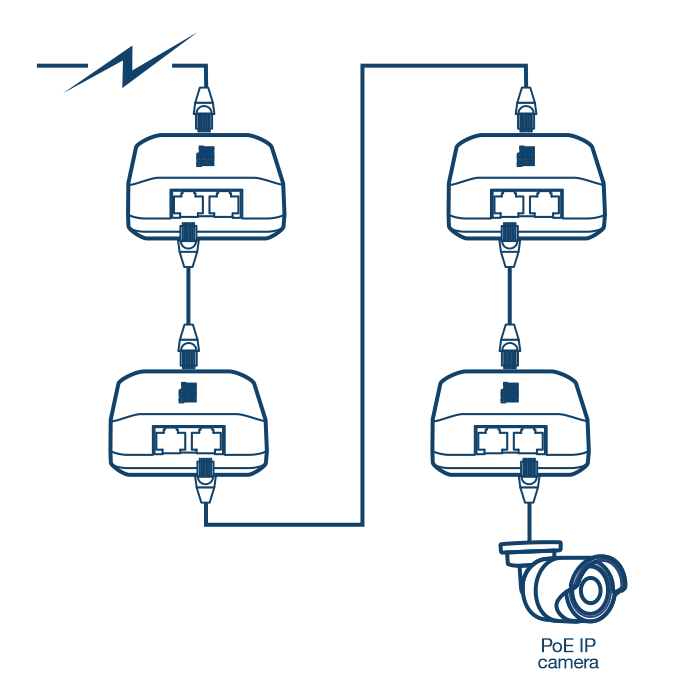

Line art depicting four 2-Port Gigabit PoE++ Extenders connected via Power over Ethernet (PoE), with a bullet camera attached to the last device.

Daisy Chain

Connect up to four PoE++ extenders for a total PoE network extension of up to 500m (1,640 ft.).

The diagram illustrates a PoE++ Network Application, detailing the setup and power distribution across various network devices. Starting from the left, a TPE-BG102g switch outputs PoE with a power range of 60W to 95W over a distance of 100 meters or 328 feet, compliant with the 802.3 bt standard. This connects to a TPE-BE200 device, which further distributes power and data. Multiple devices are connected in sequence, each labeled with their power output and distance capabilities. The first device outputs 24W over 100 meters, the second outputs 18W over 200 meters, and so on, decreasing in power output as the distance increases. The final device in the sequence is a PoE Access Point. Additionally, a branch from the TPE-BE200 connects to a PoE IP Camera and another PoE Access Point, each with specific power outputs and distances. The diagram provides a clear visual representation of how power and data are distributed in a PoE++ network, making it relevant for understanding network infrastructure and planning.
The visual shows a device with three different views and labeled components. The first view highlights the left side of the device, showing two Gigabit PoE out ports and LED indicators labeled PoE 1, LINK, PoE 2, and LINK. The second view displays the right side of the device focusing on a single Gigabit PoE++ in port and LED indicators labeled PoE and LINK. The third view presents the back of the device, illustrating the wall mount and magnet mount features. The device is white and rectangular, with the brand name TRENDnet visible on the top.

Extension Distance

Extends a PoE/PoE+/PoE++ network connection an additional 100m (328 ft.) for a total distance of up to 200m (656 ft.) from the PoE source

PoE/PoE+/PoE++

Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) network connections

Daisy Chain

Connect up to 4 PoE++ extenders for a PoE network extension of up to 500m (1,640 ft.)

Installation Flexibility

Wall mountable design accommodates most installations scenarios

PoE Powered

No external power required—the PoE++ extender (sometimes referred to as a PoE++ repeater) is conveniently powered via Power over Ethernet

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Device Interface
  • 1 x Gigabit PoE++ in port
  • 2 x Gigabit PoE out port
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • RAM buffer: 1Mb
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
Special Features
  • Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1640 ft.)
  • Cascade up to 4 repeaters
Power
  • Powered by PoE++ Device
  • Max. consumption: 3.3W
PoE
  • PoE budget: 60W
  • PD Pin: 1,2,4,5 (+) and 3,6,7,8 (-)
  • PSE Pin: 1,2 (+) and 3,6 (-)
Operating Temperature
  • 0° – 45° C (32° - 113° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 110 x 70 x 29mm (4.3 x 2.8 x 1.1 in.)
Weight
  • 125g (4 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS
  • TPE-BE200
  • Quick Installation Guide

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
