2-Port USB KVM Switch Kit with Audio

TK-209K (Version v2.0R)

  • 2-Port KVM switch with VGA, USB mouse and keyboard connections
  • Device monitoring with Auto-Scan and audible feedback
  • High quality 2048 x 1536 resolution for a crisp display
  • Supports most operating systems and advanced mouse designs
  • Control two computers with one set of console controls
  • Listen to music from one computer while working on another
  • Bus powered – No external power adapter required
  • All required cabling included
  • No CD installation required
  • NDAA compliant
NDAA Compliant

TRENDnet's 2-Port USB KVM Switch Kit with Audio, model TK-209K, allows you to control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard and mouse, but you can also share microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between 2 PCs. With its Hot-Plug, Auto-Scan, and Hot-Key operating features, the TK-209K KVM Switch is an ideal choice for managing 2 PCs.

VGA logo on a screen diagram

VGA

Designed for VGA systems with resolutions up to 2048 x 1536 with a 60Hz refresh rate.

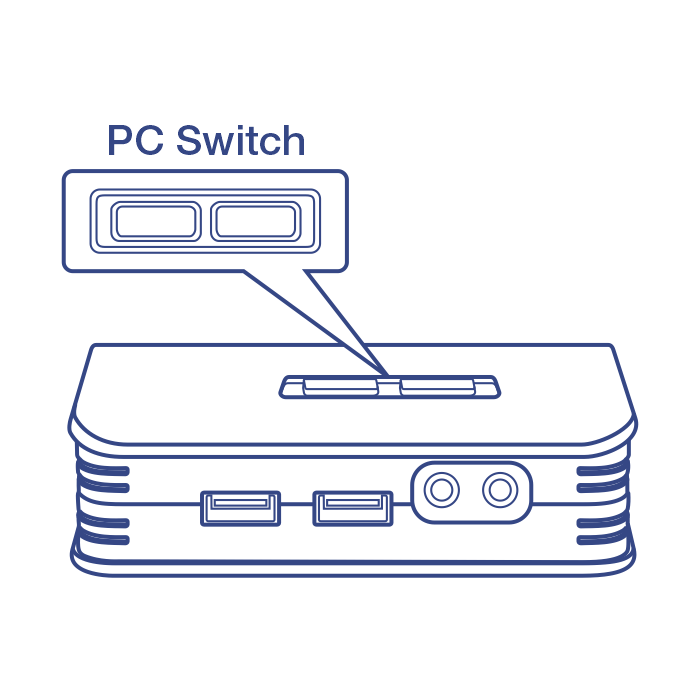

Illustration of KVM switch showing button to switch between computers.

Push Button Controls

Use the front panel push buttons to switch between computers.

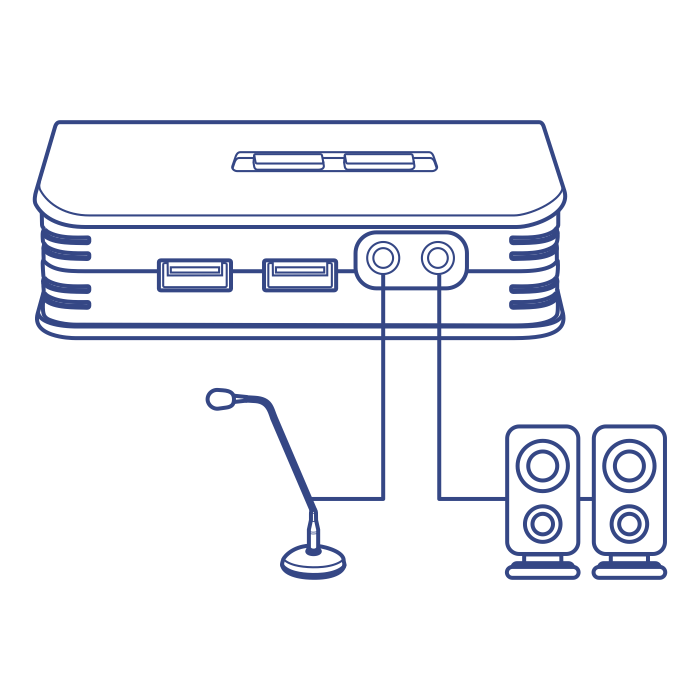

Diagram of a connection with two speakers and a microphone, detailing their configuration with the KVM switch.

Audio Support

Features 3.5mm speaker and microphone connections to switch between computers.

The diagram illustrates a computer setup connected to a 2-Port USB KVM Switch Kit with Audio. The switch connects two computers, labeled Computer 1 and Computer 2, to a single monitor, keyboard, mouse, microphone, and speakers. The central switch enables the user to manage and use both computers with one set of peripherals, streamlining control and access in an efficient setup, ideal for professional or technical environments.

Computers

Control up to 2 computers with one set of console devices

VGA

This VGA KVM switch supports resolutions up to 2048 x 1536 with a 60Hz refresh rate

Push Button Controls

Use the front panel push buttons to switch between computers on the KVM switch

Hot Keys

This VGA KVM switch features keyboard hot key commands for switching between computers

USB Mouse & Keyboard

Supports traditional USB mouse and keyboard devices

Audio Support

This VGA KVM switch features 3.5mm speaker and microphone connections to switch between computers

Included Cables

This KVM kit includes two sets of KVM cables

Computer Ports

Requires free USB and VGA ports from connected computers

Console Port Connectors
  • 1 x VGA /SVGA HDB 15-pin (Female)
  • 2 x USB ports (Keyboard / Mouse)
  • 2 x 3.5mm microphone/speaker jacks
Computer Interface (up to 2)
  • 1 x USB Type A
  • 1 x VGA /SVGA HDB 15-pin (Female)
  • 2 x 3.5mm audio jacks
Cables (2 sets)
  • Length: 1.2m (4 ft.)
  • VGA /SVGA (Male) to VGA /SVGA (Male) / USB Type A
  • 3.5mm Audio cables
Monitor Resolution
  • 2048 x 1536 @ 60Hz
Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
  • Max. consumption: 0.7W
Dimensions
  • 95 x 63 x 24mm (3.74 x 2.48 x 0.95 in.)
Weight
  • 104g (3.6 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS
  • TK-209K
  • Quick Installation Guide
  • 2 x KVM Cables (1.2m/4 ft.)
  • 2 x Audio Cables (1.2m/4 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
