16-Port Gigabit PoE+ Switch

TPE-TG160g (Version v3.0R)

  • 16 x Gigabit PoE+ ports
  • 32Gbps switching capacity
  • 246W PoE power budget
  • IEEE 802.3af/at compliant
  • Smart Fans
  • Reduces equipment cost by delivering data and power over existing network cables
  • 1U 19” rack mountable metal housing with brackets included
  • Internal power supply
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. These unmanaged PoE+ switches deliver up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this unmanaged PoE+ switch, network PoE and PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

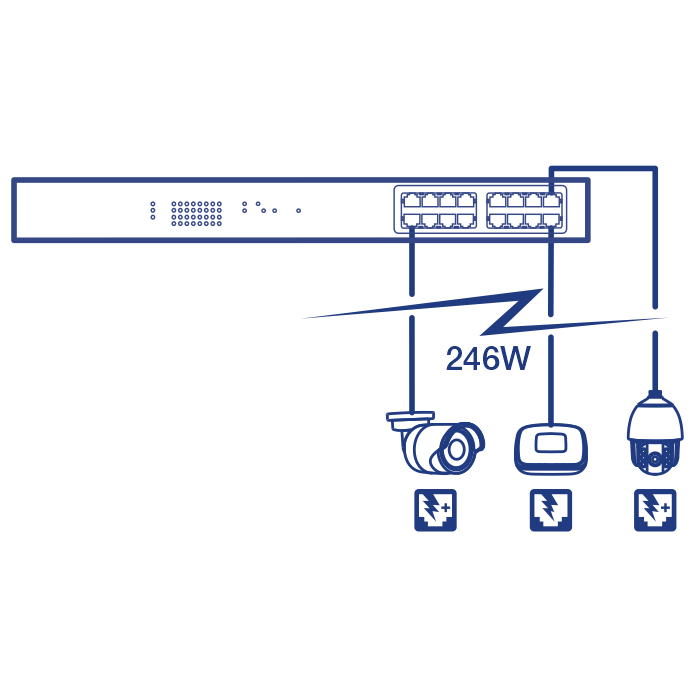

A network diagram of 16-Port Network Switch, connected to PoE Camera and wireless access point device up to 246 Watt.

PoE+

The unmanaged PoE+ switch features a 246W total PoE power budget, and supplies 16 Power over Ethernet devices with up to 30W per port.

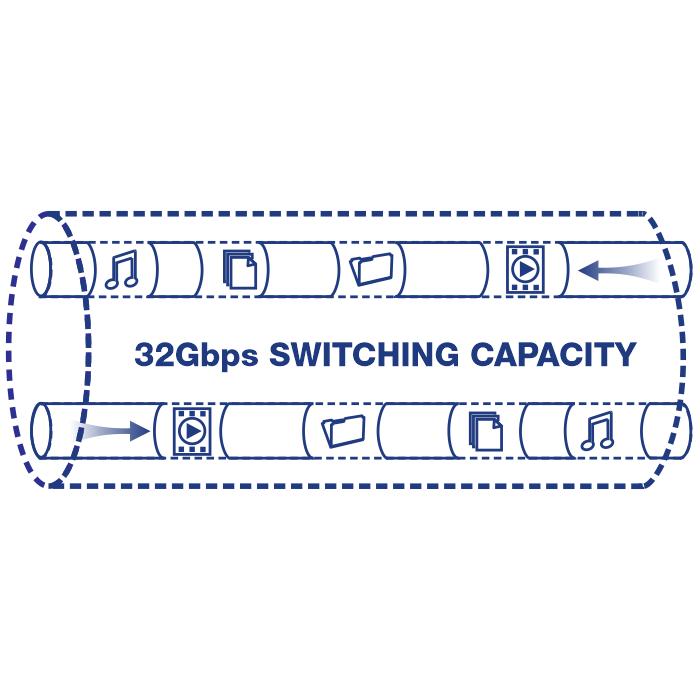

Illustration of a network cable labeled 32Gbps SWITCHING CAPACITY with icons representing music, video, data transfer moving through the network.

Gigabit Ports

Equipped with high-speed gigabit ports and a full switching capacity, these unmanaged PoE+ switches are ready to take on the most demanding network applications.

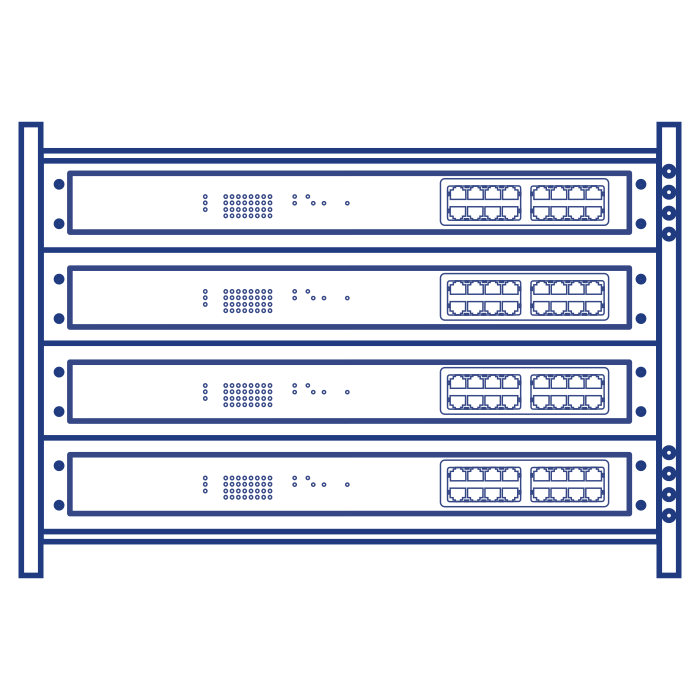

An illustration of a rackmount with four switches installed.

Rackmount Design

With a sturdy metal housing and included rackmount brackets, this unmanaged PoE+ switch is well-suited for 19” 1U rack installations.

The illustration depicts a surveillance system setup in a building, showing the connection of multiple security cameras to a network switch labeled TPE-TG160g. The building is a two-story structure with various rooms, including office spaces, a server room, and storage areas. The diagram highlights the path of the cables connecting the cameras to the network switch, which is located in the server room.
The picture shows a TRENDnet Gigabit PoE+ Switch model TPE-TG160g. The device features 16 Gigabit PoE+ ports on the right side, which are used to connect and power network devices. LED indicators in the center display the status of the ports and the overall system. The power port is located on the back of the device, as indicated by the label pointing to the top of the switch. This switch is relevant for networking purposes, providing both data connectivity and power to connected devices through the PoE+ ports.

Easy Installation

No configuration needed, simply connect PoE+ network devices to the unmanaged gigabit PoE+ switch

PoE+

The unmanaged PoE+ switch supplies up to 30W of power per port with data over a single Ethernet cable to PoE and PoE+ devices

Gigabit Ports

Equipped with high-speed gigabit ports and a full switching capacity, these unmanaged PoE+ switches are ready to take on the most demanding network applications

Rackmount Design

With a sturdy metal housing and included rackmount brackets, this unmanaged PoE+ switch is well-suited for 19” 1U rack installations.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 10KB) for increased performance

LED Indicators

LED indicators on the unmanaged PoE+ switch convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 16 x Gigabit PoE+ ports
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 512KB
  • Switch Fabric: 32Gbps
  • MAC Address Table: 8K entries
  • Forwarding rate: 23.8Mpps (64-byte packet size)
  • Jumbo Frame: 10KB
Power
  • Input: 100 – 240V AC, 50/60Hz, internal power supply
  • Max. consumption: 14.9W (no PD)
PoE
  • PoE budget: 246W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
  • Over current protection
  • Short circuit protection
Fan/Acoustics
  • Quantity: 2
  • Max. noise Level: 26dB
MTBF
  • 612, 220 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 440 x 210 x 44mm (17.3 x 8.3 x 1.8 in.)
Weight
  • 3kg (6.6 lbs.)
Certifications
  • CE
  • FCC
  • UL
Warranty

PACKAGE CONTENTS
  • TPE-TG160g
  • Quick Installation Guide
  • Rack mount kit
  • Power cord (1.8m/6 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
