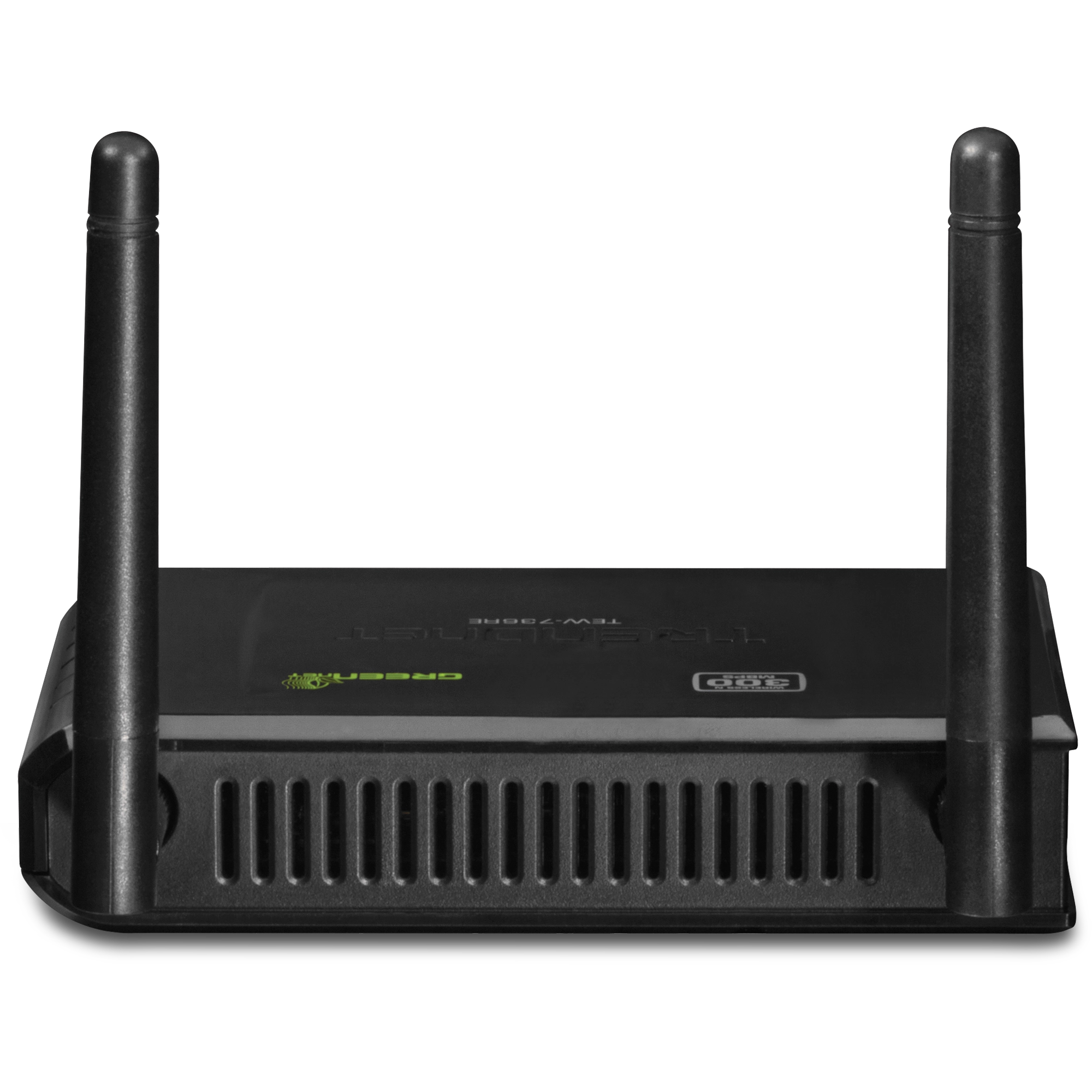

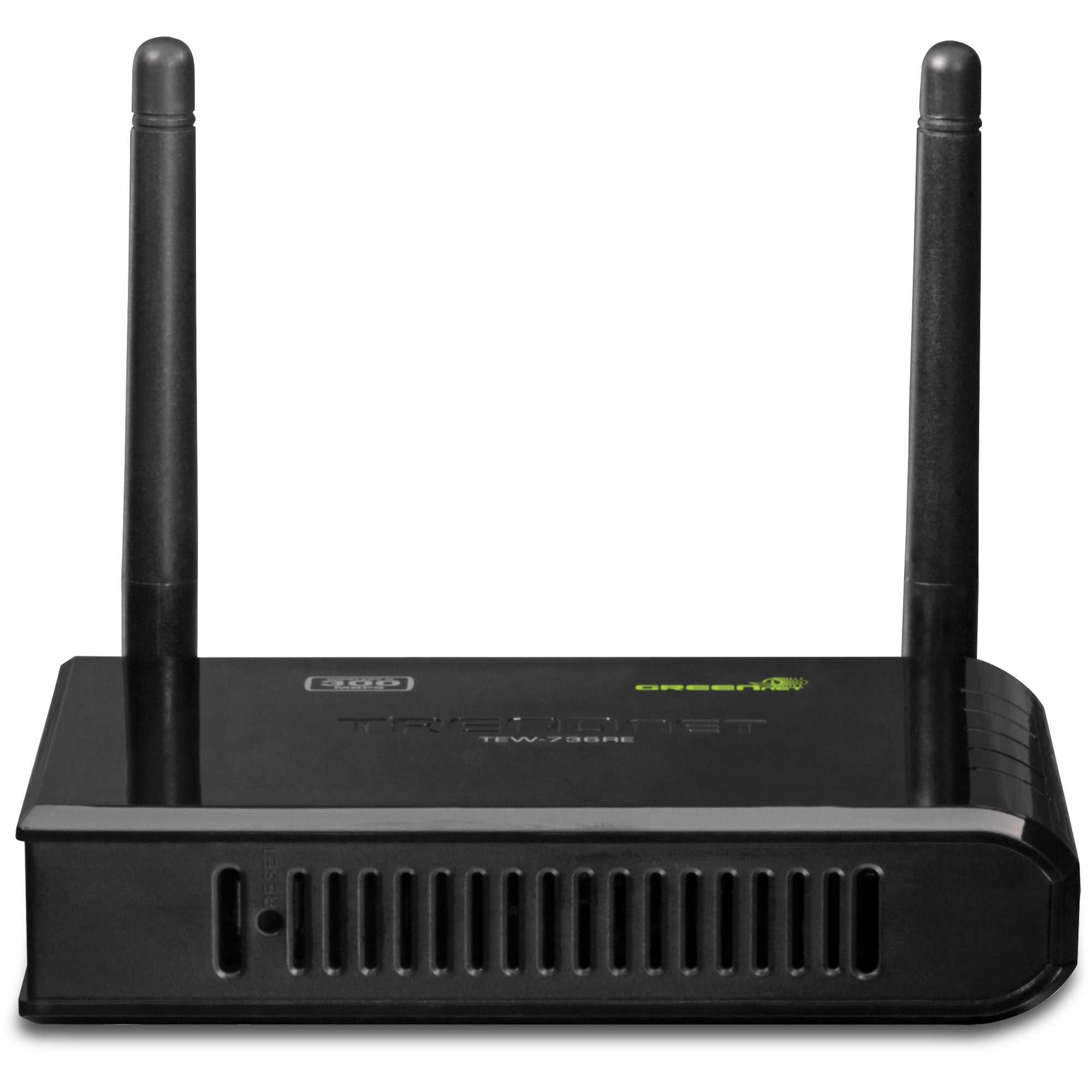

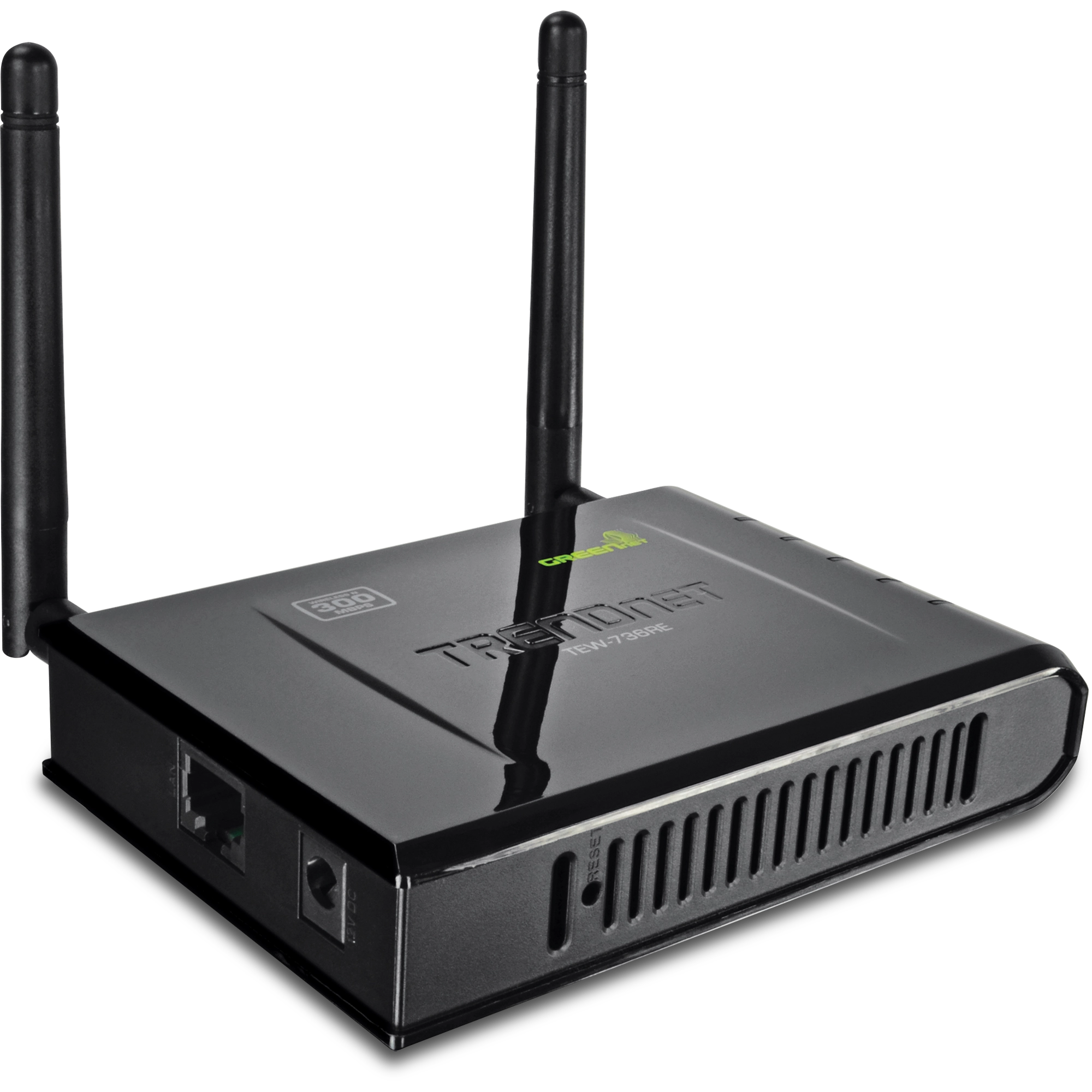

N300 Easy-N-Range Extender

TEW-736RE (Version v1.0R)

  • Helps eliminates wireless dead spots
  • Extends the range of your existing wireless network
  • One touch wireless setup using the WPS button
  • MIMO antenna technology provides extensive coverage
  • Advanced wireless encryption protects your data

TRENDnet's N300 Easy-N-Range Extender, model TEW-736RE, extends the coverage of your existing wireless n network. Setup is simple, with no drivers to install. Simply press the Wi-Fi Protected Setup (WPS) button on your router or access point, then on the TEW-736RE and you're done—the 300Mbps Easy-N Range Extender is now extending your high performance wireless N network over a large area.

Multiple Input Multiple Output (MIMO) antenna technology dramatically increases wireless coverage with a high speed 300Mbps wireless network. LED displays convey device and port status for easy troubleshooting.

  • 1x 10/100Mbps Ethernet port
  • 1x Wi-Fi Protected Setup (WPS) button
  • 2x 2dBi detachable antennas
  • Compliant with IEEE 802.11n, IEEE 802.11g, and 802.11b standards
  • Compact high performance wireless n range extender
  • High-speed data rates of up to 300Mbps with IEEE 802.11n*
  • Up to 50% energy savings with GREENnet technology
  • Supports up to WPA2-PSK wireless encryption
  • One-touch wireless security setup using the Wi-Fi Protected Setup (WPS) button
  • Low interference and high susceptibility deliver reliable performance
  • Indoor coverage up to 100 meters (328 ft.)*
  • Outdoor coverage up to 300 meters (984 ft.)*
  • 3-year limited warranty

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
StandardsIEEE 802.11n , IEEE 802.11b, IEEE 802.11g, IEEE 802.3u, and IEEE 802.3

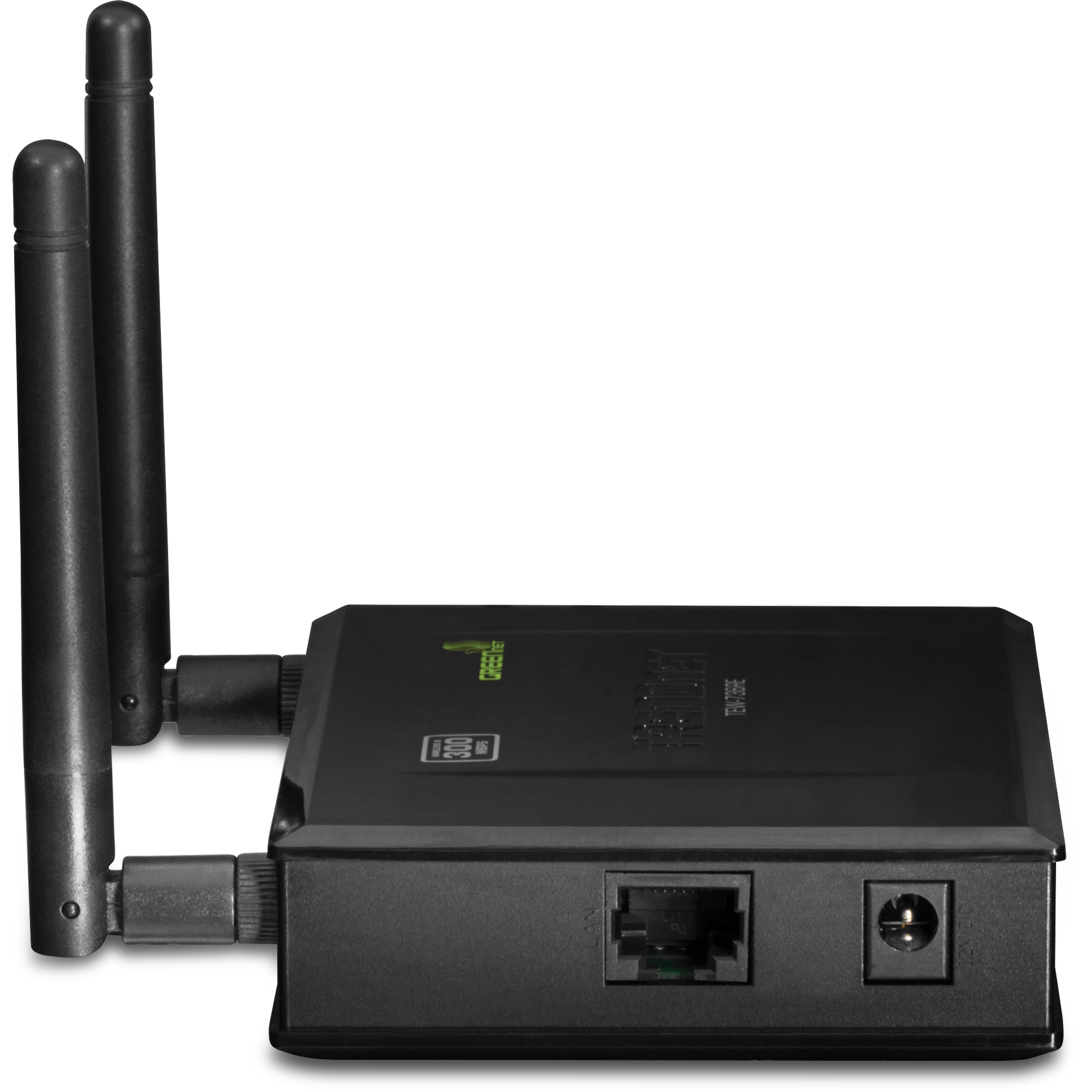

Interface1 x 10/100Mbps Auto-MDIX LAN port

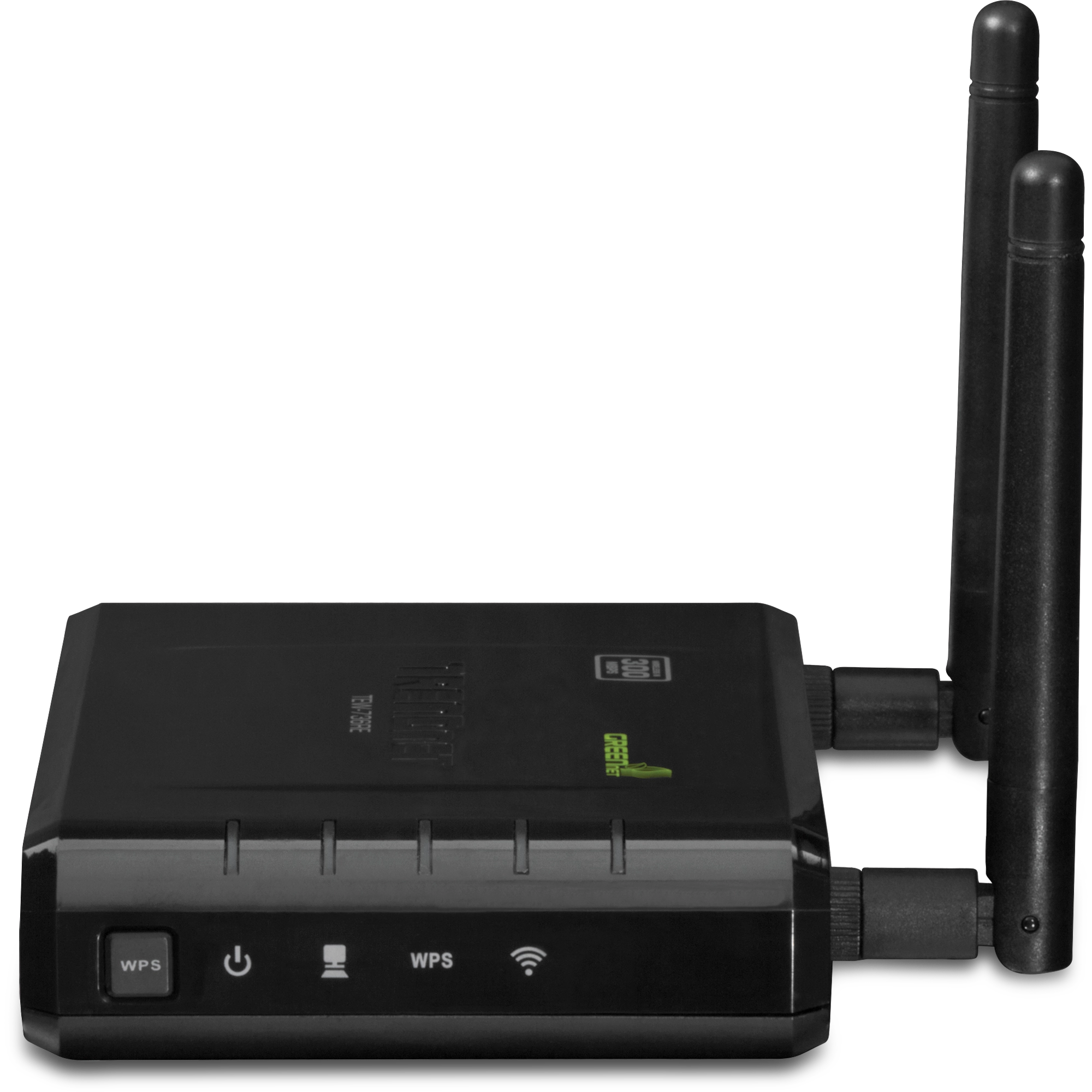

LED IndicatorsPower, LAN, WPS, and Wireless
ButtonsReset button – restores factory default settings
WPS button- enables WPS function
Power Supply
  • Input: 100 ~ 240V 0.5A AC, 50~60Hz
  • Output: 12V DC, 0.5A external power adapter
Dimensions (LxWxH)120 x 26 x 88 mm (4.7 x 1.0 x 3.4 in.)
Weight145 g (5.11 oz)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -20°C ~ 60°C (-4° ~ 140° F)
HumidityMax. 90% non-condensing
Wireless
ModulationOFDM and CCK
Antenna2 x 2dBi detachable antennas
Frequency2.412 - 2.462GHz FCC
2.412 – 2.472GHz ETSI
Data Rate (Auto Fallback)
  • 802.11n: up to 300Mbps
  • 802.11g: up to 54Mbps
  • 802.11b: up to 11Mbps
Output Power
  • 802.11b: 18dBm (typical) @ 11Mbps
  • 802.11g: 15dBm (typical) @ 54Mbps
  • 802.11n: 15dBm (typical)@ 300Mbps
Receiving Sensitivity
  • 802.11b: -84dBm (typical) @ 11Mbps
  • 802.11g: -72dBm (typical) @ 54Mbps
  • 802.11n: -68dBm (typical) @ 300Mbps
Encryption 64/128-bit WEP, WPA/WPA2-PSK
Channels1-11 (FCC), 1-13 (ETSI)
CertificationsCE, FCC

PACKAGE CONTENTS
  • TEW-736RE
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • 1 network cable (1.5 m / 5 ft.)
  • Power adapter (12V DC, 0.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
