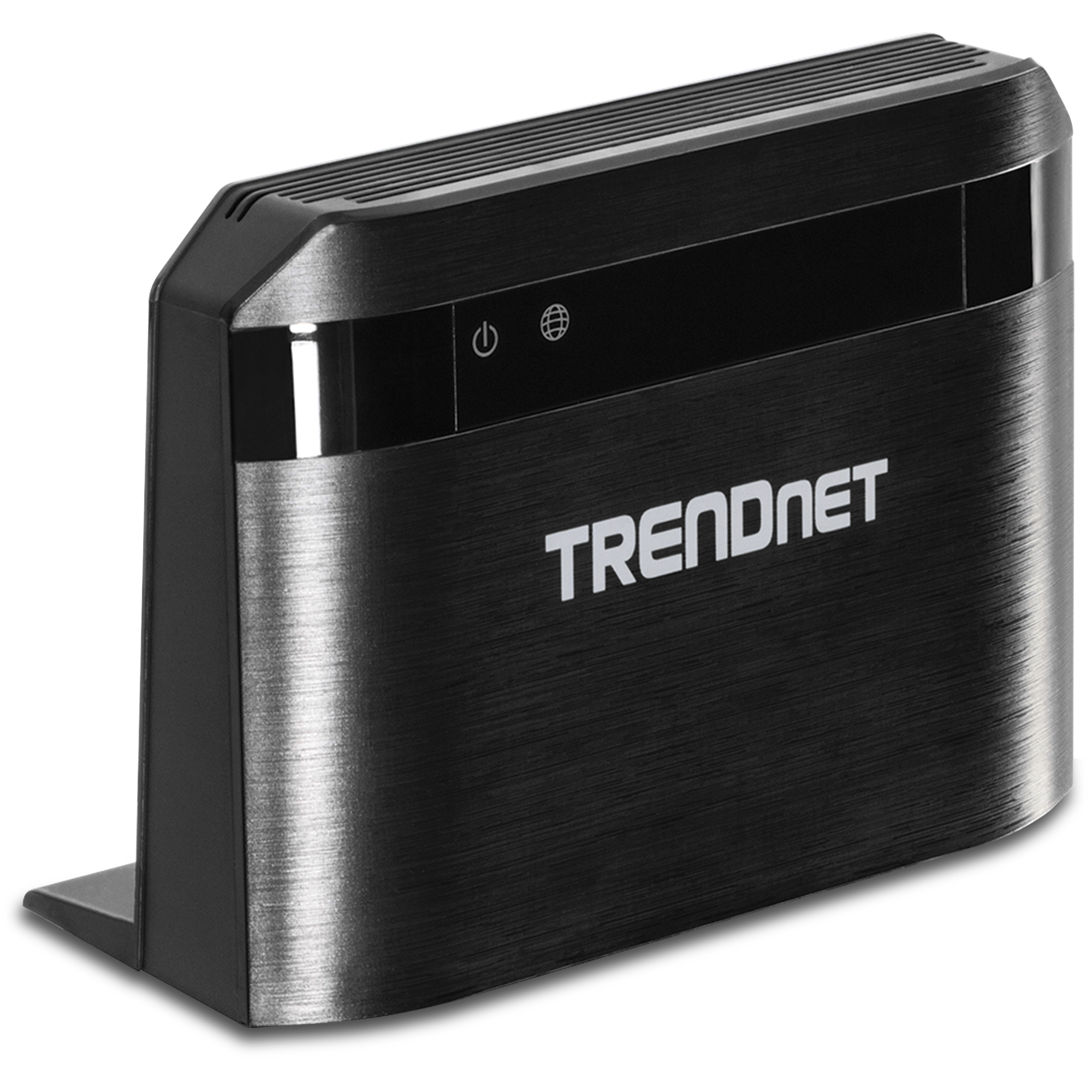

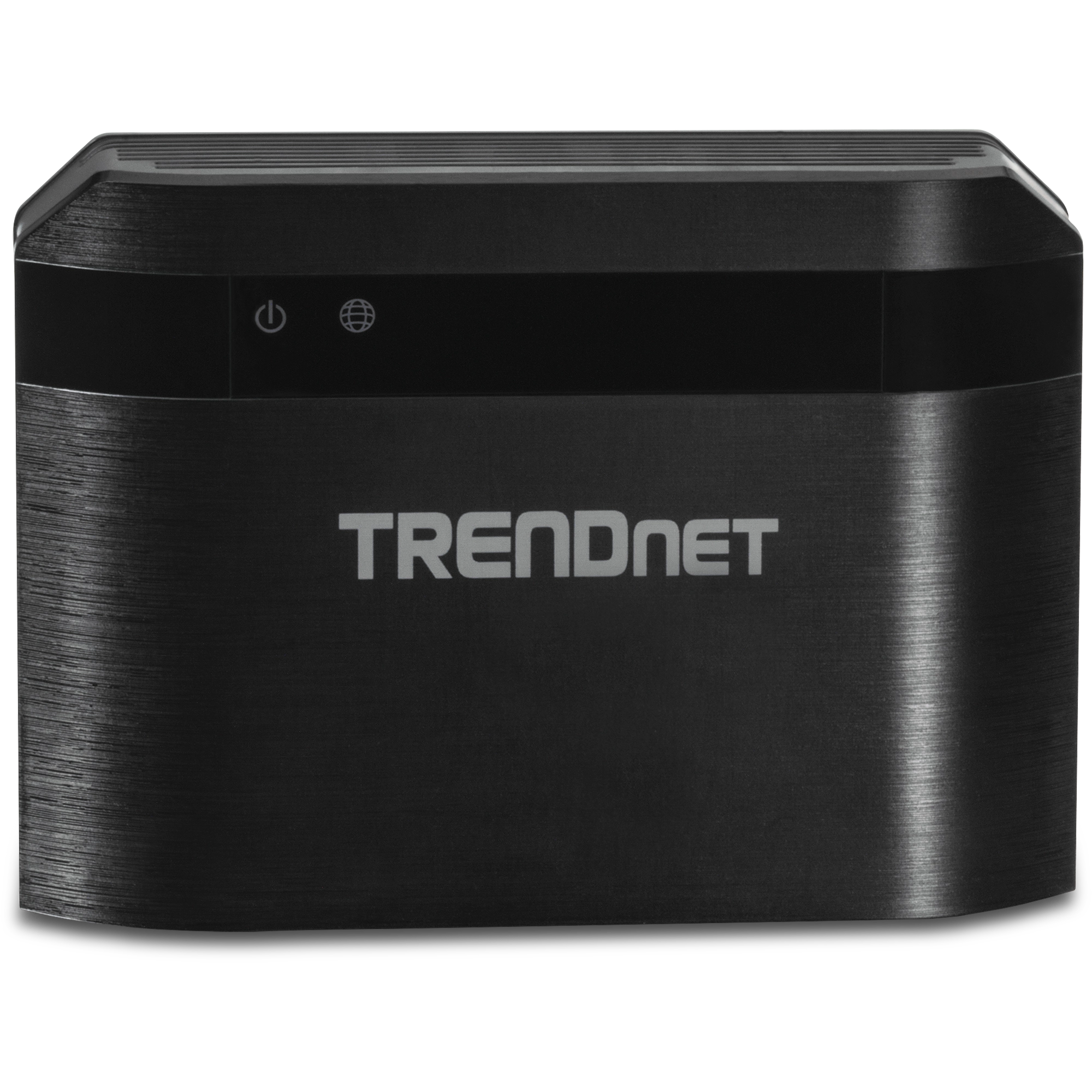

AC750 Dual Band Wireless Router

TEW-810DR (Version v1.0R)

  • 733 Mbps total wireless: 433 Mbps AC + 300 Mbps N bands
  • Pre-encrypted for your security
  • Create an isolated guest network
  • One touch network connection with the WPS button
  • Four Ethernet wired ports

Designed to handle multiple HD streams in a busy connected home, TRENDnet's AC750 Dual Band Wireless Router, model TEW-810DR, creates two concurrent wireless networks—a high speed 433 Mbps Wireless AC network and a 300 Mbps Wireless N network to connect common wireless devices.

Ease of Use

Easy Setup

Get up and running in minutes with the intuitive guided setup

One Touch Connection

Securely connect to the router at the touch of the Wi-Fi Protected Setup (WPS) button

Security

Encrypted Wireless

For your security the router arrives pre-encrypted with its own unique password

Guest Network

Create secure isolated guest networks for internet access only

Parental Controls

Control access to specific websites or types of content

Performance

Next Generation Wireless AC

802.11ac provides uninterrupted HD video streaming in a busy connected home

Simultaneous Dual Band

High speed 433 Mbps Wireless AC band + 300 Mbps Wireless N

Ethernet Ports

Ethernet ports maintain high performance network connections

Backward Compatible

Compatible with Wireless N and older Wireless G devices

Energy Savings

Embedded GREENnet technology reduces power consumption by up to 50%

IPv6

IPv6 network support


*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions

Specifications
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (2.4 up to GHz 300 Mbps)
  • IEEE 802.11ac draft 2.0 (5 GHz up to 433 Mbps)

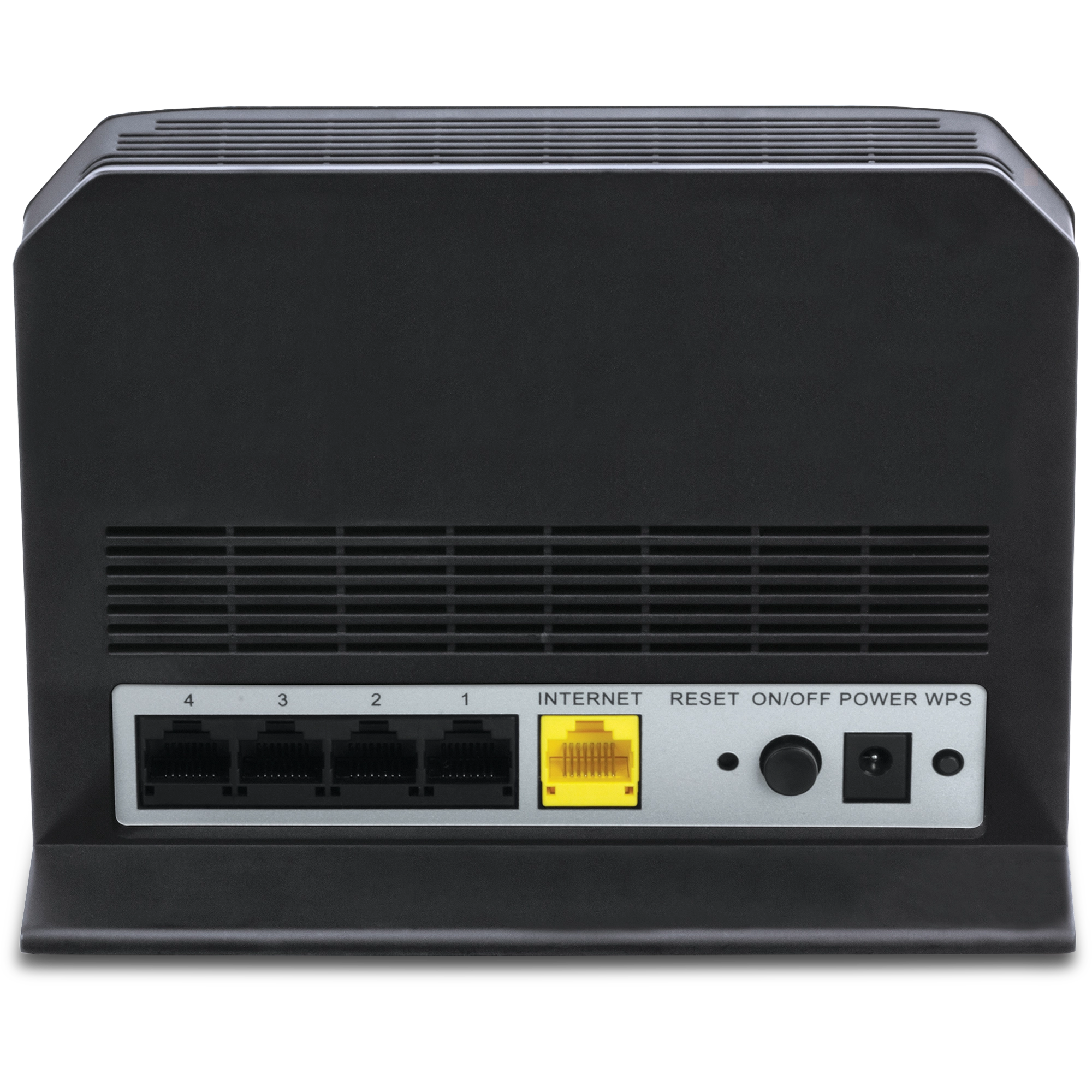

Hardware Interface
  • 4 x 10/100 Mbps LAN ports
  • 1 x 10/100 Mbps WAN port
  • Power switch
  • WPS Button
  • LED indicators
Security
  • Wireless encryption up to WPA2
  • Firewall: NAT
  • Parental (Access) Controls: Mac, URL, IP Filter
Special Features
  • IPv6 support
  • Guest network with internet bandwidth control
  • WDS support
  • GREENnet energy savings
  • QoS controls
  • DynDNS support for: Dyn.com, easyDNS.com, and NO-IP.com
Power
  • Input: 100 - 240 V AC, 50 - 60 Hz, 0.3 A
  • Output: 12 V DC, 1 A
  • Consumption: 8 Watts (max.)
Operating Temperature
  • 0 - 40°C (32 - 104°F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 151 x 113 x 60 mm (5.9 x 4.4 x 2.3 in.)
Weight
  • 187 g (6.6 oz)
Warranty
  • 3 year limited

PACKAGE CONTENTS
  • TEW-810DR
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network cable (1.5 m/5 ft.)
  • Power adapter (12 V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
