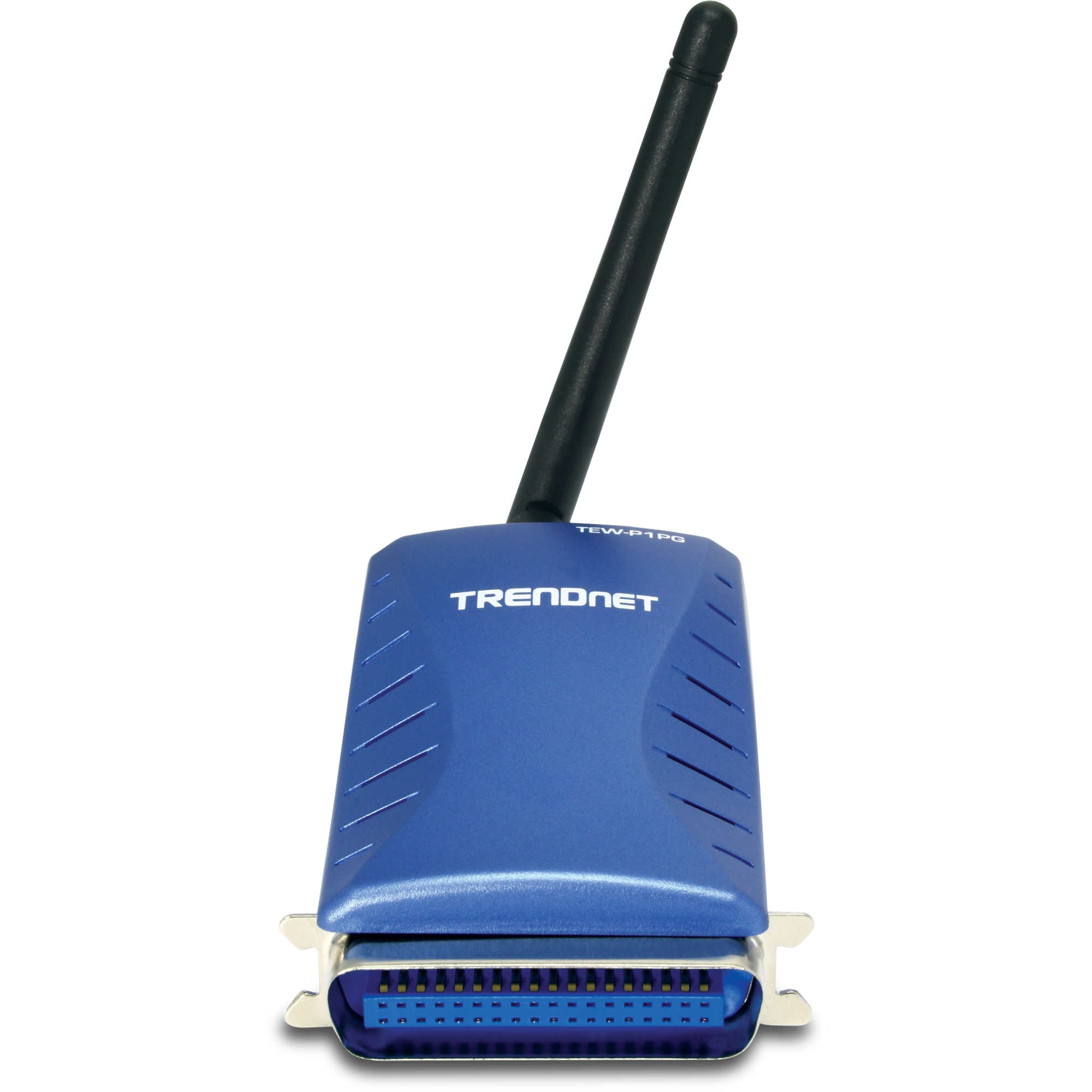

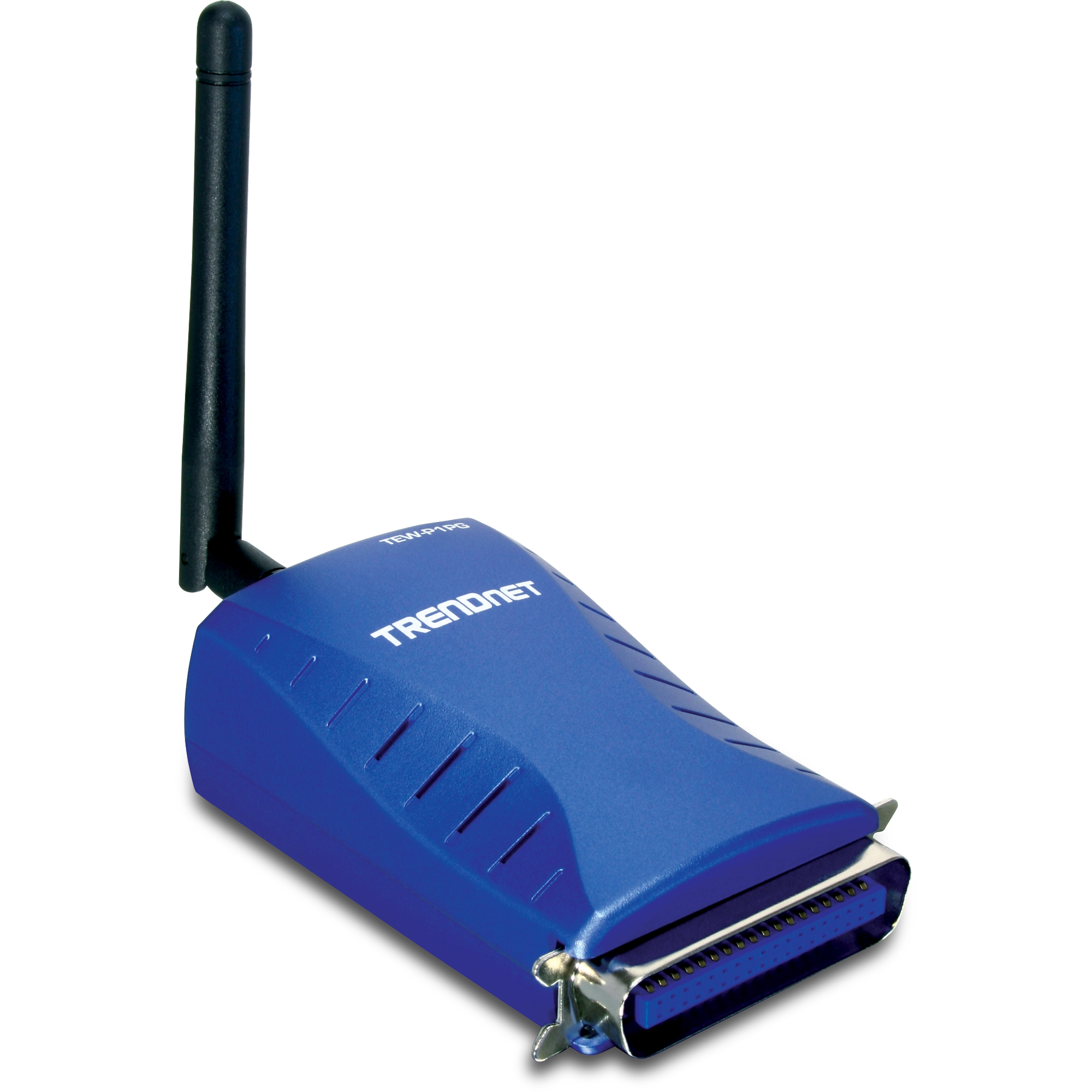

Wireless 1-Port Parallel Print Server

TEW-P1PG (Version B1.xR)

  • Turns a standalone parallel printer into a shared wireless resource
  • Use this wireless print server to place your printer in the most accessible location
  • Manages print server through web browser or utility

TEW-P1PG is a print server that transforms virtually any stand-alone Parallel networkable printer into a shared network printer. The TEW-P1PG provides IEEE 802.11g 54Mbps wireless interface for integrating into existing wireless network. The TEW-P1PG is designed for printers equipped with parallel compliant printer port and it is an ideal network solution to convert conventional parallel printer into a shared resource on the network.

  • Wi-Fi Compliant with IEEE 802.11b/g devices

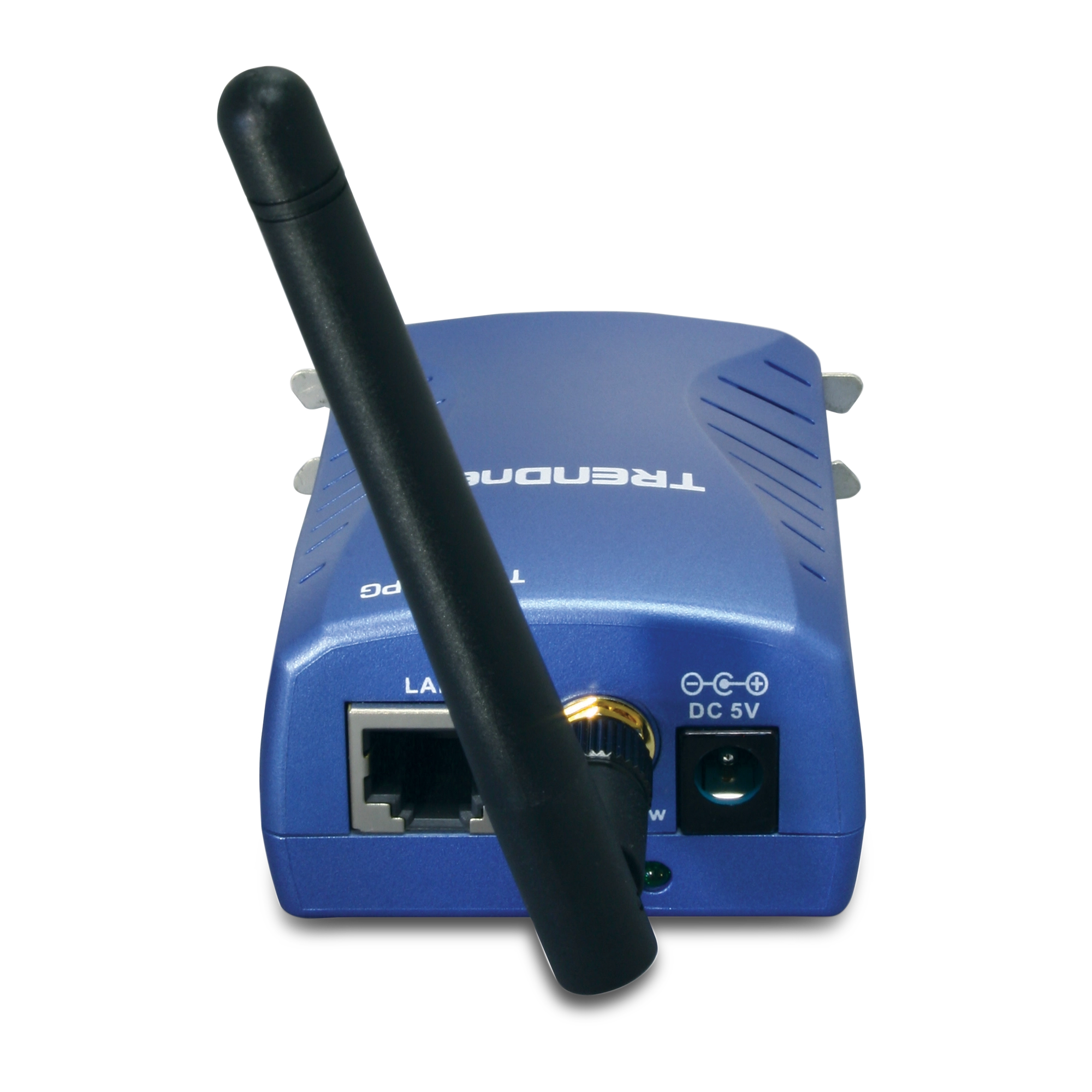

  • One RJ-45 10/100Mbps Auto-MDIX Fast Ethernet port
  • IEEE 1284 male centronics (DB-36) Parallel printer port
  • Advance wireless encryption: WEP, WPA-PSK
  • LPP printing for Windows
  • IPP printing for Windows 7/Vista/2003 Server/XP/2000
  • Printing over email and print error email notification
  • Second HTTP port for remote Web configuration
  • Supports Macintosh Rendezvous Zero Configuration *
  • Windows-based setup wizard and configuration utility
  • Web-Based (HTTP) configuration
  • Built-in flash memory for easy firmware upgrade
  • 3-Year limited Warranty

*Mac Systems are only compatible with Post-Script printers

HARDWARE
Standards
  • Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • Wireless: IEEE 802.11g/b
Printer Interface
  • IEEE 1284 Male Centronics (DB-36)
LAN Port
  • 10/100Mbps Auto-Negotiation UTP/STP RJ-45 Port
LED
  • Power, LPT, Link/Act
Transport Protocol
  • TCP/IP, SMB, NetBEUI, AppleTalk
OS Support
  • Windows 7(32/64-bit)/Vista(32/64-bit)/2003 Server/XP(32/64-bit)/2000/ME/98SE
  • Netware 5.x NDPS LPR Remote Printing (TCP/IP)
  • HP-UX Unix, Sun OS, Solaris, SCO Unix, AIX, Unixware, Linux & Mac OS 10.1 ~ 10.6
Management
  • Windows Utility or Web-Browser Configuration
Power
  • 5V DC 2.5A External Power Adapter
Dimensions/Weight
  • 57 x 90 x 32mm (2.2 x 3.5 x 1.3 inches) Not including antenna. /85 g (3 oz.)
Temperature
  • Operating: 0°~50°C (32°~122°F)
  • Storage: -25°~55°C (-13°~131°F)
Humidity
  • 10%~90% (non-condensing)
Certifications
  • CE, FCC
WIRELESS
Frequency
  • 2.4 ~ 2.4835 GHz (Industrial Scientific Medical Band)
Encryption
  • 64/128-bit WEP (ASCII/HEX), WPA-PSK
Antenna
  • 2dBi detachable antenna (Reverse SMA Connector)
Data Rate
  • IEEE 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
  • IEEE 802.11b: 11Mbps, 5.5Mbps, 2Mbps and 1Mbps (Auto Fallback)

PACKAGE CONTENTS

  • TEW-P1PG
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & Use's Guide)
  • Power Adapter (5V DC, 2.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
