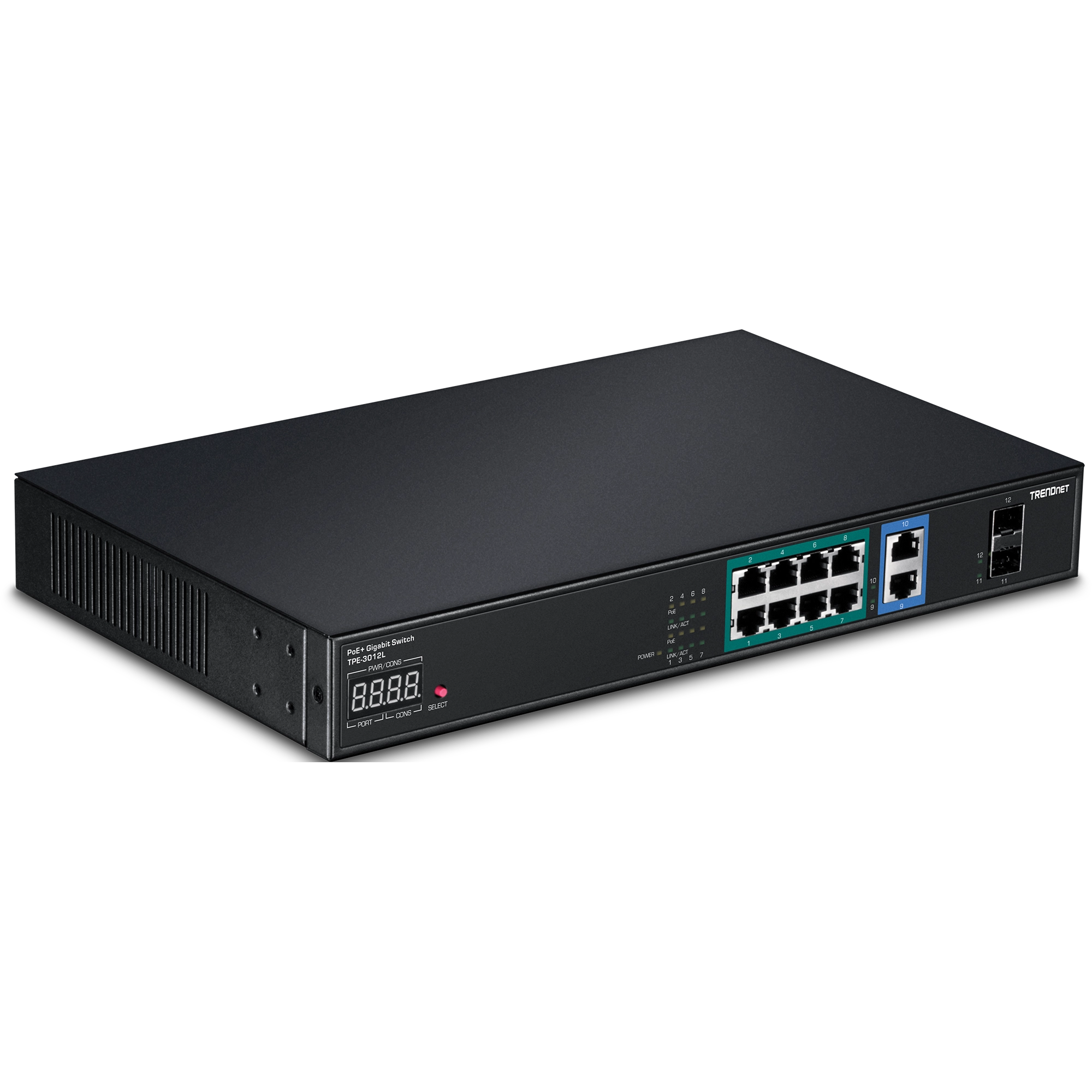

12-Port Gigabit NVR PoE+ Switch with LED Display (Certified Refurbished)

RB-TPE-3012L (Version v1.0R)

8 x Gigabit PoE+ ports
2 x Gigabit Ethernet Uplink Ports
2 x Gigabit SFP Fiber Uplink Slots
120 watts PoE power budget
24 Gbps switching capacity
1U rack mountable (brackets included)
Convenient front-panel 4-digit seven segment LED display

TRENDnet's 12-Port NVR PoE+ Switch, model TPE-3012L, is designed for use with an 8-channel NVR surveillance system. In addition to the eight Gigabit PoE+ ports, this NVR switch features four uplink ports for dedicated connections to your network, NVR, and / or NAS devices. With a 120 watt total power budget, the TPE-3012L provides you with enough power for even the most demanding surveillance applications. Use the convenient front-panel LED display to view total power, available power, and power-per-port. Rack mountable hardware design and front-panel LEDs easily integrate into your existing NVR and IP surveillance solutions.

A network device with multiple Ethernet ports is connected to two security cameras via Ethernet cables, indicating power over Ethernet (PoE) functionality. The device and cameras feature icons with lightning bolt symbols, reinforcing the PoE capability.

NVR Switch

Eight gigabit PoE+ ports allow users to connect eight IP cameras while still providing four gigabit uplink ports for dedicated connections to your network, NVR and / or NAS devices.

A network device is depicted with multiple ports, including eight Ethernet ports and two additional ports on the right side. Below the device, two security cameras & a Wireless Access point are shown connected to the network device, with a label indicating 120 Watt. The cameras are connected to the Ethernet ports, suggesting a Power over Ethernet (PoE) setup.

PoE Power

A 120 watt PoE+ power budget supplies up to eight Power over Ethernet devices with PoE power.

A network setup diagram with cylindrical tubes representing high-speed data transfer. Icons inside the tubes show different types of data like music notes, documents, and video files. Text in the center indicates gigabit speeds and jumbo frames up to 10 KB, with arrows showing the direction of data flow.

Gigabit Networking

Gigabit ports produce a 24 Gbps switching capacity and support Jumbo Frames up to 10 KB.

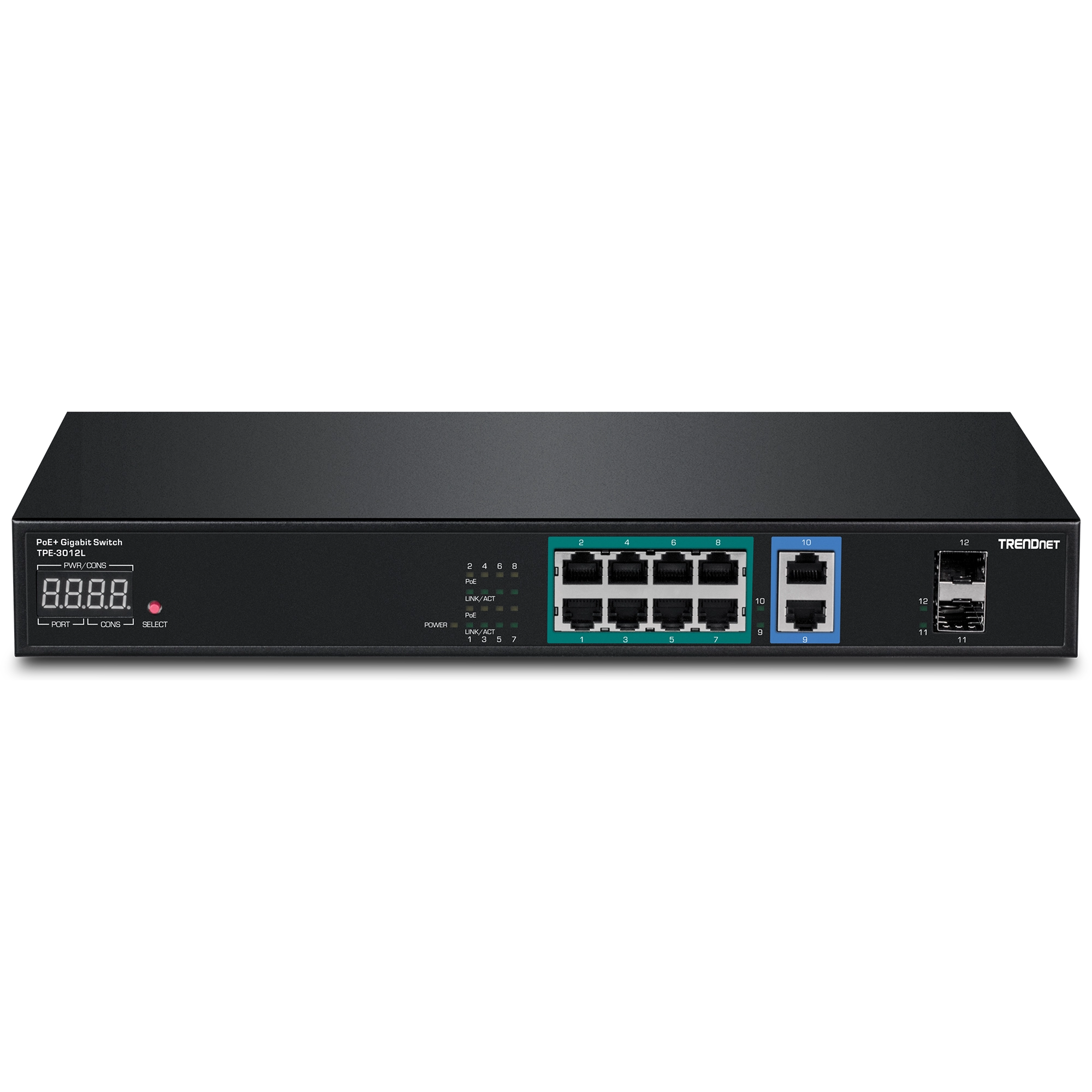

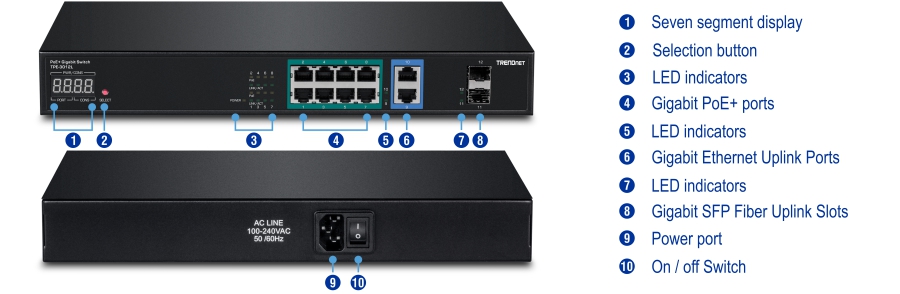

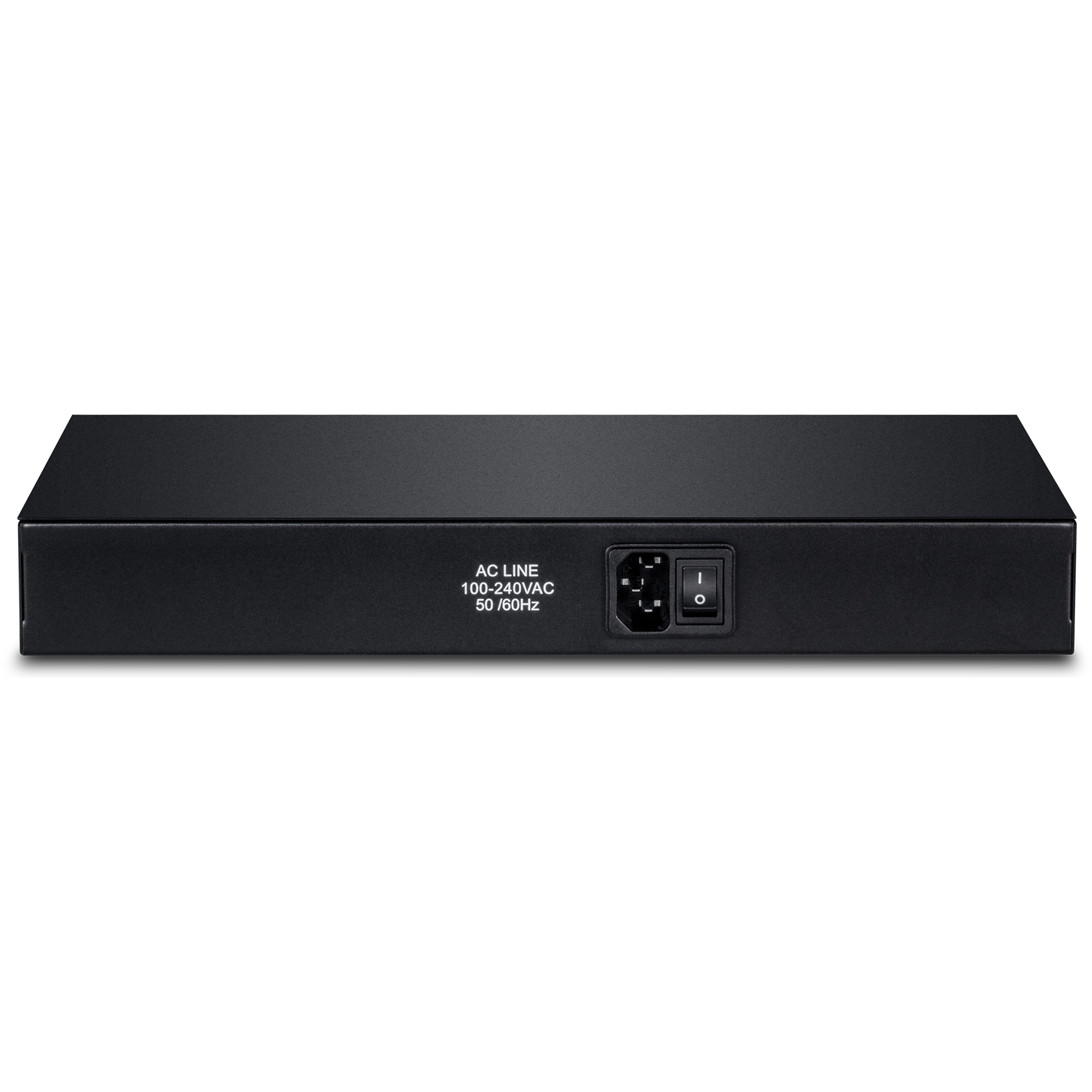

The PoE Gigabit Switch features a front view with a seven-segment display, selection button, LED indicators, eight Gigabit PoE+ ports, two Gigabit Ethernet uplink ports, and two Gigabit SFP fiber uplink slots. The rear view includes a power port and an on/off switch. Each component is labeled for easy identification and understanding of functionality and connectivity options.

NVR PoE+ Switch

Eight Gigabit PoE+ Ports allow users to connect eight IP cameras while still providing four gigabit ports for dedicated uplink connections to your network, NVR, and / or NAS devices.

Hardware Design

Durable metal housing and rack mountable design also features eight Gigabit PoE+ ports, two copper Gigabit ports, and two Gigabit SFP slots for uplink connections

7-Segment LED Display

View total PoE power, available PoE power, and PoE power-per-port

Power Budget

120 watts PoE power budget provides up to 30 watts per port

Rack Mountable

Standard 19” 1U design (brackets included)

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3z IEEE 802.3af IEEE 802.3at
Device Interface	8 x Gigabit PoE ports 2 x Gigabit Ethernet ports 2 x Gigabit SFP slots LED indicators 4-digit Seven-Segment LED Display
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Broadcast storm control Auto-learning network configurations Data RAM Buffer: 512 KB Switch Fabric: 24 Gbps MAC Address Table: 8 K entries Forwarding rate: 17.8 Mpps (64-byte packet size) Jumbo Frame: 10 KB Input: 110 – 240 V AC, 50/60 Hz Consumption: 7 Watts (no PD)
PoE	PoE budget: 120 Watts PoE budget per port: 30 Watts Over current protection Short current protection
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	330 x 200 x 44 mm (13 x 7.9 x 1.7 in.)
Weight	1.8 kg (4 lbs.)
Certifications	CE FCC UL
Warranty	90-day

PACKAGE CONTENTS

TPE-3012L
Quick Installation Guide
Rack mount kit
Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
