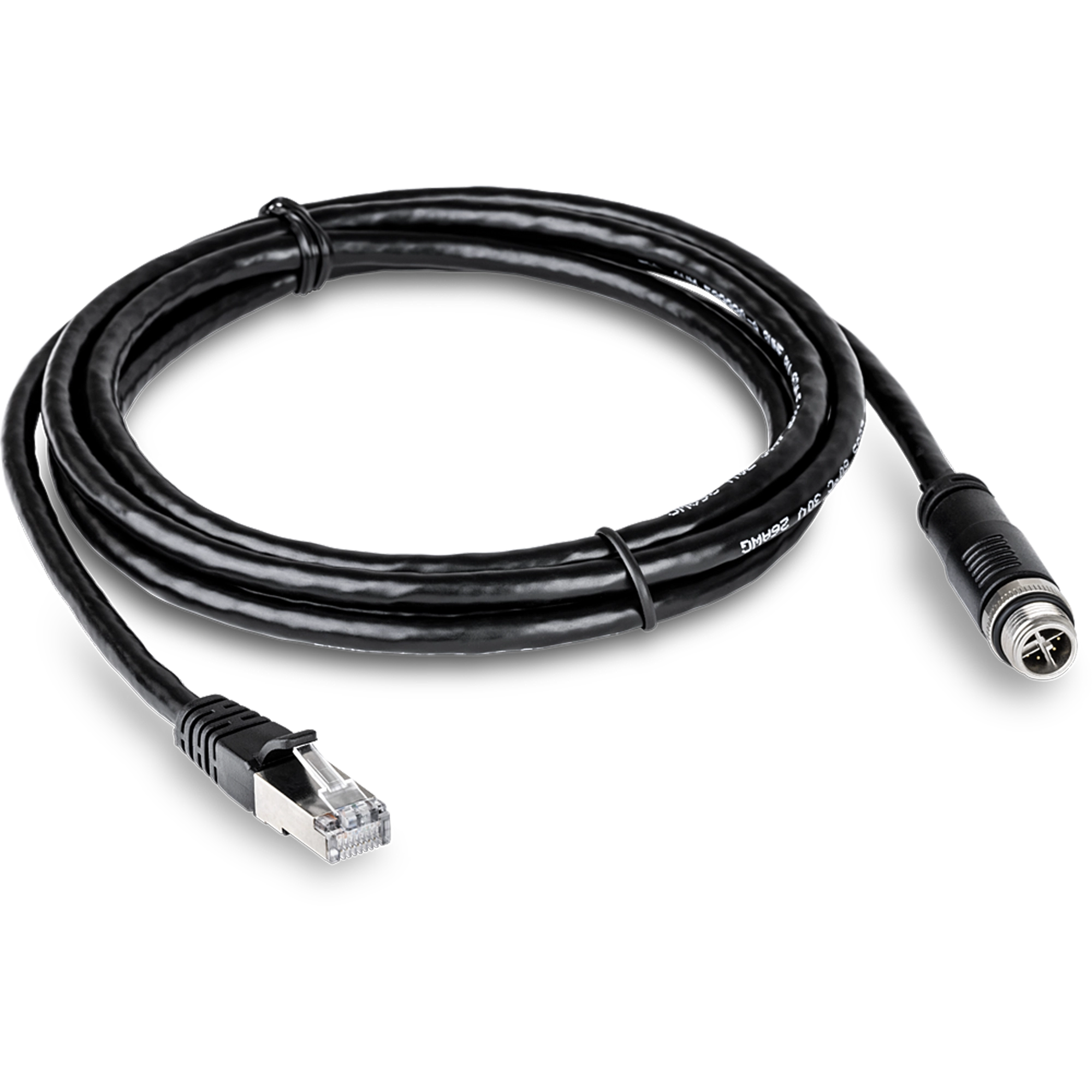

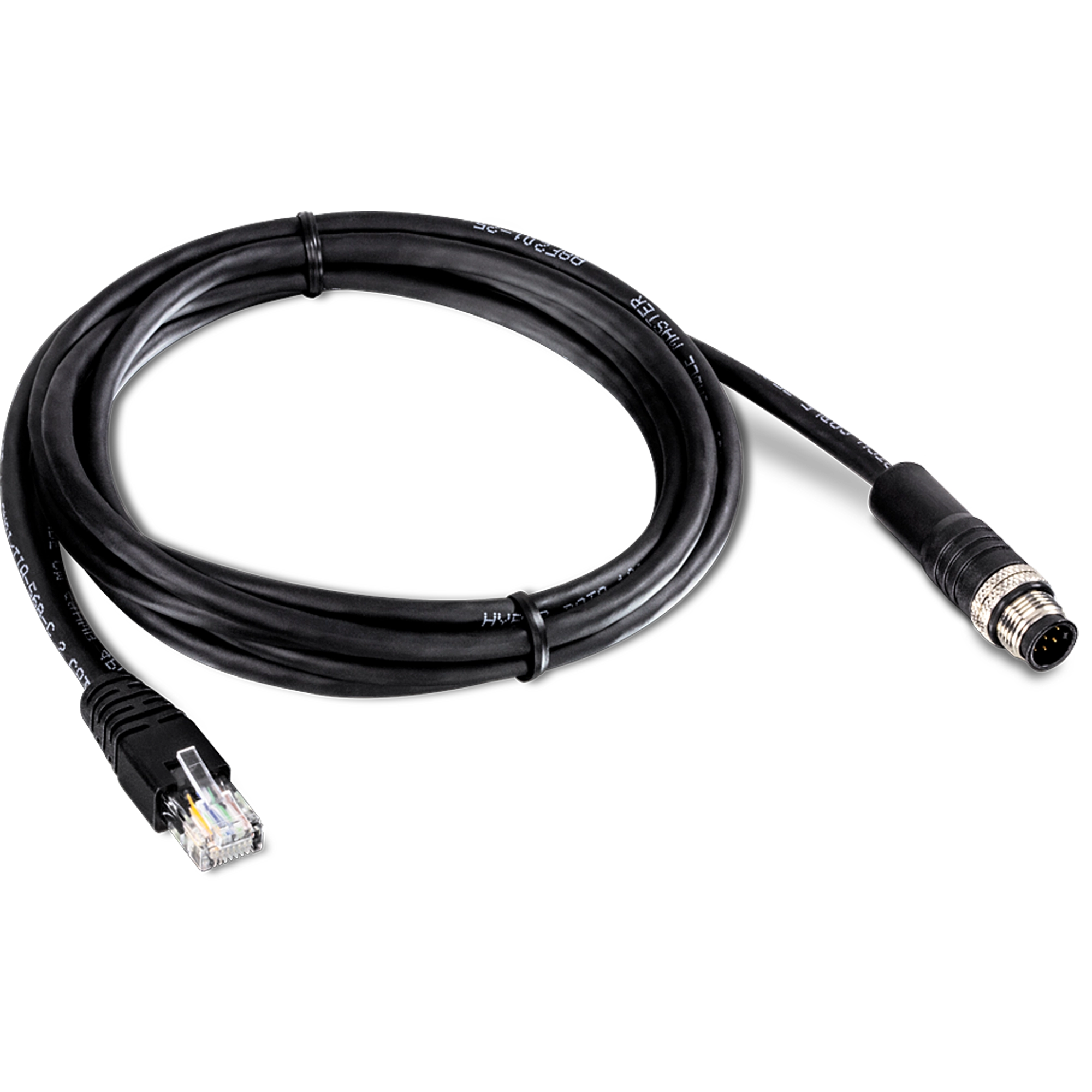

M12 to RJ-45 Industrial Ethernet Cable, 2m (6.5 ft.)

TI-CD02 (Version v1.0R)

  • Compatible with the TI-XPG50 industrial M12 switch
  • 1 x M12 8-pin A-code cable interface
  • 1 x RJ-45 cable interface
  • IP67 weather rated
  • 2m (6.5 ft.) cable length

TRENDnet’s M12 to RJ-45 Industrial Ethernet Cable, 2m (6.5 ft.), model TI-CD02, is designed to connect a PoE device to the TRENDnet industrial M12 railway switch. The M12 cable features one M12 interface, and one RJ-45 interface for a single device connection. This rugged IP67 rated M12 cable is specially designed for moving bus, train, and other rolling stock applications.

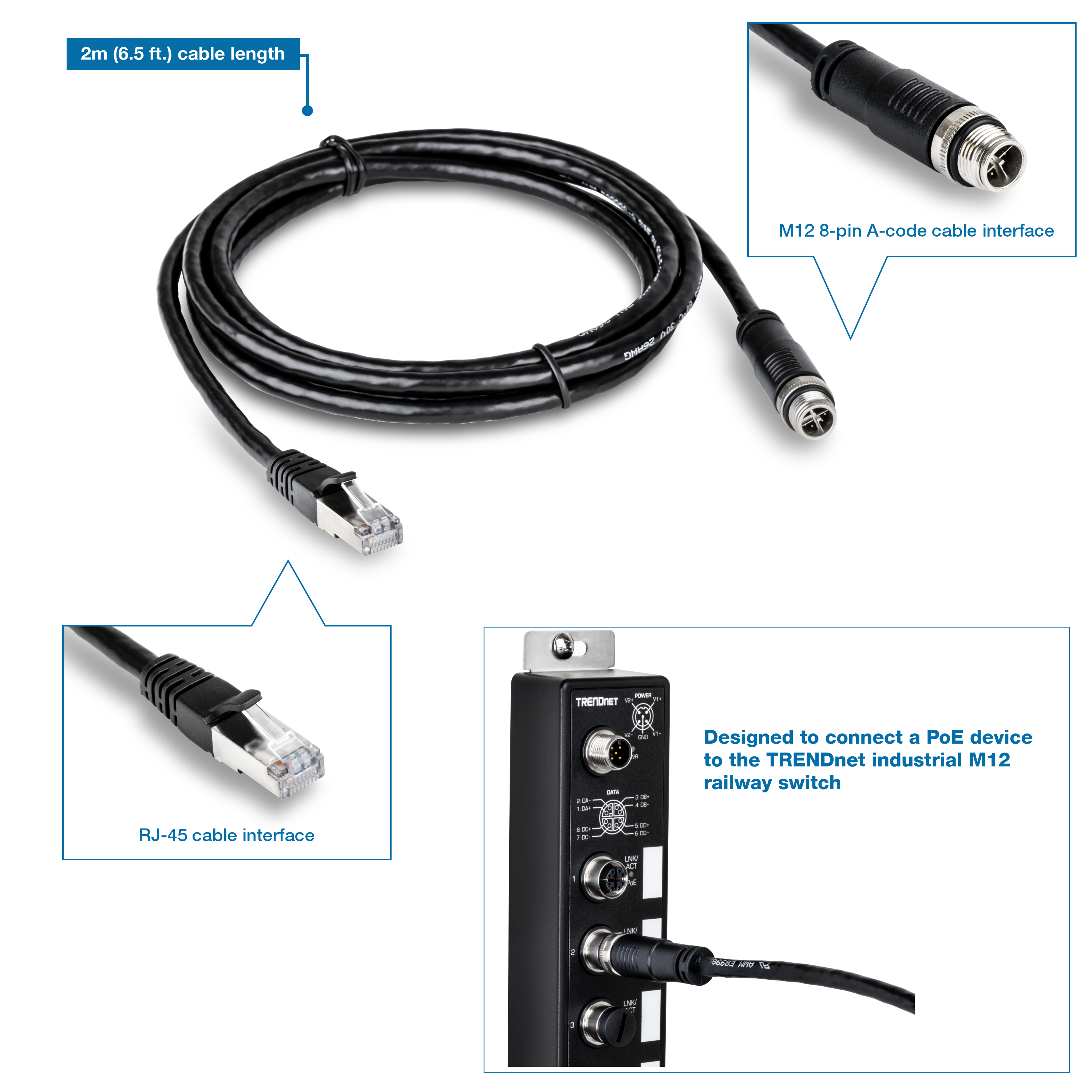

A rolled M12 to RJ-45 Industrial Ethernet Cable labeled with a 2m (6.5ft.) cable length. It includes a zoomed-in view of the M12 8-pin A-code cable interface on one end and the RJ-45 cable interface on the other end. The image also displays a view of an M12 railway switch, highlighting that the cable is designed to connect a PoE device to the TRENDnet industrial M12 railway switch.

Cable Interfaces

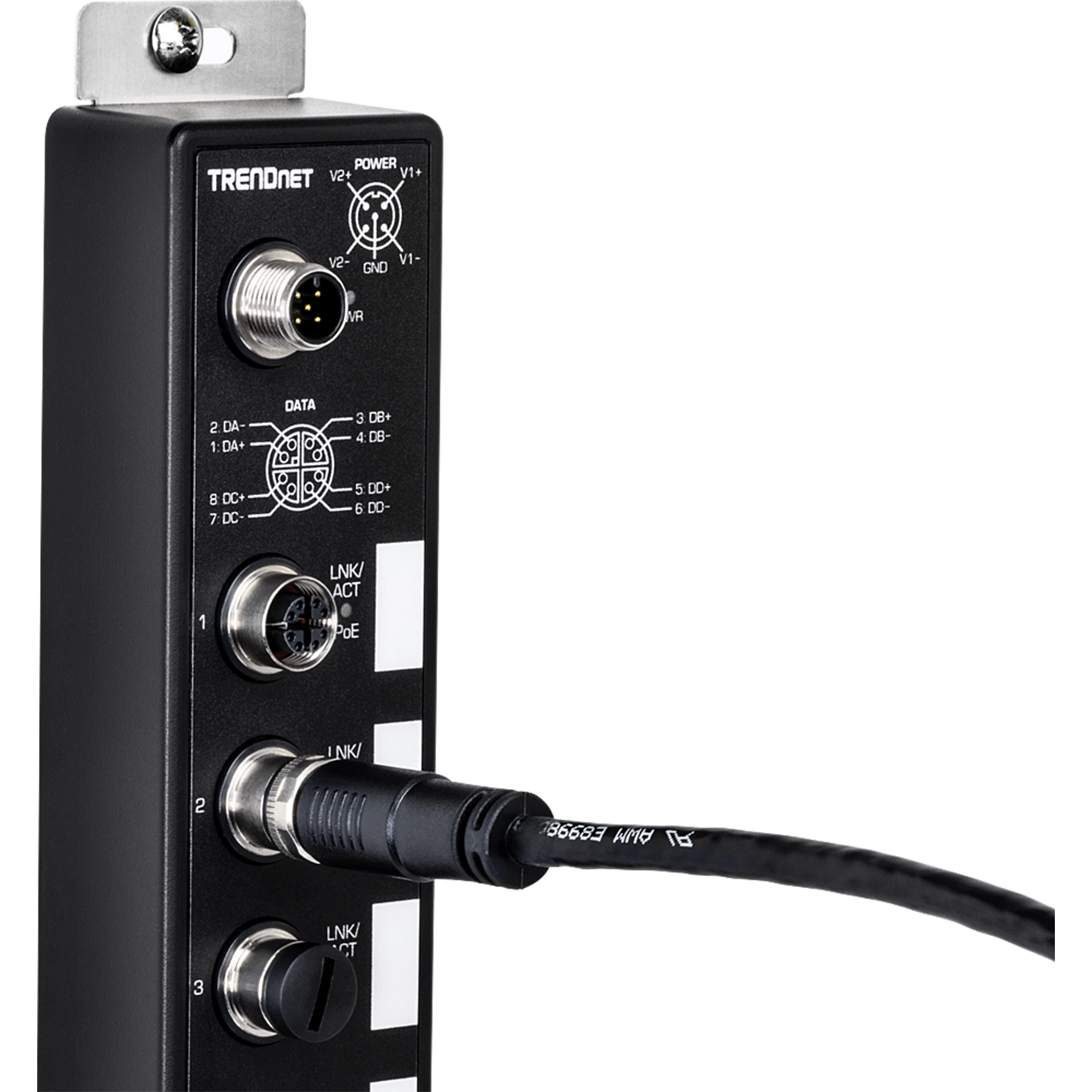

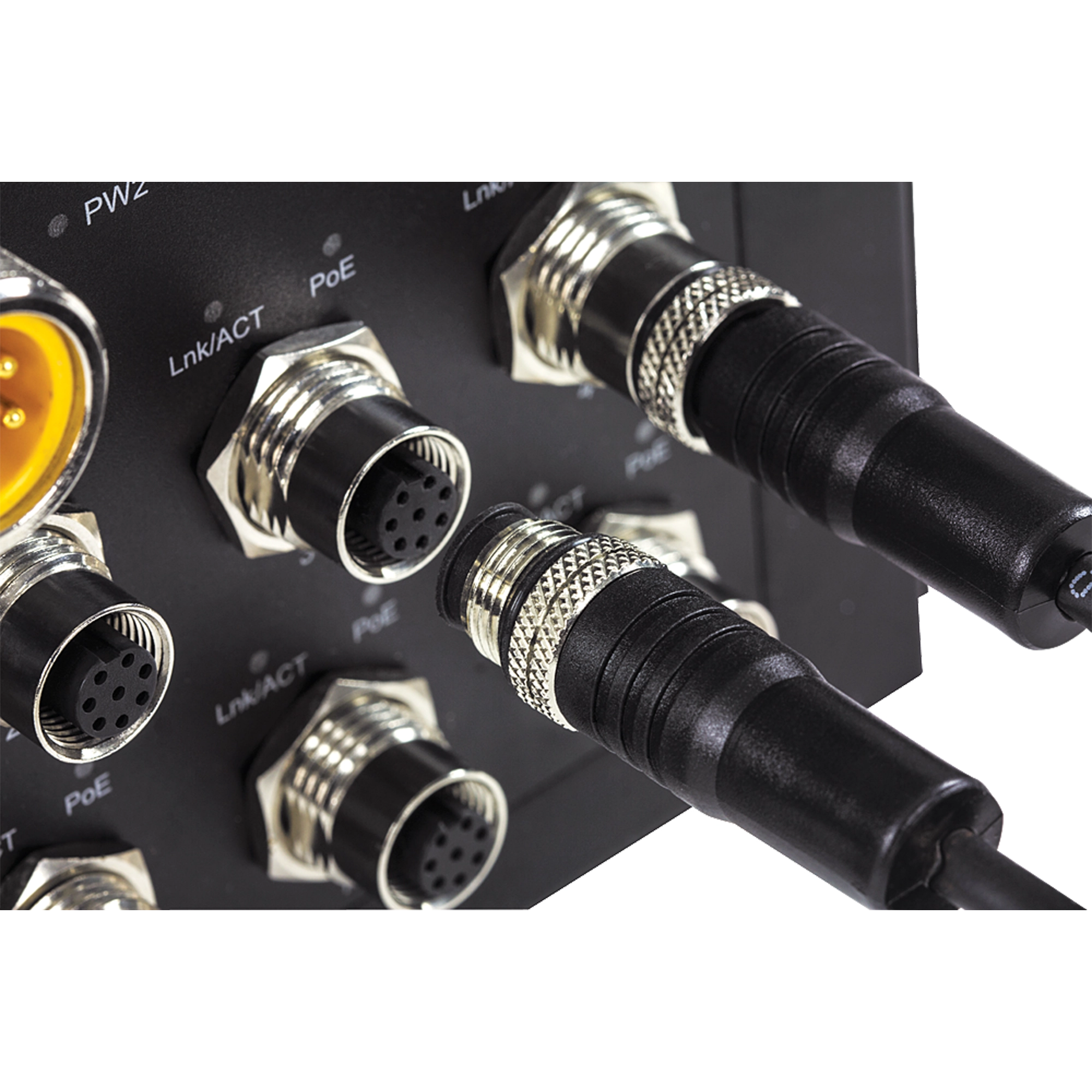

Designed to connect an RJ-45 PoE device to the 8-pin M12 interface on the industrial railway switch

Cable Length

2m (6.5 ft.) cable length

IP67 Rated Cable

Rugged IP67 weather rated cable

Interface

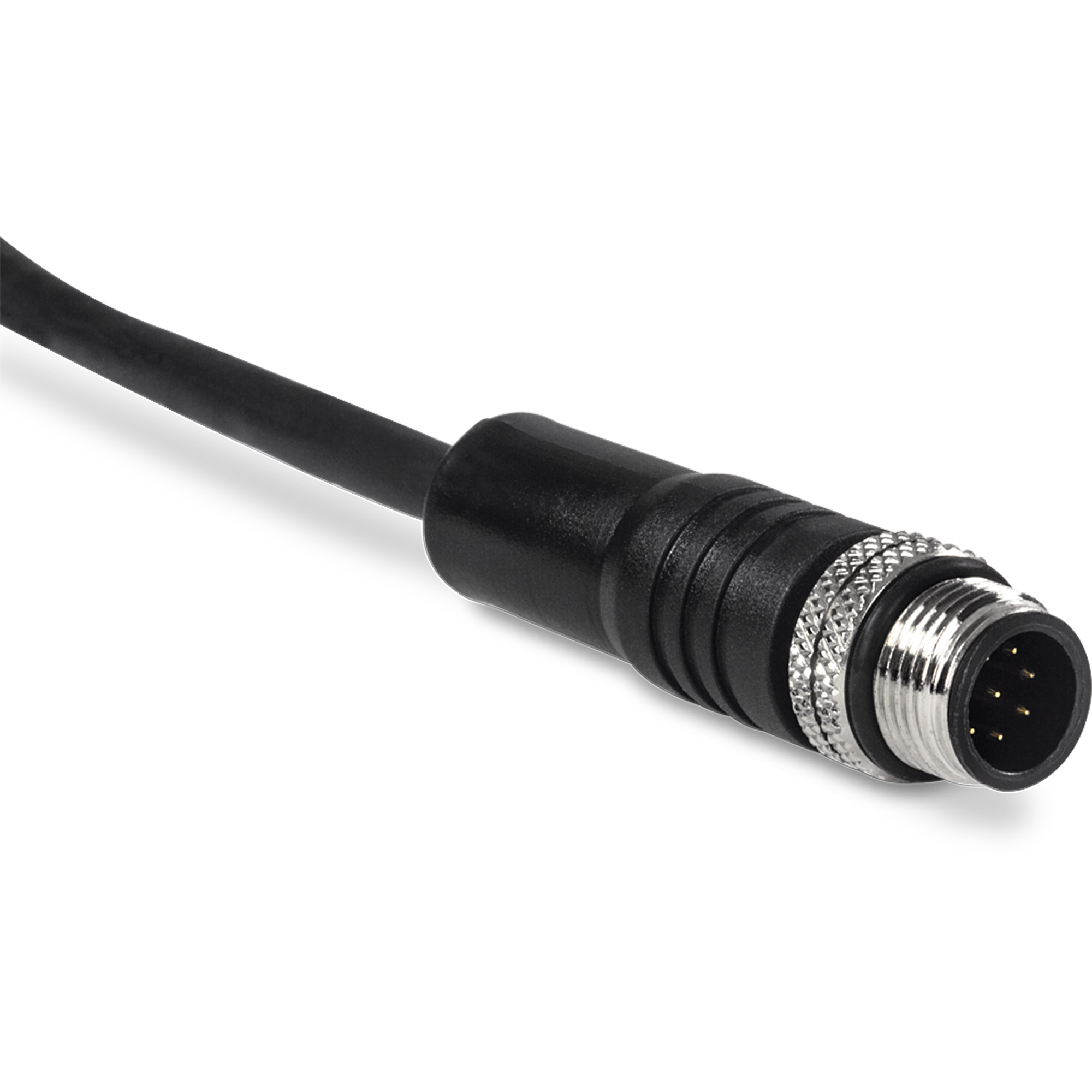

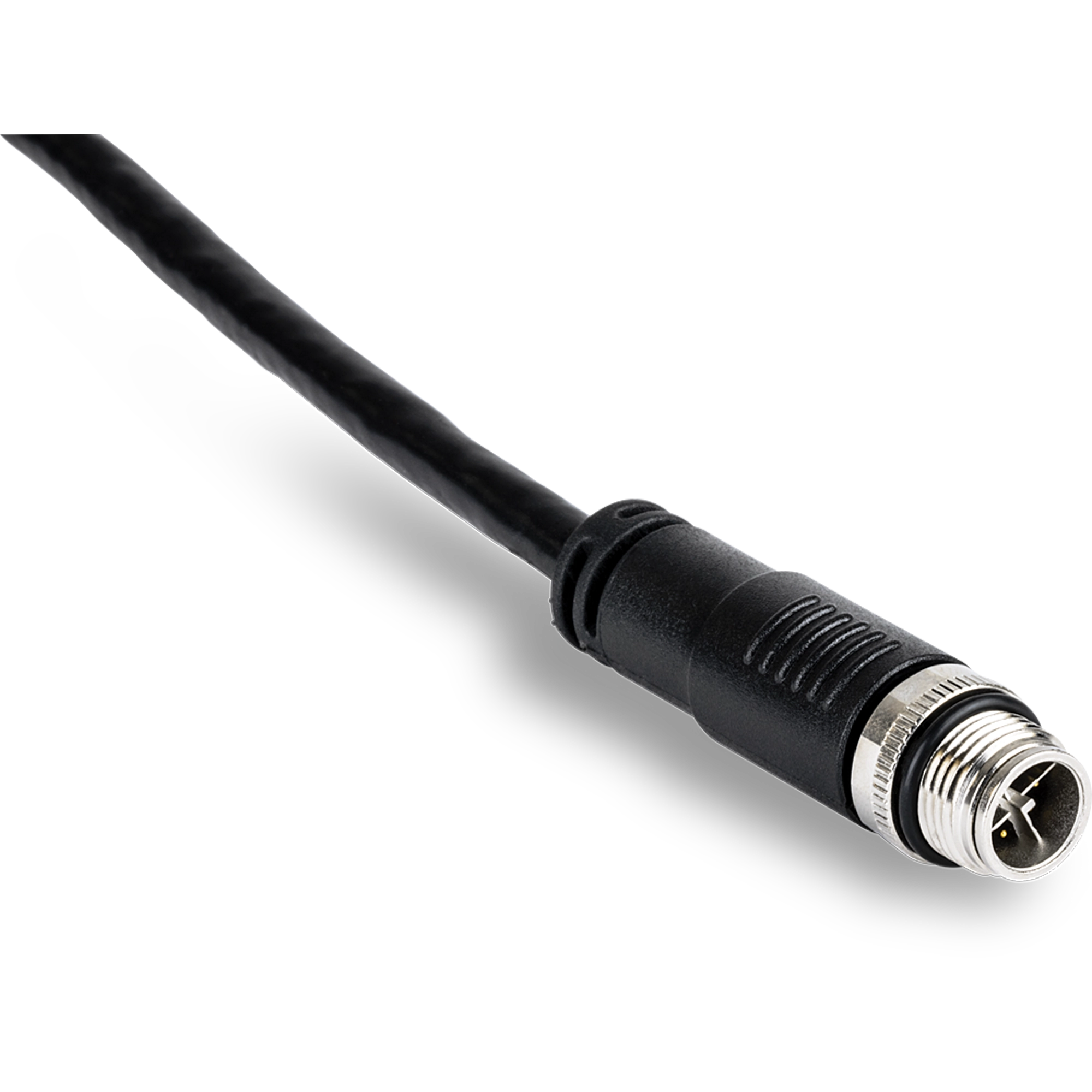

  • 1 x M12 8-pin A-code male interface

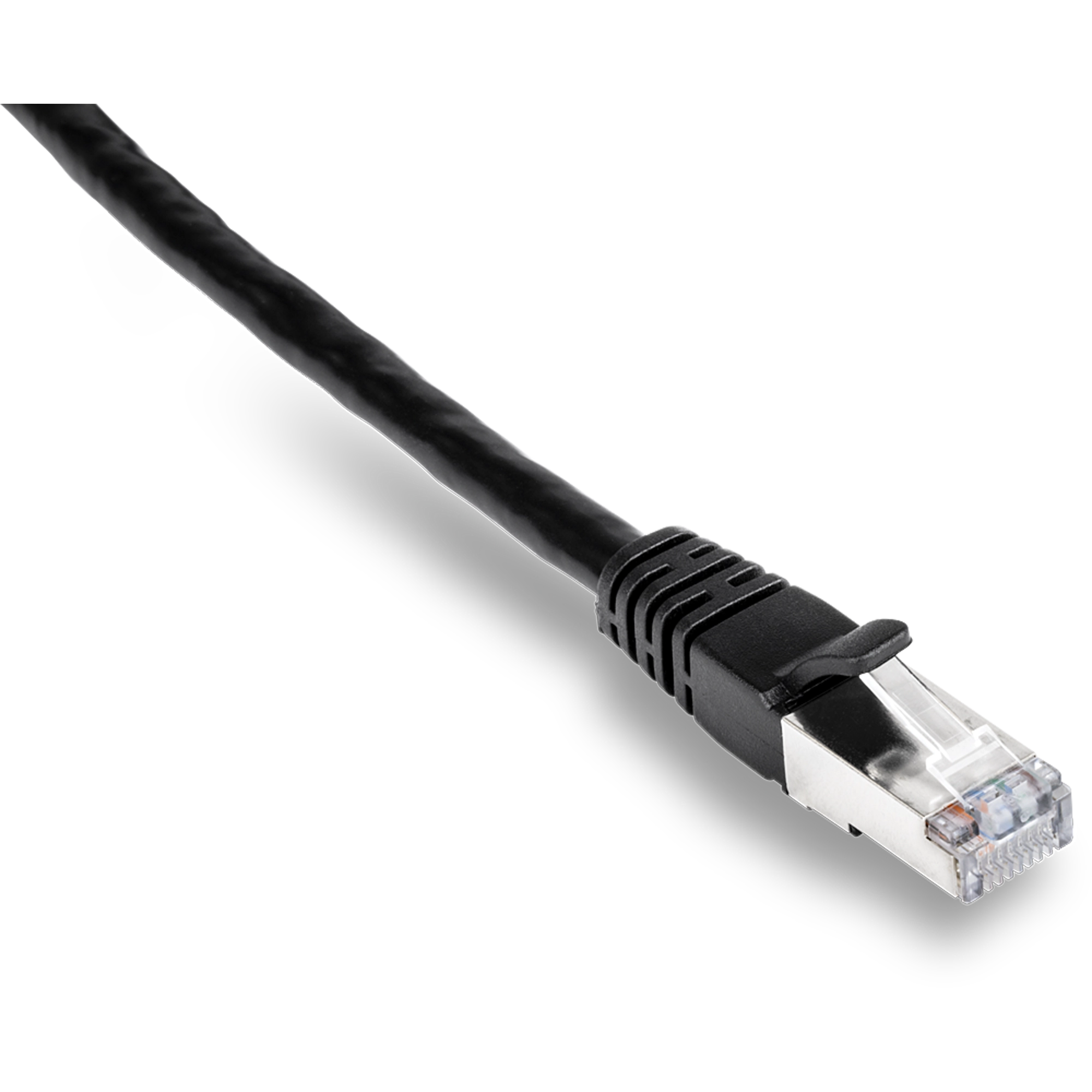

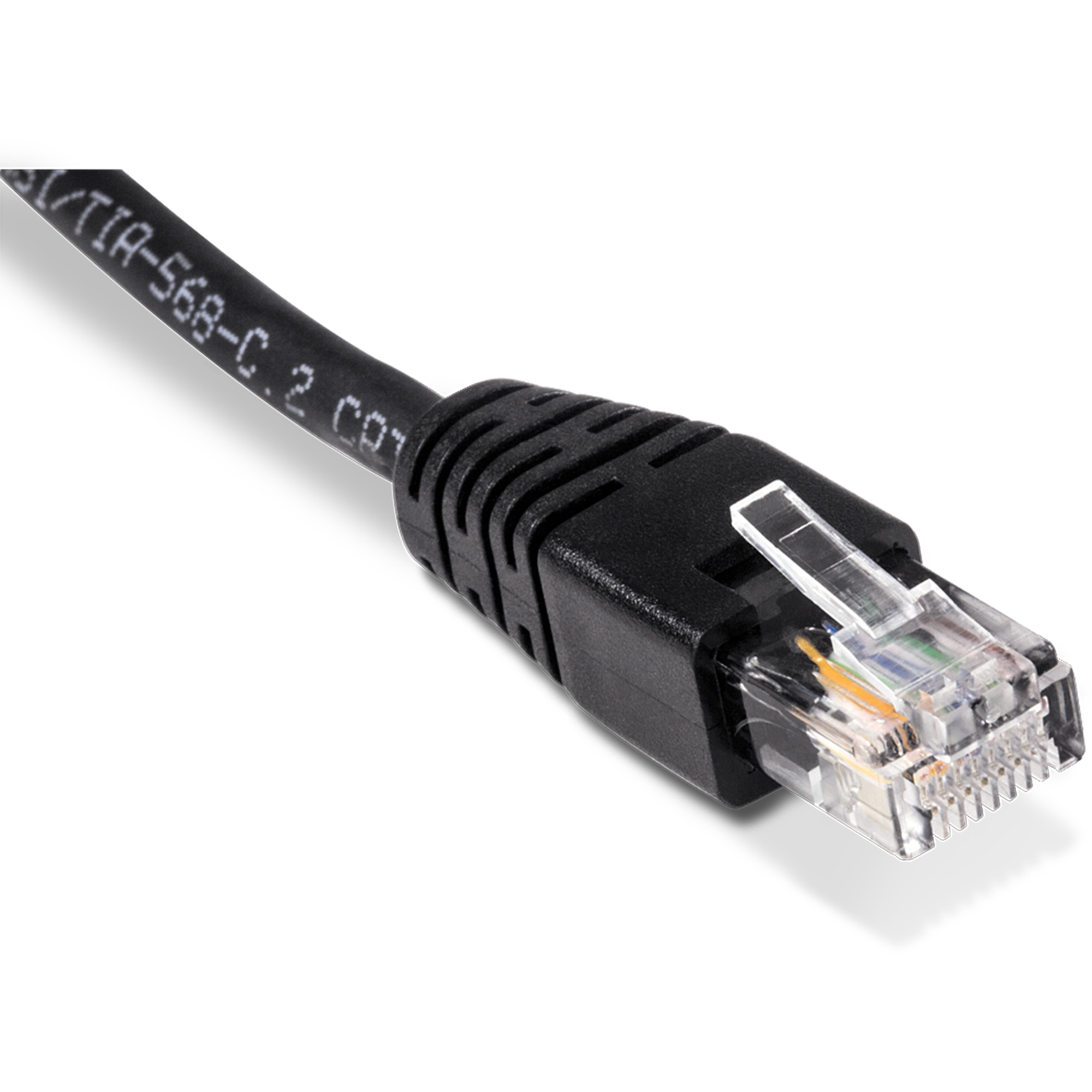

  • 1 x RJ-45 network interface
  • IP67 rated
Features
  • Max. contact resistance: 20Ω
  • Min. insulation resistance: DC 200V 10ms 10MΩ
  • IP67 rating ensures protection from liquid moisture and fine particulates
  • PUR jacket resists oil and other contaminants
Operating Temperature
  • -25° – 80° C (-13° – 176° F)
Operating Humidity
  • Max. 90 % non-condensing
Length
  • 2m (6.5 ft.)
Weight
  • 112g (4 oz.)
Warranty
  • 1 year

PACKAGE CONTENTS
  • TI-CD02
