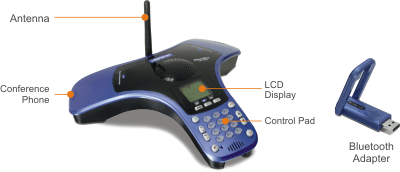

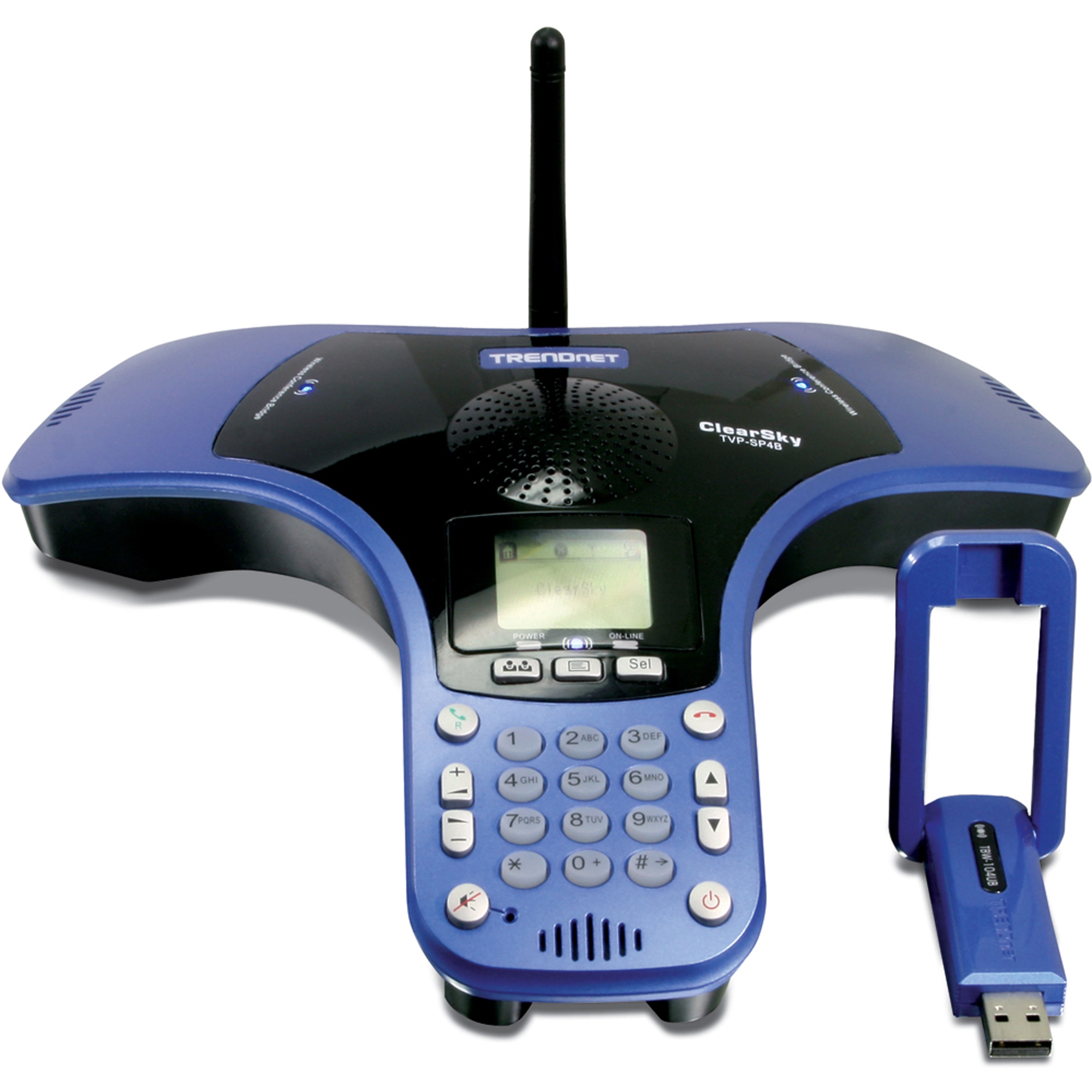

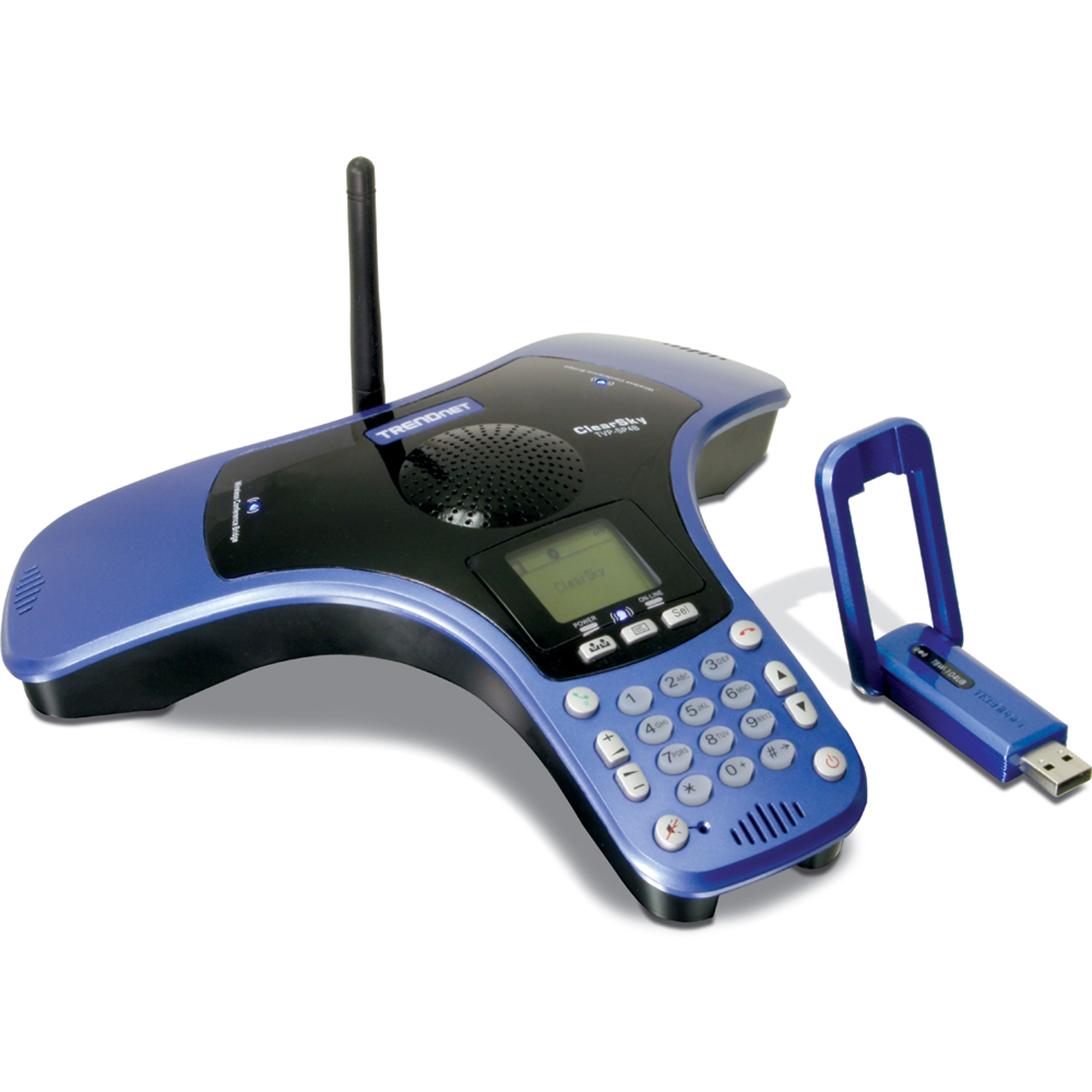

ClearSky™ Bluetooth® VoIP Conference Phone Kit

TVP-SP4BK (Version v1.0R)

  • Reduce conference call expenses
  • Make wireless crystal clear conference calls from any room in your office
  • Enjoy interference free Bluetooth™ wireless calling and advanced echo cancellation
  • View, manage and call Skype™ contacts directly from the conference phone

The ClearSky™ VoIP Bluetooth Conference Phone Kit allows you to hold quality conference calls through a Bluetooth connection. Advanced echo cancellation technology and superior noise suppression design provides a business quality conferencing experience. This Bluetooth Class I device can easily hold conference calls wirelessly up to 100 meters away.

  • Compliant with Bluetooth v2.0 Specification with EDR (Enhanced Data Rate) support
  • Backward compatible with Bluetooth v1.1 and v1.2 devices
  • Compliant with Class I Bluetooth Operations
  • Advanced acoustic echo cancellation technology and Superior noise suppression
  • Support Full-Speed Bluetooth operation with Full Piconet support
  • Support Graphical LCD display with status Indicators
  • Headset support for voice communication such as Skype, MSN Messenger, and Yahoo Messenger
  • Full Skype support allows users to use Skype features directly from the phone (such as SkypeIn™ calls, SkypeOut™, Status change, Conference Call and etc.)
  • Compatible with Windows 2000/XP Operating Systems
  • Multi-Language LCD User Interface Support (English, French, German, Spanish & Italian)
  • ClearSky Long Range Support up to 100 meters(328 ft.) (depends on the environment)
  • 2-year limited warranty
Hardware
Standards
  • Class I Bluetooth v2.0 with EDR
  • Backward Compatible with Bluetooth v1.1, v1.2
Interface
  • Mini-B USB Connector for charging
  • 3 built-in mono microphone
  • 1 built-in mono speaker
Adapter Interface USB 1.1, 2.0 / External Dipole Antenna
Display 128 x 80 pixel (STN LCD with back light)
LED Indicator Power, MIC enable, Mute, Online
Battery

3.7V 650mAh Lithium-ion Rechargeable Battery (built-in)
Cable Type A to Mini-B USB Cable (1m / 3ft.) for charging
Power Consumption
  • Normal Mode: 30 days
  • Stand by Mode: 72+ hours
  • Talk Time: 4+ hours
Dimensions
  • Bridge: 242 x 242 x 54 mm (9.5 x 9.5 x 2.1 in.)
  • Adapter: 71.25 x 35.6 x 11.25 mm (2.8 x 1.4 x 0.44 in.)
Unit Weight
  • Bridge: 0.5kg (1.1lb)
  • Adapter: 10 g (0.35 oz.)
Temperature
  • Operation: 0°~ 50°C (32°F~122°F)
  • Storage: -20°~ 70°C (-4°F~158°F)
Humidity 10~90%
Certifications CE, FCC
Phone Features
Volume
  • Volume up: Vol +
  • Volume down: Vol -
  • Mute
Skype Support
  • Sync Contact list, History, SkypeIn, SkyOut
  • Conference Call, Skype Credit Status
  • Support Status Change (Online, Offline, Skype Me, Away, Not Available, Do not Disturb and Invisible)
Bluetooth
Frequency 2.4 ~ 2.4835 GHz ISM Band
Spread Spectrum Frequency Hopping and Adaptive Frequency Hopping
RF Output Power 17dBm (typical)
Receiving Sensitivity -90dBm@0.1%BER ( typical )
Date Range Up to 100m (328 ft.) depends on environment

PACKAGE CONTENTS
  • TVP-SP4B
  • TBW-104UB
  • Multi-Language Quick Installation Guide
  • CD-ROM (Driver/User's Guide)
  • USB Cable (1m/3 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
