2-Port PS/2 / USB KVM Switch Kit w/ Audio

TK-210K (Version 2.1R)

  • 2-port KVM switch with VGA and PS/2 connection to computers and audio device
  • Use 2 bonus USB ports to instantly network your peripherals
  • Listen to music from one computer while working on the other
  • All required cabling included
DISCONTINUED PRODUCT
The TK-210K (Version 2.1R) has been discontinued. For a list of discontinued products, click here.

TRENDnet's TK-210K 2-port USB and PS/2 KVM Switch with Audio & Microphone kit lets you control 2 USB enabled multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. TK-210K not only allows you to share your monitor, keyboard and mouse, but with the build-in 2-port USB hub, you can also share up to two USB devices. With just a simple press of a button, you can select the PC that you would like to operate, eliminating the hassle of cable swapping between 2 PCs. TRENDnet's TK-210K comes with a 2-port USB KVM switch and two sets of cables. With it's Hot-Plug, Auto-Scan, Audible Feedback and Hot-Key operating features, the TK-210Kis the perfect choice for managing 2 PCs.

  • Use one keyboard, monitor, and mouse to control two computers
  • PS/2 and USB Keyboard/Mouse emulations
  • 2-Port KVM Switch in compact size design
  • Built-in 2-Port USB 1.1 Hub for sharing USB devices
  • UHCI, OHCI USB interface support
  • Support very High Video Quality, up to 1920 x 1440
  • Includes two sets of KVM, USB, and Audio & Microphone cables
  • Supports computers with Windows 95/98/NT/ME/2000/XP, and Linux
  • Multi-platform support for PC and Macintosh G3 / G4 / iMac
  • Hot-Plug feature; add PCs or remove connected PCs for maintenance without powering down the KVM switch or other PC's
  • No software required, easy PC selection via Push Button or Hot-Keys
  • Auto-Scan Mode for monitoring PCs
  • LED display for easy status monitoring
  • Beeping sound for port switching confirmation
  • 2-year limited warranty
Hardware

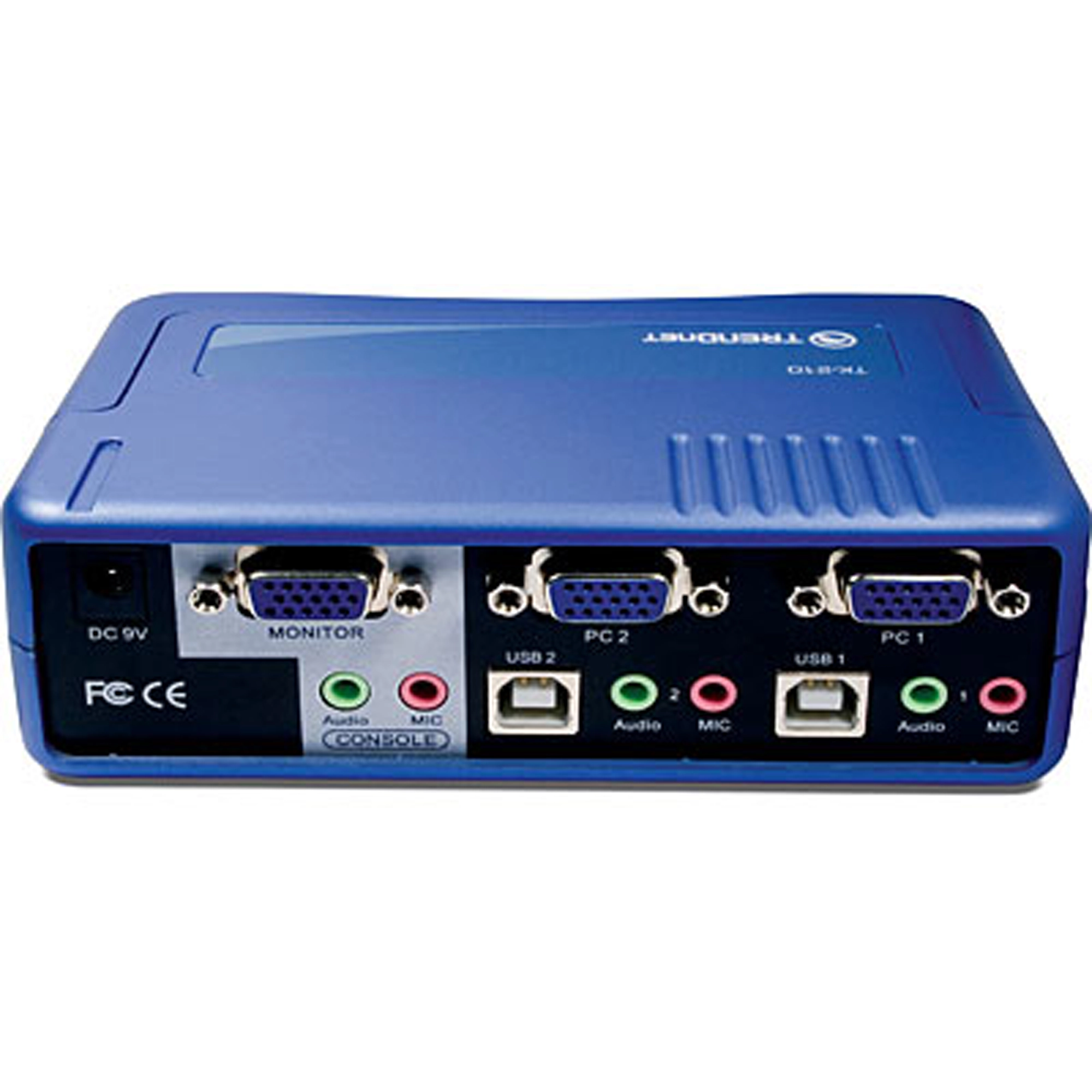

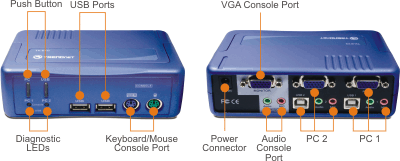

PC Port Connectors:
  • 2 x USB Type B female port
  • 2 x VGA HDB15 (15-pin) female connector
  • 2 x 3.5mm audio jack
  • 2 x 3.5mm microphone jack

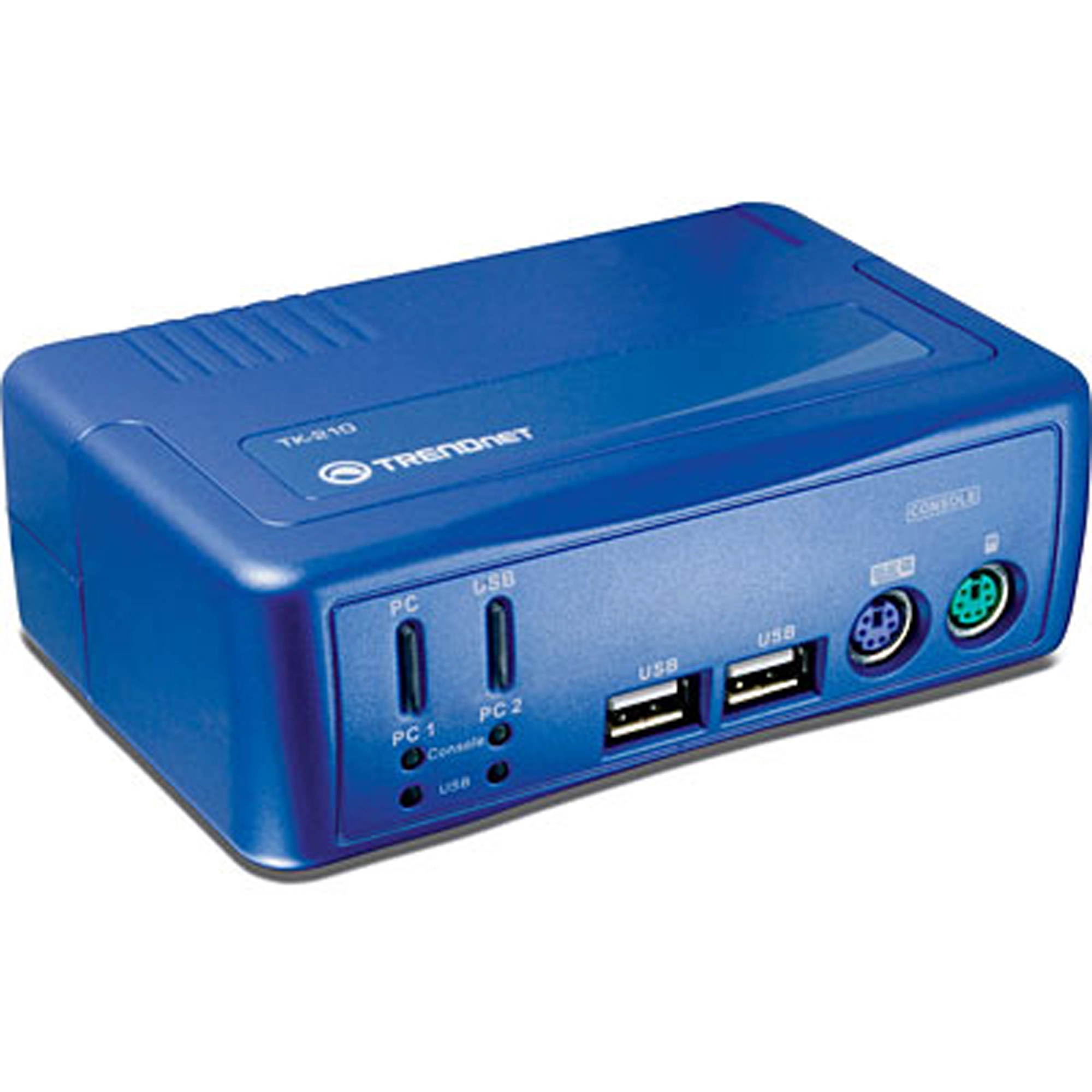

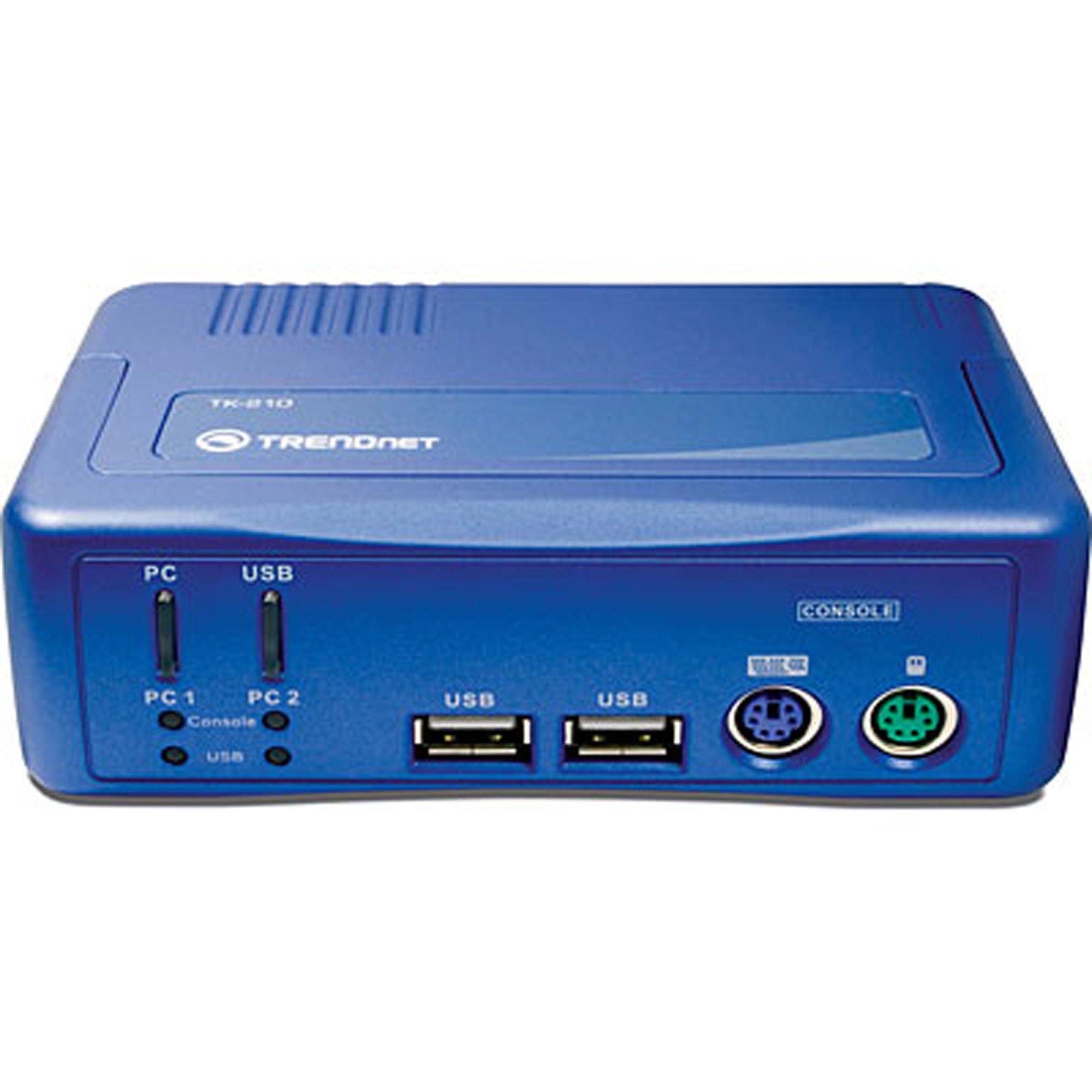

Console Port Connectors:
  • 2 x USB Type A female port
  • 1 x PS/2 keyboard 6-pin mini-DIN female
  • 1 x PS/2 mouse 6-pin mini-DIN female
  • 1 x VGA HDB15 (15-pin) female
  • 1 x 3.5mm audio jack
  • 1 x 3.5mm microphone jack
KVM Cable:
  • 2 x 3-in-1 KVM cable (male to male), 1.2 meters (4 feet)
  • 2 x USB A-B cable (male to male), 1.2 meters (4 feet)
  • 2 x Audio+Microphone cable, 1.2 meters (4 feet)
VGA Resolution: 1920 x 1440
Port Selection:Push Buttons and Hot-Keys
Auto-Scan Intervals: 10 seconds (non-adjustable)
Power Supply: Powered via PS/2 or USB Interface. Optional 9V DC 800mA adapter
Dimensions (L x W x H):137 x 88 x 44 mm (5.39 x 3.46 x 1.73 inches)
Weight: 295 g. (10.5 Oz.)
Temperature:
  • Operating: 0° ~ 40°C (32° ~104° F)
  • Storage: -20° ~ 60°C (-4° ~ 140° F)
Humidity:0%~90% RH, Non-Condensing
Emissions: FCC, CE



All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
